K2 Systems 4000051 Structural Rail Connector User Guide

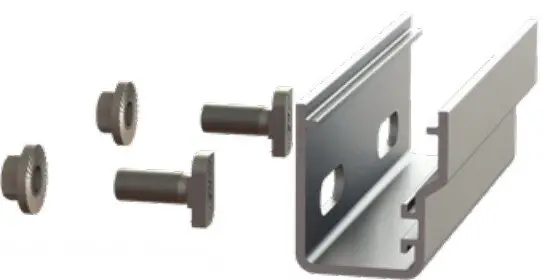

Components
| Part Number | Description |
| 4000051 | Rail Connector CR 44-X, Set, Mill |
| 4000052 | Rail Connector CR 44-X, Set, Dark |
| 4000385 | Rincon CR 48-X,48-XL Strict Set, Mill |
| 4000386 | Rincon CR 48-X,48-XL Strict Set, Dark |
| 4001196 | Rail Connector UL 2703 Set, CR80, Mill |
Tools overview
3 mm dep socket T Torque 25.8 ft-lbs
Assembly

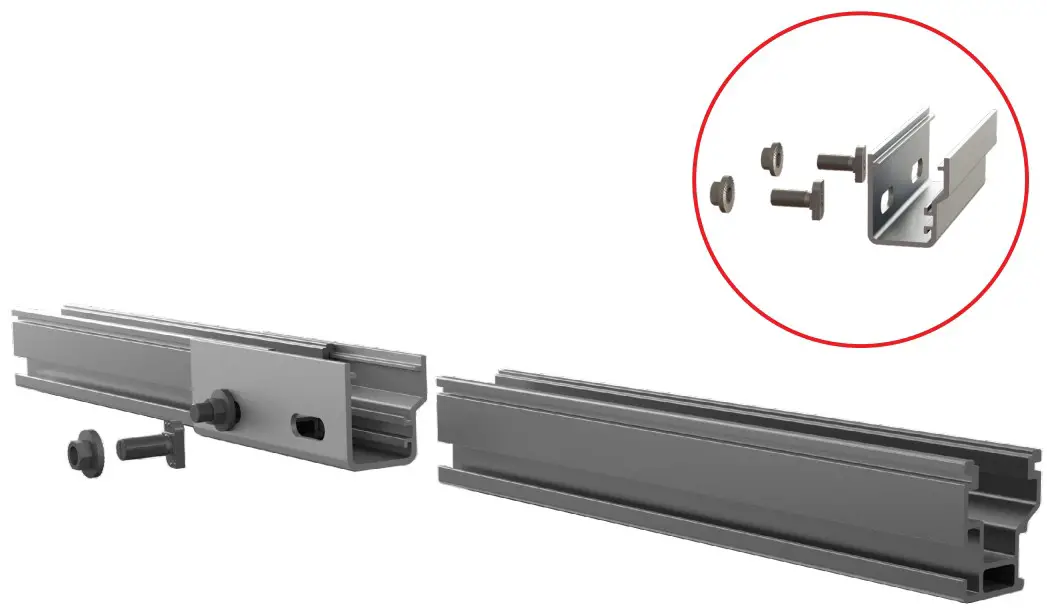

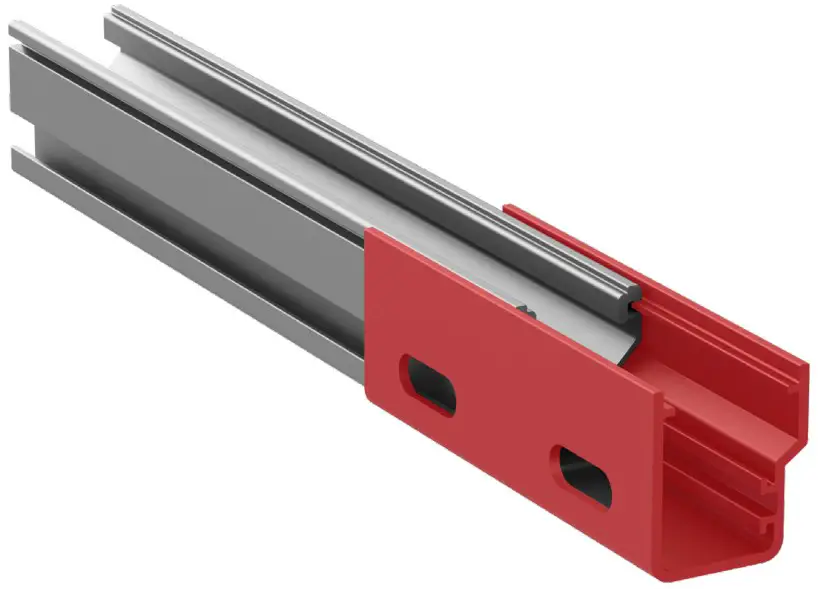

Slide the rail connector onto compatible CrossRail (CrossRail 48-X shown). The railconnector contains mating features and must be inserted prior to aligning the rails together.

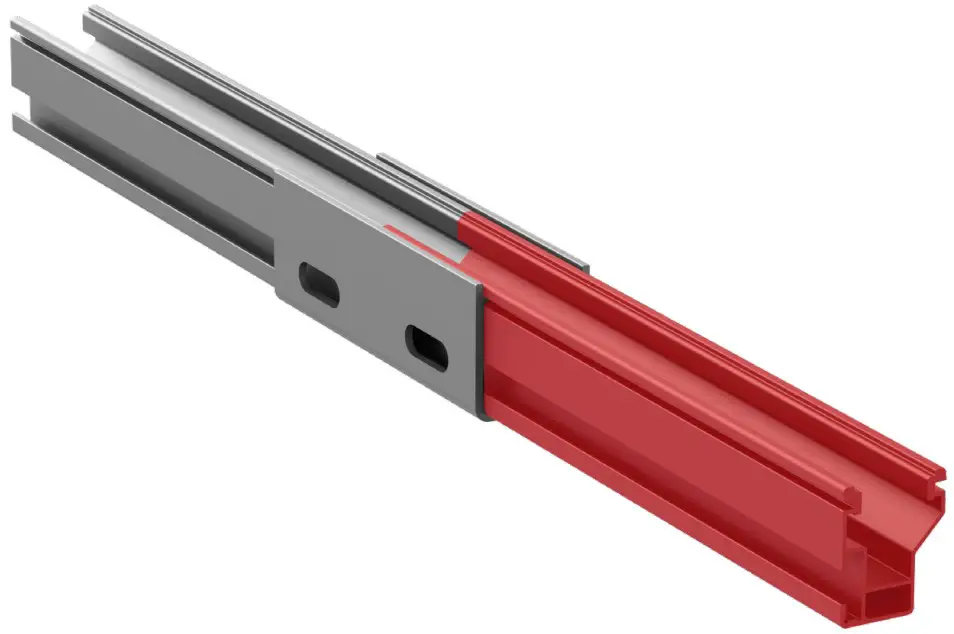

- Align the two rail ends next to each other and center the rail connector between the two rails.

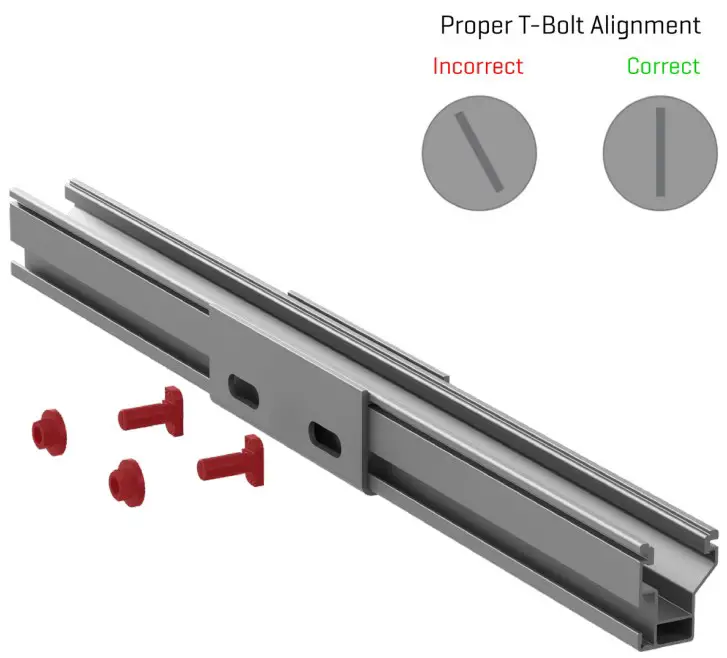

- Attach the rail connector using two M10 T-Bolts (use bonding T-Bolts with dark rail) and two hex nuts. Ensure that the slot on the bottom of the T-Bolt is vertical, indicating that the T Bolt head is properly engaged in the rail channel.
Torque the serrated hex nuts to 25.8 ft-lbs (35 Nm).
Note: Please refer to the system and state-specific engineering letters for allowable spans, limitations and installation notes regarding the capabilities of CrossRail and compatible Rail Connector.
Slide the rail connector onto compatible CrossRail (CrossRail 48-X shown). The railconnector contains mating features and must be inserted prior to aligning the rails together.
