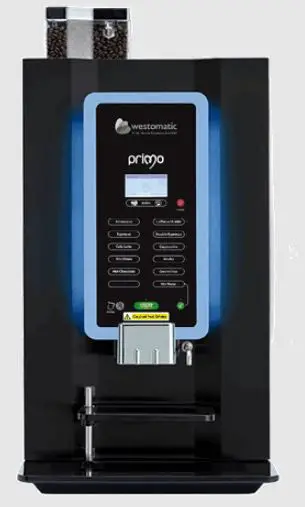

westomatic primo MAXI Cleaning Coffee Grinder Blades
INSTRUCTIONS
These instructions show how to clean the coffee grinder if:
- It needs preventative maintenance (annually)
- Or if no ground coffee is being produced.
*The ground coffee in the outlet can unintentionally swell because of water splashing upwards when the piston is going down to start position after making a recipe.
Check if there is any water visible above the piston when it has reached the rest position.
If so: take out the inlet-hose brewer on the front-side and blow on it: there should be an open connection with the rest water bin on top of the normal waste bin.

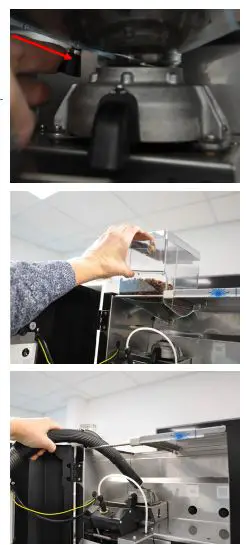

- Turn off machine. Close the bean hopper slide moving to the right (downwards).
- Remove the complete bean hopper from the machine.
- Using a vacuum – remove coffee beans from top of grinder.

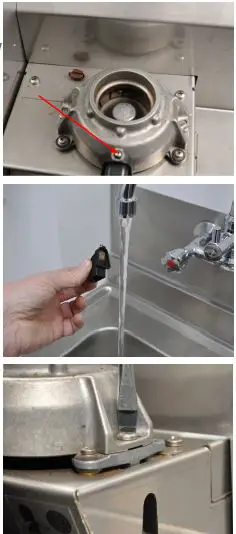

- Loosen the screw on the top. Take away plastic outlet, sliding upper part away from grinder.
- Clean/Renew Grinder outlet.
PN:1057039. *make sure plastic is not cracked - Unscrew both screws from the aluminium grinder head (L & R).

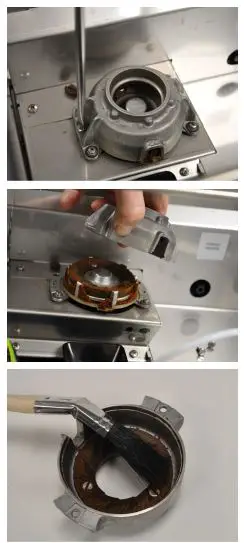

- Take out the left screw.
- Take away the upper aluminum (fixed disc) head of the grinder.

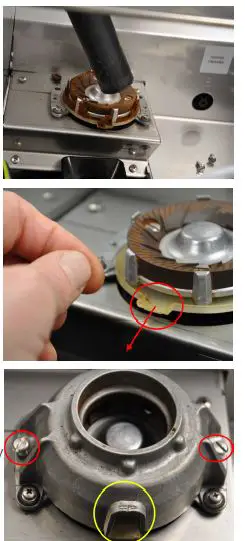

- Clean the upper ceramic disc with a brush and vacuum cleaner.
- Clean the rotating disc -using a vacuum cleaner and a brush.
- Ensure plastic grinder bottom is facing front side of the machine.
- Fit head back, position correctly and replace screws.

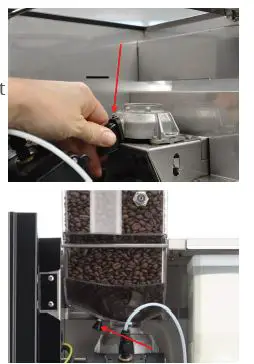

- Refit the grinder outlet – starting at the bottom and using gentle force.
- Fit bean hopper back into machine, fill with beans and open bottom slide.
- Close the door.
- Switch on the machine
- Take 2-3 coffees – this fills up the grinder again.
- Check the 3rd drink for correct dosing time.
