Heat flux Data Logger Selection Guide

Introduction

Hukseflux offers a wide range of sensors for heat flux and temperature measurement. The thermopile heat flux sensor and thermocouple temperature sensor are both passive sensors; they do not require power. Such sensors can be connected directly to data loggers and amplifiers. The heat flux in W/m2 is calculated by dividing the heat flux sensor’s output, a small voltage, by its sensitivity. The sensitivity is provided with the sensor on its certificate and can be programmed into the data logger

Optimise system design / reduce cost

The following text helps you to select the right electronics for your application. Selecting the right electronics – sensor combination helps reducing total system costs.

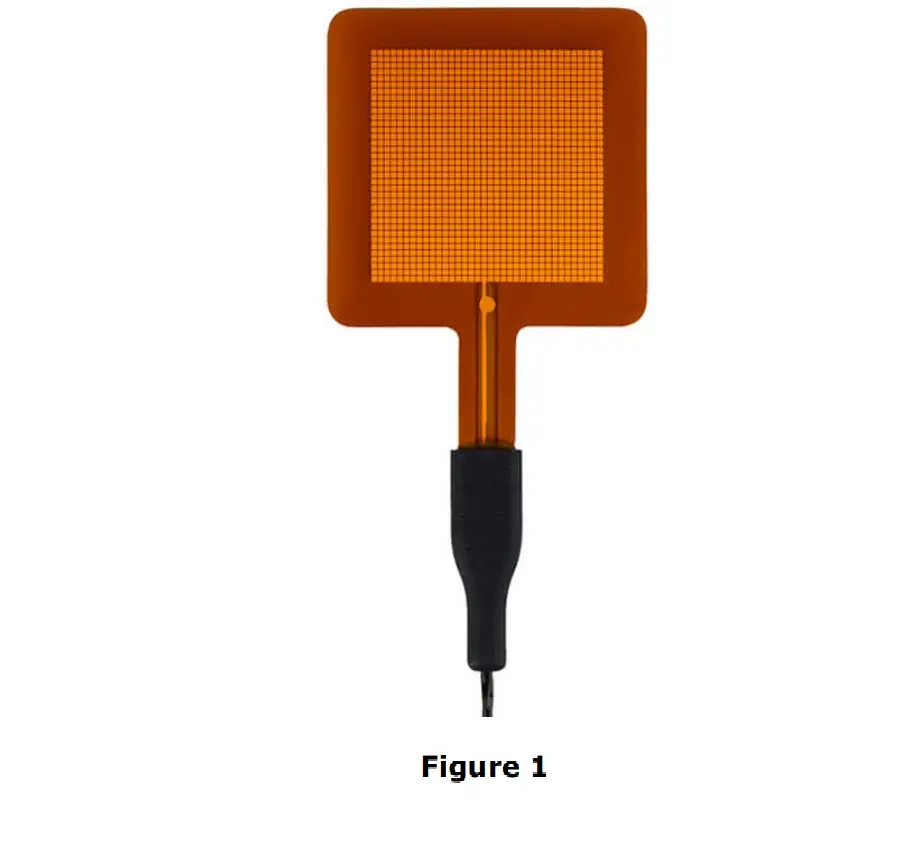

Figure 1 FHF05-50X50 foil heat flux sensor with thermal spreaders: thin, flexible and versatile.

Step 1

Visit the Hukseflux YouTube channel:

• quick intro to heat flux (3 min);
• online course (40 min);
• separating radiation and convection (2 min);
• latest heat flux technology (2 min).

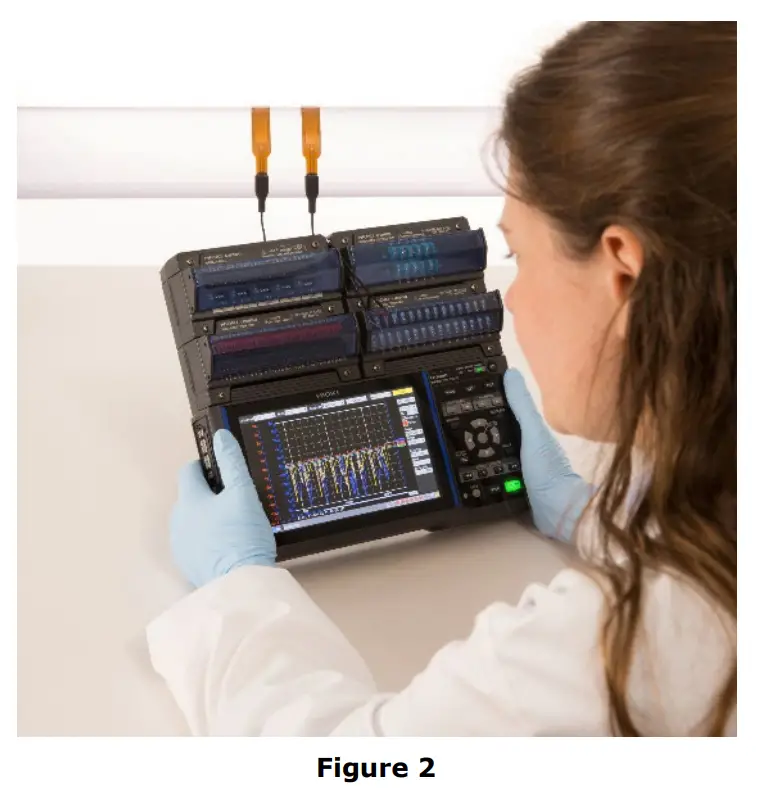

Figure 2 Hioki LR8450: can handle up to 120 heat flux sensors each with its own temperature measurement and display the measurement results simultaneously on screen.

Step 2

Specify your measurement:

• describe the purpose of the experiment;
• estimate the heat flux levels in W/m2;
• estimate the temperature levels in °C;
• select a suitable sensor: most common examples are in Table 1.

Step 3

Estimate the output range of the heat flux sensor in [x 10-6 V] using Table 1:

Microvolt output range = heat flux range in [W/m2] x sensitivity in [x 10-6 V/(W/m2)].

Copyright by Hukseflux. Version 2302. We reserve the right to change specifications without prior notice Page 1/4. For Hukseflux Thermal Sensors go to www.hukseflux.com or e-mail us: [email protected]

Step 4

Specify your electronics and sensors:

• look up the brand and model of data logger you have or want to use;
• estimate the number of heat flux – and temperature channels you need.

Step 5

Ask Hukseflux:

• send all information and specifications to Hukseflux, and ask for our input / suggestions.

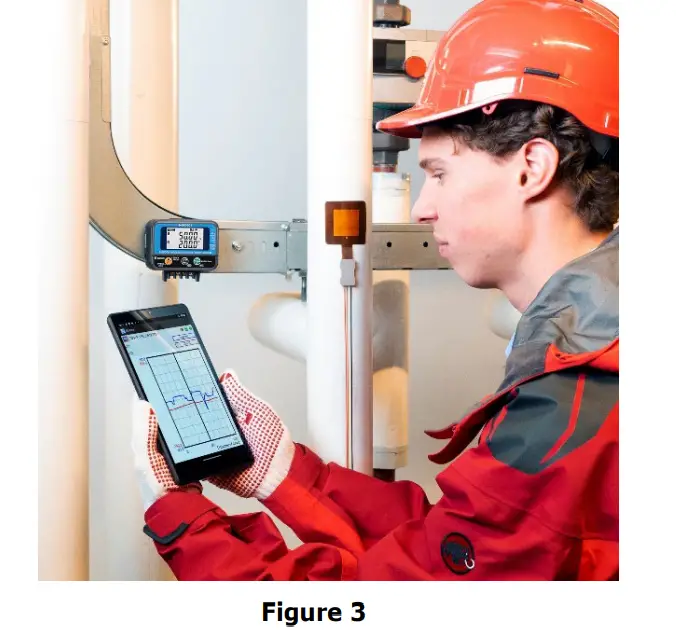

  Figure 3 Hioki LR8515 can transmit measurements of 1 sensor and 1 thermocouple via Bluetooth.

Heat flux sensors and the Hioki loggers

Working with sensors and the logger is convenient. See the application notes for the Hioki LR8432, LR8515 and LR8450. See the user manual for suggested solutions. See also our application note how to install am heat flux sensor. Read more about Hioki data logger LR8450 and FHF05 series in Battery EV Thermal Management.

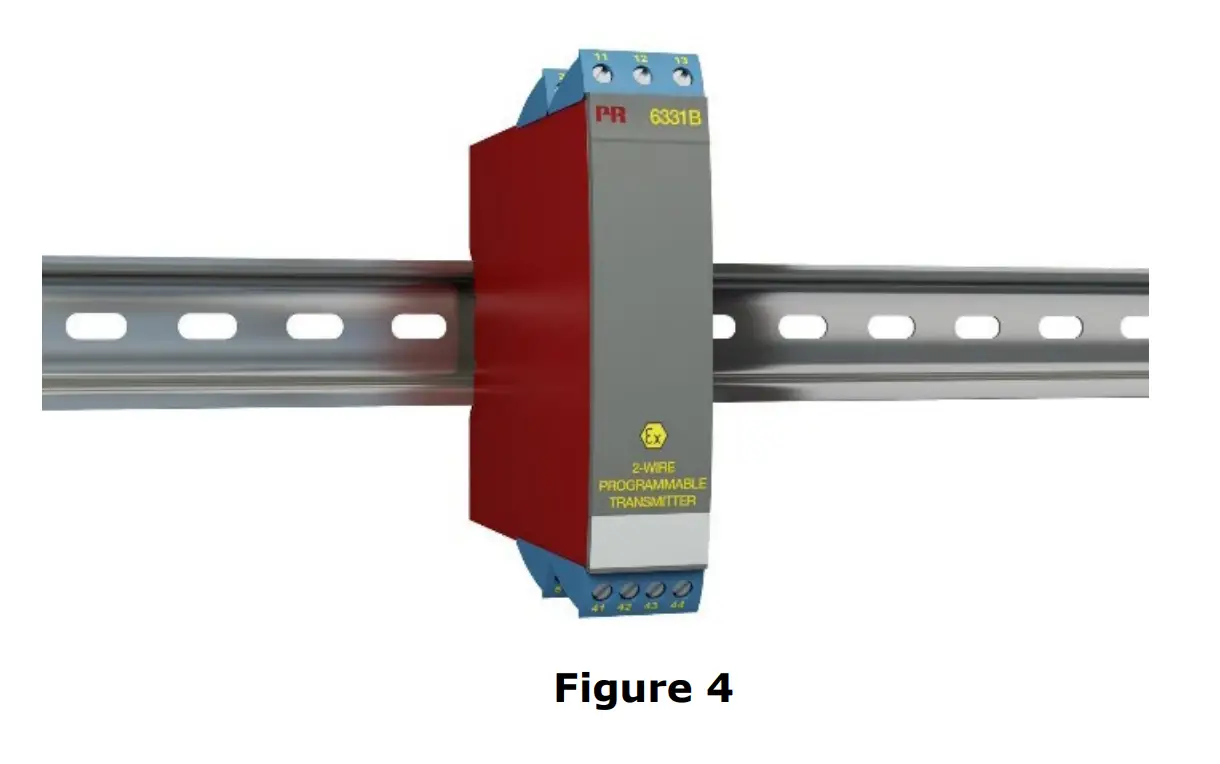

Figure 4 PR electronics PR6331B programmable transmitter, can be mounted vertically or horizontally on a DIN rail

Suggested use

Heat flux + temperature sensors and loggers are used to analyse the causes of temperature change. Also, they are used to validate mathematical CFD simulations.

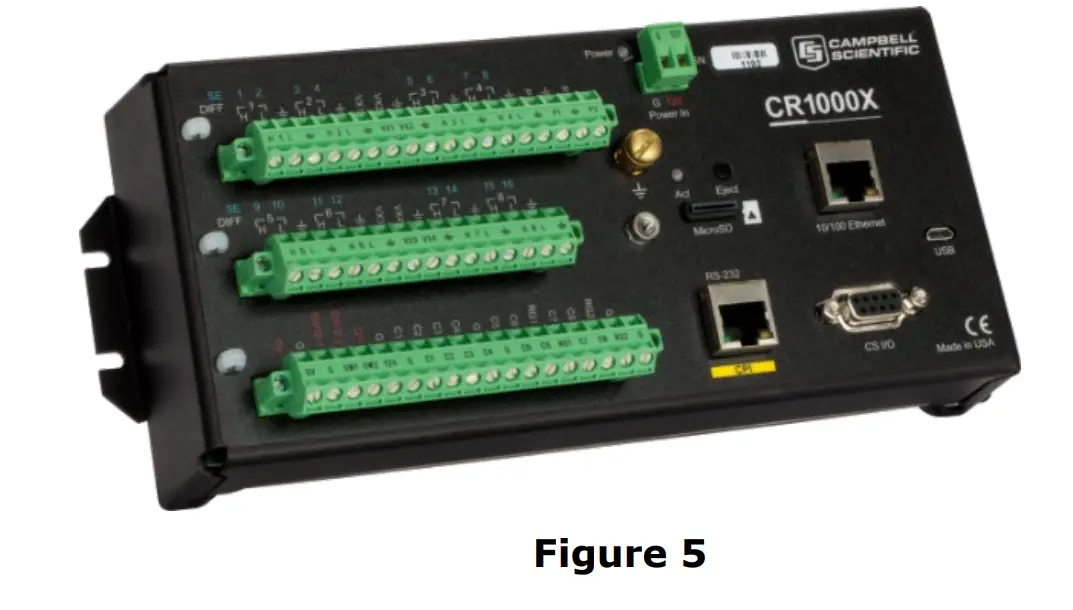

Figure 5 Campbell CR1000X: 8 differential sensor inputs, heat flux and thermocouples, Micro USB B connection, ethernet, MicroSD data storage expansion.

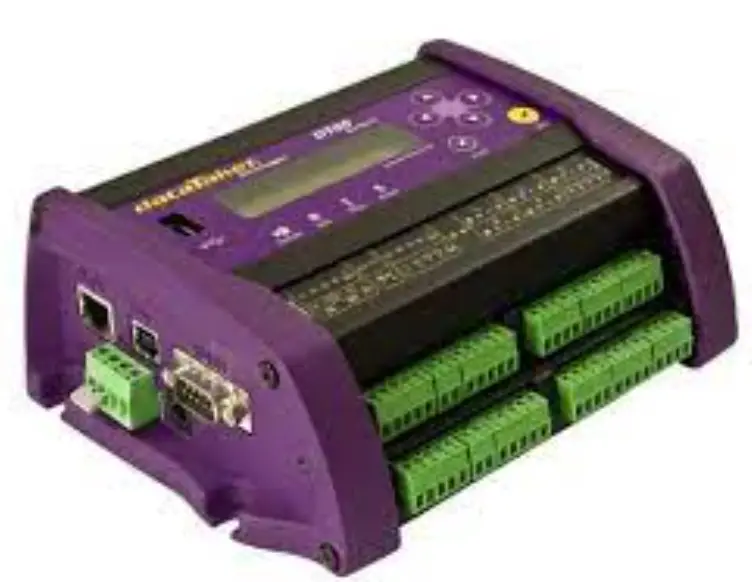

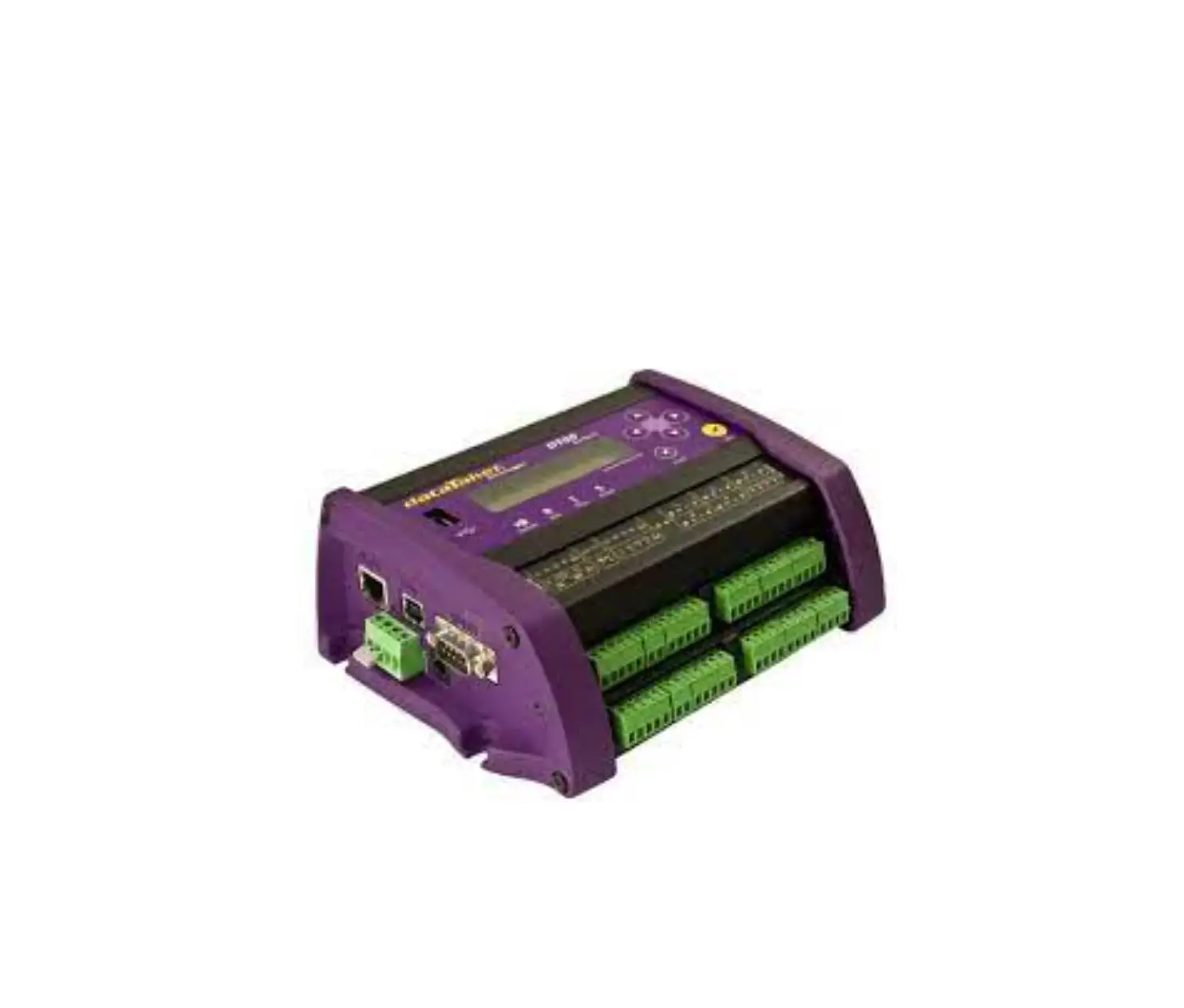

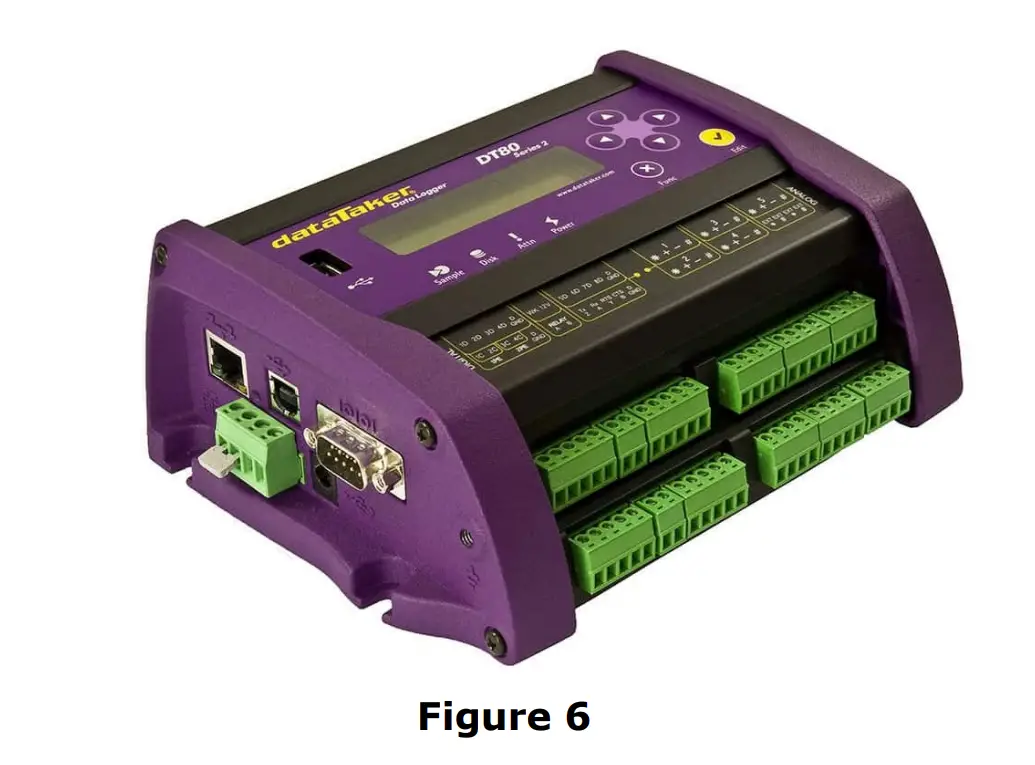

Figure 6 dataTaker: up to 15 sensor inputs, heat flux and thermocouples, USB memory for easy data and program transfers.

About Hukseflux

Hukseflux is the leading expert in measurement of energy transfer. We design and manufacture sensors and measuring systems that support the energy transition. We are market leaders in solar radiation- and heat flux measurement. Customers are served through the main office in the Netherlands, and locally owned representations in the USA, Brazil, India, China, Southeast Asia and Japan.

Interested in our products?
E-mail us at: [email protected]

Table 1 Examples of different Hukseflux heat flux sensors, their application, sensitivity, temperature sensors and rated operating ranges for temperature and heat flux. This table shows a summary only and does not show all sensor models, options and specifications. Contact Hukseflux for a final check of your proposed solution.

Table 2 Examples of different electronics compatible with Hukseflux heat flux sensors. This brochure shows a summary only and does not show all relevant electronics specifications. Contact Hukseflux for a final check of your proposed solution.

* For comparing purpose only. Calculation is a rough approximation order of magnitude.
** accessories required.
