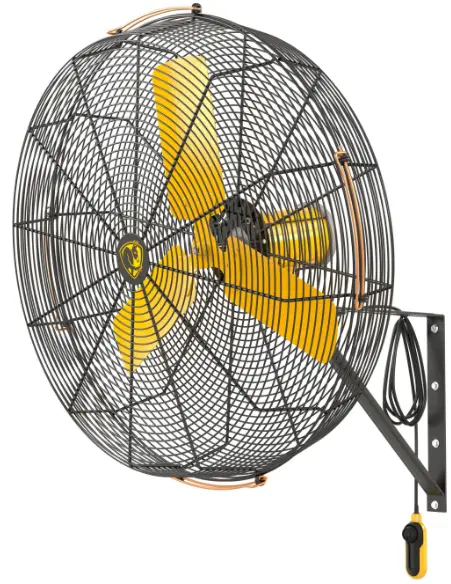

BIGASSFANS AirEye 30″ Wall Mount Fan
TECHNICAL SPECIFICATIONS
| Fan Size | Fan Weight* | Input Power | Max Amps | Max Power |
| 100–120 VAC, 1Ф, 50/60 Hz | 5.1 A | 386 W | ||
| 20 in. (508 mm) | 32 lb (14.5 kg) | 200–240 VAC, 1Ф, 50/60 Hz | 3.1 A | 392 W |
| 277 VAC, 1Ф, 50/60 Hz | 3.1 A | 508 W | ||
| 100–120 VAC, 1Ф, 50/60 Hz | 5.2 A | 396 W | ||
| 24 in. (610 mm) | 38 lb (17.2 kg) | 200–240 VAC, 1Ф, 50/60 Hz | 3.1 A | 400 W |
| 277 VAC, 1Ф, 50/60 Hz | 3.0 A | 501 W | ||
| 100–120 VAC, 1Ф, 50/60 Hz | 5.0 A | 384 W | ||
| 30 in. (762 mm) | 45 lb (20.4 kg) | 200–240 VAC, 1Ф, 50/60 Hz | 3.0 A | 390 W |
| 277 VAC, 1Ф, 50/60 Hz | 3.1 A | 508 W | ||
| 110–120 VAC, 1Ф, 50/60 Hz | 9.7 A | 711 W | ||
| 36 in. (914 mm) | 67.1 lb (30.4 kg) | 200–240 VAC, 1Ф, 50/60 Hz | 5.5 A | 669 W |
| 277 VAC, 1Ф, 50/60 Hz | 4.5 A | 716 W |

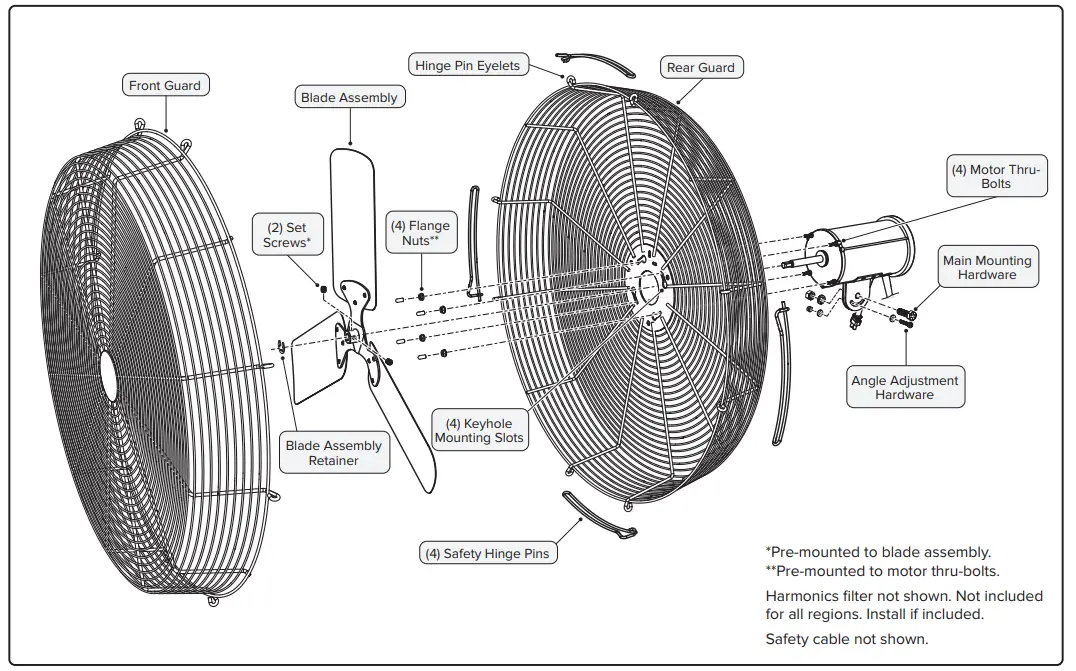

PARTS AND HARDWARE
MOTOR

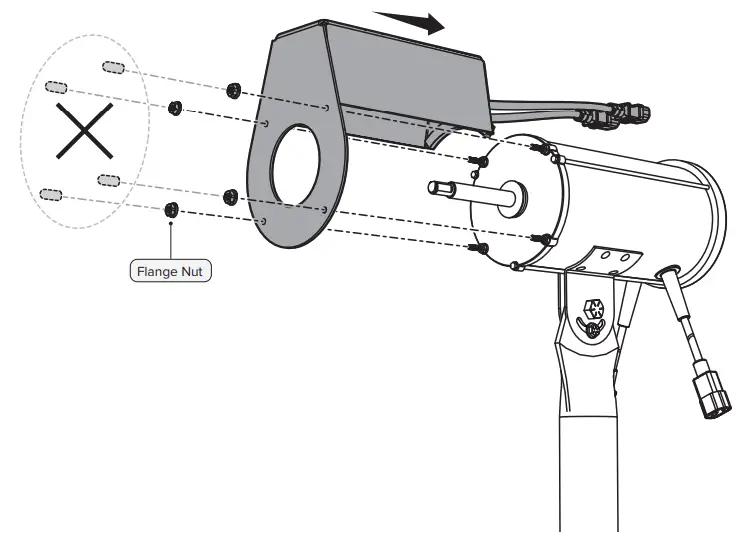

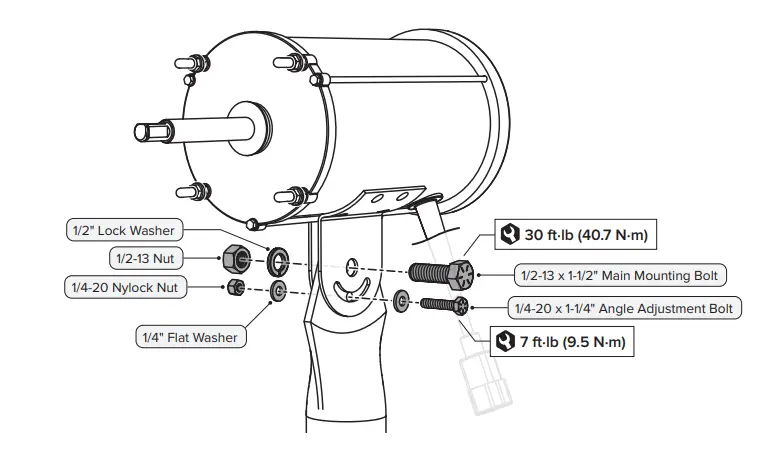

Make sure fan mount has been installed as specified in the mounting instructions. To adjust motor angle, loosen main mounting bolt and angle adjustment bolt.
HARMONICS FILTER (36 IN. [914 MM] FANS)
Select regions only. Install if included with your fan.
REAR GUARD
BLADE ASSEMBLY

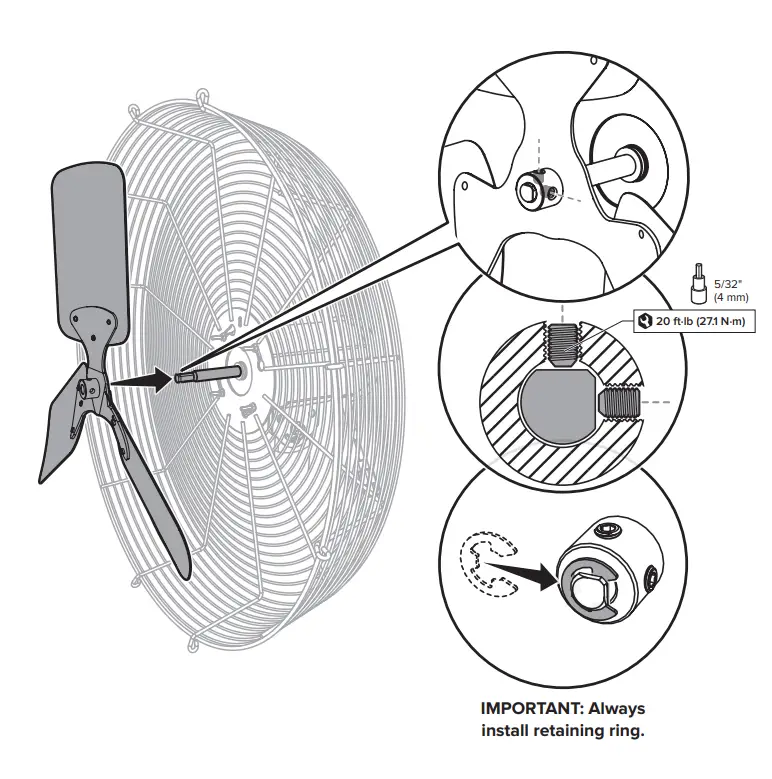

Ensure blade assembly is fully seated onto shoulder of shaft and set screws are aligned to flats of shaft.

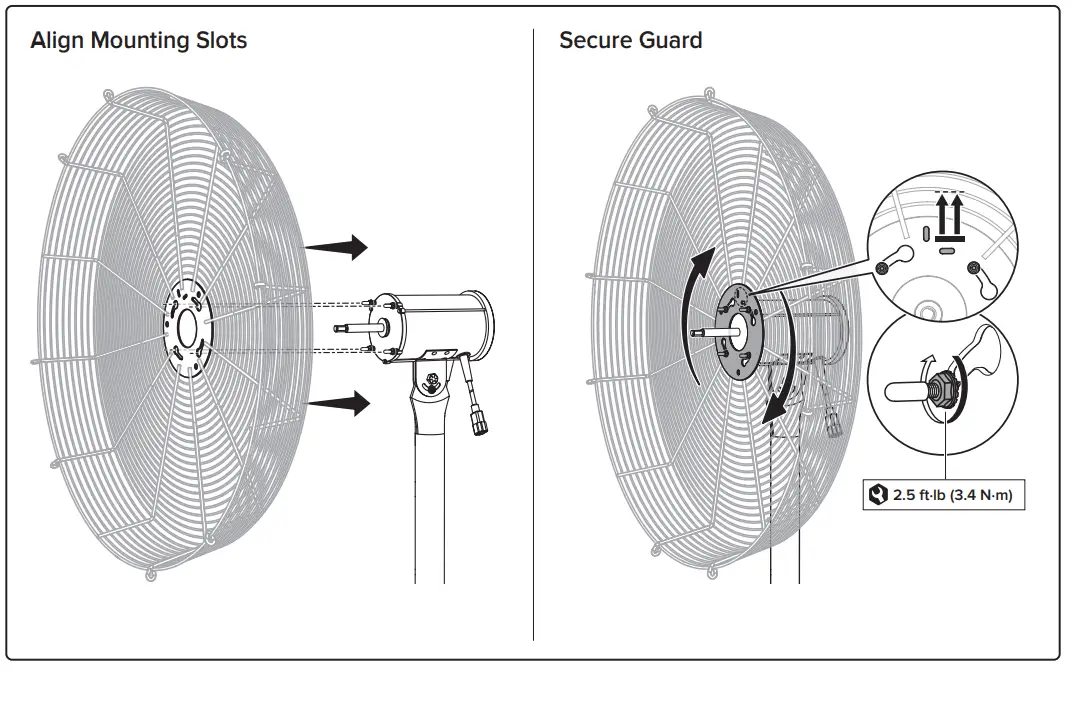

FRONT GUARD
If installing AirEye with Ion Technology, refer to the instructions that came with the ion generator before installing the front guard.

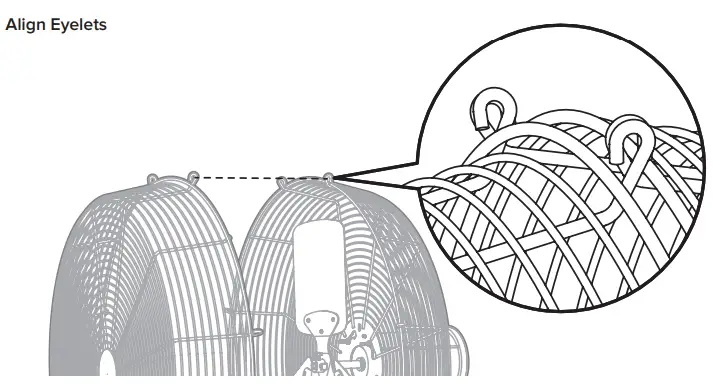

Align Eyelets

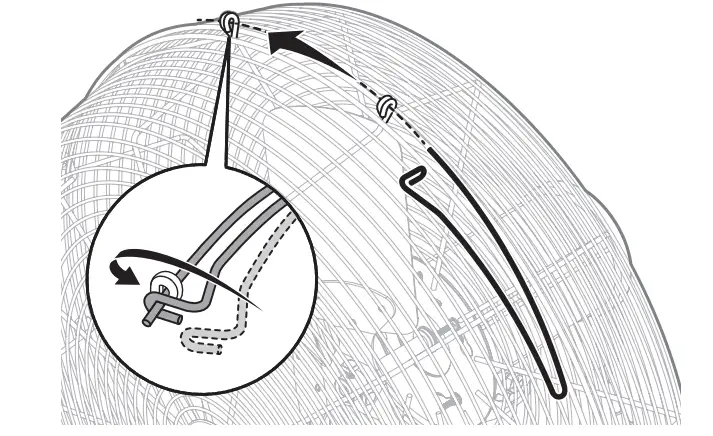

Fasten Hinge Pins
Start with topmost hinge.

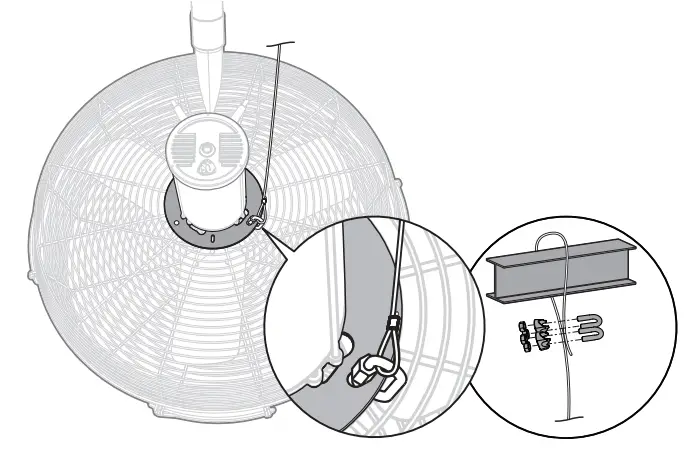

SAFETY CABLE
Do not attach safety cable to fan mount under any circumstances.

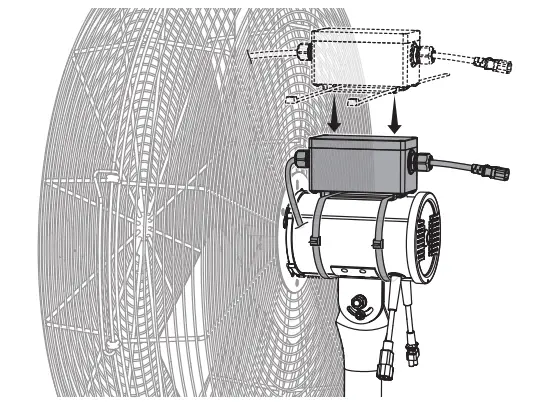

HARMONICS FILTER (20, 24, AND 30 IN. [508, 610, AND 762 MM] FANS)
Select regions only. Install if included with your fan.
ELECTRICAL CONNECTIONS

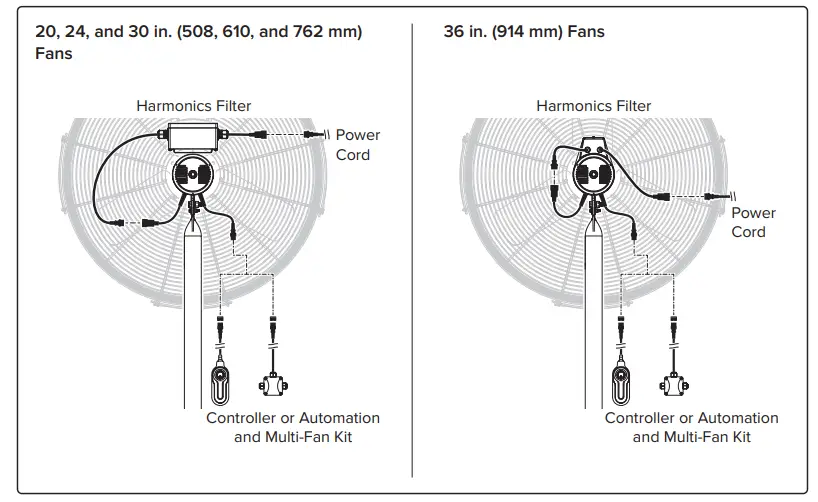

ELECTRICAL CONNECTIONS: FAN WITH HARMONICS FILTER

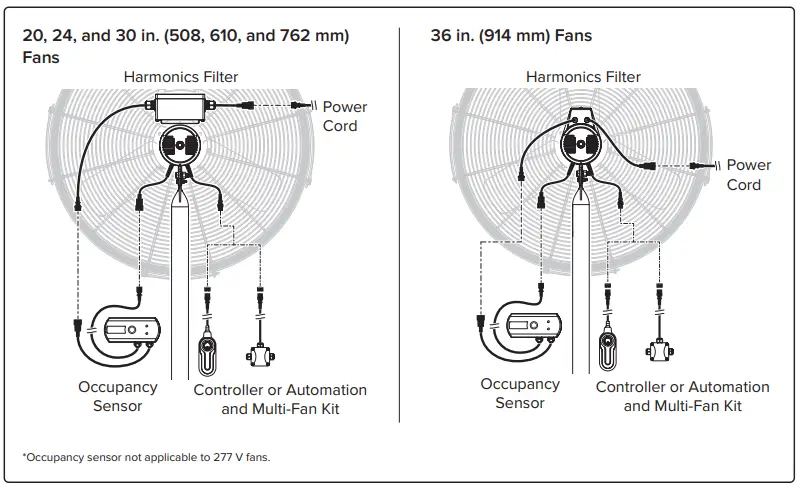

ELECTRICAL CONNECTIONS: FAN WITH OCCUPANCY SENSOR* AND HARMONICS FILTER

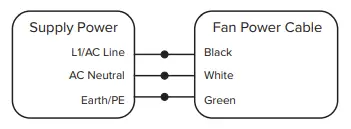

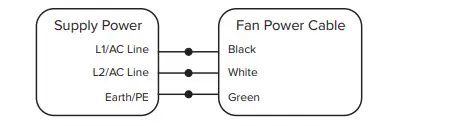

POWER WIRING: 277 V FANS
Single Phase (L1 + L2 + PE)
Single Phase (L1 + N + PE)
BIGASSFANS AirEye 30″ Wall Mount Fan
TECHNICAL SPECIFICATIONS
MOTOR
BLADE ASSEMBLY
ELECTRICAL CONNECTIONS: FAN WITH HARMONICS FILTER
ELECTRICAL CONNECTIONS: FAN WITH OCCUPANCY SENSOR* AND HARMONICS FILTER
POWER WIRING: 277 V FANS
