onn BWA21TM004C Tilting TV Wall Mount 19 Inch-50Inch
But Wait…There’s More!
What size TV does this TV Wall Mount support?Your TV should be between 19” and 50” screen size.
What is the maximum TV weight this Wall Mount will support?
Your TV should not be over 88 lbs.
What TV VESA pattern will this Wall Mount support?
50mm x 50mm, 75mm x 75mm, 100mm x 100mm,
100mm x 200mm, 150mm x 150mm, 200mm x 100mm, 200mm x 200mm, 200mm x 300mm, 200mm x 400mm, 300mm x 200mm, 300mm x 300mm, 300mm x 400mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm.
Which type of walls can the plastic anchors be used for installation?
Only use on concrete, stone, or masonry walls.
Can this product be used outdoors?
Using this product outdoors could lead to product failure and/or personal injury.
The Fine Print
CAUTION: Don’t use with products over 88 lbs to avoid injury or instability.
Thank you for your purchase.
This Limited Warranty covers any defects in material or workmanship for purchases made in the U.S.A. and Canada, and excludes claims from conditions, malfunctions or damage not resulting from defects in material or workmanship. The warranty duration is one year.
Keep your original proof of purchase (store receipt). If you find the product is defective, damaged or missing parts after inspection, DO NOT return to the store.
Need help?
We’re here for you every day
from 7 a.m. – 9 p.m. CST.
Give us a call at 1-888-516-2630
Please keep the Product Guide for future use.

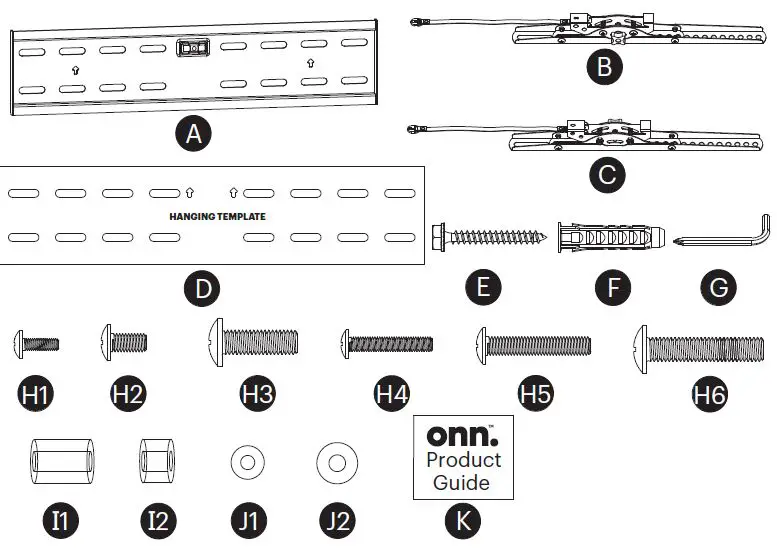

What’s in the Box?
Check to make sure you have everything below.
- A. Wallplate (x1)
- B. Left TV bracket (x1)
- C. Right TV bracket (x1)
- D. Hanging template (x1)
- E. M7x55mm Lag bolt (x4)
- F. Concrete anchor (x4)
- G. Allen wrench (x1)
- H1. M4x12mm screw (x4)
- H2. M6x12mm screw (x4)
- H3. M8x20mm screw (x4)
- H4. M4x35mm screw (x4)
- H5. M6x35mm screw (x4)
- H6. M8x35mm screw (x4)
- I1. M8x15mm spacer (x8)
- I2. M8x5mm spacer (x8)
- J1. M4 washer (x4)
- J2. M6/M8 washer (x4)
- K. Product Guide (x1)

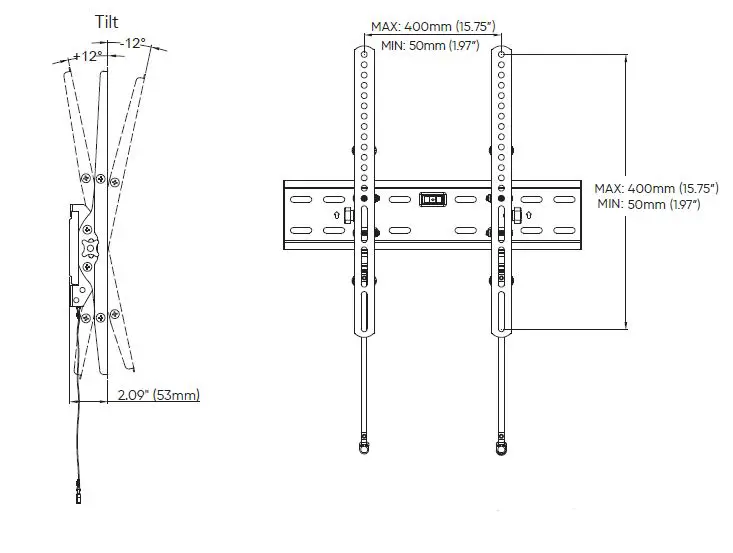

Get to Know Your Tilting Mount
VESA PATTERNS
- 50mm x 50mm,
- 75mm x 75mm,
- 100mm x 100mm,
- 100mm x 200mm,
- 150mm x 150mm,
- 200mm x 100mm,
- 200mm x 200mm,
- 200mm x 300mm
- 200mm x 400mm,
- 300mm x 200mm
- 300mm x 300mm,
- 300mm x 400mm
- 400mm x 200mm,
- 400mm x 300mm,
- 400mm x 400mm
Quick Latching
Mechanism Quick Release Cords
Let’s Get Started!

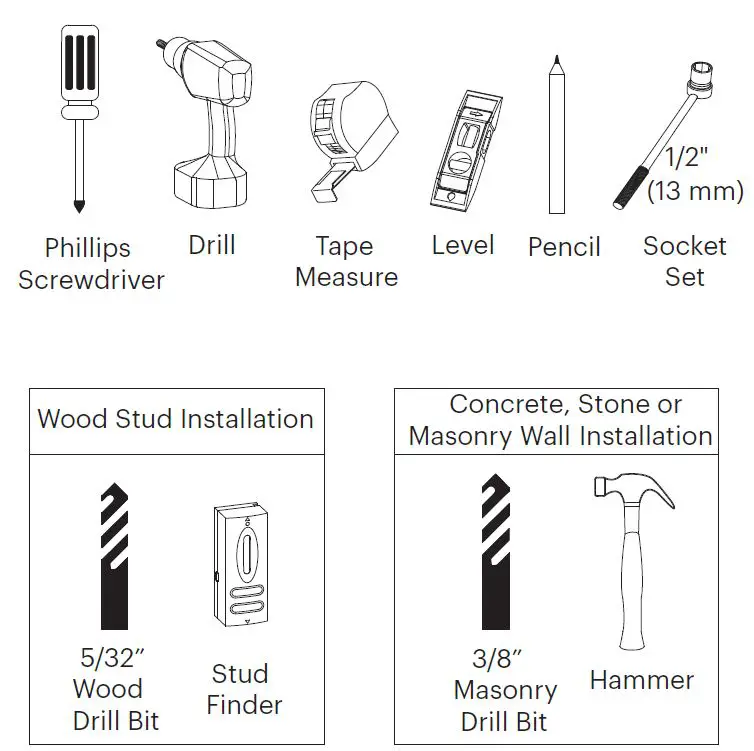

Here’s what you’ll need to get set up (not included):

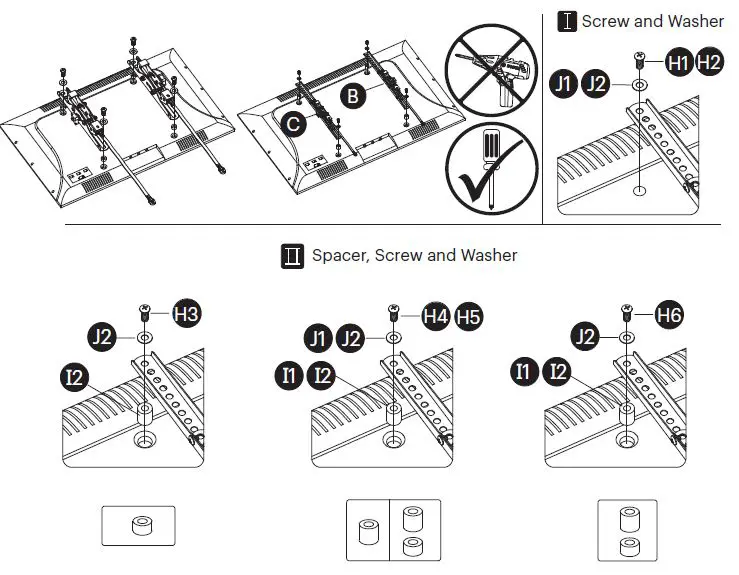

Step 1 – Attach TV Brackets to TV
Choose proper screws that fit your particular TV mounting holes. Use spacers and washers as needed, they are not always required. You will have screws, spacers and washers leftover. Discard all unused hardware after you have completed TV mount installation.
Step 2 – Attach Wall Plate to Wall
DHold Hanging template at a desired position, pre-drill marked 4 holes, and attach wall plate to the wall.
–For wood stud mounting, only use M7x55mm Lag bolts .E
–For concrete, stone or masonry wall, use both M7x55mm Lag bolts and Concrete anchor F .
Step 3 – Hang TV on Wall Plate

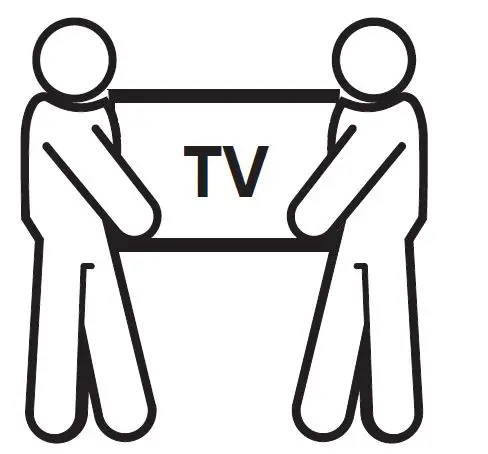

This step requires 2 or more people to complete. Hang TV to the wall plate and pull down the cords and release, you will hear the latches click into place.
Adjust the tilt angle by loosening the handles of TV brackets. Please remember to tighten the handles after adjustments.
