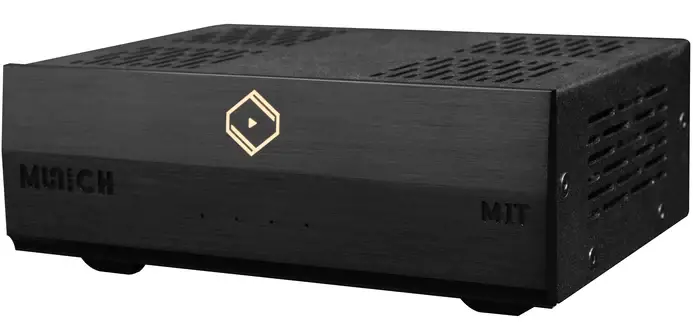

SILENT ANGEL M1T Digital Music Streamer

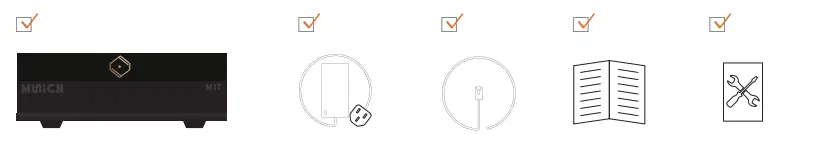

WHAT IN THE BOX

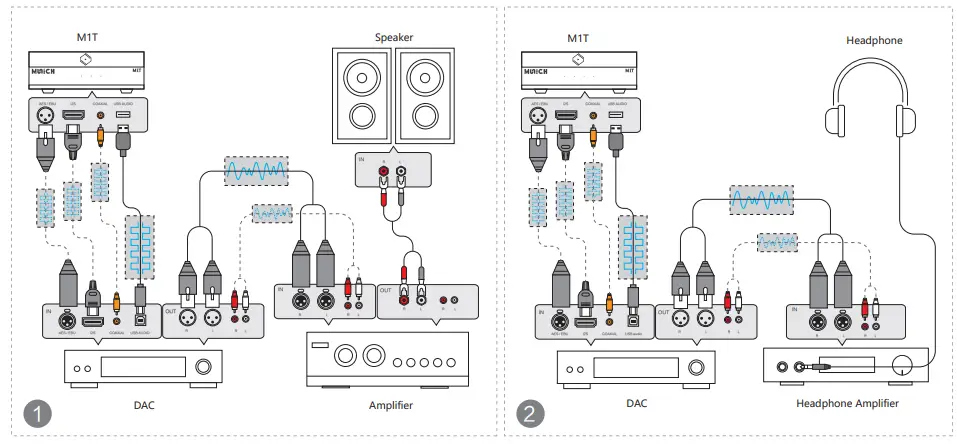

WIRING

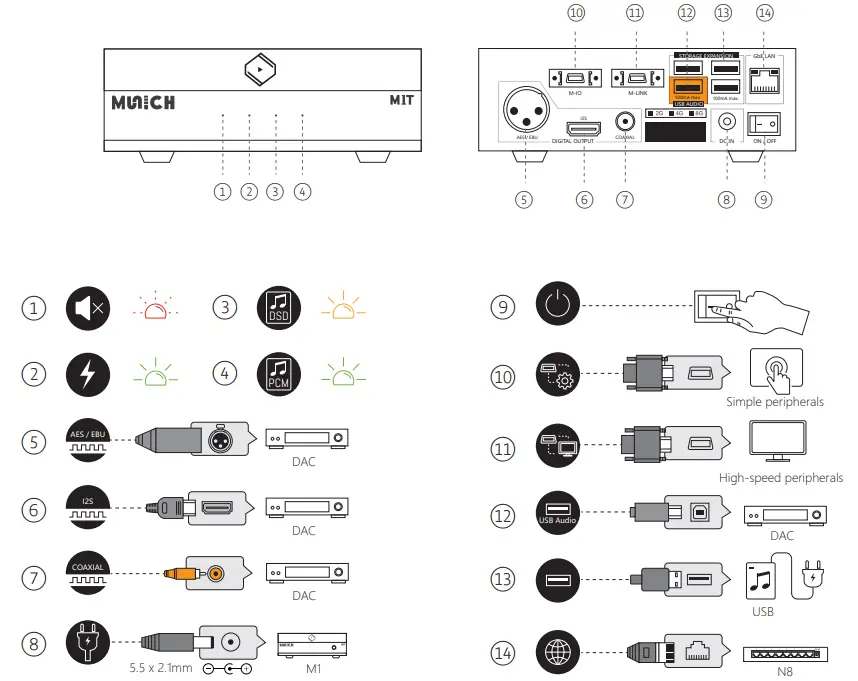

OVERVIEW

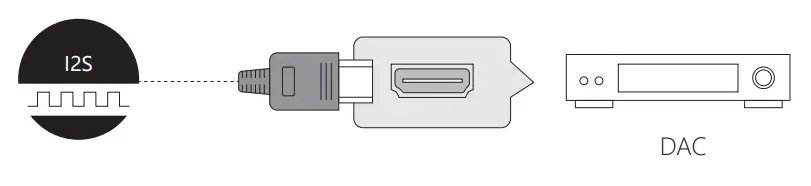

I2S Digital Audio Output
- PIN1 : SDATA – / DSD R –
- PIN2 : GND
- PIN3 : SDATA + / DSD R +
- PIN4 : BCK + / DSD CLK +
- PIN5 : GND
- PIN6 : BCK – / DSD CLK –
- PIN7 : LRCK – / DSD L –
- PIN8 : GND
- PIN9 : LRCK + / DSD L +
- PIN10 : NC
- PIN11 : GND
- PIN12 : NC
- PIN13 : NC
- PIN14 : NC
- PIN15 : NC
- PIN16 : NC
- PIN17 : GND
- PIN18 : NC
- PIN19 : NC
DOWNLOAD

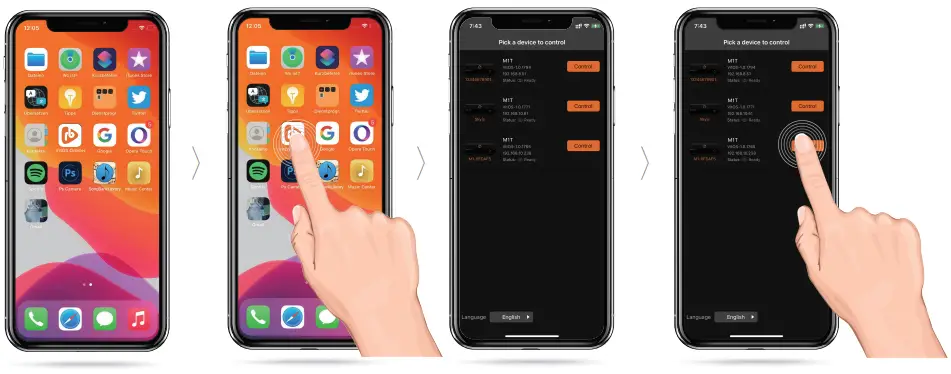

APP
