Bega 34161 Ceiling And Wall Luminaire For Indoor Use Instruction Manual

28.22 Technical amendments reserved
Ceiling and wall luminaire for indoor use
34 161IP 44

Instructions for use

Application

Ceiling and wall luminaire · indoor luminaire made of hand-blown opal glass, satin matt and metal housing, for all lighting tasks.
They are ideal for places where a soft and uniform lighting distribution is required. Luminaire with a high protection class.
Lamp
Luminaire with screw base E 27 Lamp output max. 60 W
This product contains light sources of energy efficiency class E Supplied lamp
BEGA LED lamp 13548 LED 7 W · 805 lm · 2700 K dimmable Supplied lamp BEGA LED lamp 13586  LED 7 W · 805 lm · 3000 Kdimmable Luminaire efficiency: 62% Detailed technical and lighting data for the lamps can be found in the data sheets on our website.

Product description

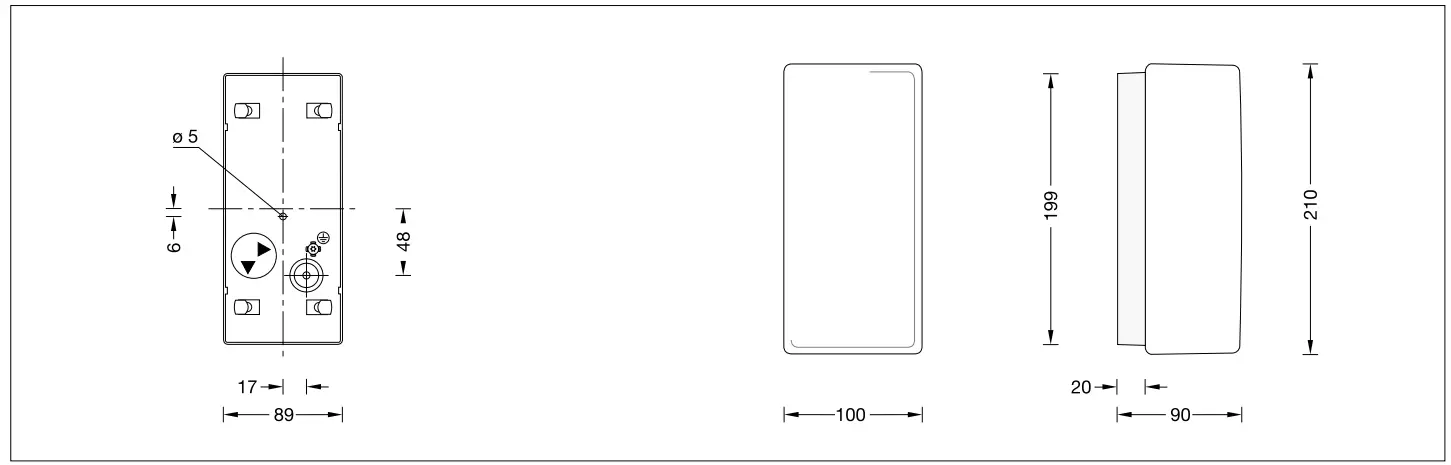

Luminaire made of aluminium alloy and stainless steel, finish Colour white Hand-blown opal glass, satin matt 1 fixing hole ø 5 mm 1 cable entry for mains supply cable up to ø 10.5 mm max. 3 x 1.5@ Connection terminal 2.5@ Earth conductor connection Lampholder E 27 Safety class I Protection class IP 44 Protected against granular foreign bodies ≥ 1 mm and splash water Impact strength IK02 Protection against mechanical impacts < 0.2 joule
– Safety mark
  – Conformity mark
Weight: 0.9 kg

Safety

The installation and operation of this luminaire are subject to national safety regulations. Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Installation

Lead the mains supply cable through the cable entry into the luminaire back housing.  If installed at the wall please note position of application “arrow down”. Fix luminaire back housing with enclosed or any other suitable fixing material onto the mounting surface. It is imperative to use the enclosed gaskets. Make earth conductor connection. Push silicone sleeves over the lines and make electrical connection. Insert lamp. Insert the opal glass into the lower spring clips, centralise and push it into the upper spring clips.
Relamping · Maintenance
Disconnect the electrical installation. Pull glass out of the spring clips and remove from the luminaire back housing. Clean luminaire back housing and glass. Use only solvent-free cleansers. Change the lamp. Snap the glass into the lower spring clips, centralise and push it into the upper spring clips.

Spares
