Bega 31 207 Outdoor Wall Lighting Copper Instruction Manual

Application

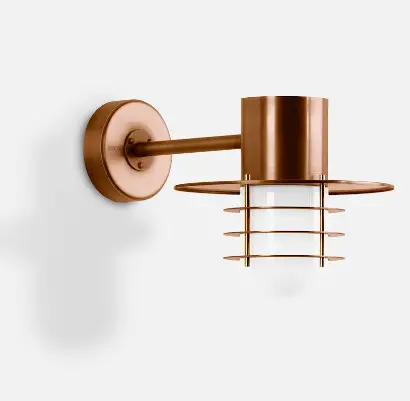

Shielded wall luminaire made of copper and hand-blown crystal bubble glass.
The copper shield screens the luminaire to the front and produces an impressive light distribution directed upwards and downwards.

Crystal bubble glass with screw neck Silicone gasket

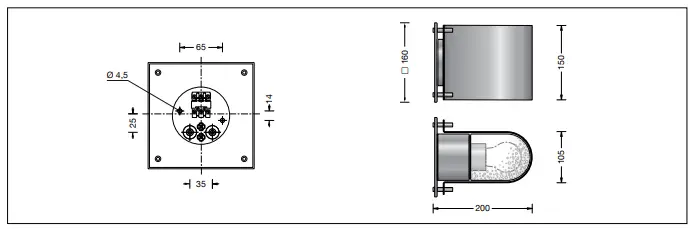

2 mounting holes ø 4.5 mm Distance apart 66 mm
2 cable entries for through-wiring of mains supply cable ø 7-10.5 mm
Connecting terminal 2.5@ with plug connection
Earth conductor connection Lampholder E 27
Safety class I Protection class IP 64
Dust-tight and protection against splash water Impact strength IK06
Protection against mechanical
impacts < 1 joule r – Safety mark c – Conformity mark Weight: 2.5 kg

Luminaire with screw base E 27 Lamp output max. 60 W
This product contains light source of energy efficiency class E Supplied lamp
BEGA LED lamp 13 583
LED Retrofit 7 W · 805 lm · 3000 K Luminaire efficiency: 39%
Additional BEGA LED lamps are available for this luminaire: 13 585 LED 7 W · 805 lm · 3000 K dimmable
Detailed technical and lighting data for the lamps can be found in the data sheets on our website.

The installation and operation of this luminaire are subject to national safety regulations. Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
if subsequent modifications are made to the luminaire, the person responsible for these modifications shall be cosidered the manufacturer.

Light technique

If clear lamps are used, the brilliant impression created by the crystal bubble glass is also transferred to the installation surface.

Matt lamps produce soft light distribution on the installation surface.

Installation

The protective gloves enclosed are to be used during installation in order to avoid fingerprints on the luminaire.

Undo fixing screws of the copper shield and

remove copper shield.

Screw out glass from the base.

Undo screws and disassemble the luminaire housing from the mounting plate – key slots –. Lead the mains supply cable through the cable entry of the mounting plate.

Fix the mounting plate with enclosed or any other suitable fixing material onto the mounting surface.

It is absolutely essential to use the enclosed gaskets.

Make earth conductor connection.

Push silicone sleeves over the lines and make electrical connection to the terminal – plug connection.

Push plug into coupler up to the stop.

Place the luminaire housing onto the mounting

plate and fix with screws.

Insert lamp.

Screw glass with gasket into the luminaire housing.

Place on copper shield and fix it.

Relamping · Maintenance Disconnect the electrical installation. Open the luminaire and clean.

Use only solvent-free cleaning agents. Change the lamp.

Check the gasket and replace, if necessary. Close the luminaire.

For cleaning, do not use high pressure cleaners.

Copper

The luminaire parts made of solid copper are delivered with the metal’s natural surface colour.

Time and weather factors create the natural patina characteristic for copper.
