blizzard infinipix SPEKTRO Light
Product Information

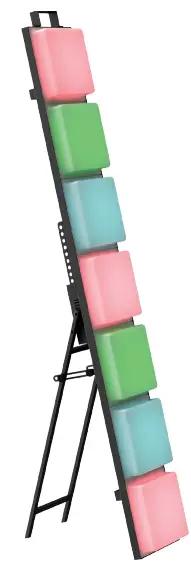

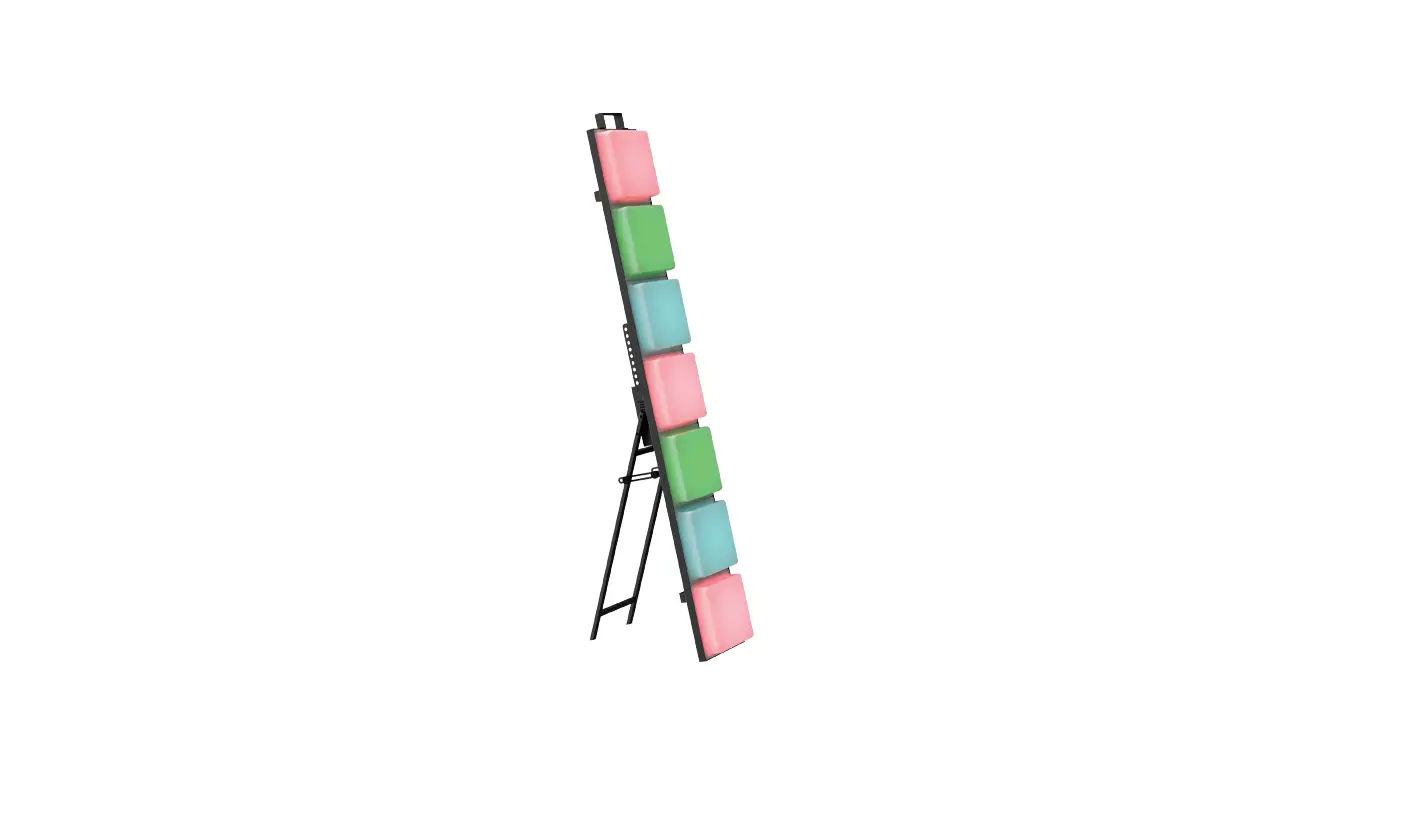

The InfinipixTM Spektro is a lighting fixture manufactured by Blizzard Lighting, LLC. It is a powerful LED fixture with a unique feature of pixel-mapping capabilities. It comes with DMX control options and is suitable for various events and applications.
GETTING STARTED
What’s In The Box?
- Infinipix™ Spektro LED Fixture
- Power Cord
- A Set of Fixture Joining Plates & thumbscrews
- This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing the Infinipix™ Spektro. Now that you’ve got your fixture, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again, please save the carton and all packing materials. If a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Powering Up!
All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch – Not all fixtures have a voltage select switch, so please verify that the fixture you receive is suitable for your local power supply. See the label on the fixture or refer to the fixture’s specifications chart for more information. A fixture’s listed current rating is its average current draw under normal conditions. Check the fixture or device carefully to make sure that if a voltage selection switch exists that it is set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line voltage applied. Damage to your fixture may result if the line voltage applied does not match the voltage indicated on the voltage selector switch. All fixtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something goes wrong, please just visit our website at www.blizzardpro.com/support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. We reserve the right to update the existing, or create a new document to correct any errors or omissions. You can download the latest version of this document from www.blizzardpro.com.
| Author: | Date: | Last Edited: | Date: |
| J. Thomas | 7/18/2022 | J. Thomas | 8/10/2022 |
Safety Instructions
- Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.
- ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
- Make sure there are no flammable materials close to the unit while operating.
- The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
- ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.
- ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its head. Use its carrying handles.
- DO NOT operate at ambient temperatures higher than 104°F (40°C).
- In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.
- NEVER connect the device to a dimmer pack.
- Make sure the power cord is never crimped or damaged.
- Never disconnect the power cord by pulling or tugging on the cord.
- Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support.
MEET THE INFINIPIX™ SPEKTRO
Main Features
- Pixel-mapping capabilities
- DMX control options
- LED lighting technology
- Suitable for various events and applications
- 196 tri-color SMD 5050 LEDs (RGB)

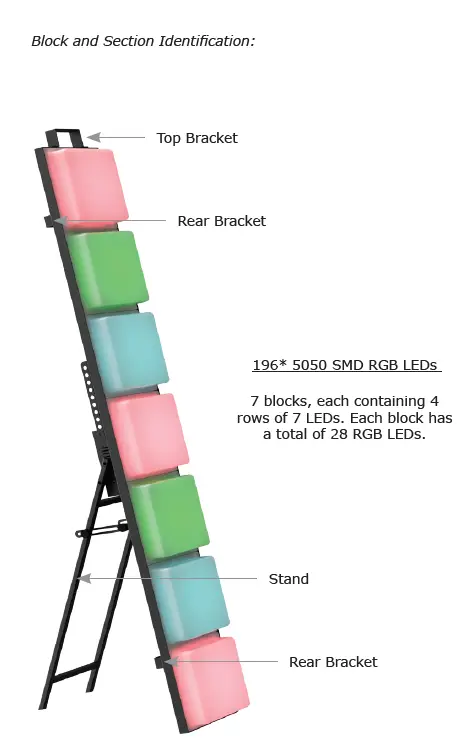

- 7 blocks (23 x 23 cm), each with 28 LEDs
- 4 horizontal sections per block for smooth gradient effects
- 120° viewing angle
- 0 to 100% dimming and variable strobe
- Free standing setup with 0-40° locking flip-out stand
- +5V USB to power SoC-It™ wireless unit (not included)
- Includes bracket hardware to allow multiple unit rigging
- 4-button control menu with LED display
- Convection cooled, zero fan noise
- PowerCON-compatible power input/output
- 3/5-pin XLR input/output
Control
- Protocol: USITT DMX-512, RDM
- DMX Channels: 3/4/5/21/28 or 84 DMX channels
- 4-button control menu with LED display
- Operating modes: DMX512, M/S, auto, sound active mode
DMX Quick Reference (3/4/5/7/21/28/84-Channel Modes)
| 3CH | 4CH | 5CH | 7CH | 21CH | 28CH | 84CH | What it does |
| — | 1 | 1 | 1 | — | — | — | Dimmer |
| — | — | 2 | — | — | — | — | Strobe |
| 1 | — | 3 | 2 | — | — | — | All Red |
| 2 | — | 4 | 3 | — | — | — | All Blue |
| 3 | — | 5 | 4 | — | — | — | All Green |
| — | — | — | — | — | — | — | Strobe |
| — | 2 | — | 5 | — | — | — | Built-In Effects |
| — | 3 | — | — | — | — | — | Static Colors |
| — | 4 | — | 6 | — | — | — | Program Speed |
| — | — | — | 7 | — | — | — | Strobe |
| — | — | — | — | 1-3 | — | — | Block 1 Red, Green, Blue |
| — | — | — | — | — | — | — | — |
| — | — | — | — | 19-21 | — | — | Block 7 Red, Green, Blue |
| — | — | — | — | — | 1-28 | — | Static Colors |
| — | — | — | — | — | — | 1-3 | Section 1 Red, Green, Blue |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | 82-84 | Section 28 Red, Green, Blue |
Setup
The InfinipixTM Spektro can be easily set up by following the assembly instructions provided in the user manual. It requires direct power from a switched circuit and cannot be run off a rheostat or dimmer circuit. The voltage select switch on the unit should be set to match the line voltage applied. The fixture must be connected to circuits with a suitable ground (earthing).
Fuse Replacement
This fixture utilizes a high-output switch-mode power supply with an internal fuse. Under normal conditions, the fuse should not require replacement. Should your fixture require fuse replacement, please contact us for instructions.
Connecting A Bunch of Infinipix™ Spektro Fixtures
You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. Fixtures on a serial data link must be daisy chained in a single line. Also, connecting more than 32 fixtures on one serial data link without the use of an optically-isolated DMX splitter may result in deterioration of DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft).
Data/DMX Cabling
To link fixtures together you’ll need data cables. You should use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.
For instance, Belden© 9841 meets the specifications for EIA RS-485 applications. Standard microphone cables will “probably” be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:
- 2-conductor twisted pair plus a shield
- Maximum capacitance between conductors – 30 pF/ft.
- Maximum capacitance between conductor & shield – 55 pF/ft.
- Maximum resistance of 20 ohms / 1000 ft.
- Nominal impedance 100 – 140 ohms
Disclaimer: The power connectors fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connector on the other end. (Duh!)
A Word on Termination:
DMX is a resilient communication protocol, however errors still occasionally occur. Termination reduces signal errors, and therefore best practices include use of a terminator in all circumstances. If you are experiencing problems with erratic fixture behavior, especially over long signal cable runs, a terminator may help improve performance.
To build your own DMX Terminator:
Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last fixture. They are also readily available from specialty retailers.
CAUTION: Do not allow contact between the common and the fixture’s chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

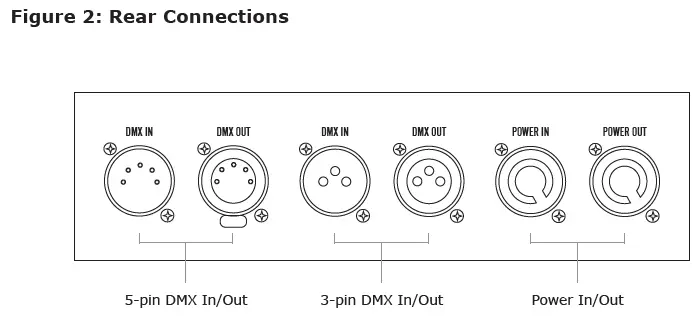

3-Pin??? 5-Pin??? Huh?!?
This fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3/5-pin XLR connectors to connect the controller to the fixture, or the fixture to another fixture.
| Conductor | 3-Pin Female (Output) | 5-Pin Male (Input) |
| Ground/Shield | Pin 1 | Pin 1 |
| Data 1- (Primary Data Link) | Pin 2 | Pin 2 |
| Data 1+ (Primary Data Link) | Pin 3 | Pin 3 |
| Data 2- (Optional Secondary Data Link) | — | Pin 4 – Do Not Use |
| Data 2+ (Optional Secondary Data Link) | — | Pin 5 – Do Not Use |

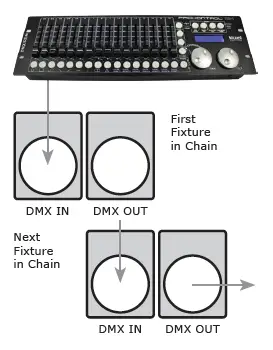

Take It To The Next Level: Setting Up DMX Control
- Step 1: Connect the male connector of the DMX cable to the female connector (output) on the controller.
- Step 2: Connect the female connector of the DMX cable to the first fixture’s male connector (input).
Note: It doesn’t matter which fixture address is the first one connected. We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. - Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication.

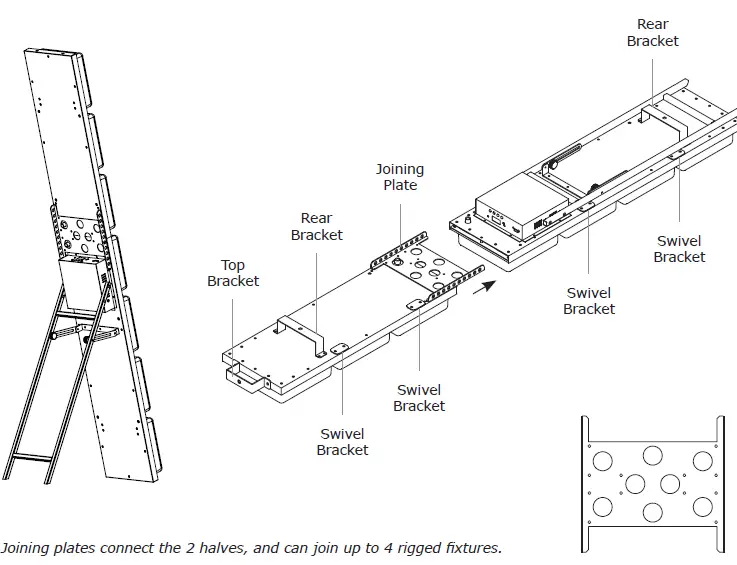

Assembly Instructions
- On a flat surface, lay the top and bottom fixture pieces face down, and align the bottom of the top piece with the top of the bottom piece. You may want to lay them on a piece of cardboard (or other soft material) to avoid the possibility of scratching the block lenses.
- Align the joining plate with the screw holes found on the top an bottom pieces, and use the included thumbscrews to securely attach the pieces together.
- Connect the data wiring cable from the bottom piece to the top piece.
- For a single freestanding setup, you can now set the fixture upright on the floor, swivel the stand anywhere up to a 40° angle, and tighten the stand’s locking knobs.
- To vertically join multiple fixtures, use the second joining plate and thumbscrews to attach them together (top to bottom). You should only use the top hanging bracket on the uppermost rigged fixture(s). The top bracket can support up to 4 fixtures.
- For horizontally connected fixtures, use the rear swivel mount brackets and extra thumbscrews to secure them together.
Mounting & Rigging
This fixture may be mounted in any SAFE position using the top or rear clamp mounting brackets.
IMPORTANT: Always secure mounted fixtures with a safety cable.
To mount the fixture, use a suitable “C” or “O” type clamp. The clamp should be rated to hold at least 10x the fixture’s weight to ensure structural stability. Do not mount to surfaces of unknown strength, and ensure properly rated rigging is used.
Operating Adjustments
The InfinipixTM Spektro has a control panel with a menu structure that allows for easy adjustments of DMX values, static color values, and built-in program values. It also has dimensional drawings for accurate placement and rigging.
The Control Panel
All the features and different modes possible with the Infinipix™ Spektro are accessed by using the control panel on the rear of the fixture. There are 4 control buttons under to the LED display which allow you to navigate through the various control panel menus.
- <MENU>
Is used to navigate to the previous higher-level menu item. - <UP>
Scrolls through menu items and numbers in ascending order. - <DOWN>
Scrolls through menu items and numbers in descending order. - <ENTER>
Is used to select and confirm/store the current selection.
The control panel LCD display shows the menu items you select from the menu map on page #11. When a menu function is selected, the display will show immediately the first available option for the selected menu function. To select a menu item, press <ENTER>. Use the <UP/DOWN> buttons to navigate the menu options. Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button.
Control Panel Menu Structure
| Auto | Sp 1-10 | Speed (slow <-> fast) | Auto Mode Effects | |
| St 0-9 | Strobe (slow <-> fast) | |||
| Addr | 3 CH | A001-A510 | 3CH DMX mode, select starting address | |
| 4 CH | A001-A508 | 4CH DMX mode, select starting address | ||
| 5 CH | A001-A507 | 5CH DMX mode, select starting address | ||
| 7 CH | A001-A505 | 7CH DMX mode, select starting address | ||
| 21CH | A001-A492 | 12CH DMX mode, select starting address | ||
| 28CH | A001-A485 | 28CH DMX mode, select starting address | ||
| 84CH | A001-A429 | 84CH DMX mode, select starting address | ||
| Shou | Sh 1-45 | Program shows 1-45 | ||
| Sp 1-10 | Program speed (slow <-> fast) | |||
| St 0-9 | Program strobe (slow <-> fast) | |||
| Soud | Sou1 | Sen1-9 | Sound active mode 1 + mic sensitivity 1-9 | |
| Sou2 | Sound active mode 2 + mic sensitivity 1-9 | |||
| Colo | r000-255 | Red intensity (0% <–> 100%) | ||
| g000-255 | Green intensity (0% <-> 100%) | |||
| b000-255 | Blue intensity (0% <-> 100%) | |||
| St 0 – St 9 | Strobe (slow <-> fast) | |||

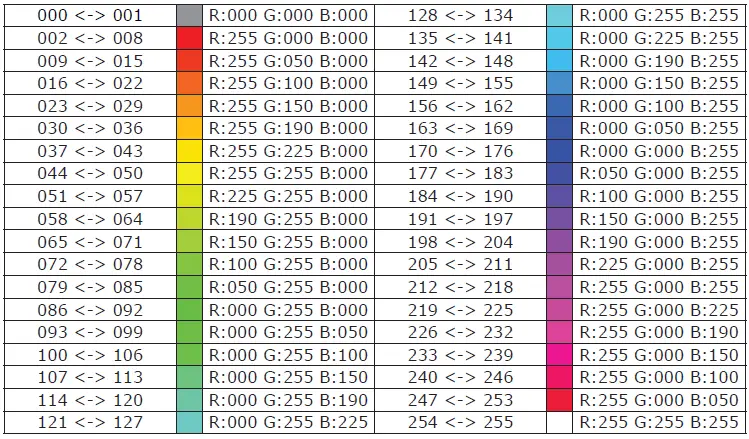

| StAt | CL00-CL37 | Static colors 0-37 | ||
| SLAU | <ENTER> | Set the fixture as a slave fixture | ||
| Info | Ver | Displays the firmware version | ||
| Set | dis | 10s | Set the control panel menu display to shut off or stay on continually. | |
| 20s | ||||
| 30s | ||||
| 60s | ||||
| on | ||||
| dir | Set to allow reverse direction of auto chases | |||
DMX Values In-Depth (3-Channel Mode)
| 3CH | Value | What it does |
| 1 | 000 <-> 255 | All Red (0% <-> 100%) |
| 2 | 000 <-> 255 | All Blue (0% <-> 100%) |
| 3 | 000 <-> 255 | All Green (0% <-> 100%) |
DMX Values In-Depth (4-Channel Mode)
| 4CH | Value | What it does |
| 1 | 000 <-> 255 | Dimmer (0% <-> 100%) |
| 2 | 000 <-> 255 | Built-In Effects (see Built-In Program Values on p.14) |
| 3 | 000 <-> 255 | Static Colors (see Static Color Values on p.14) |
| 4 | 000 <-> 255 | Program Speed (slow <-> fast) |
DMX Values In-Depth (5-Channel Mode)
| 5CH | Value | What it does |
| 1 | 000 <-> 255 | Dimmer (0% <-> 100%) |
| Strobe | ||
| 2 | 000 <-> 009 010 <-> 255 | No function Strobe (slow <-> fast) |
| 3 | 000 <-> 255 | All Red (0% <-> 100%) |
| 4 | 000 <-> 255 | All Green (0% <-> 100%) |
| 5 | 000 <-> 255 | All Blue (0% <-> 100%) |
DMX Values In-Depth (7-Channel Mode)
| 7CH | Value | What it does |
| 1 | 000 <-> 255 | Dimmer (0% <-> 100%) |
| 2 | 000 <-> 255 | All Red (0% <-> 100%) |
| 3 | 000 <-> 255 | All Green (0% <-> 100%) |
| 4 | 000 <-> 255 | All Blue (0% <-> 100%) |
| 5 | 000 <-> 255 | Built-In Effects (see Built-In Program Values on p.14) |
| 6 | 000 <-> 255 | Program Speed (slow <-> fast) |
| Strobe | ||
| 7 | 000 <-> 009 010 <-> 255 | No function Strobe (slow <-> fast) |
DMX Values In-Depth (21-Channel Mode) Blocks 1-7 RGB Color Mixing RGB
| 21CH | Value | What it does | Value | What it does | |
| 1 | 000 <-> 255 | Block 1 Red | 12 | 000 <-> 255 | Block 4 Blue |
| 2 | 000 <-> 255 | Block 1 Green | 13 | 000 <-> 255 | Block 5 Red |
| 3 | 000 <-> 255 | Block 1 Blue | 14 | 000 <-> 255 | Block 5 Green |
| 4 | 000 <-> 255 | Block 2 Red | 15 | 000 <-> 255 | Block 5 Blue |
| 5 | 000 <-> 255 | Block 2 Green | 16 | 000 <-> 255 | Block 6 Red |
| 6 | 000 <-> 255 | Block 2 Blue | 17 | 000 <-> 255 | Block 6 Green |
| 7 | 000 <-> 255 | Block 3 Red | 18 | 000 <-> 255 | Block 6 Blue |
| 8 | 000 <-> 255 | Block 3 Green | 19 | 000 <-> 255 | Block 7 Red |
| 9 | 000 <-> 255 | Block 3 Blue | 20 | 000 <-> 255 | Block 7 Green |
| 10 | 000 <-> 255 | Block 4 Red | 21 | 000 <-> 255 | Block 7 Blue |
| 11 | 000 <-> 255 | Block 4 Green | |||

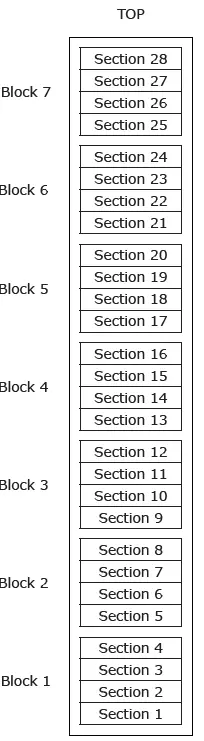

DMX Values In-Depth (28-Channel Mode) See Static Color Values on p.14
| 28CH | Value | What it does | Value | What it does | |
| 1 | 000 <-> 255 | Section 1 | 15 | 000 <-> 255 | Section 15 |
| 2 | 000 <-> 255 | Section 2 | 16 | 000 <-> 255 | Section 16 |
| 3 | 000 <-> 255 | Section 3 | 17 | 000 <-> 255 | Section 17 |
| 4 | 000 <-> 255 | Section 4 | 18 | 000 <-> 255 | Section 18 |
| 5 | 000 <-> 255 | Section 5 | 19 | 000 <-> 255 | Section 19 |
| 6 | 000 <-> 255 | Section 6 | 20 | 000 <-> 255 | Section 20 |
| 7 | 000 <-> 255 | Section 7 | 21 | 000 <-> 255 | Section 21 |
| 8 | 000 <-> 255 | Section 8 | 22 | 000 <-> 255 | Section 22 |
| 9 | 000 <-> 255 | Section 9 | 23 | 000 <-> 255 | Section 23 |
| 10 | 000 <-> 255 | Section 10 | 24 | 000 <-> 255 | Section 24 |
| 11 | 000 <-> 255 | Section 11 | 25 | 000 <-> 255 | Section 25 |
| 12 | 000 <-> 255 | Section 12 | 26 | 000 <-> 255 | Section 26 |
| 13 | 000 <-> 255 | Section 13 | 27 | 000 <-> 255 | Section 27 |
| 14 | 000 <-> 255 | Section 14 | 28 | 000 <-> 255 | Section 28 |
DMX Values In-Depth (84-Channel Mode) Sections 1-28 RGB Color Mixing
| 84CH | Value | What it does | Value | What it does | |
| 1 | 000 <-> 255 | Section 1, Red | 43 | 000 <-> 255 | Section 15, Red |
| 2 | 000 <-> 255 | Section 1, Blue | 44 | 000 <-> 255 | Section 15, Blue |
| 3 | 000 <-> 255 | Section 1, Green | 45 | 000 <-> 255 | Section 15, Green |
| 4 | 000 <-> 255 | Section 2, Red | 46 | 000 <-> 255 | Section 16, Red |
| 5 | 000 <-> 255 | Section 2, Blue | 47 | 000 <-> 255 | Section 16, Blue |
| 6 | 000 <-> 255 | Section 2, Green | 48 | 000 <-> 255 | Section 16, Green |
| 7 | 000 <-> 255 | Section 3, Red | 49 | 000 <-> 255 | Section 17, Red |
| 8 | 000 <-> 255 | Section 3, Blue | 50 | 000 <-> 255 | Section 17, Blue |
| 9 | 000 <-> 255 | Section 3, Green | 51 | 000 <-> 255 | Section 17, Green |
| 10 | 000 <-> 255 | Section 4, Red | 52 | 000 <-> 255 | Section 18, Red |
| 11 | 000 <-> 255 | Section 4, Blue | 53 | 000 <-> 255 | Section 18, Blue |
| 12 | 000 <-> 255 | Section 4, Green | 54 | 000 <-> 255 | Section 18, Green |
| 13 | 000 <-> 255 | Section 5, Red | 55 | 000 <-> 255 | Section 19, Red |
| 14 | 000 <-> 255 | Section 5, Blue | 56 | 000 <-> 255 | Section 19, Blue |
| 15 | 000 <-> 255 | Section 5, Green | 57 | 000 <-> 255 | Section 19, Green |
| 16 | 000 <-> 255 | Section 6, Red | 58 | 000 <-> 255 | Section 20, Red |
| 17 | 000 <-> 255 | Section 6, Blue | 59 | 000 <-> 255 | Section 20, Blue |
| 18 | 000 <-> 255 | Section 6, Green | 60 | 000 <-> 255 | Section 20, Green |
| 19 | 000 <-> 255 | Section 7, Red | 61 | 000 <-> 255 | Section 21, Red |
| 20 | 000 <-> 255 | Section 7, Blue | 62 | 000 <-> 255 | Section 21, Blue |
| 21 | 000 <-> 255 | Section 7, Green | 63 | 000 <-> 255 | Section 21, Green |
| 22 | 000 <-> 255 | Section 8, Red | 64 | 000 <-> 255 | Section 22, Red |
| 23 | 000 <-> 255 | Section 8, Blue | 65 | 000 <-> 255 | Section 22, Blue |
| 24 | 000 <-> 255 | Section 8, Green | 66 | 000 <-> 255 | Section 22, Green |
| 25 | 000 <-> 255 | Section 9, Red | 67 | 000 <-> 255 | Section 23, Red |
| 26 | 000 <-> 255 | Section 9, Blue | 68 | 000 <-> 255 | Section 23, Blue |
| 27 | 000 <-> 255 | Section 9, Green | 69 | 000 <-> 255 | Section 23, Green |
| 28 | 000 <-> 255 | Section 10, Red | 70 | 000 <-> 255 | Section 24, Red |
| 29 | 000 <-> 255 | Section 10, Blue | 71 | 000 <-> 255 | Section 24, Blue |
| 30 | 000 <-> 255 | Section 10, Green | 72 | 000 <-> 255 | Section 24, Green |
| 31 | 000 <-> 255 | Section 11, Red | 73 | 000 <-> 255 | Section 25, Red |
| 32 | 000 <-> 255 | Section 11, Blue | 74 | 000 <-> 255 | Section 25, Blue |
| 33 | 000 <-> 255 | Section 11, Green | 75 | 000 <-> 255 | Section 25, Green |
| 34 | 000 <-> 255 | Section 12, Red | 76 | 000 <-> 255 | Section 26, Red |
| 35 | 000 <-> 255 | Section 12, Blue | 77 | 000 <-> 255 | Section 26, Blue |
| 36 | 000 <-> 255 | Section 12, Green | 78 | 000 <-> 255 | Section 26, Green |
| 37 | 000 <-> 255 | Section 13, Red | 79 | 000 <-> 255 | Section 27, Red |
| 38 | 000 <-> 255 | Section 13, Blue | 80 | 000 <-> 255 | Section 27, Blue |
| 39 | 000 <-> 255 | Section 13, Green | 81 | 000 <-> 255 | Section 27, Green |
| 40 | 000 <-> 255 | Section 14, Red | 82 | 000 <-> 255 | Section 28, Red |
| 41 | 000 <-> 255 | Section 14, Blue | 83 | 000 <-> 255 | Section 28, Blue |
| 42 | 000 <-> 255 | Section 14, Green | 84 | 000 <-> 255 | Section 28, Green |
Static Color Values
Built-In Program Values
| 063 <-> 065 | Effect 21 | 129 <-> 131 | Effect 43 | ||
| 000 <-> 002 | No Function | 066 <-> 068 | Effect 22 | 132 <-> 134 | Effect 44 |
| 003 <-> 005 | Effect 1 | 069 <-> 071 | Effect 23 | 135 <-> 137 | Effect 45 |
| 006 <-> 008 | Effect 2 | 072 <-> 074 | Effect 24 | 138 <-> 140 | Effect 46 |
| 009 <-> 011 | Effect 3 | 075 <-> 077 | Effect 25 | 141 <-> 143 | Effect 47 |
| 012 <-> 014 | Effect 4 | 078 <-> 080 | Effect 26 | 144 <-> 146 | Effect 48 |
| 015 <-> 017 | Effect 5 | 081 <-> 083 | Effect 27 | 147 <-> 149 | Effect 49 |
| 018 <-> 020 | Effect 6 | 084 <-> 086 | Effect 28 | 150 <-> 152 | Effect 50 |
| 021 <-> 023 | Effect 7 | 087 <-> 089 | Effect 29 | 153 <-> 155 | Effect 51 |
| 024 <-> 026 | Effect 8 | 090 <-> 092 | Effect 30 | 156 <-> 158 | Effect 52 |
| 027 <-> 029 | Effect 9 | 093 <-> 095 | Effect 31 | 159 <-> 161 | Effect 53 |
| 030 <-> 032 | Effect 10 | 096 <-> 098 | Effect 32 | 162 <-> 164 | Effect 54 |
| 033 <-> 035 | Effect 11 | 099 <-> 101 | Effect 33 | 165 <-> 167 | Effect 55 |
| 036 <-> 038 | Effect 12 | 102 <-> 104 | Effect 34 | 168 <-> 170 | Effect 56 |
| 039 <-> 041 | Effect 13 | 105 <-> 107 | Effect 35 | 171 <-> 173 | Effect 57 |
| 042 <-> 044 | Effect 14 | 108 <-> 110 | Effect 36 | 174 <-> 176 | Effect 58 |
| 045 <-> 047 | Effect 15 | 111 <-> 113 | Effect 37 | 177 <-> 179 | Effect 59 |
| 048 <-> 050 | Effect 16 | 114 <-> 116 | Effect 38 | 180 <-> 182 | Effect 60 |
| 051 <-> 053 | Effect 17 | 117 <-> 119 | Effect 39 | 183 <-> 185 | Effect 61 |
| 054 <-> 056 | Effect 18 | 120 <-> 122 | Effect 40 | 186 <-> 188 | Auto 1 |
| 057 <-> 059 | Effect 19 | 123 <-> 125 | Effect 41 | 189 <-> 191 | Sound 1 |
| 060 <-> 062 | Effect 20 | 126 <-> 128 | Effect 42 | 192 <-> 255 | Sound 2 |
Dimensional Drawings
APPENDIX
Keeping Your Infinipix™ Spektro As Good As New
The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output, and keeping the vents free of dust will keep the fixture running cool.
Returns (Gasp!)
If you find yourself with a fixture that isn’t behaving like it should, you’ll need to obtain a Return Authorization (RA). Don’t worry, this is easy. Just visit www.blizzardpro.com/support and open a support ticket, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable, pre-paid freight method. We suggest using USPS Priority or UPS.
When returning your fixture for service, be sure to include the following:
- Your contact information (Name, Address, Phone Number, Email address).
- The RA# issued to you
- A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the fixture. Please remember that any shipping damage which occurs in transit to us is the customer’s responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.
Tech Specs!
| Weight & Dimensions | |
| Dimensions | 9.1 x 5.2 x 62.5 (23 x 13 x 158.5 cm) |
| Weight | 17 lbs (7.7 kg) |
| Power | |
| Operating Voltage | AC 110V-240V/50-60Hz |
| Power Consumption | 47W, .66A, PF: .61 |
| Light Source | |
| LED | 196* (7* 28 pcs) SMD 5050 3-in-1 RGB LEDs |
| Luminous Intensity | 2,150 nits |
| Thermal | |
| Max. Operating Temp. | 104 degrees F (40 degrees C) ambient |
| Control | |
| Protocol | USITT DMX-512, RDM |
| DMX Channels | 3/4/5/7/21/28/84-channel DMX modes |
| Input/Output | 3/5-pin XLR Male/Female |
| Other Operating Modes | DMX512, M/S, standalone, auto, sound active |
| Warranty | 2-year limited warranty |
Blizzard | LED Lighting Products + IRiS LED Video – Blizzard Lighting
