Kingstar 32399 True Wireless Earbuds With Charging Case User Guide

KINGSTAR 32399 True Wireless Earbuds with Charging Case

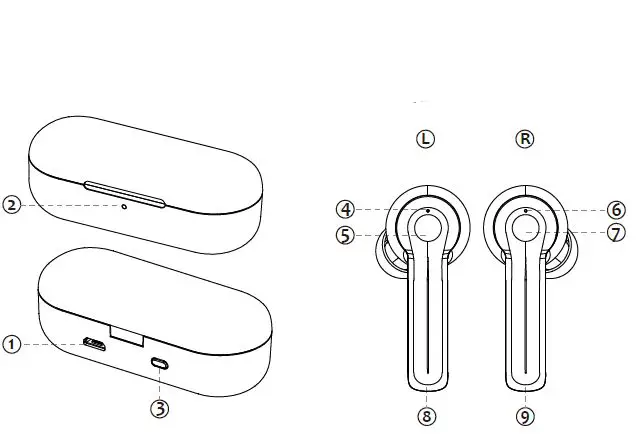

PRODUCT OVERVIEW

1 Micro USB charging port
2 Charging Case LED indicator
3 Charging Case Power Button （For activing and checking power)
4 Left earbud LED indicator
5 Left control button
6 Right earbud LED indicator
8 Left microphone
7 Right control button
9 Right microphone

Left Earbud / Right Earbud
Pause/Play/Answer Call/End Call

CHARGING YOUR CASE

• Charge the charging case, with the included micro USB cable for 2 hours. The LED indicator will be flashing red during charging and turn to solid red after fully charged Do not charge longer than suggested time. Do not charge overnight.

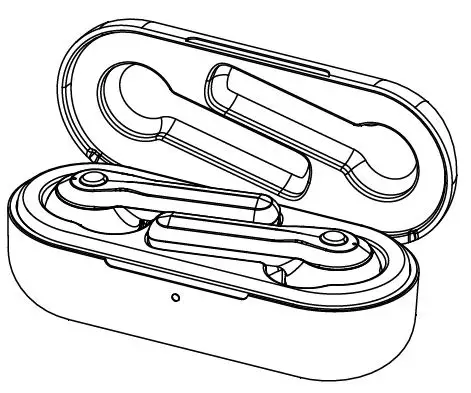

CHARGING YOUR EARBUDS

• Place Right and Left Earbuds in charging case
• Charging case LED indicator (2) will illuminate Blue and the earbud LED indicators (4, 6) will illuminate Red, indicating that the earbuds are charging properly. When Earbuds LEDs (4, 6) turns off, earbud batteries are fully charged.

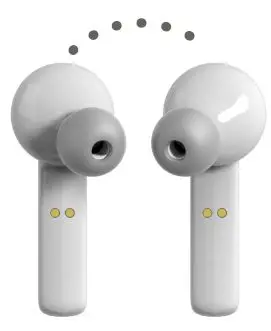

STEREO MODE (DUAL EARBUD USE)

• Remove both earbuds from charging case and close each other earbuds will automatically link together after a few seconds, and earbuds will have a tone
• One earbuds will flash red and blue, another earbuds will trun off.
• Once Earbuds are linked together you may proceed to pairing with your mobile device.
  Note: If you attempt to pair before the earbuds have paired to each other, the earbuds will go into single earbud use not both. In this case, restart the process (Please clear the connecting record of device first if it has paired record).

PAIRING

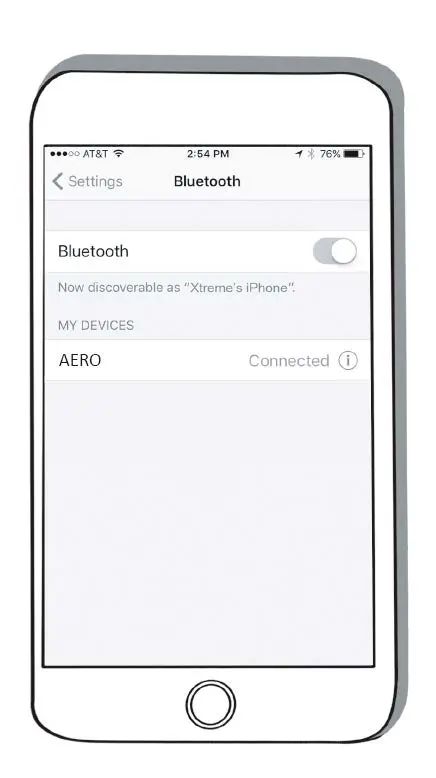

• Enable Bluetooth search mode on your mobile device and search for pairing name “ 32399 ” and select it on your mobile phone. Once the earbuds are successfully paired, a notification will sound.
• Now you can enjoy your true wireless Bluetooth Earbuds.
  Note: Once earbuds have been initially paired successfully with your mobile device, they will automatically pair the next time they are powered on.

OPERATING BLUETOOTH EARBUDS

• Item No.: 32399
• Charging Time: 1 hours Playing Time: 3 hours
• Capacity(Charging case): 240mAh / 3.7V (0.888Wh)
• Capacity(Earbuds): 50mAh / 3.7V (0.185Wh)
• Input: 5V/60mA (Earbuds)
• Input: 5V/300mA (Charging case)


  Function	Operation
  Power On	Press (5) or (7) for 3 seconds or remove the earbuds from charging case
  Power Off	Press (5) or (7) for 5 seconds or place the earbuds in the charging case
  Play/Pause	Single press (5) or (7)
  Answer	Single press (5) or (7)
  Reject	Press (5) or (7) for 2 seconds

  Earbuds	LED indications (4) & (6)
  Power On	Red and Blue LED will flash altemately
  Link Mode	Flashing Blue + Red
  Two earbuds paired successfully each other	One earbuds will flash red and blue, another earbuds will turn off LED indicator.
  Paired Successfully	Trun off
  Power Off	LED Off
  Charging case
  Charging	Flashing red
  Fully Charged	Solid red

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Troubleshooting

Warning : Never store or use this product in temperatures below 32°F (0°C)or above 115°F (45°C)
FCC ID: 2ABHA0071
Made in China
