USER GUIDE

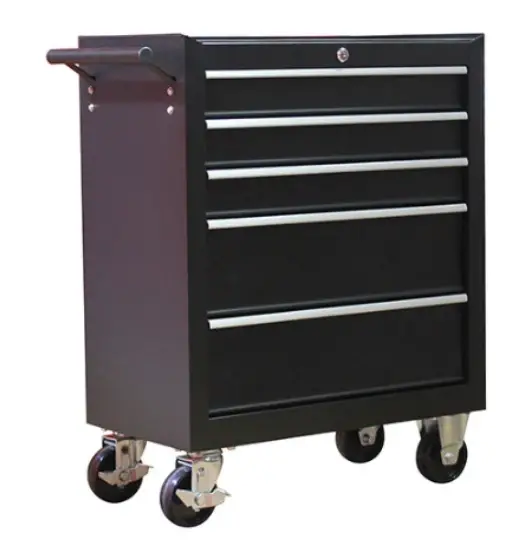

TOOLBOX STORAGE CABINET TROLLEY 5 DRAWER
CTTSCT5DRWA & CTTSCT5DRRA
SAFETY & WARNINGS
- Keep the drawer slides well lubricated.
- Ensure the cabinet is kept on a flat level surface.
- Do not stand on this product.
- Do not move with power equipment.
- Do not alter this product in any manner.
- Do not let children near the tool cabinet.
- Do not open more than one drawer at a time.
- Do not attach or mount this product to any moving object.
- Max. safe loading capacity for each drawer: 10kg
- Max. safe loading capacity for the whole cabinet: 70kg
OVERVIEW

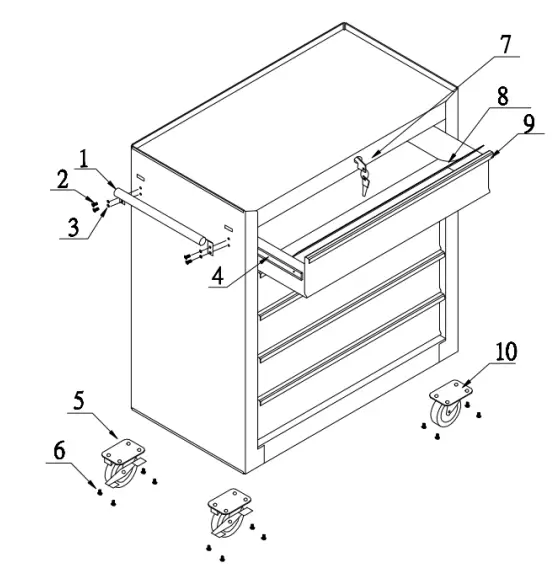

| No. | Description | No. | Description |
| 1 | Handle | 6 | Screw: M8*12 (x16) |
| 2 | Screw: M6*12 (x4) | 7 | Lock |
| 3 | Washer (x4) | 8 | Drawer mat (x5) |
| 4 | Ball-bearing slide (x10) | 9 | Drawer handle (x5) |
| 5 | Swivel castor (x2) | 10 | Castor (x2) |
ASSEMBLY
Step 1:
Attach the side handle (1) using the supplied screws (2) and washers (3).
Step 2:
Attach the casters (5 & 10) to the bottom of the cabinet using the supplied screws (6). The swivel casters (5) must be attached on the same side as the handle (1).
Drawer Assembly:

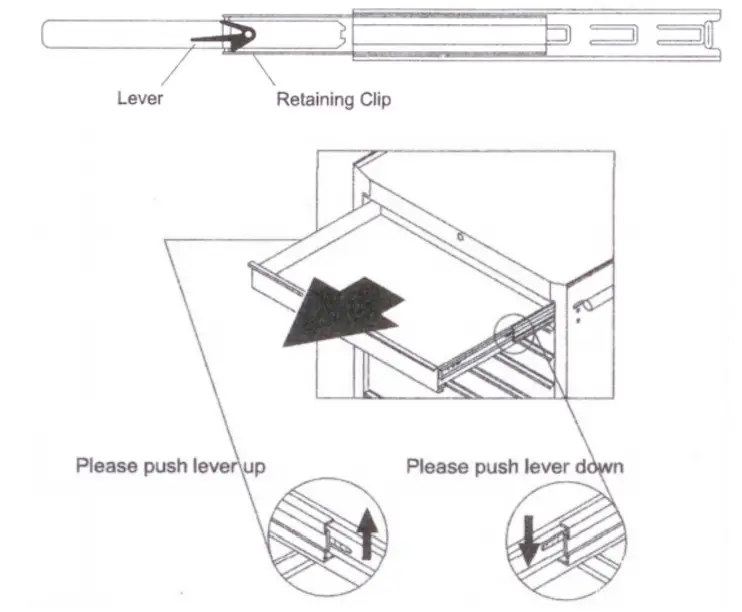

- Each drawer slide has a black retaining clip. To remove the drawer, the retaining clips need to be released by pushing the lever up and down at the same time and sliding out the drawer.
- When assembling the drawer, you need to pull the slide out fully and then align the track to correctly insert it.
NOTES
Need more information?
We hope that this user guide has given you the assistance needed for a simple setup.
For the most up-to-date guide for your product, as well as any additional assistance you may require,
head online to help.kogan.com
