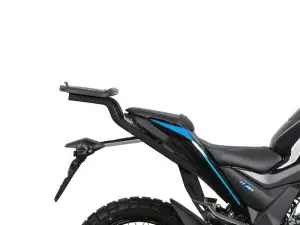

SHAD ZT 125 U1 Top Master Z0U110ST Case Fittings
Package Contents
|
|
|
|
|
|
|
|

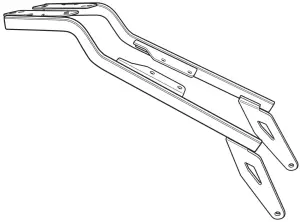

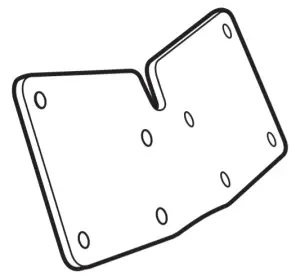

262675 x1
262675 x1 016 09 x12
303020 x6 08

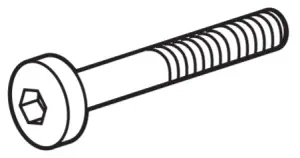

304169 x4 M8x 50 DIN 7380
62676 x1 ➞ 262677 x1 ⬅
303045 x10 08

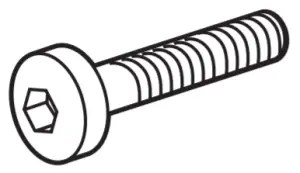

304053 x6 M8x 30 DIN 7380
302024×6 M8

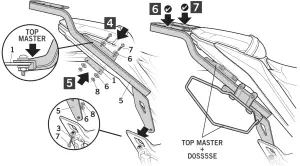

| Do not fully tighten the screws until it is ensured that the KIT is correctly attached and aligned. |
WARNING!ATTENTION: For a full equip assembly, mount the side bag holder above the bracket (5).

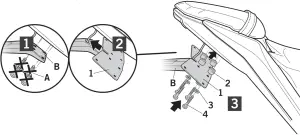

Assembly Instructions
IMPORTANT: Based on European models. For compatibility with models in other continents, check www.shad.es
www.shad.es
REF. 500479 Edici6n 1a
