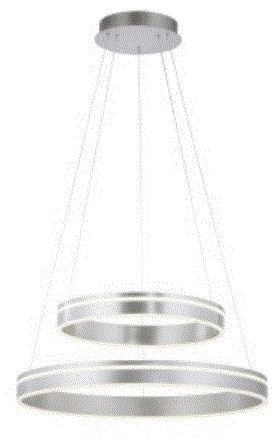

Paul Neuhaus 835148 Q-Vito LED Pendant

Paul-Neuhaus-835148-Q-Vito-LED-Pendant-Product

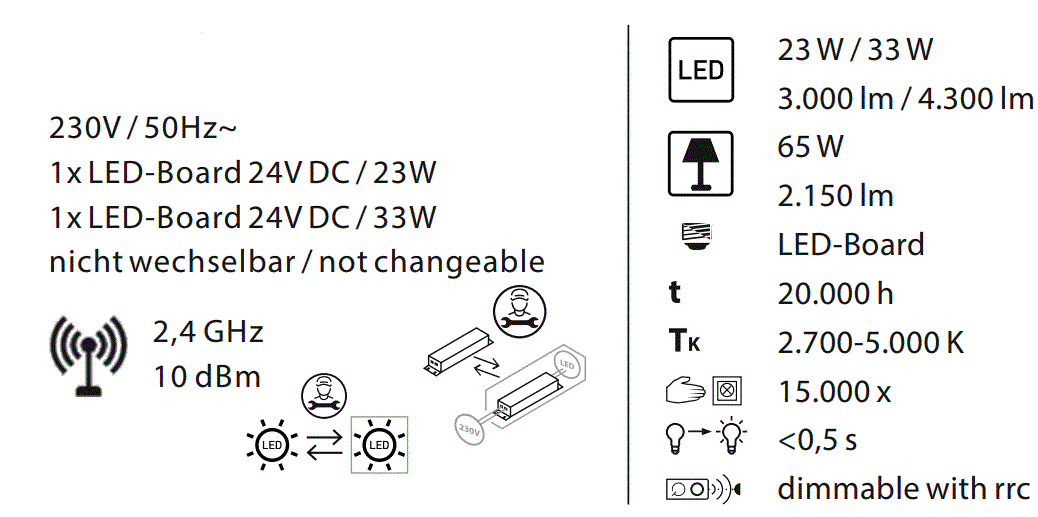

Specification

Paul-Neuhaus-835148-Q-Vito-LED-Pendant-fig-1

This product contains light sources of energy efficiency class.

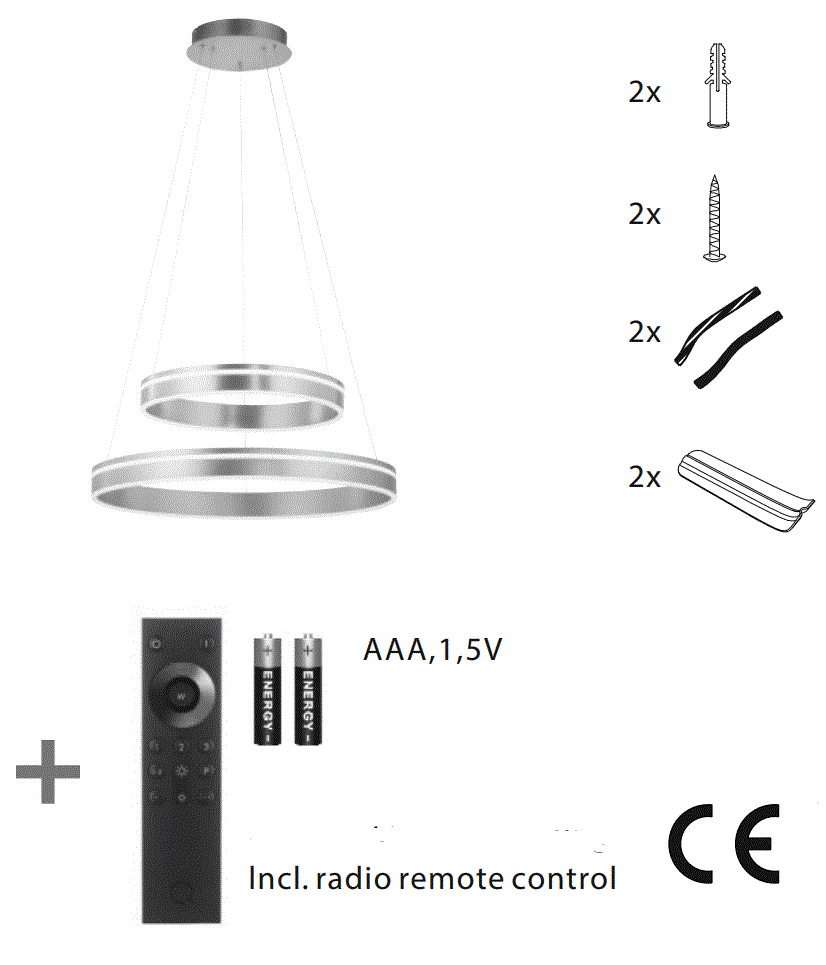

Tools Required

Paul-Neuhaus-835148-Q-Vito-LED-Pendant-fig-2

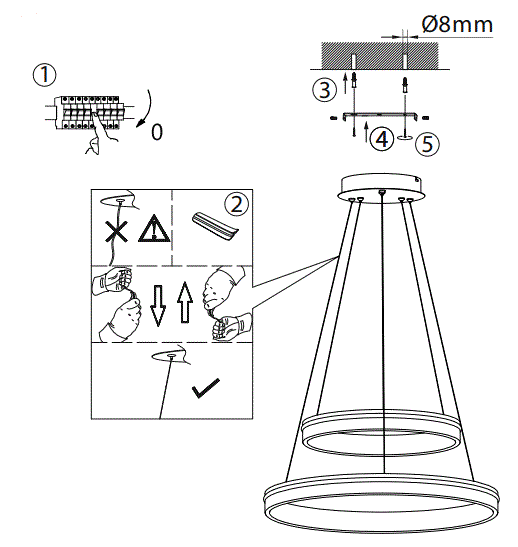

Montage/Fitting

as Pendant lightPaul-Neuhaus-835148-Q-Vito-LED-Pendant-fig-3

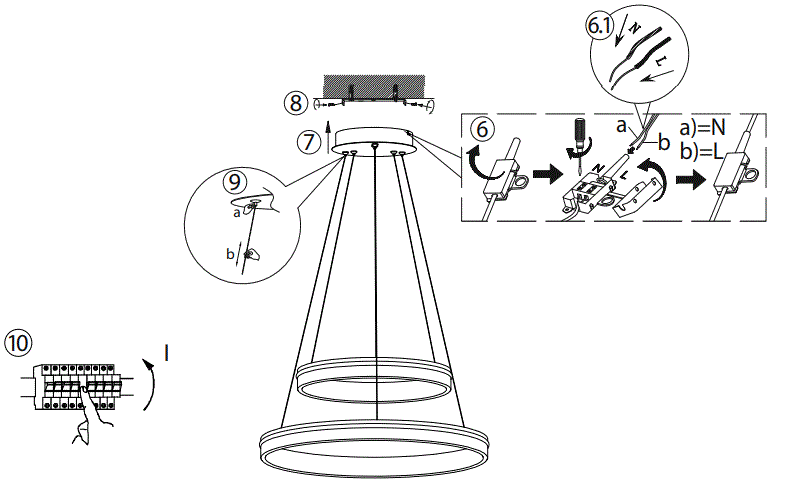

Electrical Connection

230 voltage / 50Hz – connectionPaul-Neuhaus-835148-Q-Vito-LED-Pendant-fig-4

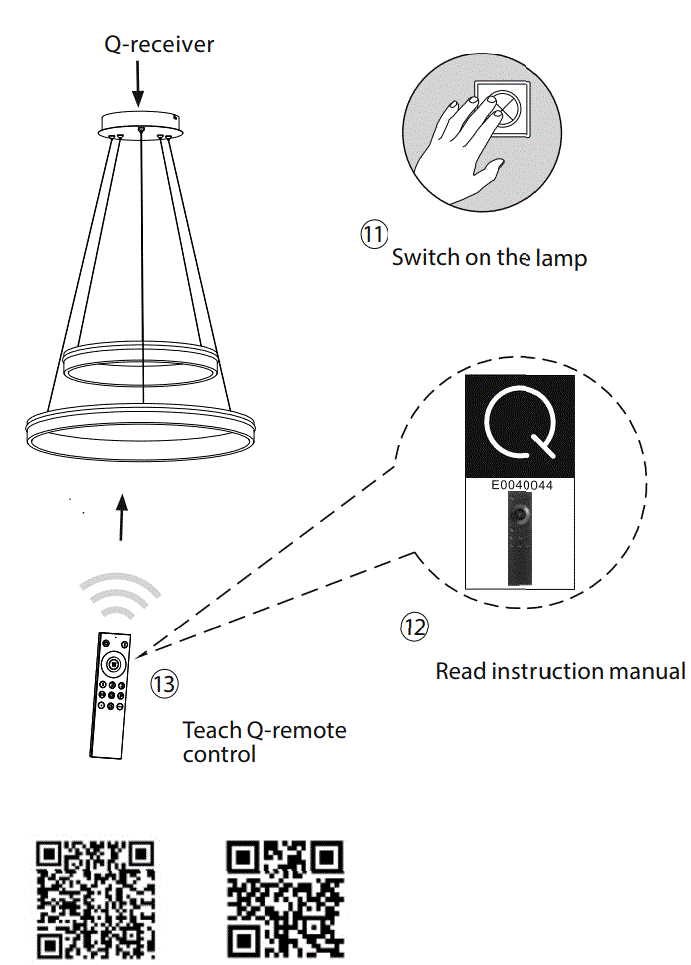

Teach Remote Control

See Q-remote control manualPaul-Neuhaus-835148-Q-Vito-LED-Pendant-fig-5

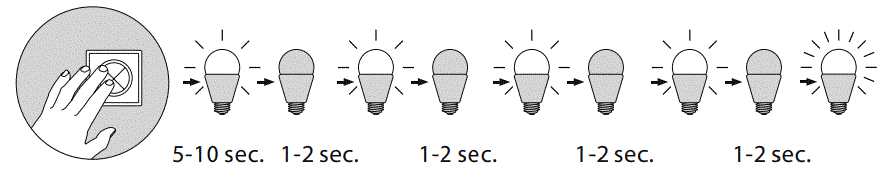

Reset

Reset the lamp, factory new
5 x On/OffPaul-Neuhaus-835148-Q-Vito-LED-Pendant-fig-6

Address:

Paul Neuhaus GmbH Olakenweg 36 59457 Werl Germany
Telefon: +49 (0) 2922-97 21-0
Telefax: +49 (0) 2922-9721-9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
