SMART HOME LIGHTS
Fitting instructions
835175
230V / 50Hz ~
1xLED-Board 24V DC/51W not changeable
2,4 GHz 10 dBm
8422-13 Q-VITO Pendant Light LED
 | 51 W 5.8 8 0 lm |  | 2.700-5.000K |
 | 60 W 2.500 lm |  | 15.000 x |
 | LED-Board |  | ＜0,5 s |
 | 20.000 h |  | dimmable with rrc |

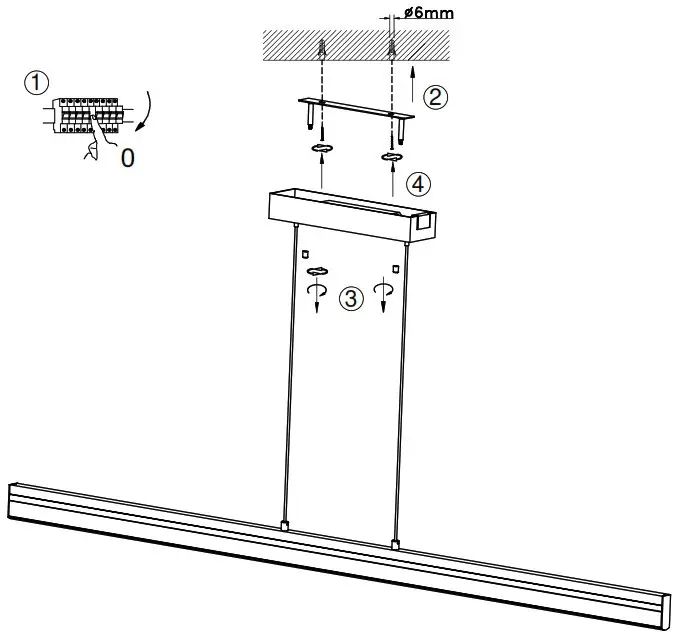

Fitting
as pendant light

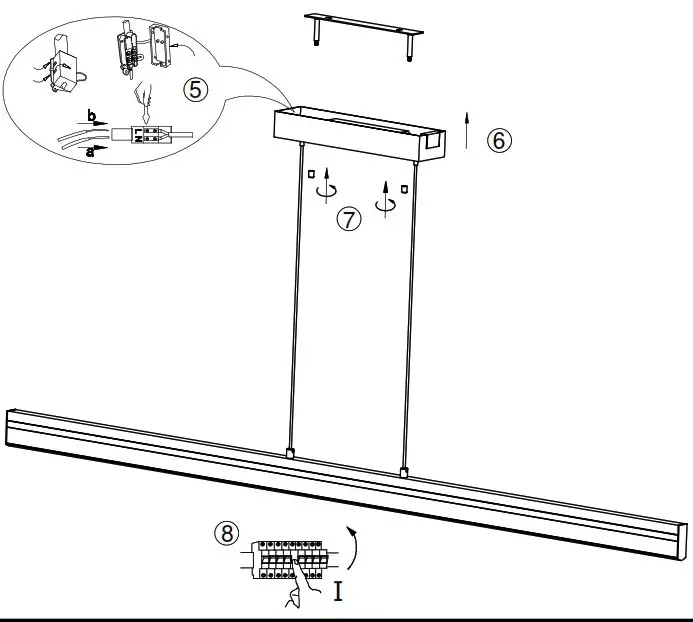

Electrical connection
230 voltage/50 Hz connection

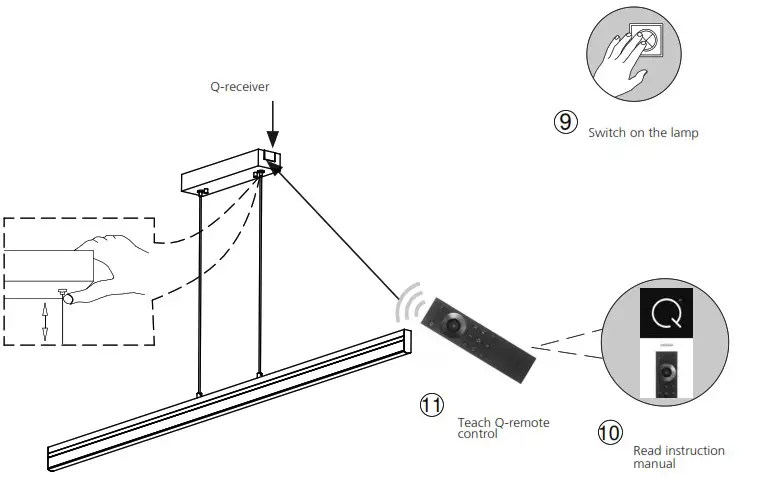

Teach remote control
 |  |
https://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q/Q-Funktionsfilm_DE.mp4 |

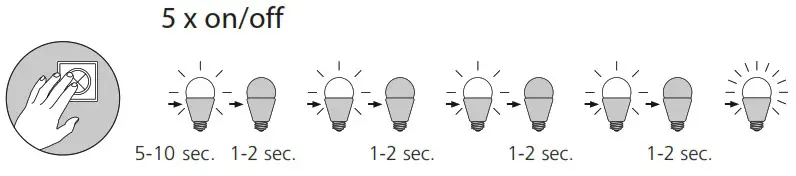

Reset
Reset the lamp, factory new
This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment. The full declaration of conformity can be accessed at the Internet-address given below.
Paul Neuhaus GmbH
Olakenweg 36:59457 Werl Germany
Telefon: +49(0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-mail: kundenservice@neuhaus -group.de
https://scm.paul-neuhaus.de/public/contormity/
