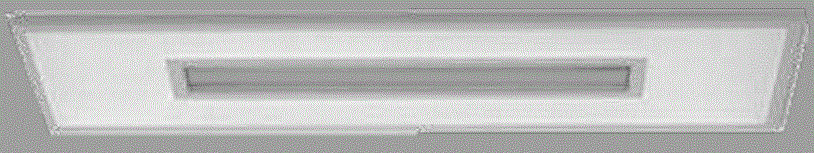

Paul Neuhaus 270388 Freddi Ceiling Light

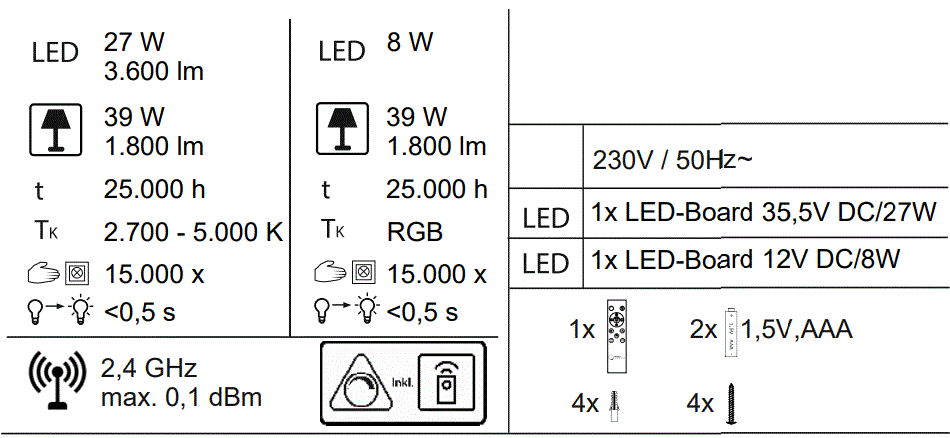

Specification

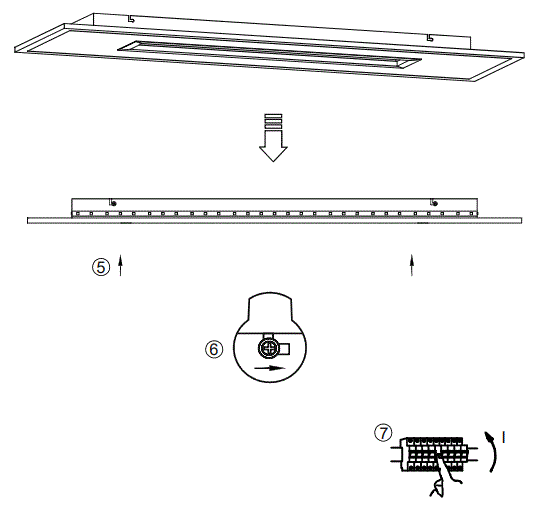

Installation Instruction
This product contains a light source of energy efficiency class.

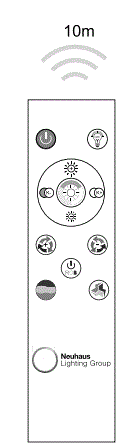

Radio Remote Control Operating Instructions
- short press: switch all off
- long press: teach the remote control to the light. If the light flickers
- three times, the light has been taught to the remote control.
- short press: CCT function is switched on / off
- long press: night light function (warm white/ 10% brightness)
- Turn off the light using the remote control, press the night light button
- again to switch to night light mode.
- Set brightness/ speed:
- Increase the brightness when only white is switched on.
- Increase the speed of the RGB color modes.

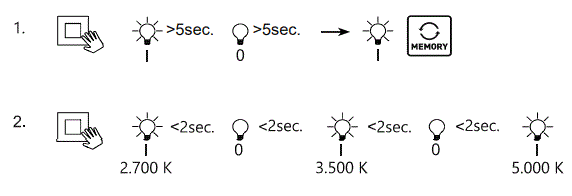

- CCT Steps: 3500 K- 5000 K – 2700 K
- Reduce the color temperature
- increase the color temperature
- Set brightness/speed:
- Reduce the brightness if only white is switched on.
- Reduce the speed of the RGB color modes
- RGB color mode: switch mode
- RGB color mode: switch back mode
- Switch RGB on / off
- RGB
- Start/ stop
- RGB color change
Description
| Description | Operation Data |
| Battery | 2x 1,5V AAA |
| Transmission frequency | 2,4GHz |
| Transmitting power | max. 0,1dBm |
| No-load current | 5uA |
| Operating current | 300uA |
| Range of the remote control | :51Om |
