Walker Edison Walnut Modern 3 Drawer Nightstand Installation Guide

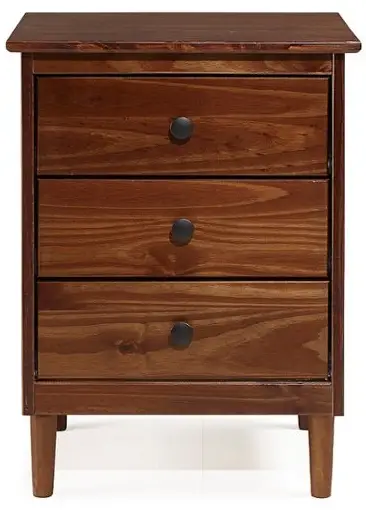

Walker Edison Walnut Modern 3 Drawer Nightstand

GENERAL ASSEMBLY GUIDELINE:

1. Ensure that all parts and hardware are available before beginning assembly.
2. Follow each step carefully to ensure the proper assembly of this product.
3. Two people are recommended for ease in the assembly of this product.
4. The three type of hardware used to assembly this product are wood, dowels, screw and bolts.
5. A phillips head screwdriver is required for assembly of this product.
6. Power tool should not be used to assembly this product.

PARTS LIST

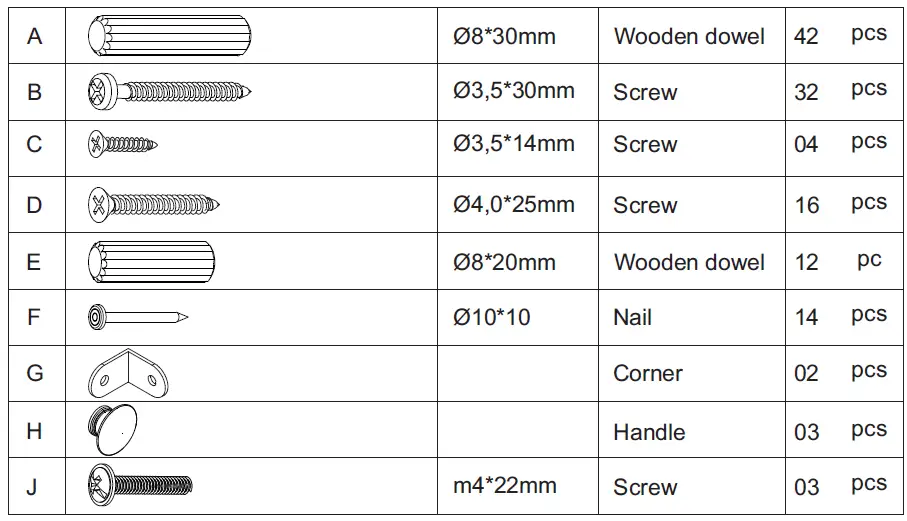

HAREDWARE LIST:

STEPS:

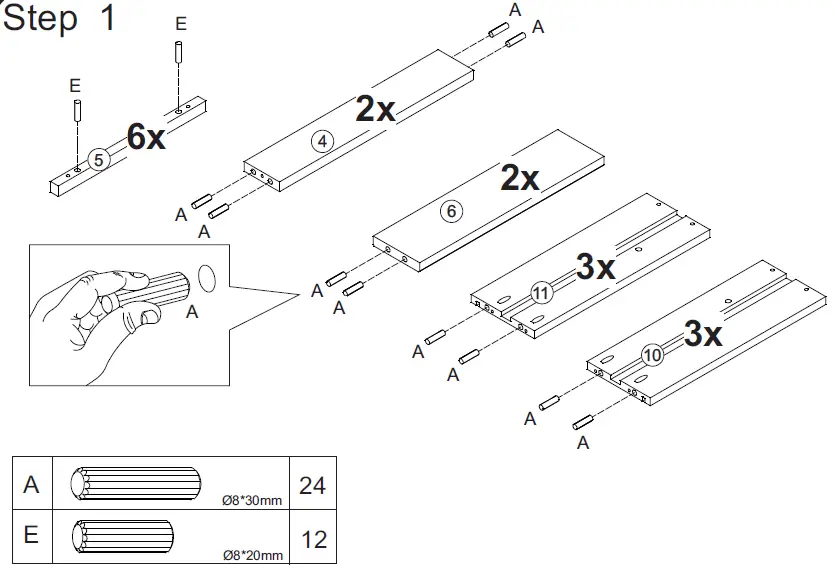

Insert Wooden dowel (E) into part (5).
Insert Wooden dowel (A) into part (4), (6), (10) and (11).

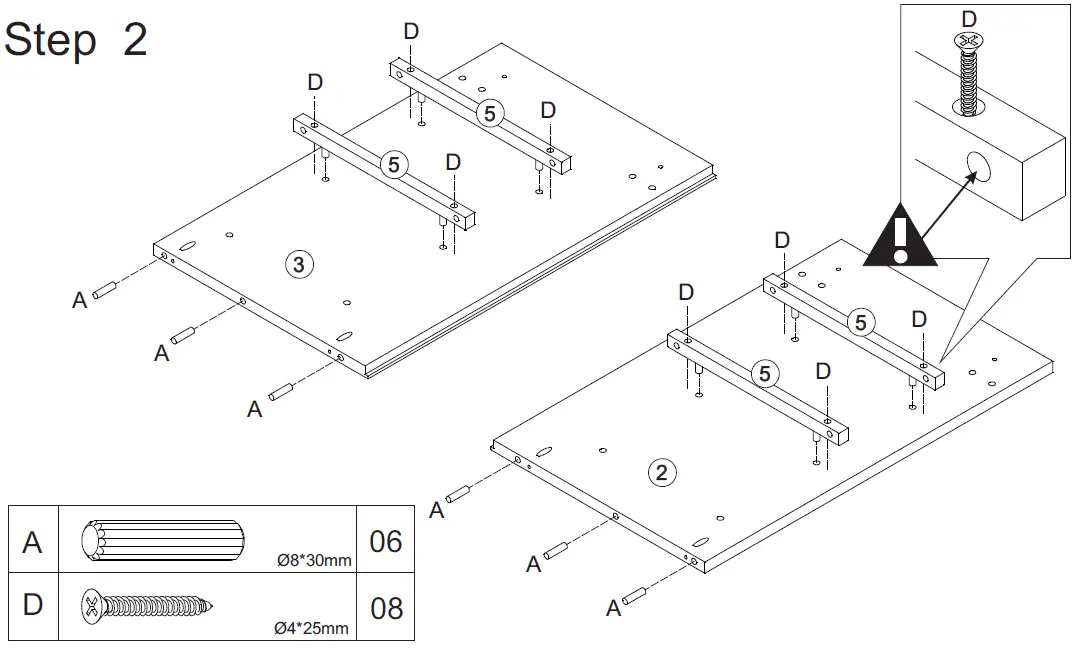

Insert Wooden dowel (A) into part (2) and (3).
Secure part secure part (5) to part (2) and (3) with screw (D).

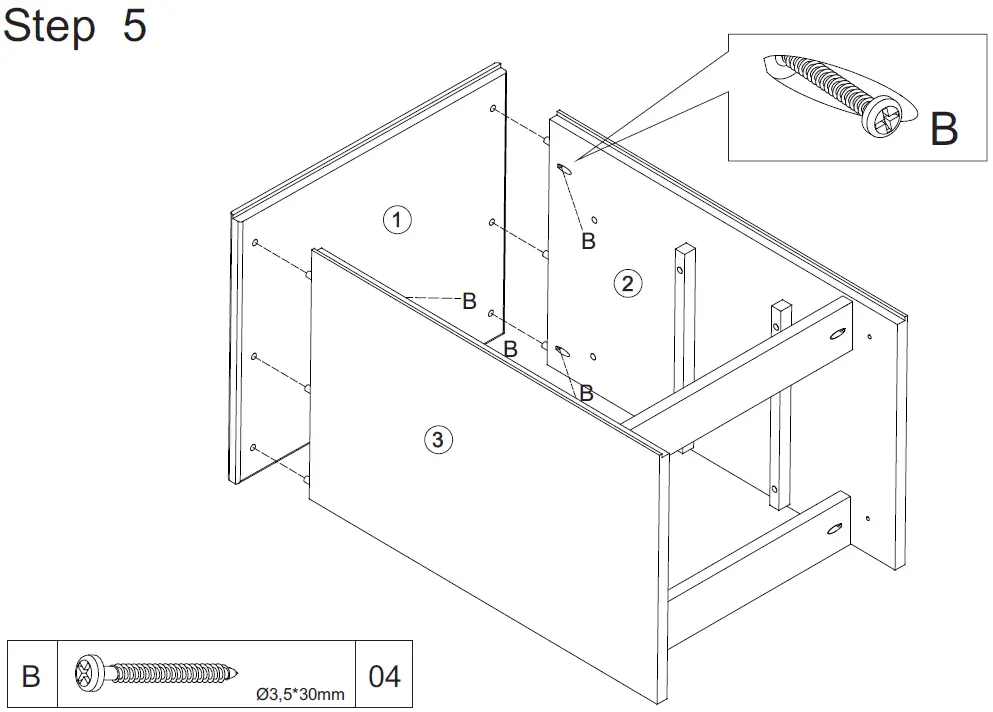

Secure part (1) to part (2) and (3) with screw (B).

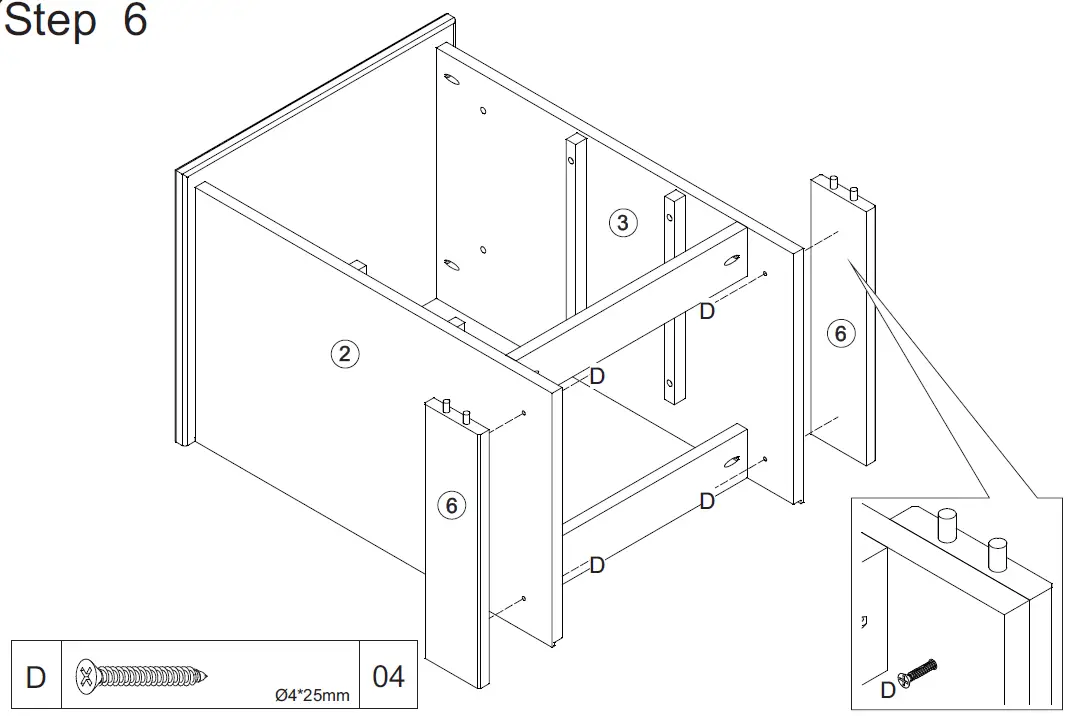

Secure part (6) to part (2) and (03) with screw (D).

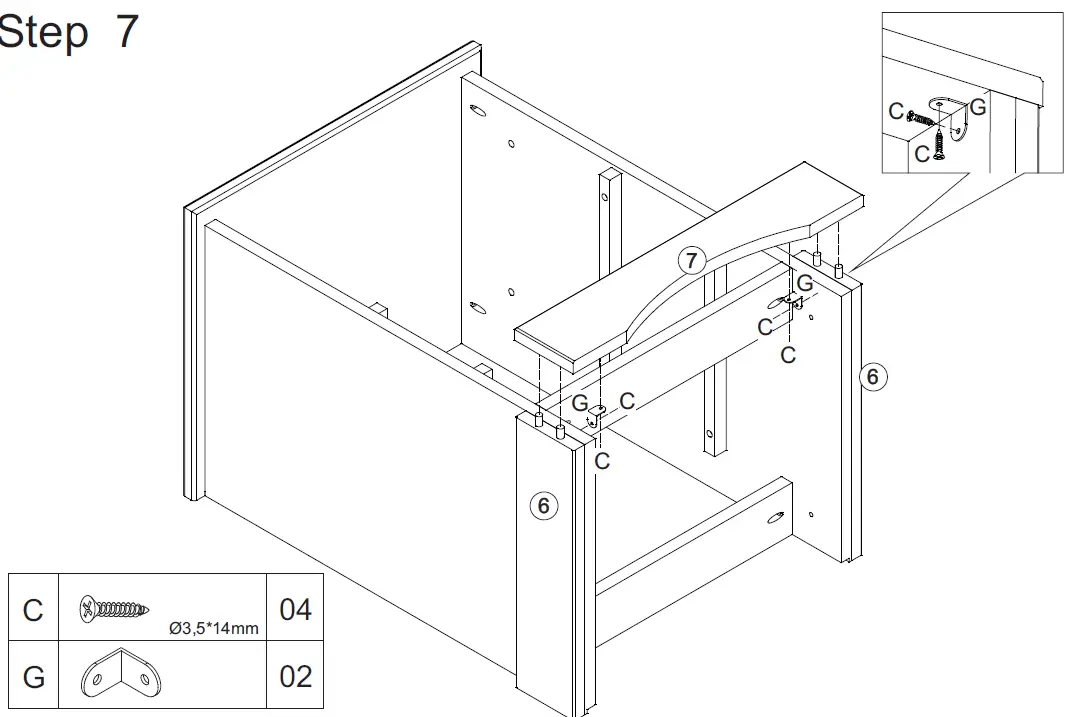

Secure part (7) to part (6) with hardware (G) and screw (C).

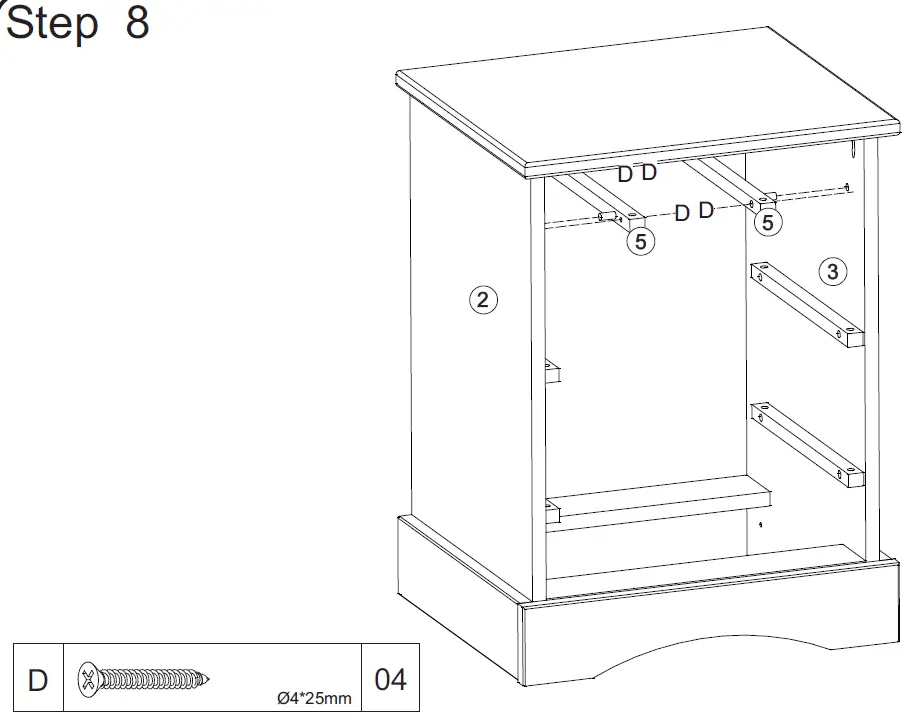

Secure part (5) to part (2) and (3) with screw (D).

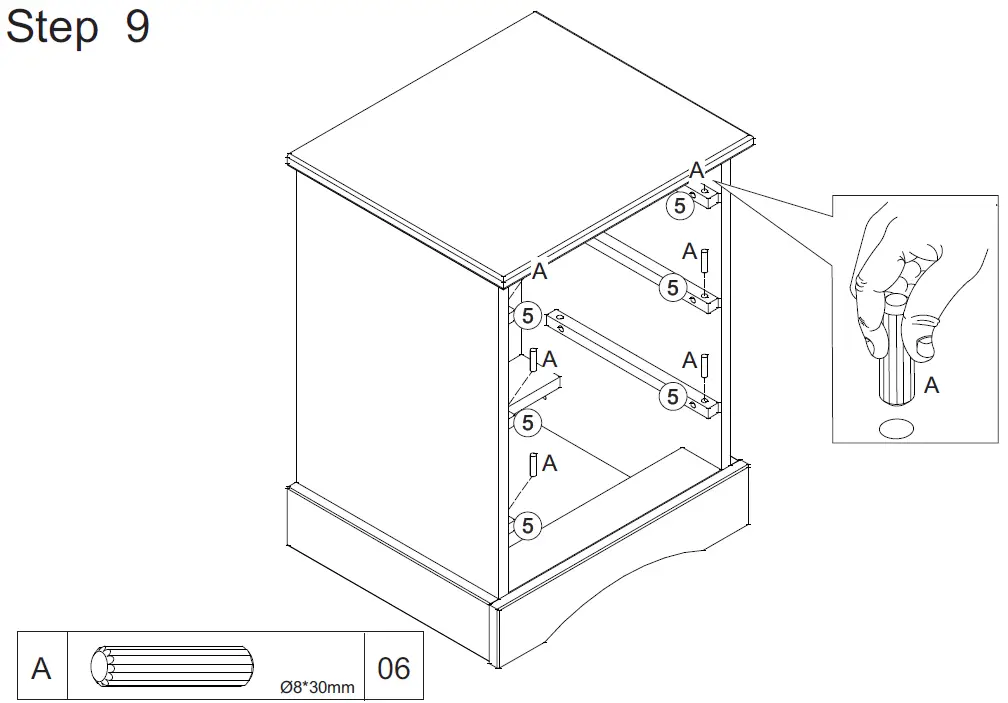

Insert Wooden dowel (A) into part (5).

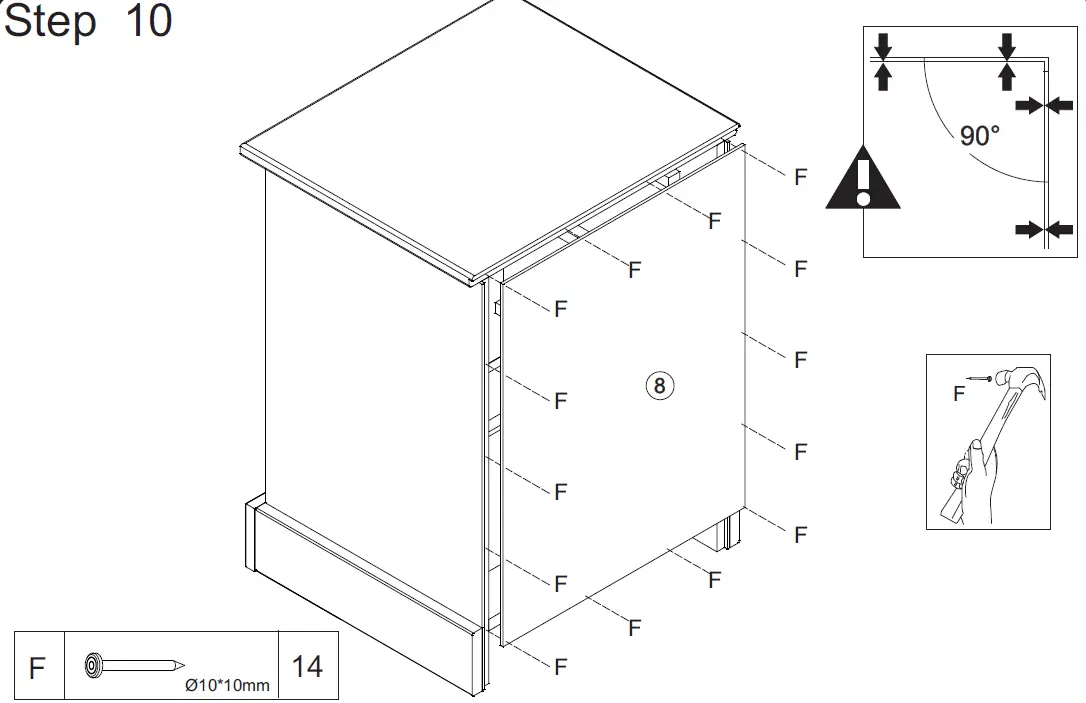

Secure back panel (8) to body with nails (F)

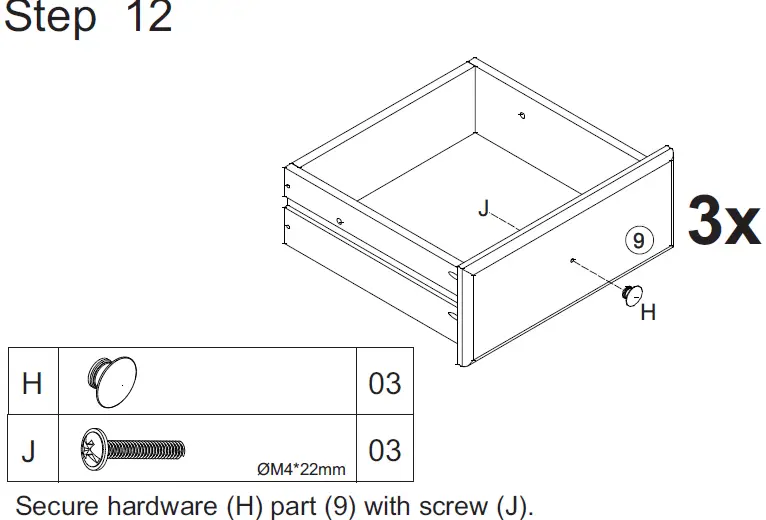

Secure hardware (H) part (9) with screw (J).

Maintenance Guide

To maintain long term performance and easy gliding of your solid wood drawers, we recommend applying wax to the wooden guide rails.

1. Bee’s wax is recommended or Paraffin wax from a standard candle can be used.
2. Apply the wax by rubbing it on the wooden guide rails where there is wood-on-wood contact when opening and closing the drawer. (Wax should be room temperature, do not melt the wax onto the wood)
3. Wax should be applied every few months for the first year and then only when needed after that to keep the drawers sliding smoothly.
