LMM292572E White Bus Freestanding Playset Structure Climber
User Manual
SAFETY & WARNINGS
ADULT ASSEMBLY REQUIRED.
- Keep these instructions for future reference.
- This product is intended for indoor, outdoor, home, domestic use only. It is not suitable for commercial or medical use.
- The assembly of the product must be done carefully and by an able-bodied adult. If in any doubt, ask a technically qualified person.
- Ensure the installation area is ventilated.
- Do not use the product if it is damaged or defective. If it is damaged or defective, please contact a qualified technician.
- Check that all parts are assembled well and are stable before use. Defective parts must be changed immediately as they can impair the function and the safety of the product.
- Use the product only on even and non-slip surfaces. Keep sufficient space around for safety. Place in a well-lit room.
- Keep away from fire or any source of ignition.
- Packing materials are not toys, keep them away from children.
- Dress children appropriately: do not allow children to wear loose-fitting clothing including ponchos, scarves and garments with drawstrings. Well-fitting shoes must be worn at all times.
- Provide adult supervision at all times.
PLEASE DO NOT RETURN TO STORE
Please do not return this product to the retailer!!
We are able to assist you in ANY way
If you find that you have any trouble with assembly or missing or damaged parts please contact the seller.

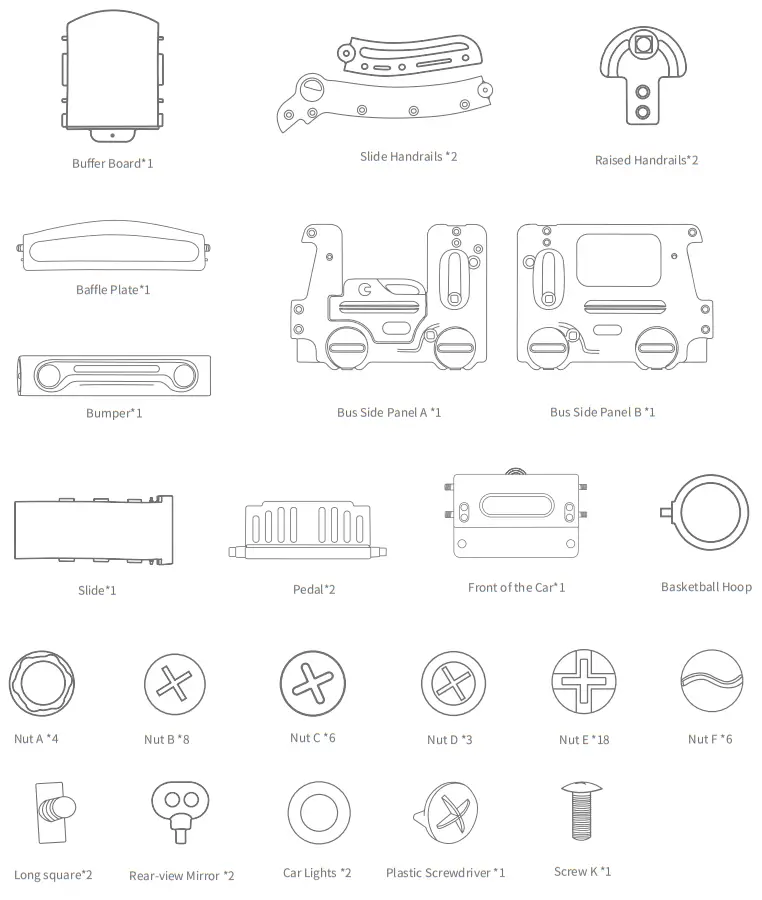

PART LIST
ASSEMBLY
 | |

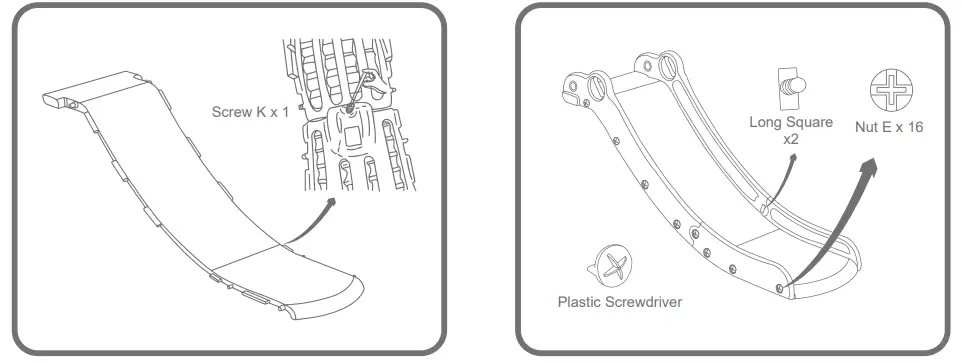

| Step1 Attach the Slide to the Buffer Board, and secure with Screw K on the back. | Step2 Connect 2 Handrails and Slide together with 2pcs Long Squares and 16pcs Nut E, tighten with Plastic Screwdriver. |
 ` | |

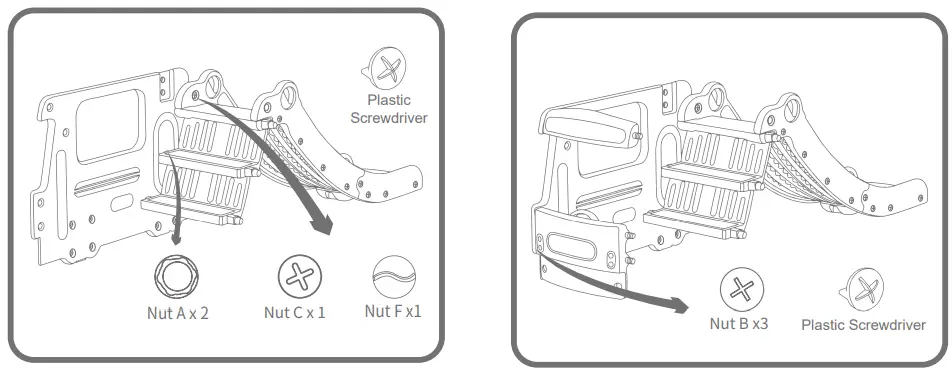

| Step3 Connect the Slide section previously assembled to the Pedal and Bus Side Panel B, securing them with 2pcs Nut A, 1pc Nut C and 1pc Nut F, using Plastic Screwdriver. | Step4 Attach the Front and Baffle Plate to Bus Side Panel B, secure with 3pcs Nut B. |
 | |

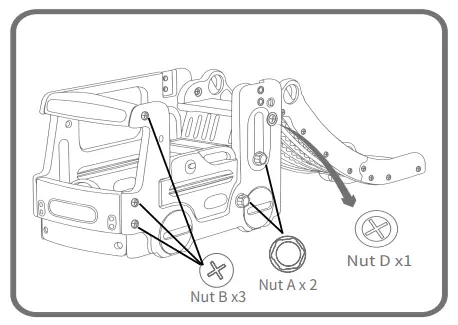

| Step5 Attach the Bus Side Panel A to the part previously assembled, secure with 3pcs Nut B, 2pcs Nut A, and 1pc Nut D. | |
 | |

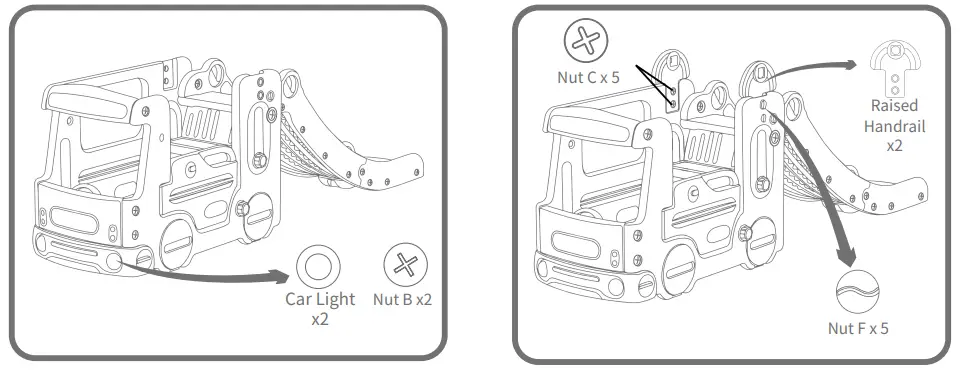

| Step6 Attach the Bumper to the Car Front and secure with 2pcs Car Light and 2pcs Nut B(from the inside). | Step7 Attach the Raised Handrails to the Bus Side Panel A&B, secure with 5pcs Nut C and 5pcs Nut F. |
 | |

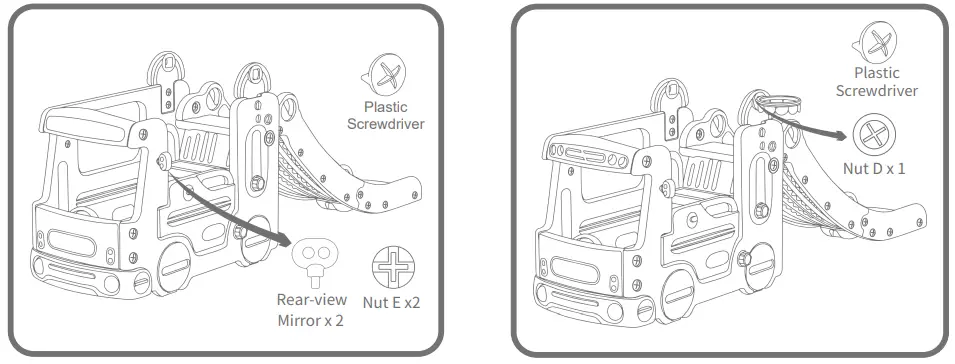

| Step8 Install the Rear-view Mirror to the Bus Side Panels, secure with 2pcs Nut E. | Step9 Install the Basketball Hoop to the Raised Handrails on Bus Side Panel A, secure with 1pc Nut D. |
