W679XYS00027 Children Climbing Frame
Instruction Manual
Age Group: 2-10 years oldSoerer – High quality infant child products

USER GUIDE

IMPORTANT!
KEEP FOR FUTURE USE

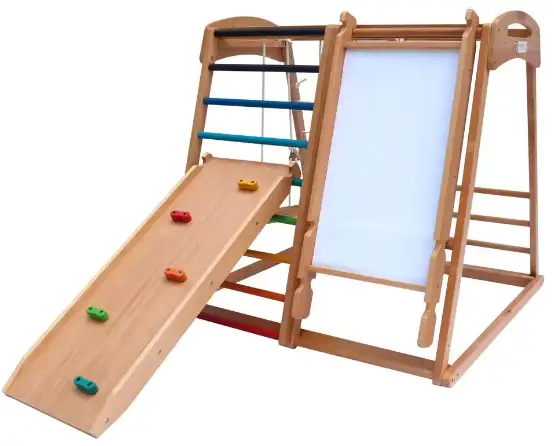

Children Climbing Frame

1. Exterior size: 11 00 * 1 200 * 1100 mm.
   Weight capacity: 50 kg.
2. For 2-10 years children, use under adult supervision.
3. No risky actions or postures when playing.
   Soft cushion underneath the product is required to avoid injury.
4. Place the frame away from windows; keep other hazardous sources away.
5. Adult needs to check the sturdiness before each time children playing.

Clean & Maintenance
Wet cloth wipe and let dry. Avoid exposure under direct sunlight.
Coating: eco-friendly water-based paint conforming to EU EN71-3.

WARNING

• Keep it away from open fireplace, intense heat source, electric or gas furnace, to avoid danger of fire.
• Don’t place the frame close to raised platform, shutter/curtain rod or rope, to avoid children injury. Keep small parts away from the frame to avoid children suffocation.
• Never place more than one mattress in the child’s bed.
• When assembling the Climbing Frame, it is suggested to put all parts together before tighten the screws.
• Place the frame horizontally and stably on the ground.
• After assembly, it is necessary to re-check and re-tighten all the connectors and screws. Improper assembly or loose parts can present risks of clothes/body trapped or stuck in the Climbing Frame.
• When the assembly done, keep the L hex wrench for future use; check and tighten screws again after 2-3 weeks use.

Warranty

All wooden & metal parts: 1 year; Textile parts: 1 year.
Warranty does not cover the normal wear under everyday use, or damages caused by improper use, or losses by use of unauthorized accessories/parts.
Warranty does not cover injuries or damages result from non-compliance of this Assembly Instruction.

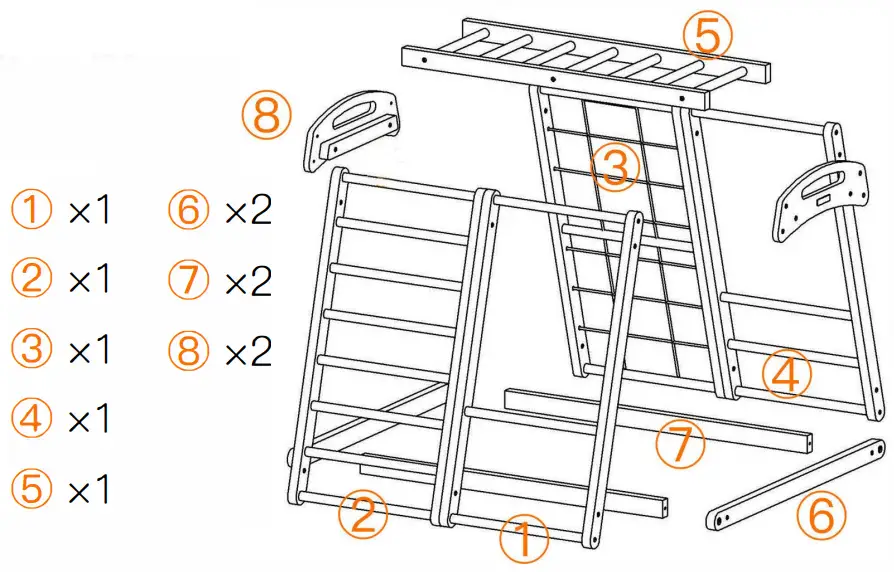

Parts & Hardwires List

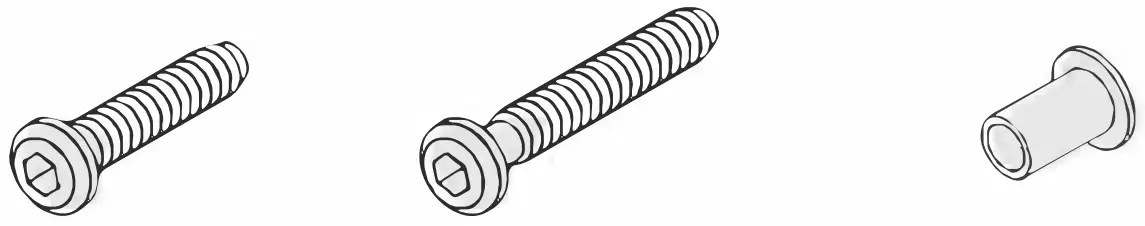

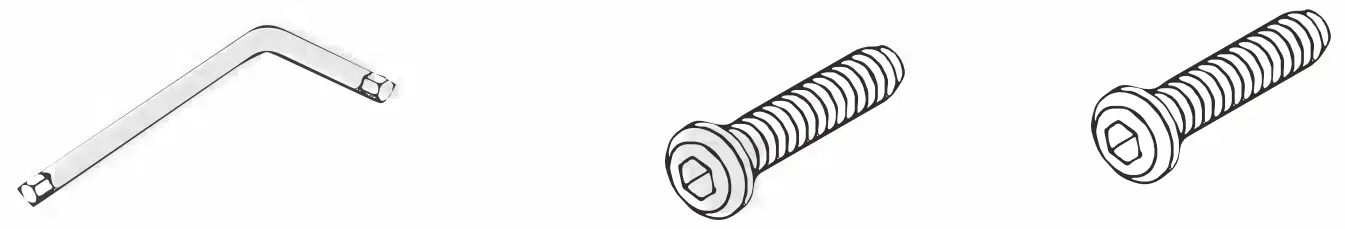

Hardwires

A× 8	B×4	C×12
D×2	E × 4	F × 8

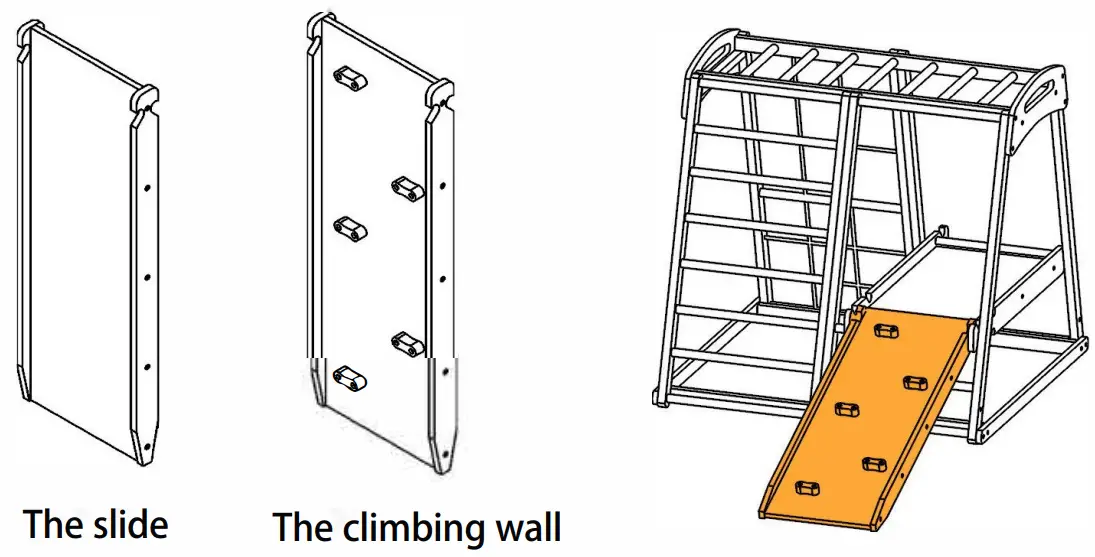

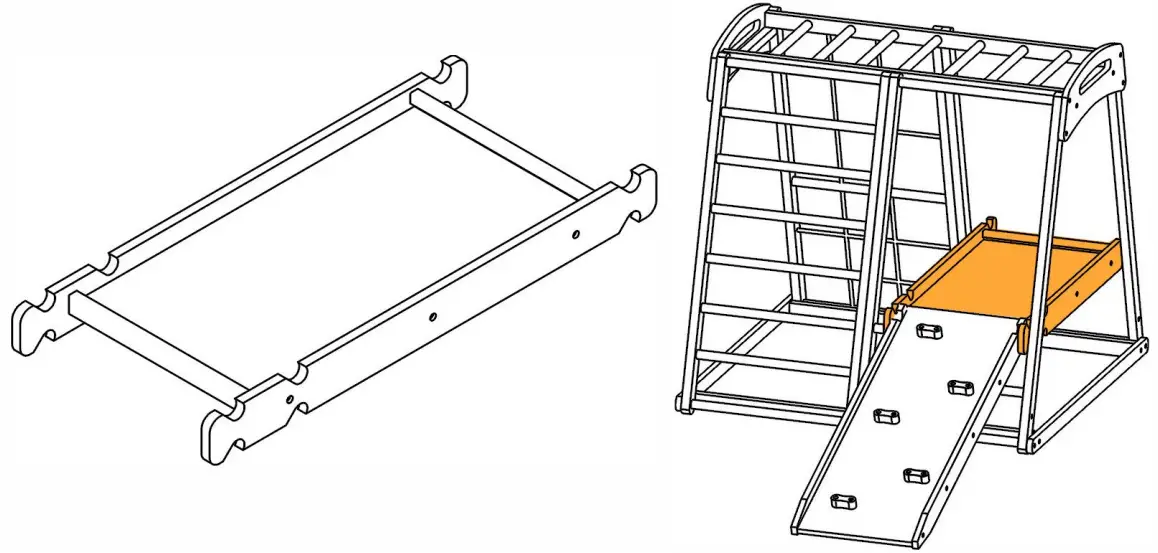

Optional components
The slide
Hardware

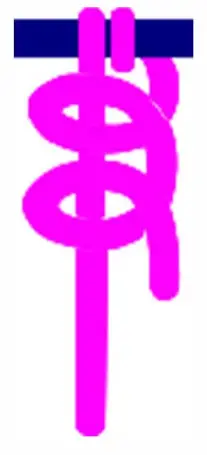

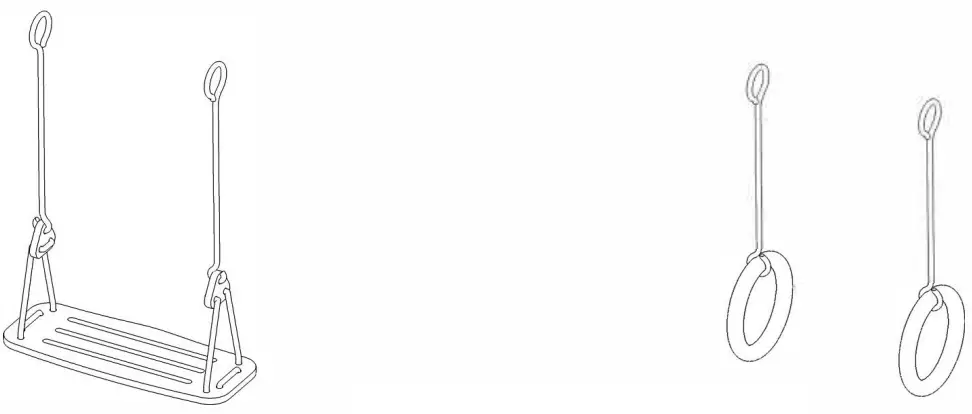

Optional components The Swing	Optional components The Gym Rings	Rope knotting method

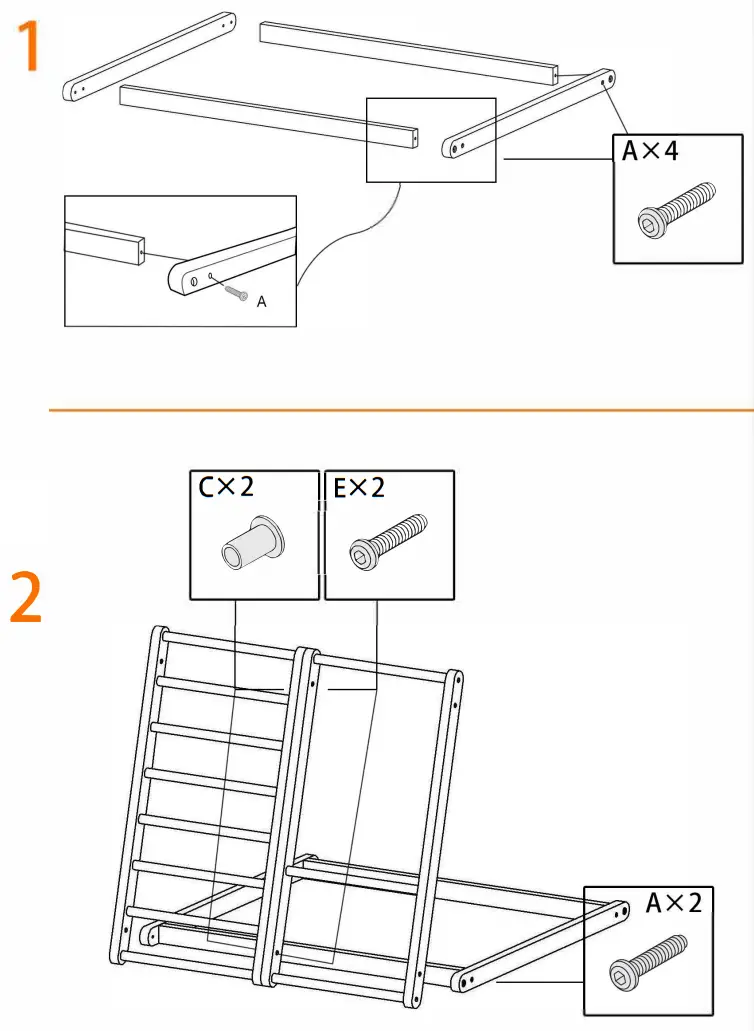

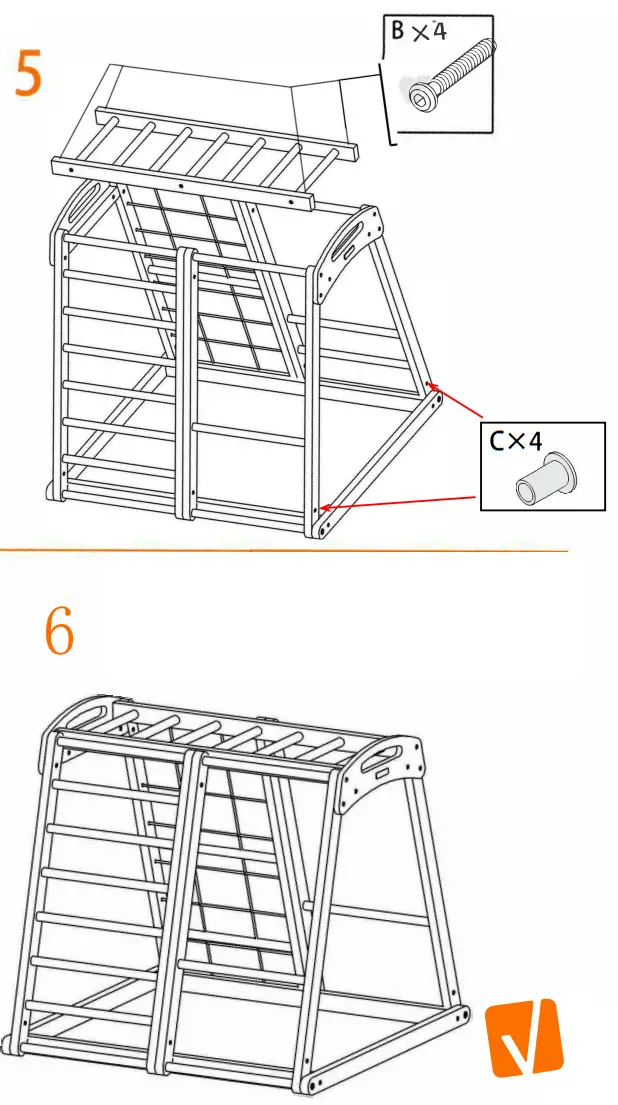

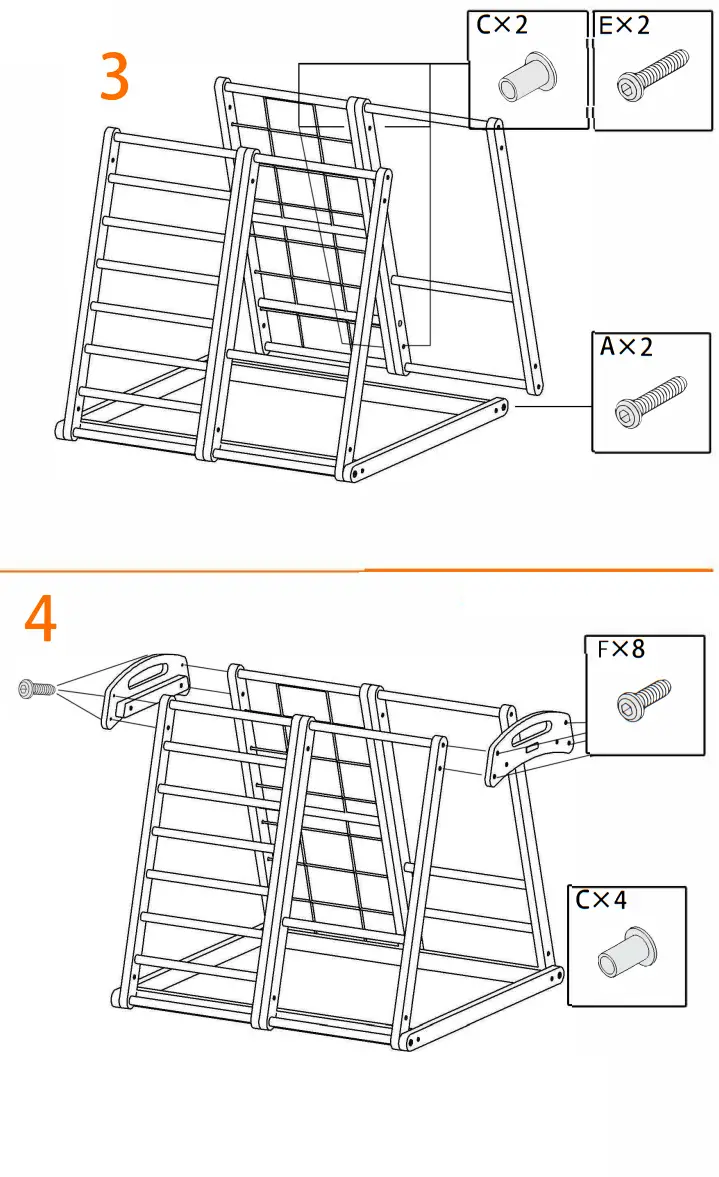

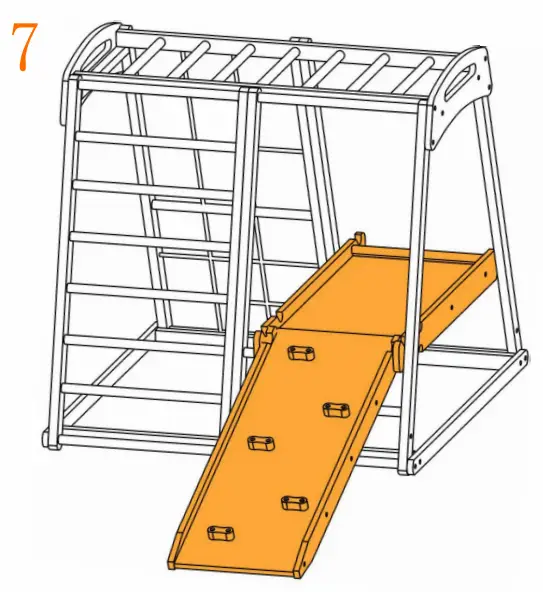

Assemblγ

Note: When positioning the screws during the assembly, please don’t tighten the screws before the whole assembly process done. Tighten the screws after all parts joining together.
