EVERLAST CLIMBING Adaptive Climbing Wall
NOTE:
Hand Holds are only for use with certain Everlast ClimbingTM walls. Call for details. Please use provided mat loop extensions, if adding holds to the wall with the existing mat-locking system.
FOOTHOLD INSTALLATION INSTRUCTIONS
(Please read all instructions thoroughly before starting to install)
- Place Adaptive Foot Hold over desired hole pattern ~ 12” apart for the blue foot holds or ~ 24” apart for the red foot holds.
- Insert 3/8” x 5 ½” Hex bolt with a 3/8 washer into slotted holes, find the T-nuts, and hand screw them in to start them.

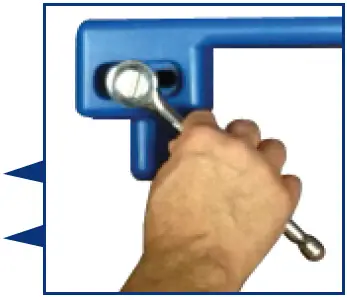

- Using a 9/16 “socket in a socket wrench, ratchet the bolts tight.(Take care not to cross-thread the T-nuts.)

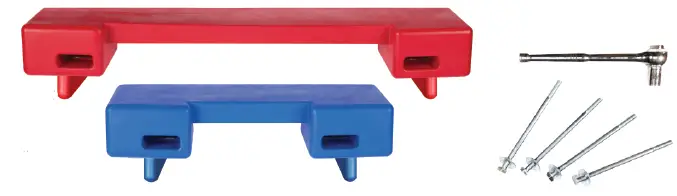

Adaptive Foot Hold Hardware
- < 9/16” socket & socket wrench (NOT included)
- < 3/8” x 5 ½” hex bolt with 3/8” washer (included)
HANDHOLD INSTALLATION INSTRUCTIONS
(Please read all instructions thoroughly before starting to install)
- Insert 3/8” x 2” bolt through Adaptive Hand Hold and into the climbing wall.
- Place Adaptive Hand Hold over the desired hole (T-nut) in the wall, lining up the hole in the handhold with the hole in the climbing wall.
- Using the special 5/16 Allen Wrench (included), gently start threading the bolt into the T-Nut. (Take care not to cross-thread the T-nuts.) Spin the wrench and tighten the hold to the desired position (vertical, horizontal, or angled).

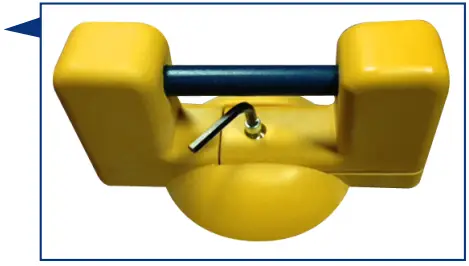

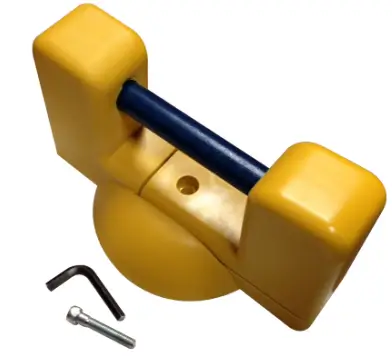

Adaptive Hand-Hold Hardware
- 5/16 Allen Wrench (included) >
- 3/8” x 2” Bolt (included) >
- 3/8” x 2” Bolt (included) >
THE PROPER CARE AND ONGOING MAINTENANCE OF YOUR CLIMBING WALL IS ESSENTIAL AND IS YOUR RESPONSIBILITY. PLEASE REFER TO THE SAFETY, CARE, AND MAINTENANCE INSTRUCTIONS.
