RE600 Controls Ireland
User Guide
Introduction

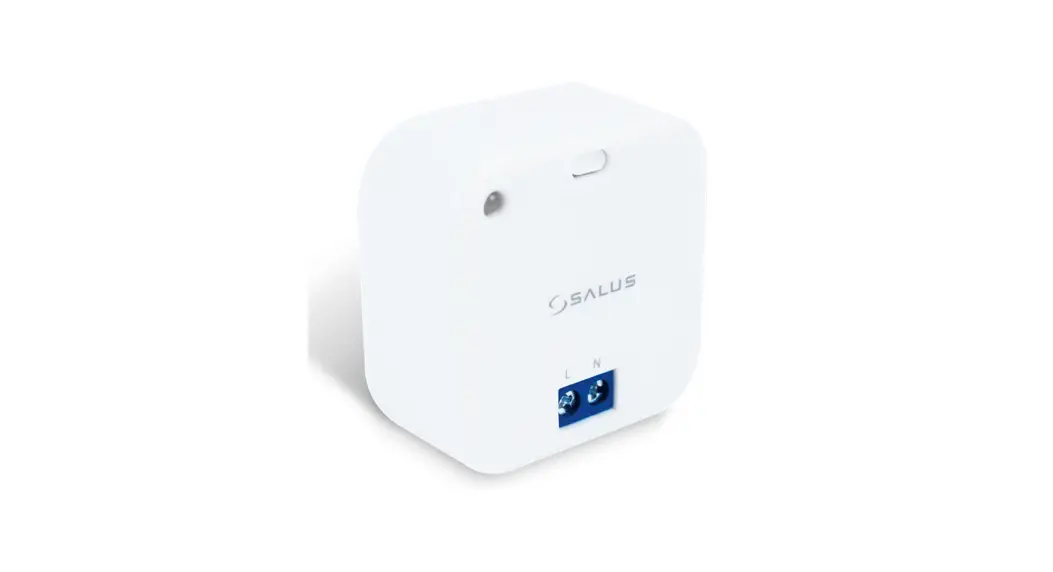

SALUS RE600 is a product that is used as a booster to extend Zigbee devices communication range. It can be installed directly within a wall box or surface mounted onto the wall using the supplied wall bracket. This product must be used with the SALUS UGE600/UG600 (purchased separately). The SALUS UGE600/UG600 allows communication with other SALUS Smart Home products using the SALUS Smart Home App.
Product Compliance
This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU (RED) and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com.
Safety information
Use in accordance with the regulations. Indoor use only. Keep your device completely dry. Disconnect your device before cleaning it with a dry cloth. This accessory must be fitted by a competent person, and installation must comply with the guidance, standards and regulations applicable to the city, country or state where the product is installed. Failure to comply with the relevant standards could lead to prosecution.
Box content
 |  |
| Smart repeater | Wall mounting bracket |
 |  |
| Fixing kit | Quick Guide |
Terminals
| L | Live 230V AC |
| N | Neutral 230V AC |
Wiring

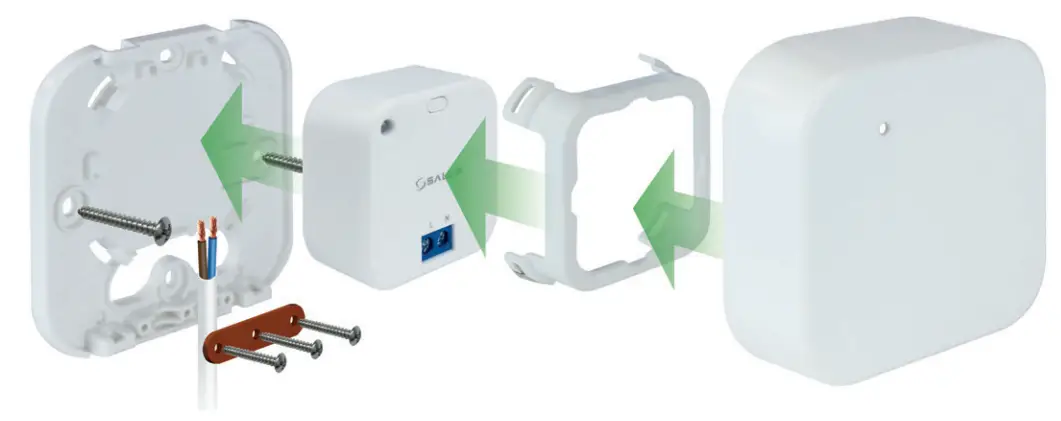

Mounting
LED Indication
| Description | LED |
| Joining Network automatically | RED LED pulsing |
| Joining Network trigger by button press | RED+GREEN LED turn on for 1 second, then RED LED pulsing |
| Device with Network | RED LED |
| Device without Network or loss link | RED LED pulsing |
| Identify | GREEN LED flashing for up to 10 minutes |

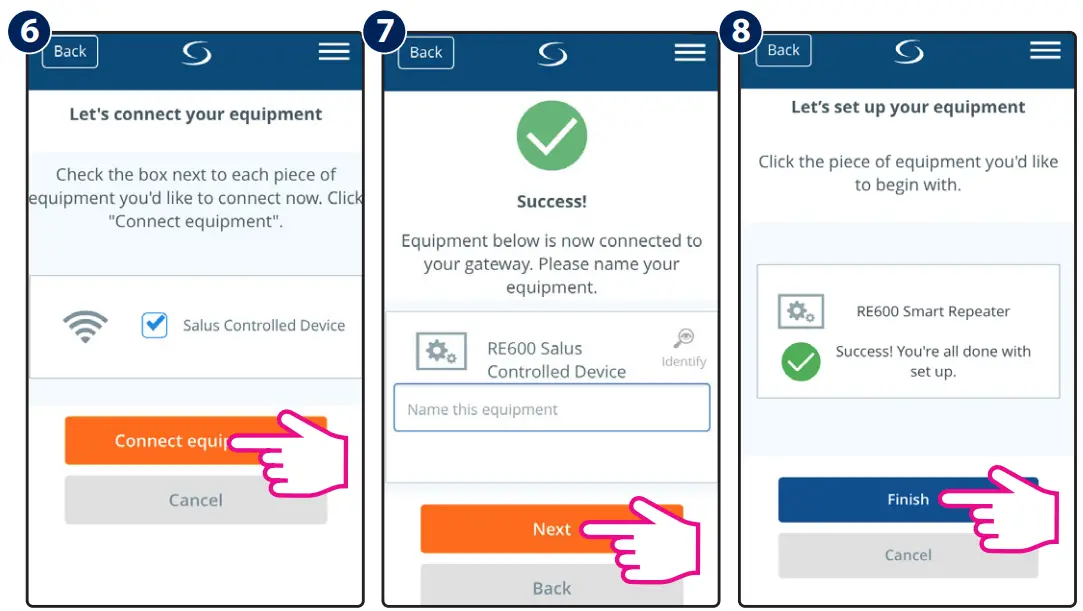

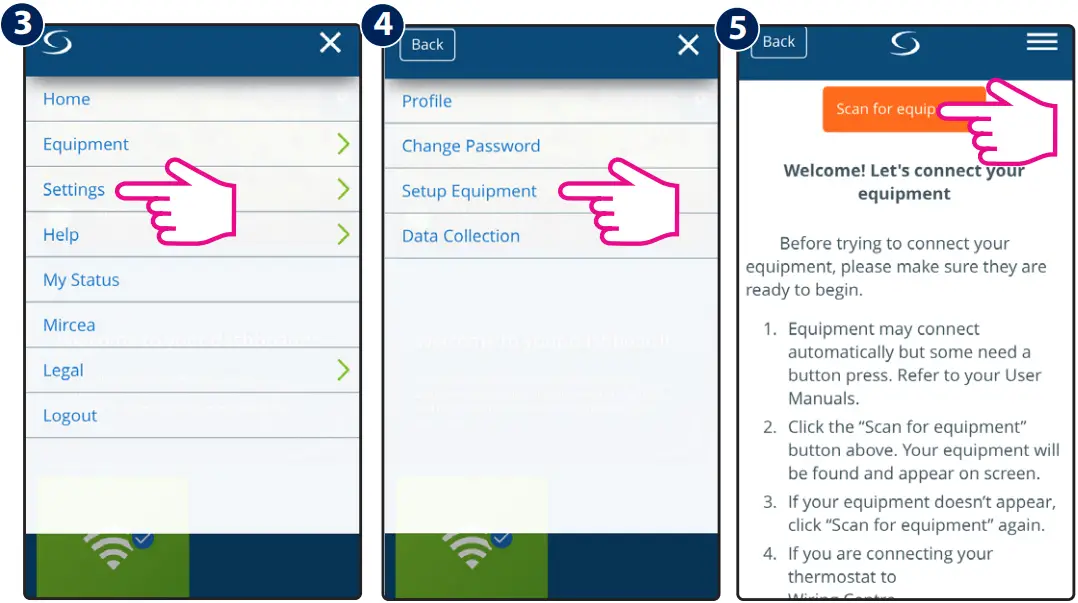

Pairing

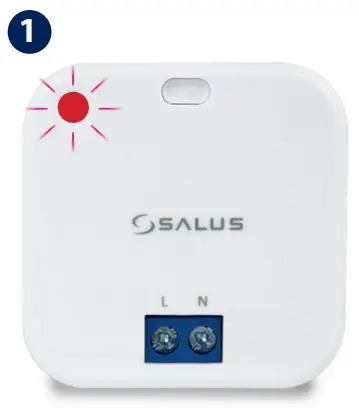

Once powered, the LED will flash red to indicate pairing mode.
Button operation
To identify the device, short press the button.
To enter pair mode, press and hold the button for 3 seconds.
To do a factory reset, press and hold the button until LED flashes red (max 15 sec).
[email protected]
tel: +49 6108 8258515
EN: [email protected]
tel: +44 (0) 1226 323961
Head Office:
SALUS Controls plc
SALUS House
Dodworth Business Park South,
Whinby Road, Dodworth,
Barnsley S75 3SP, UK.
T: +44 (0) 1226 323961
E: [email protected]
www.salus-controls.com
SALUS Controls is a member of the Computime Group
Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice.
For PDF Installation guide please go to www.salus-manuals.com
Issue Date: October 2017 V007
