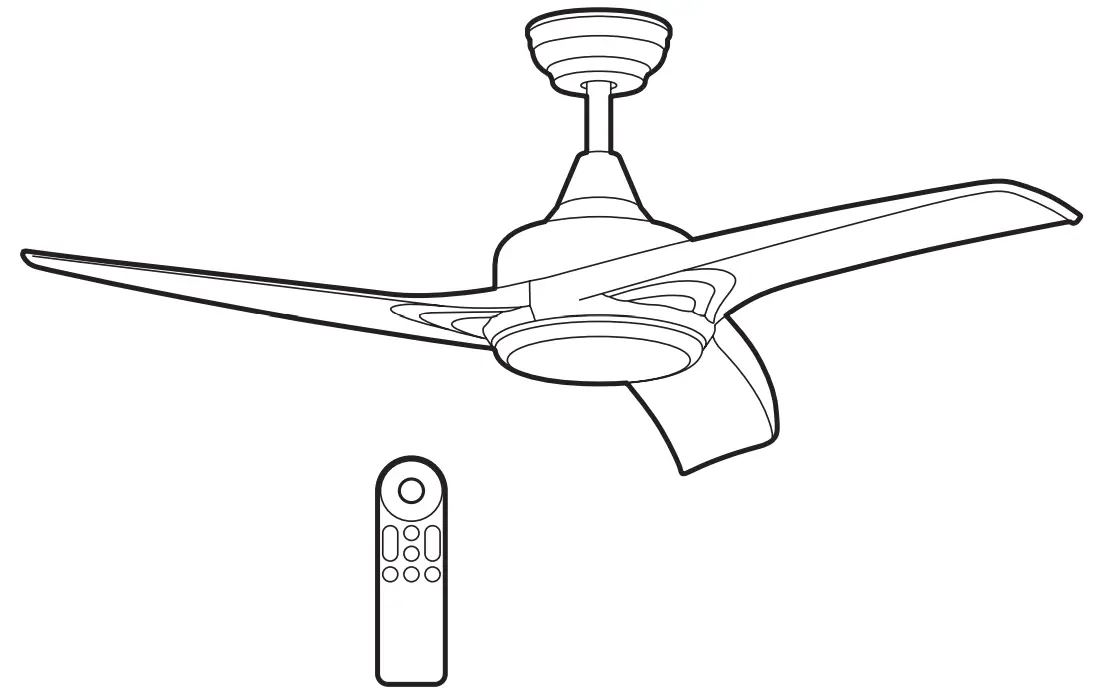

Tavira Ceiling Fan with Light
Instruction Manual
Assembly – Use Maintenance
Manual
Original Instructions
WARNING SYMBOLS
 | Read the instructions carefully. |
 | Lamp |
 | Protective Earth |
GENERAL SAFETY INSTRUCTIONS
Read this instruction manual thoroughly before using the appliance and save it for future reference and if necessary pass the instruction manual on to a third party.
WARNING: When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.
WARNING: If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.
General
Check if the electrical specifications of the appliance are compatible with your installation. Unauthorized use or technical modification to the appliance can lead to danger to life and health. This appliance is not intended for use by persons(including children)with reduced physical,sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This appliance is for indoor use only except moist or wet room. Means for disconnection must be incorporated in the fixed wiring in accordance with wiring rules into force. Before pushing the reversible slide switch,it is necessary to stop the action of the blades by turning off the fan. The supplier disclaims all liability for personal injury or property damage arising from incorrect use or installation of the fan.In doupt,call upon an electrician. Children should be supervised to ensure that they do not play with the appliance. Be careful when working near the rotating blades. Warning: only to be installed outside arms reach. This appliance can be used by children aged from 8 years and above and persons withreduced physical, sensory or mental capabilities or lack of experience and knowledge if theyhave been given supervision or instruction concerning use of the appliance in a safe way andunderstand the hazards involved. Children shall not play with the appliance. Cleaning anduser maintenance shall not be made by children without supervision.
2) Electrical Safety
The product should be installed by an authorized electrician in accordance to national wiring rules.
The replacement of parts of the safety suspension system device shall be performed by the manufacturer, its service agent or suitably qualified persons.
The mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons.
An all-pole disconnector with isolating distance of 3mm must be incorporated in the fixed wiring in accordance with the national wiring rules.
This product is in accordance with safety standards into force. Repairs should be exclusively performed by qualified technicians using original spare parts. Any breach of this instruction may be particularly dangerous for the users.
SPECIFIC SAFETY RULES
The fan base mounting bracket can support a load of 36 kgs.

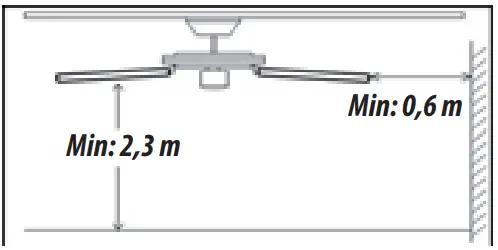

The fan is to installed so that the blades are more than 2,3m above the floor and the blades distance to wall min 0.6m.
ENVIRONMENTAL PROTECTION
CAUTION!
Electrical products must not be thrown out with domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations. Contact your local authorities or stockist for advice on recycling.
The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.
APPLIANCE SPECIFICATIONS
TECHNICAL CHARACTERISTICS
| Rated voltage | 220V-240V |
| Rated frequency | 50Hz |
| Rated wattage | 30W fan |
| Bulb type | LED 18W |
| Protection | class I |
| IP number | IP 20 |
| Weight | 5,8kg |
| Frequency band | 433,92Mhz |
| Maximum frequency power | -27 dBm |
This product contains a light source of energy efficiency class D – (EU) 2019/2015
MAINTENANCE / CLEANING
Alway disconnect the appliance before cleaning or doing maintenance.
Never use a wet sponge to clean the appliance.
In order to not damage the product,it is advisable to use adapted equipment to the fragile surfaces and products slowing the wear on the appliance.
REPAIR GUIDE
| TROUBLE | PROBABLE CAUSE | SUGGEST REMEDY |
| Fan will not start | •Fuse or circuit breaker blown. •Loose power line connections to the fan. •Speed controller not in correct positon. | •Check main and branch circuit fuses or circuit breakers. •Check line wire connections to fan. •Check speed controller’s position. |
| Le ventilateur est bruyant | •Top canopy touching ceiling. •Loose fan blades screws. •Ceiling fan not secured against ceiling. •Incorrect speed controller. | •Lower canopy form ceiling to ensure minimum 3mm clearance. •Re-tighten all screws on fan blades but never over-tighten. •Re-tighten all screws in the hanging bracket or plate. •Change the controller to one supplied. |
| Mechanical noise | •Allow at least for 8 hours setting-in period. | |
| Fan wobbles | •Fan blades are not horizontal to ceiling. •Blade screws are loose. | •Measure from ceiling to tips of baldes,then rotate fan so all blades are checked for equal height from ceiling(not adjustments may be made by slight pressure up or down on blade holders). •Make sure all screws are securely fastened. |
GUARANTEE
- WARRANTY DURATION:
The general legal warranty applies to all products for 2 years from the delivery of the goods and upon providing the receipt as the proof of the purchase.
However, INSPIRE goes beyond that. We want you to have the best experience possible with our products, thus we have extended the warranty periods for all INSPIRE products to 8 years. - WARRANTY APPLICATION:
For the warranty to be applied, the product must have been installed, used and maintained according to the Instruction Manual guidelines. - QUESTIONS AND CLAIMS:
If you have any questions or encounter any problems regarding the use of the product, its performance or visual aspect, you are welcome to contact your vendor through the contact information you will find on the purchasing receipt.
OTHERS (SERVICE, REPAIRING, ETC.)
Have your product repaired by a qualified person.
This electric product is in accordance with the relevant safety requirements.
Repairs should only be carried out by qualified persons using original spare parts, otherwise This may result in considerable danger to the user.
Please contact the store which you bought the product for after sale services if any question.
Please contact the store which you bought the product if you lost the installation manual.

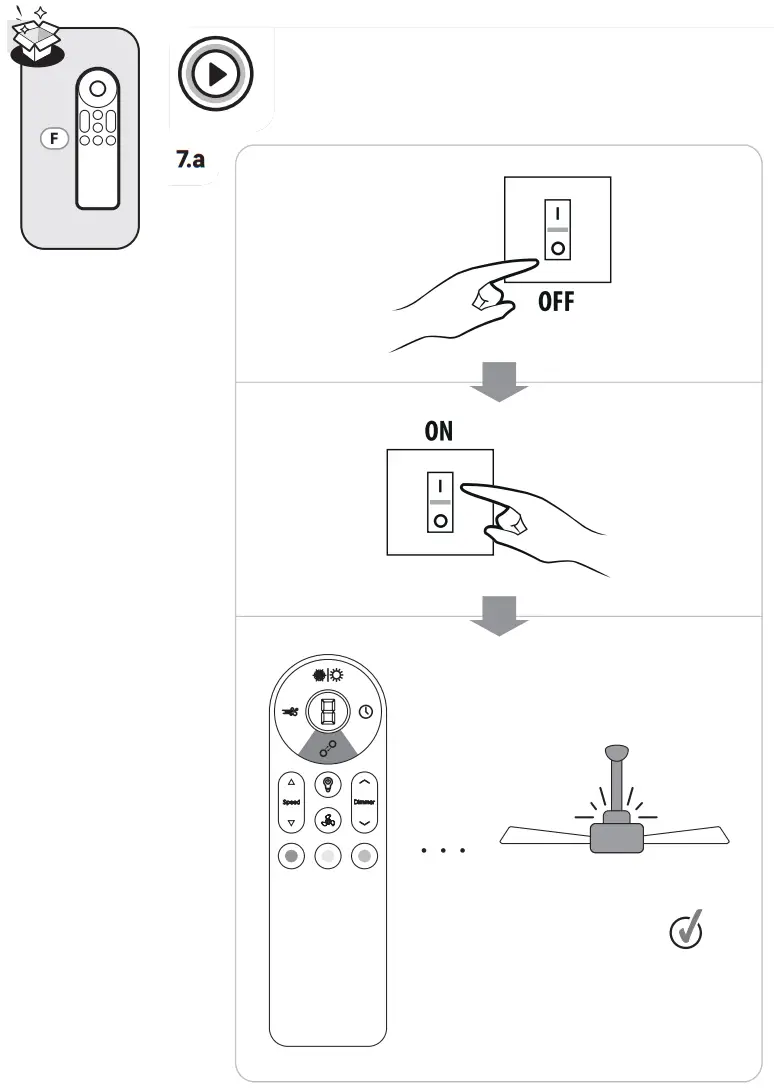

For the first use, the fan and the remote control are already paired. Pair setting may occur in following situations:
- You would like to use one remote control to control more than one fan.
- You get a new wireless remote control spare part.
- Turn on power supply switch.
- Long press the « » key until the signal is heard.
- Paired successfully.
EU/EC Declaration of conformity
Product Mode 819192 / 819188 / 819191 / 819190 / 819189
Name and address of the manufacturer or his authorised representative
ADEO Services, 135 Rue Sadi Carnot – CS 00001 59790 RONCHIN – France
This declaration of conformity is issued under the sole responsibility of the manufacturer
Object of the declaration
| Product Type | C.FAN 91CM LED 2700LM CCTDIM MET.WHITE+WOOD/WHITE DCMOT INSPIRE NASHI C.FAN 132CM LED 2700LM CCTDIM METAL WHITE+WOOD/WHITE DCMOT INSP SHAMAL CF LED 112CM 2700LM CCTDIMM WH&WOOD DC MOTOR AVEIRO INSPIRE CF LED 132CM DC 2700LM CCTDIMM WHITE PC TAVIRA WHITE INSP CF LED 132CM CCTDIMM DC MOTOR BORA INSPIRE |
| Product Reference | 819192 / 819188 / 819191 / 819190 / 819189 – EAN Code: 3276007345285/3276007345438/3276007345469/3276007345476/3276007345483 Industrial Type Design Reference: NASHIBL21EU/SHAMALBL21EU/AVEIROPROBL21EU/ TAVIRAPROBL21EU/BORAPRONI21EU |
| Product Brand | Inspire |
| Serial number coding or batch number | SSSSSSDDMMYYYY(SSSSSS means the supplier code; DDMMYYYY means the ETD date) |
The object of the declaration described above is in conformity with the relevant Union harmonization legislation
References to the relevant harmonised standards used or references to the specifications in relation to which conformity is declared
When applicable, the name and number of notified body number
| 2014_53_EU_RED radio equipment | EN 300 220-1 V3.1.1:2017-02 EN 300 220-2 V3.2.1:2018-06 EN 301 489-1 V2.2.3:2019-11 EN 301 489-3 V2.1.1:2019-03 IEC 603351:2010+A1:2013+A2:2016 IEC 60335-2-80:2015 EN 62233:2008 IEC 60598-1:2014+A1:2017 IEC 60598-2-1:1979+A1:1987 EN IEC 55014-1:2021 EN IEC 55014-2:2021 EN IEC 55015:2019+A11:2020 EN61547:2009 EN IEC 61000-3-2:2019+A1:2021 EN IEC 61000-3-3:2013+A1:2019 EN 62479:2010 |
| 2011_65_EU_RoHS Restriction of hazardous substances in electrical products | (EU)2015/863 amending Directive 2011/65/EU IEC 62321-2:2013 IEC 62321-3-1:2013 IEC 62321-4:2013+A1:2017 IEC 62321-5:2013 IEC 62321-6:2015 IEC 62321-7-1:2015 IEC 62321-7-2:2017 IEC 62321-8:2017 |
| 2009_125 ECO DESIGN EcoDesign|Eco-Conception | (EU) No.206/2012 (EU) 2019/2020 (EU) 2019/2015 |
| Signed for and on behalf of | Eric LEMOINE International Project Quality Leader |
| Place and date of issue| | Ronchin 04/01/2022 |
SPARE PARTS
Some parts of this product can be ordered from your store * Garantie 8 ans
Made in China 2021
ADEO Services – 135 Rue Sadi Carnot – CS. 00001
59790 RONCHIN – France
