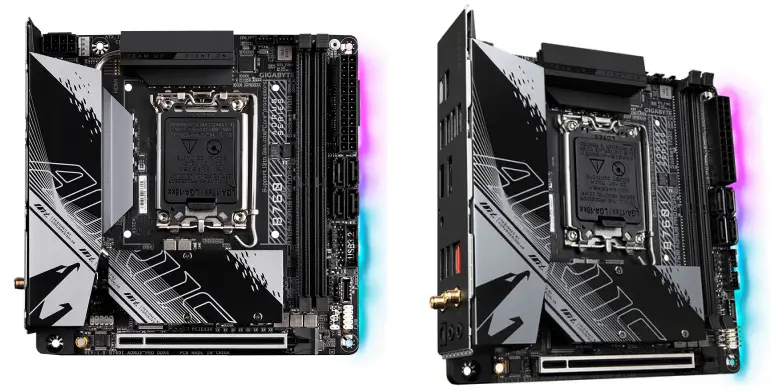

Gigabyte B760I AORUS PRO DDR4 motherboard Intel B760 Express
LGA 1700 mini ITX
Brand : Gigabyte
Product code: B760I AORUS PRO DDR4
Product name : B760I AORUS PRO DDR4
B760I AORUS PRO DDR4 Motherboard Intel B760 Express LGA 1700 Mini ITX
– Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors
– Unparalleled Performance: Direct 8+1+1 Phases Digital VRM Solution
– Dual Channel DDR4: 2*DIMMs with XMP Memory Module Support
– Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
– Advanced Thermal Design: Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
– Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
– Extended Connectivity: Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
– RGB FUSION: Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
– Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
– Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card Mini-ITX, LGA 1700 socket, Intel B760 Express chipset, 2x DDR4 DIMM, Wi-Fi 6, Bluetooth 5.2, AMI UEFI BIOS
Processor
| Processor manufacturer * | Intel |
| Processor socket * | LGA 1700 |
| Compatible processor series * | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
Memory
| Supported memory types* | DDR4-SDRAM |
| Number of memory slots* | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC |  |
| Non-ECC | |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733, 3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Maximum internal memory * | 64 GB |
| Unbuffered memory | |
Storage controllers
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces * | M.2, PCI Express 4.0, SATA III |
| Number of storage drives supported | 6 |
| RAID support | |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Parallel processing technology support * | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | |
Internal I/O
| USB 2.0 connectors * | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| connectors * | 4 |
| Number of SATA III connectors * | |
| Audio connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
Rear panel I/O ports
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity * | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity * | 1 |
| Ethernet LAN (RJ-45) ports * | 1 |
| HDMI ports quantity * | 1 |
| HDMI version | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 2 |
| Line-in | |
| S/PDIF out port | |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
Network
| Ethernet LAN | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi * | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Killer Wi-Fi 6 AX1650 |
| Bluetooth | |
| Bluetooth version | 5.2 |
Features
| Motherboard chipset * | Intel B760 Express |
| Audio output channels * | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for * | PC |
| Motherboard form factor * | mini ITX |
| Motherboard chipset family * | Intel |
Internal I/O
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| 12V power connector | |
| RGB LED pin header | |
Rear panel I/O ports
| USB 2.0 ports quantity * | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity * | 4 |
Features
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| BIOS type * | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Cables included | SATA |
| Bundled software | Norton Internet Security |
