Ngs Subway Black Wired & Wireless Soundbar Compatible User Manual

Subway Black Wired & Wireless Soundbar Compatible
User Manual

SUBWAY 2.0 COMPATIBLE WITH BLUETOOTH

Subway Black Wired & Wireless Soundbar Compatible

DESCRIPTION OF SIDE PANEL

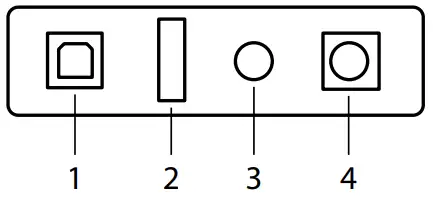

DESCRIPTION OF REAR PANEL

1. Optical input
2. USB input
3. Aux input
4. DC input

Note:
To fully disconnect the electrical cable, please disconnect the plug from the electrical power point it is connected to. The base of the power point should be easy to access.

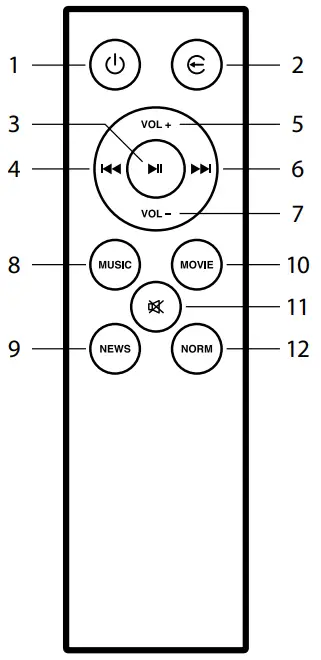

DESCRIPTION OF REMOTE CONTROL

1. On / Off
2. Audio source switch
3. Play/Pause
4. Previous track
5. Increase volume
6. Next track
7. Decrease volume
8. Music sound effect
9. News sound effect
10. Movie sound effect
11. Mute
12. Normal sound effect

BLUETOOTH MODE

• Turn on the speaker and then switch to Bluetooth mode: the “Bluetooth mode” prompt tone will sound and the indicator will flash in blue. Keep the speaker and  Bluetooth-enabled device within a radius of ten metres.
• Set your mobile phone to search for Bluetooth devices.
• When the Bluetooth enabled finds the speaker, select “NGS SUBWAY” from the list of found devices.
• If required, enter the password “0000”.
• After successfully being paired, BT will light up in blue.

AUX MODE

• Keep the unit powered on. Plug one end of the 3.5mm AUX cord to the headphone jack on your device.
• Plug the other end of the 3.5mm AUX cord into the AUX jack on the speaker.
• Use the connected device’s audio controls for music playback.

USB PLAYBACK MODE

• Turn on the unit. Push USB disk with MP3 music(s) into USB port, it will switch to USB Playback Mode and then start to play music automatically.

OPTICAL INPUT MODE

• Plug one end of the optical cable into your TV, make sure it is turned on and plug the other end into the NGS SUBWAY speaker.
  Note: You must select the optical audio output from the TV so that the sound signal reaches the speaker.

TECHNICAL SPECIFICATIONS

• Output power: 40W
• Compatible with Bluetooth 5.0
• USB reader
• Aux input
• Optical input
• RMS: 20W
• EQ effects
• LED indicator
• DC adapter: 12V / 1A

If at any time in the future you should need to dispose of this product please note that:
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
(Waste Electrical and Electronic Equipment Directive)

DECLARATION OF CONFORMITY

WE, AUTHORIZED REPRESENTATIVE, LURBE GRUP S.A, SAN SEBASTIAN, SPAIN, DECLARE UNDER OUR SOLE RESPONSIBILITY THAT THE FOLLOWING PRODUCT:
NGS: NGS SOUND8AR / MODEL: SUBWAY
HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:
EN 55032:2015+A1 1:2020
ETSI EN 301489-1 V2.2.3
EN 55035:2077 ETSI
EN 301 489-17 V3.2.4
EN 62368-1:2014 ETSI
EN 300 328 V2.2.2
EN 62479:2010 SEC
EN 63000:2018
AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL: :
RADIO EQUIPMENT DIRECTIVE 2014/53/EU
ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863
REPRESENTANTE AUTORIZADO:
SIGNED AUTHORIZED REPRESENTATIVE:
LURBE GRUP S.A
PORTUETXE 27
20018 SAN SEBASTIAN (GUIPOZCOA) SPAIN
SAN SEBASTIAN, FEBRUARY 14TH, 2022
FIRMADO
RAUL MARTIN
PRODUCT MANAGER
