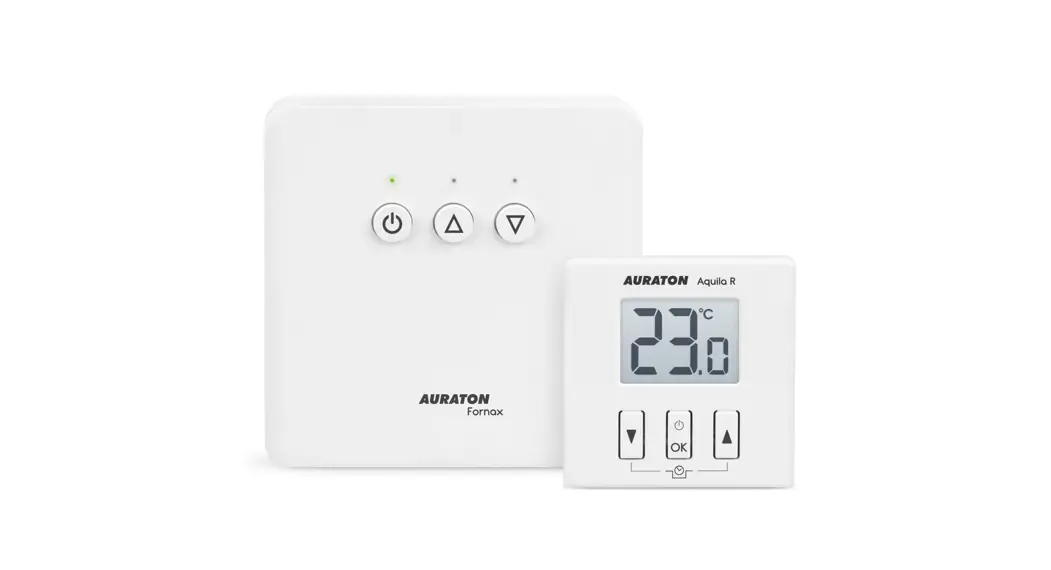

Wireless thermostat

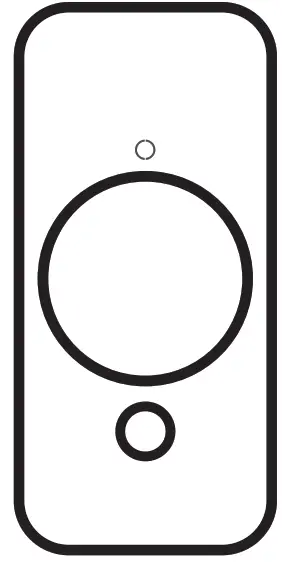

Front
Thermostat

Data transmission LED
Temperature setting knob
Anti-freeze temperature setting (7 °C)
Temperature sensor
Holes for the mounting bracket
Pairing indicator light
Pairing button with the AURATON Fornax receiver

The extended manual can be found at: https://manuals.auraton.pl

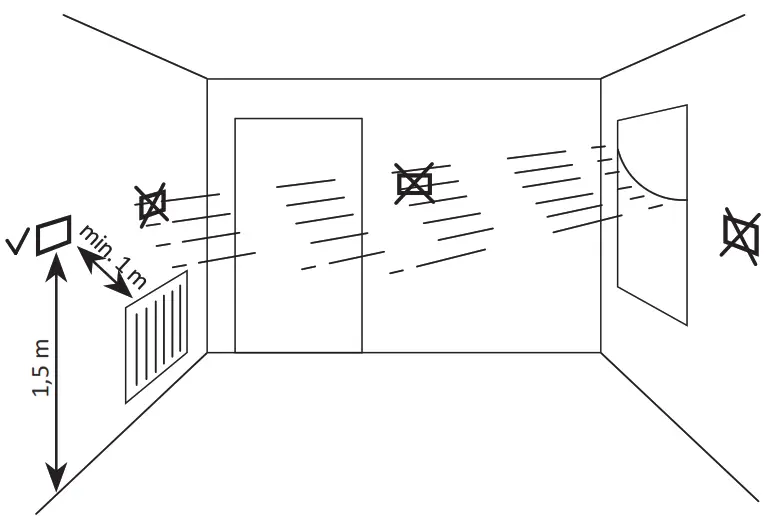

Choosing the right location for the AURATON Aquila Mini R

Mounting AURATON Aquila Mini R to the wall

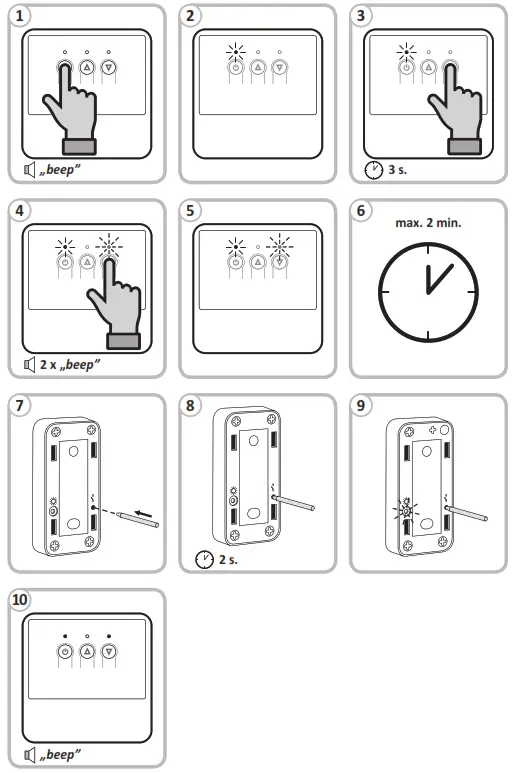

Pairing AURATON Aquila Mini R with AURATON Fornax

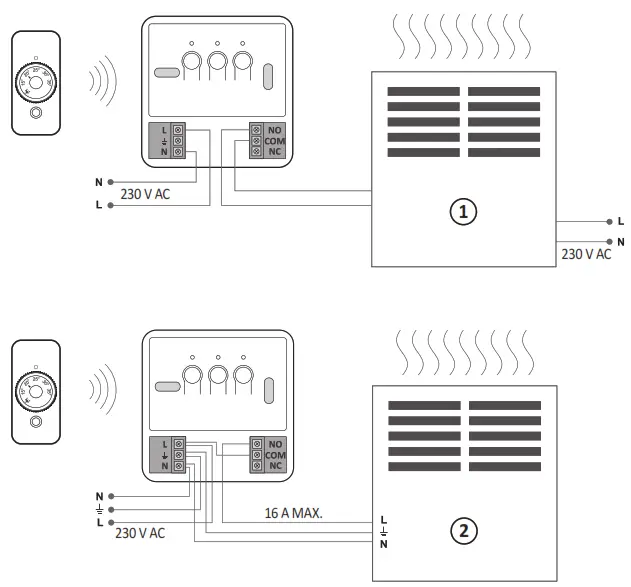

Simplified diagram of connection of AURATON Aquila SET with a heating device.

Heating device e.g. a gas furnace
Electric heating device

Technical specifications

Power supply:	lithium battery (factory built-in). Non-removable battery.
Working temperature range:	0 – 45 °C
Number of temperature levels:	1
Anti-freeze temperature:	7 °C
Temperature control range:	7 °C; 15 – 35 °C
Signaling the working status:	LED indicators
Operation range:	approx. 30 m
Radio frequency:	868.850 MHz 869.000 MHz
Radio signal strength:	Up to 11 dBm
Level of security:	IP20
Dimensions [mm]:	75 x 35 x 14

Disposing of the devices

The devices are marked with the crossed waste bin symbol. According to European Directive no. 2012/19/UE and the Act concerning used up electric and electronic equipment, such a marking indicates that this equipment may not be placed with other household generated waste.
The user is responsible for delivering the devices to a reception point for used-up electric and electronic equipment.
Hereby, LARS Andrzej Szymanski declares that the radio equipment type AURATON Aquila Mini SET is in compliance with Directive 2014/53/EU and 2011/65/ EU. The full text of the EU declaration of conformity is available at the following internet address: https://manuals.auraton.pl
