AURATON Aquarius SET

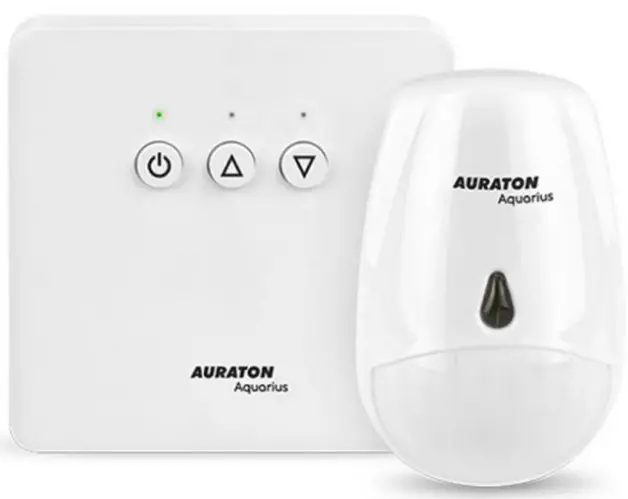

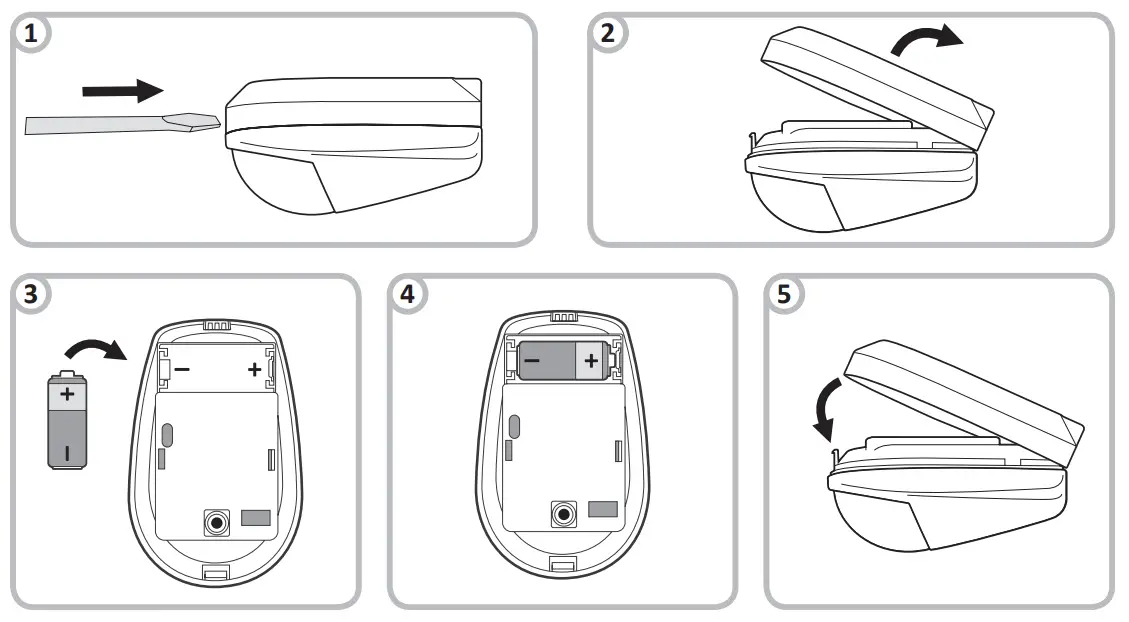

Battery installation
Installation method

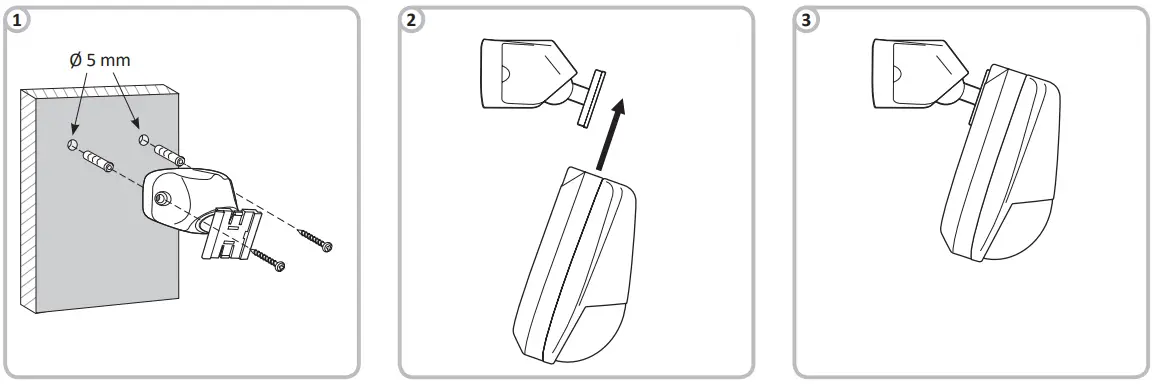

Mounting

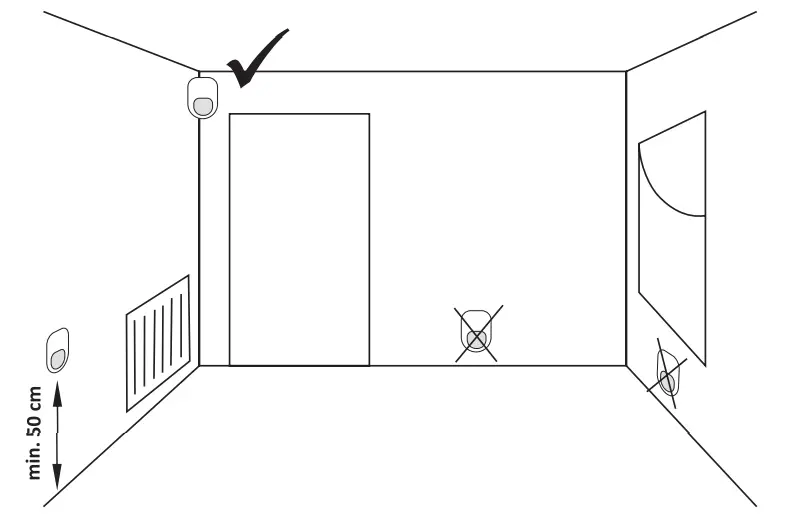

- Choosing the right location for the wireless motion sensor.

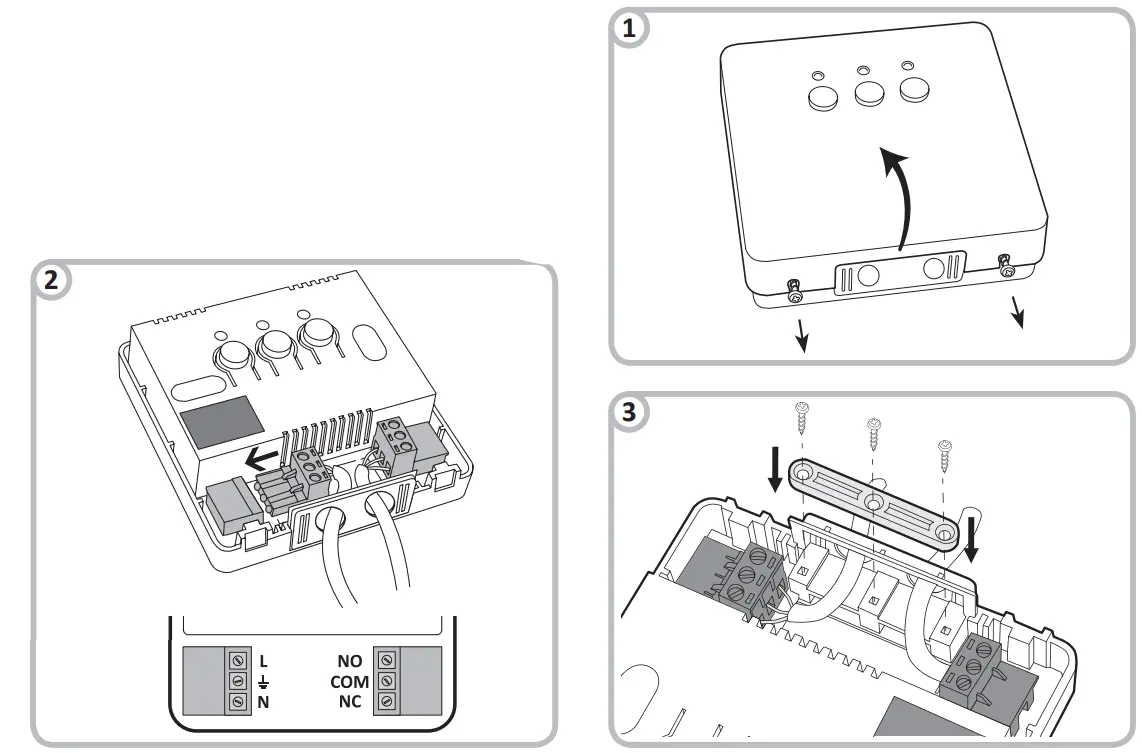

Connection

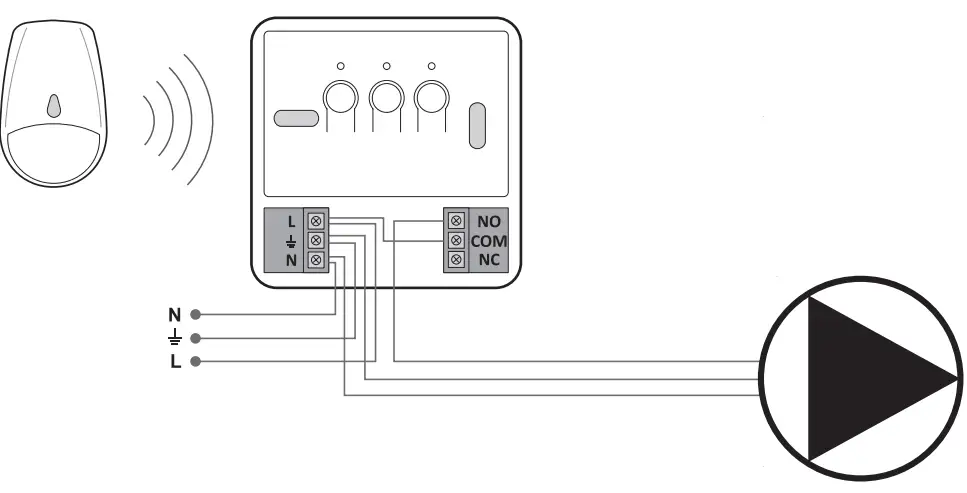

Connection scheme of AURATON Aquarius CR with a circulation pump in the DHW system.

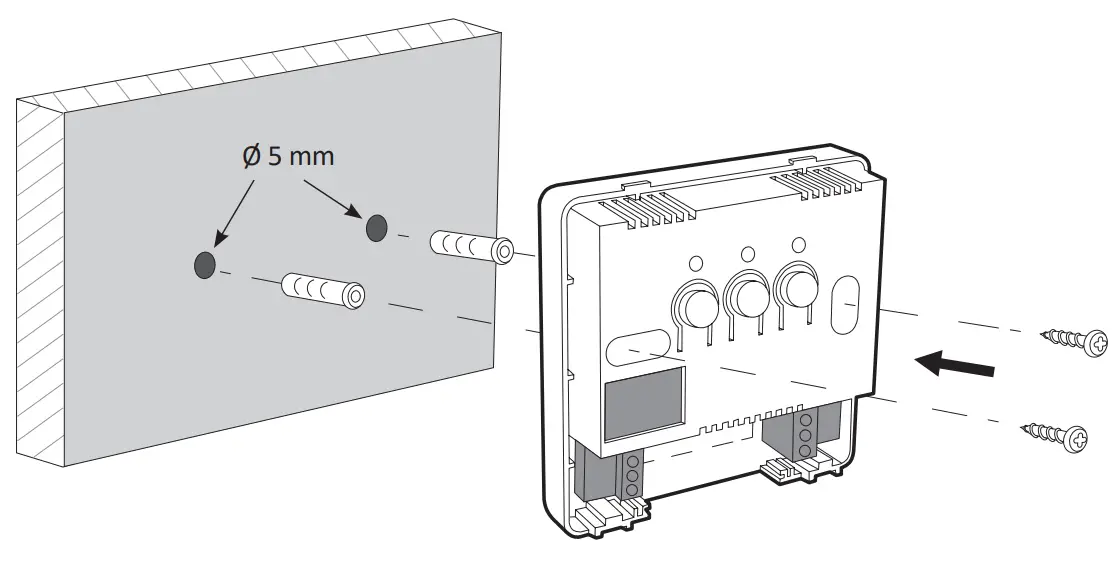

Installation

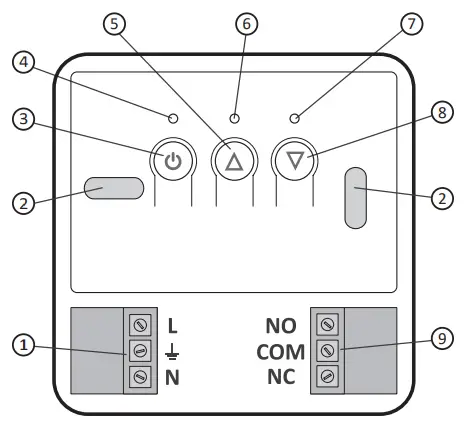

Receiver
- Power connectors
- Mounting hole
- Power button (
) - Power supply diode
- Button to unpair devices (
) - Diode indicating that the actuator device is switched on
- Diode indicating that the actuator device has been switched off
- Button to pair devices with the receiver (
) - Control connectors
)
)

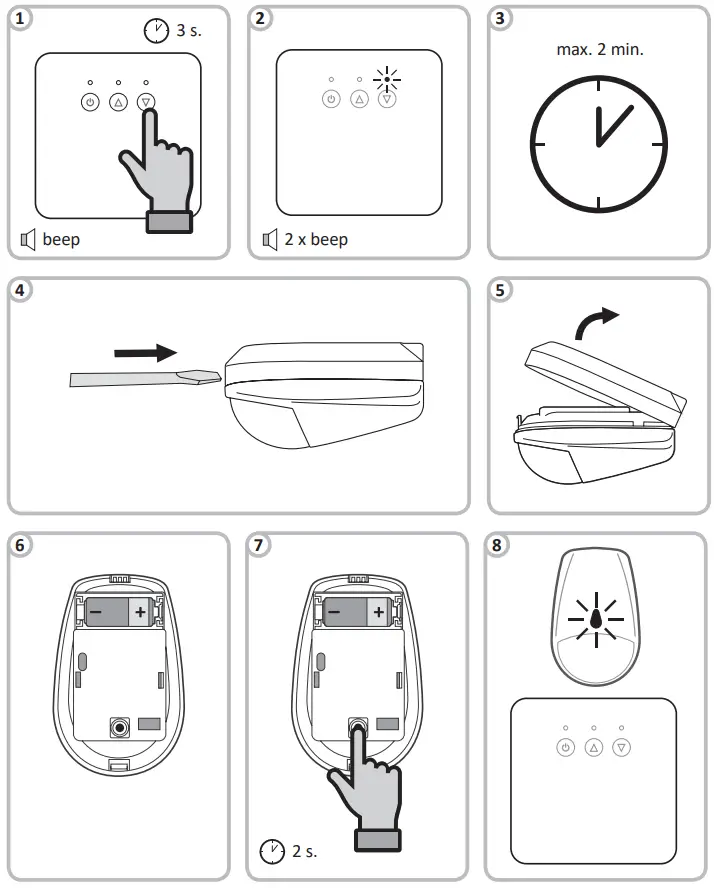

)Pairing

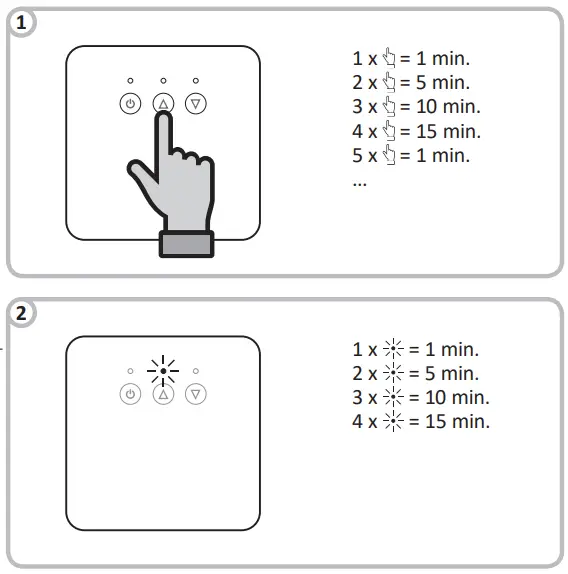

- Change of circulation pump working time in the DHW system.
- Changing the pause time of the circulation pump in the DHW system.
Technical specifications
- Working temperature range: 0°C – 40°C
- Operating cycle: Daily
- Working mode control: LED
- Maximum current load of the relay contacts: ~16 A 250 V AC
- Power supply for AURATON Aquarius PIR: lithium battery CR123A 3V (included) exchangeable battery
- Power supply for AURATON Aquarius CR: 230 V AC, 50 Hz
- Humidity AUARTON Aquarius PIR: ≤85% non-condensing
- Level of security: IP20
- Radio frequency: 868,850 MHz; 869,000 MHz
- Operation range: in a building – up to 30 m
- Radio signal strength: up to 11 dBm
- Radio receiver category: 2
Disposing of the devices
The devices are marked with the crossed waste bin symbol. According to European Directive no. 2012/19/EU and the Act concerning used-up electric and electronic equipment, such a marking indicates that this equipment may not be placed with other household-generated waste.
The user is responsible for delivering the devices to a reception point for used-up electric and electronic equipment.
Hereby, LARS Andrzej Szymanski declares that the radio equipment type AURATON Aquarius SET is in compliance with Directive 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://manuals.auraton.pl
The extended manual can be found at
