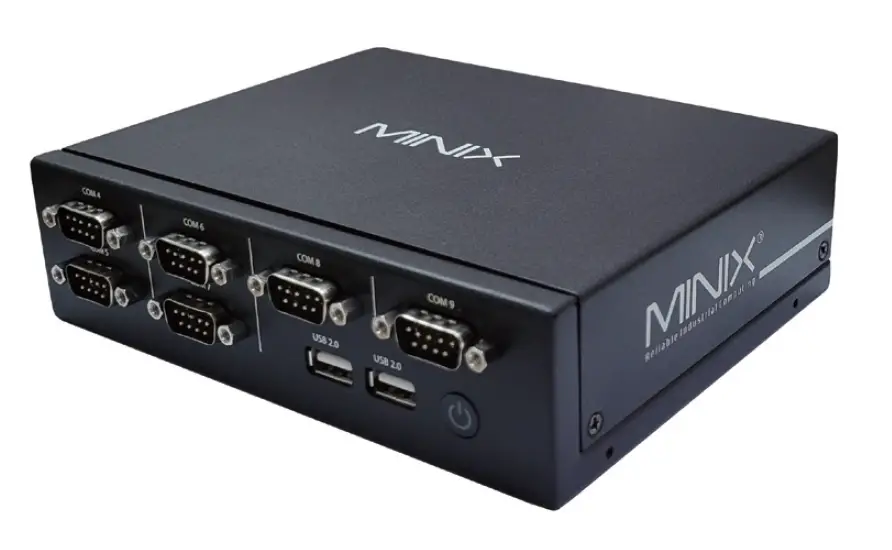

MINIX SR35-4 Series Industrial PC Digital Signage Player

Product Information

Model Number	RIC SR35-4A, RIC SR35-4L
Operating System	Android, Linux
Specifications	Processor: Rockchip RK3568 Quad Cortex-A55, up to 2.0GHz GPU: Mali-G52 Memory: 4GB LPDDR4 Storage: 64GB eMMC Wi-Fi: Onboard Wi-Fi 2.4G & BT4.2 module, 1 x M.2 2242/3042 Key-B Spec. & Resolution: Support EDP + LVDS or EDP + MIPI
I/O	6 x COM port (Support RS-232 only) 2 x GPIO port 1 x RJ45 Gigabit Ethernet 1 x HDMI 2.0 1 x 3.5mm audio jack 1 x Speaker by pin header (1 x 4pin), 4/15W or 8/5W 1 x MIPI DSI (by pin header) 1 x TF Slot 1 x SIM Slot 5 x USB2.0 Type-A port, 1 x USB3.0 Type-A port 1 x RJ11 cash register by pin header
Certifications	CE, UKCA, FCC Class B
Power	12V/3A Power Adapter
OS	Android, Linux
Dimensions	163 x 127 x 50 mm
Temperature	N/A
Other Features	Support Watchdog, AC Power On, Kensington Lock.
Weight (net)	0.8kg
Packing List	– 1x SR35 System – 1 x Antenna – 1 x Vesa Mount – 1 x USB cable – 1 x Power adapter with US, UK, EU plug

Product Usage Instructions

Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
Note: If you need more information, please go to Download Center to get the Manual or contact your retailer.

Contact Information

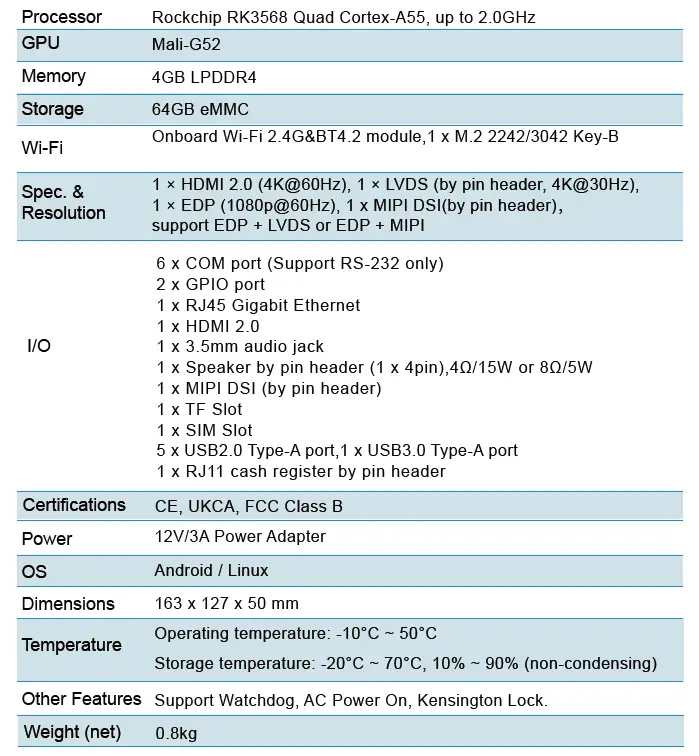

Specifications

Packing List

1x SR35 System
1 x Antenna
1 x Vesa Mount
1 x USB cable
1 x Power adapter with US, UK, and EU plug

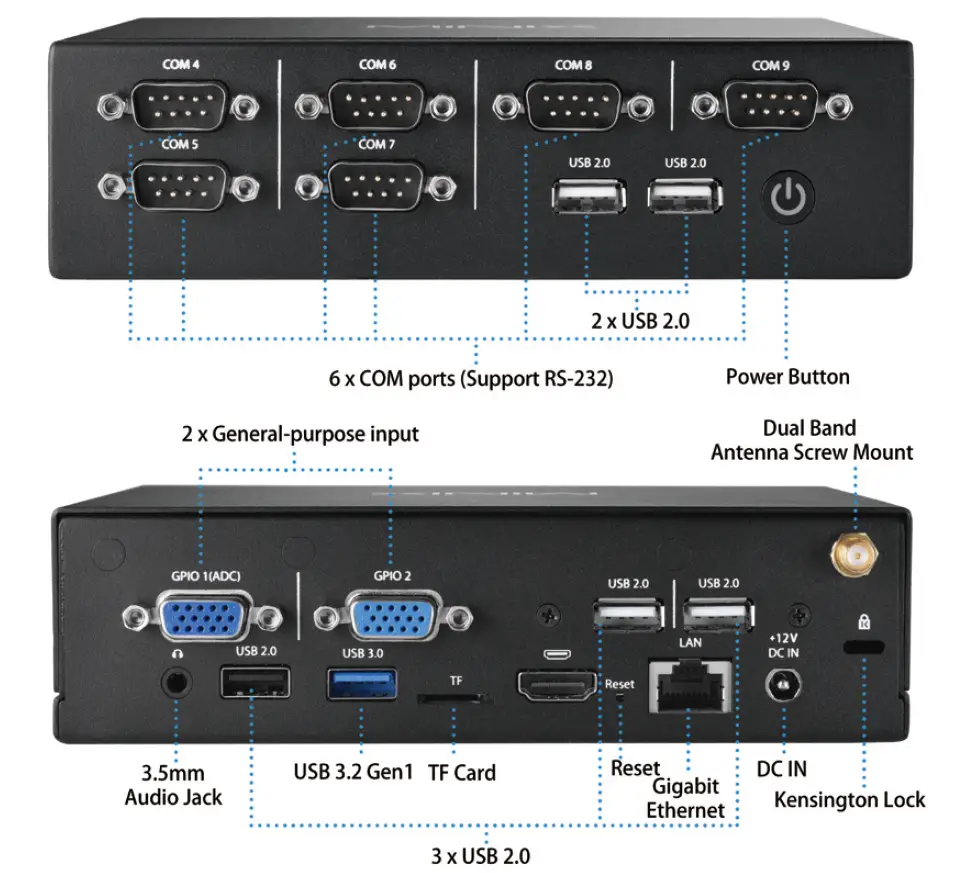

System Overview

Get Started

Warning!
Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
Note: If you need more information, please go to Download Center to get the Manual or contact your retailer.

Download Center
BIOS, Drivers, and Manuals can be downloaded here: http://theminixforum.com:9009/IPC/

Copyright © 2020 MINIX Technology Limited. All rights reserved. No part of this guide, including the products and software described in it may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of MINIX Technology Limited. MINIX and the MINIX logo are trademarks of MINIX Technology Limited. All other marks and trademarks are properties of their respective owners. The content of this guide may differ in some details from the product or its software. All information in this documentation is subject to change without notice

Contact Us

EMAIL: [email protected]
WEBSITE: www.minix.com.hk
MINIX FORUM: www.theminixforum.com
FACEBOOK: www.facebook.com/minixtech

FCC STATEMENT

Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
increase the separation between the equipment and the receiver.
connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
onsult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator &your body.
