Cobra Wall Driller Plus Instruction Manual (+ PDF)

HIGH-TECHNOLOGY IN ANCHORING
HOLLOW WALL

Contents hide

1 SPECIFICATIONS, LISTINGS AND APPROVALS

2 KEY FEATURES & BENEFITS

3 MATERIALS

4 INSTALLATION INSTRUCTIONS

5 Documents / Resources

5.1 References

6 Related Posts

SPECIFICATIONS, LISTINGS AND APPROVALS

Body Material: Reinforced Nylon and Acetal Screws Materials: Carbon Steel AISI-1018 with Zinc plating ASTM B633 Type III

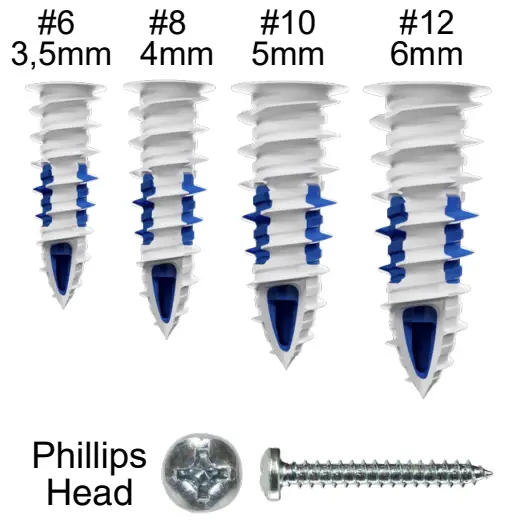

Available Sizes: #6 (3,5mm), #8 (4mm), #10 (5mm) and #12 (6mm)

KEY FEATURES & BENEFITS

Bi-material technology
Fast and easy to install
No pre-drilling, the only tool required is a screwdriver
Designed to install smoothly and easily through drywall
Expands and grips tightly behind the wall
Higher weight loads
Anti-vibration
Suitable for ceiling application

MATERIALS

DRYWALL THICKNESS		ANCHOR SIZES
	3/8″ (10mm)	#6 (3,5mm) et #8 (4mm)
	1/2″ (13mm)	#6 (3,5mm), #8 (4mm), #10 (5mm) et #12 (6mm)
	5/8″ (16mm)	#10 (5mm) et #12 (6mm)

ANCHOR PARAMETERS*		TOOL TYPE	SAFE WORKING LOADS 2:1
ANCHOR PARAMETERS*		TOOL TYPE	DRYWALL 3/8″ (10 mm)		DRYWALL 1/2″ (13 mm)		DRYWALL 5/8″ (16 mm)
ANCHOR SIZE	SCREW SIZE	PHILLIPS DRIVER	TENSION	SHEAR	TENSION	SHEAR	TENSION	SHEAR
#6 (3,5mm)	#6 x 1-1/2″(3,5mm x 38mm)	#2	35 lb (16 kg)	93 lb (42 kg)	40 lb (18 kg)	105 lb (48 kg)
#8 (4mm)	#8 x 1-1/2″(4mm x 38mm)	#2	38 lb (17 kg)	100 lb (45 kg)	43 lb (19 kg)	115 lb (52 kg)
#10 (5mm)	#10 x 1-3/4″(5mm x 44mm)	#3			50 lb (23 kg)	118 lb (54 kg)	60 lb (27 kg)	175 lb (79 kg)
#12 (6mm)	#12 x 2″(6mm x 50mm)	#4			55 lb (25 kg)	130 lb (59kg)	65 lb (29 kg)	205 lb (93kg)

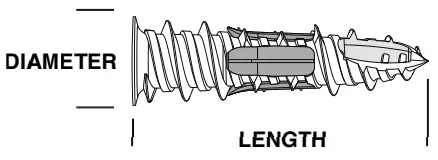

WALLDRILLER PLUS® MEASUREMENTS	SIZE	ANCHOR DIAMETER	ANCHOR LENGTH	MAX. FIXTURE THICKNESS	SCREW DIAMETER	SCREW LENGTH
	#6	0.570″ (14 mm)	1.620″ (41 mm)	1/4″ (6 mm)	0.138″ (3.5 mm)	1-1/2″ (38 mm)
	(3,5 mm)
	#8	0.630″ (16 mm)	1.720″ (44 mm)	5/16″ (8 mm)	0.165″ (4 mm)	1-1/2″ (38 mm)
	(4 mm)
	#10	0.690″ (18 mm)	2.000″ (50 mm)	3/8″ (10 mm)	0.199″ (5 mm)	1-3/4″ (44 mm)
	(5 mm)
	#12	0.765″ (19 mm)	2.110″ (54 mm)	1/2″ (13 mm)	0.218″ (6 mm)	2″ (50 mm)
	(6 mm)

INSTALLATION INSTRUCTIONS

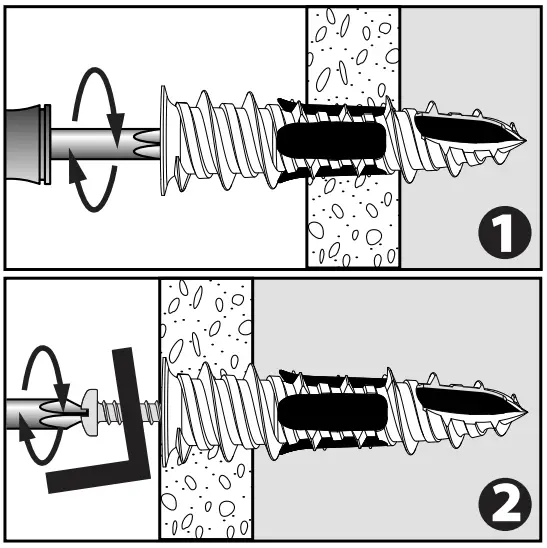

Using a screwdriver, push the tip of the WallDriller Plus® into the drywall in a screwing motion.
Turn clockwise until flush with surface and firmly in place.

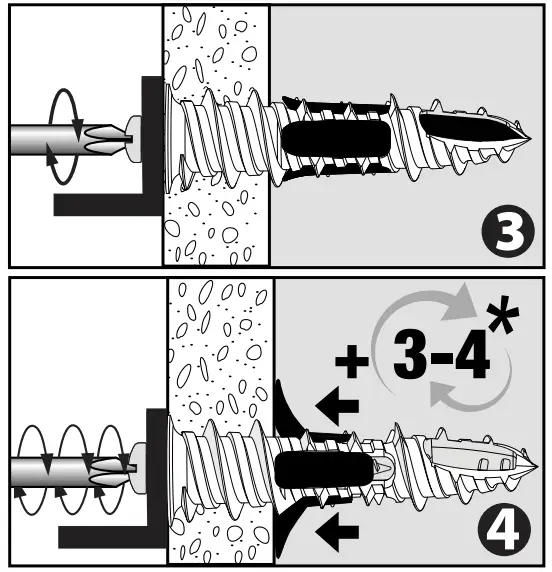

Insert the screw through the object you need to affix and turn clockwise until the head of the screw is flush with the object surface.
IMPORTANT: To activate expansion of the legs, continue tightening 3 to 4 complete turns.

NOTES:

Loads may vary according to the drywall quality.
Safe working loads are average tested loads for items flush to wall and will vary with items hung away from the wall.
Safe working loads are calculated using a safety factor of 2.
DO NOT USE FOR MOUNTING TELEVISIONS.
