Amica Wa 484 021 Washing Machine User Guide

WA 484 021 Washing Machine
User Guide

WA 484 021 Washing Machine

QUICK START GUIDE: WA 484 021
Dear Customer,
This Quick Start Guide is enclosed with detailed washing machine operating instructions. Before using the appliance carefully read the Operating Instructions, especially guidelines for safe use.
Before plugging the washing machine into the mains, remove the safety packaging and ensure the machine is level. Do not start the washing machine before it is properly set up.
Only wash delicate fabrics, synthetics, wool using designated programs. Such fabrics should only be washed in the maximum load sizes recommended (see page 2.).
The correct washing machine operation extends its lifetime so make sure the drum seal is dry (leave the door ajar after washing). Do not clean the washing machine with harsh or abrasive detergents.

Preparing to wash

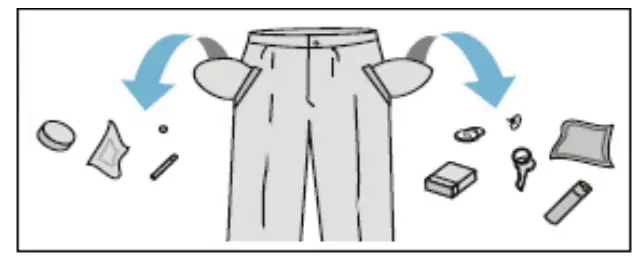

Empty pockets
Close all zips and button up duvet covers.
Wash delicate and small items in a protective mesh laundry bag.
Open the door of the washing machine by gripping the door and the door handle on the inside of the door.
Insert the sorted clothes into the washing machine:
Cotton — max full drum.
Synthetics — max ½ of the drum.
Silk, wool — max 1/3 of the drum.
Close the door, press firmly against the seal.

Add detergent

Open the detergent drawer. Pull the handle.
Pour the recommended dose of washing detergent into the appropriate compartment of the detergent drawer.
Add fabric conditioner to the appropriate compartment if required.

 MAIN WASH detergent.
Fabric softener or other special care liquids.
PREWASH detergent.

Program selections

Set the programme selector knob to the desired programme.
Customize the programme to your needs — you can change the temperature, spin speed, or enable additional features.
Select additional functions. The additional functions are described on the control panel and in the “Table of Wash Programmes” (see page 2) .

Select START

Close the appliance door.
Set the programme selector dial to the desired programme (see page 2).
Select additional functions or wash cycle parameters as required ­ according to your needs.
Select time remaining ranging from 1 to 23 hours.
Then press the START/ PAUSE button

End of the wash

Your machine will stop by itself as soon as the programme you have selected finishes.
“- -” will flash on the electronic display.
You can open the machine’s door
Remove the laundry.
Leave the door of your machine open to allow the inner part of your machine to dry.
Switch the programme dial to STOP position.
Unplug your machine.
Turn the water tap off.

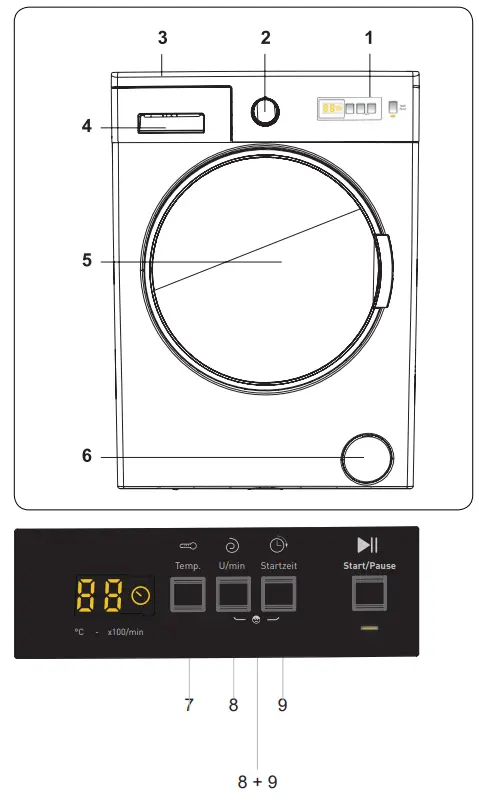

1. Electronic Display
2. Programme Dial
3. Upper Tray
4. Detergent Drawer
5. Drum
6. Pump Filter Cover
7. Temperature button
8. Spin Button
9. Time Remaining
   8+9. Child Lock

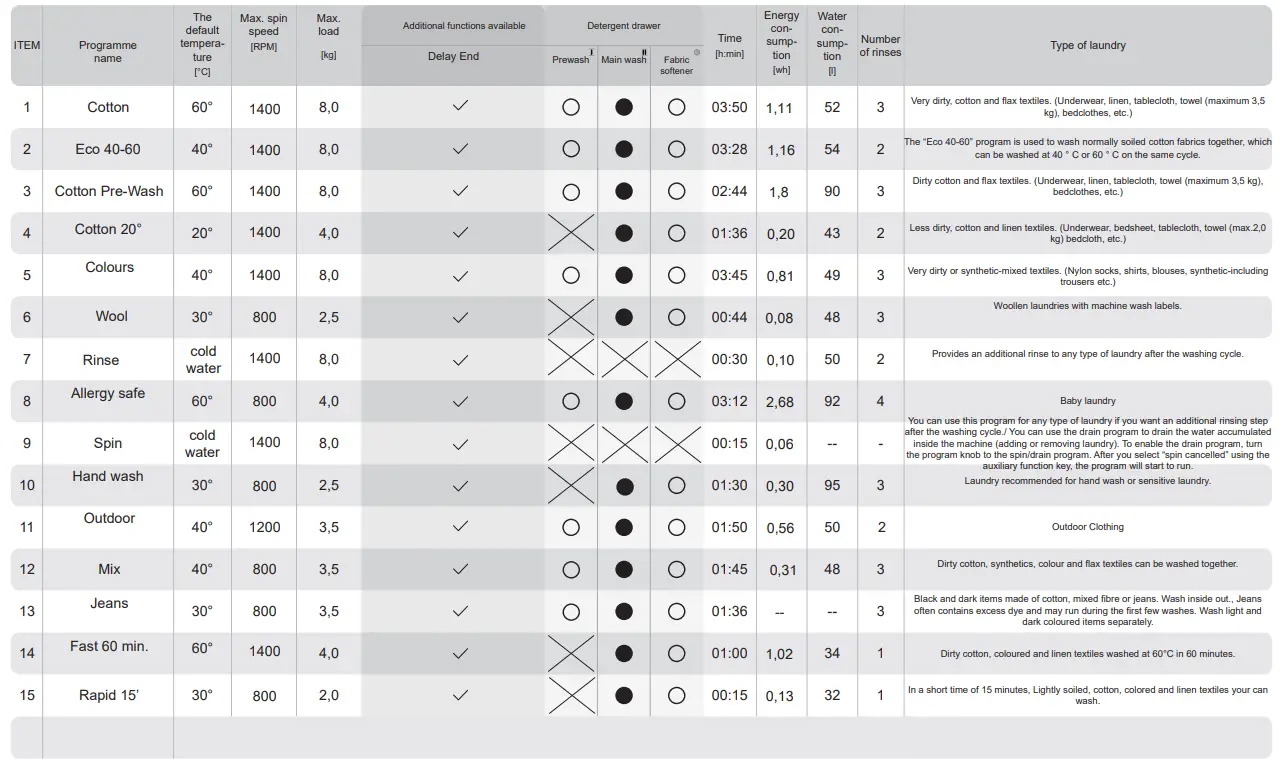

TABLE OF WASH PROGRAMMES: WA 484 021

* The “Eco 40-60” program is used to wash normally soiled cotton fabrics together, which can be washed at 40 ° C or 60 ° C on the same cycle.
** The most energy and water efficient wash programmes are generally those that run at lower temperature and for a long time.
*** Loading the washing machine to the full capacity indicated by the manufacturer for the respective wash programmes will save energy and water.
NOTE: Real water temperature may differ from the declared wash cycle temperature.
NOTE: Above mentioned time is an estimate and may differ from actual wash cycle time, depending on temperature, water pressure, load size, etc.
The time is automatically updated during wash cycle. Displaying the same time for an extended period or abrupt changes are normal.

O Use detergent or fabric softener if necessary,
Detergent required, without which washing will be ineffective.
X Do not use detergent or fabric softener
