VOYAGE
TB50-384

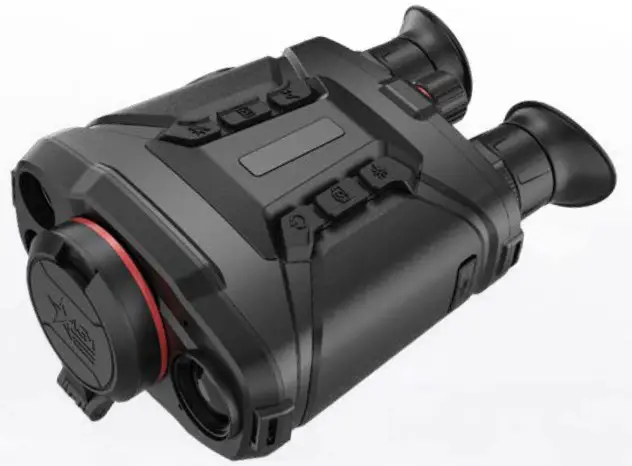

VOYAGE TB50-384 Built In Laser Range Finder
FUSION THERMAL IMAGING & CMOS BINOCULAR WITH BUILT-IN LASER RANGE FINDER

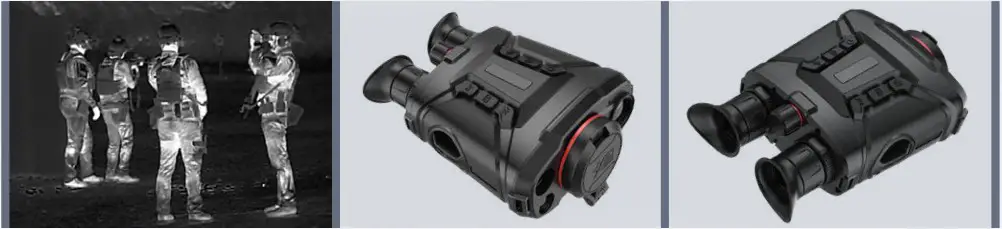

The Voyage series of fusion thermal & optical dual spectrum binoculars are equipped with a 12m highsensitivity infrared thermal sensor (NETD < 20 mK), 2560×1440 ultra-low light optical detector, 1024×768 OLED display and eyepiece with large field of view. The device can quickly discover and locate hiding objects even under extreme environments, such as smoke, fog, rain and snow. It can be widely applied to law enforcement scenarios, as well search-and-rescue, drug enforcement, anti-smuggling, hiking, and hunting.
The waterproof housing ensures optimum performance in severe weather conditions and challenging environments. The Voyage’s user-friendly interface and ergonomic buttons makes adoption and application intuitive and simple. The binocular offers a variety of images including thermal, visible, fusion, and is easily adaptable to different environmental conditions.
The Voyage is equipped with all key features for target detection and positioning, including a laser rangefinder, GPS module, electronic compass, inclinometer, and 850nm IR illuminator. This high-tech bi-ocular can take four 18650 rechargeable Lithium batteries for 8 hours of operation. An integrated proximity sensor saves energy.
- Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
- Selection of thermal view channel, visible light channel, or both combined
- Thermal resolution: 384×288
- Optical resolution: 2560×1440
- NETD less than 20 mK (25°C, F#=1.0)
- Digital Detail Enhancement (DDE)
- Dynamic Noise Reduction (3D DNR)
- Adaptive Automatic Gain Control (AGC)
- Ultra-low illumination (optical channel),
B/W: 0.001 lux @ (F1.0 , AGC On) - Video recording, replay, picture snapshot and search (capable to review the event on device)
- Wi-Fi hotspot
- Eye-safe laser rangefinder (up to 1,000 m distance detection with measuring accuracy 1 m)
- GPS module
- Digital magnetic compass
- Inclination sensor
- Proximity sensor to save power
- Up to 8 hours continuous operation
- Waterproof, IP67
- 5-Year Warranty
Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.
SPECIFICATIONS
THERMAL MODULE
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Array |
| Resolution | 384×288 (25 Hz) |
| Pixel Pitch | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 20 mK (25°C, F#=1.0) |
| Lens (Focal Length) | 50 mm, Manual focus |
| Magnification | 5.5× – 88× |
| Field of View | 5.3° × 4.0° |
| Aperture | F0.9 |
| Digital Zoom | 1×, 2×, 4×, 8×, 16× |
| Detection Range | 2,600 m/yd (6’ object)* |
| Focus Mode | Manual focus |
| Minimal Focus Distance | 5 m |
OPTICAL MODULE
| Max. Image Resolution | 2560×1440 |
| Image Sensor | 1.88” Progressive Scan CMOS |
| Min. Illumination | B/W : 0.001 lux @ (F1.0 , AGC On) |
| Lens (Focal Length) | 31 mm |
| Aperture | F1.2 |
| IR Illuminator | Built-in 850 nm Smart IR |
| Night Viewing Range | 400 m/yd* |
IMAGE DISPLAY
| Monitor | 0.39-inch, OLED, 1024×768 |
| Diopter Adjustment | -5 to +3 dpt |
| Interpapillary Distance | 60 mm to 70 mm |
| Eye Relief | 15 mm |
| Image Mode | Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion |
| Optical Mode | Day, Night, Auto, Defog |
| Flat Field Correction | Auto, Manual, External Correction |
| PIP | Yes |
LASER RANGEFINDER
| Measuring Distance | Max. 1,000 m |
| Accuracy | ±1 m |
| Laser Wavelength | 905 nm (Class 1) |
*Approximate value. Ranges depend on various factors such as weather, temperature differences between objects, environment, etc.
SYSTEM
| Storage | Built-in memory module (64 GB) |
| Video Recording | MP4, 1600×1200 |
| Snapshot Capture | JPEG, 1600×1200 |
| Audio Recording | Yes |
| Local Album | Yes |
| Wi-Fi Hotspot | Yes |
| GPS | Yes |
| Digital Compass | Yes |
| Hot Track | Yes |
| Laser Rangefinder | Yes |
| Proximity Sensor | Yes |
| Standby Mode | Yes |
POWER SUPPLY
| Battery Type | Four 18650 batteries |
| Battery Operating Time Battery Capacity | Up to 8 hours |
| Display | Yes |
| External Power Supply | DC 5V/2A, Max.10W, Type-C port |
GENERAL
| Working Temperature | -30°C to 55°C (-22°F to 131°F) |
| Storage Temperature (w/o batteries) | -40°C to 70°C (-40°F to 158°F) |
| Working Humidity | < 90% |
| Protection Level | IP67 |
| Mounting | 1/4”-20 UNC |
| Cable Output | USB Type-C port |
| Accessories (Supplied) | Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case |
| Dimensions (L×W×H) | 217 × 155 × 87 mm (8.5 × 6.1 × 3.5 in) |
| Weight | 1.12 kg ( 2.5 lb) |
