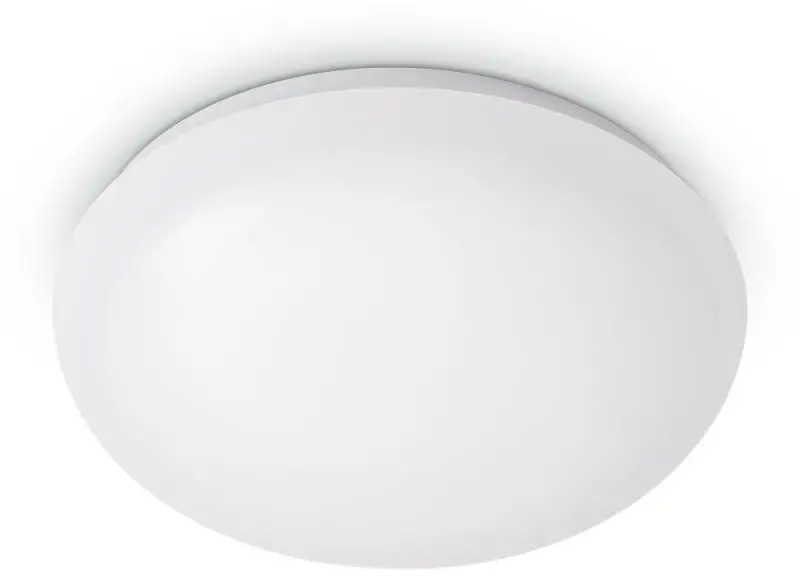

PHILIPS P3155 LED Ceiling Lamp with Sensor User Manual

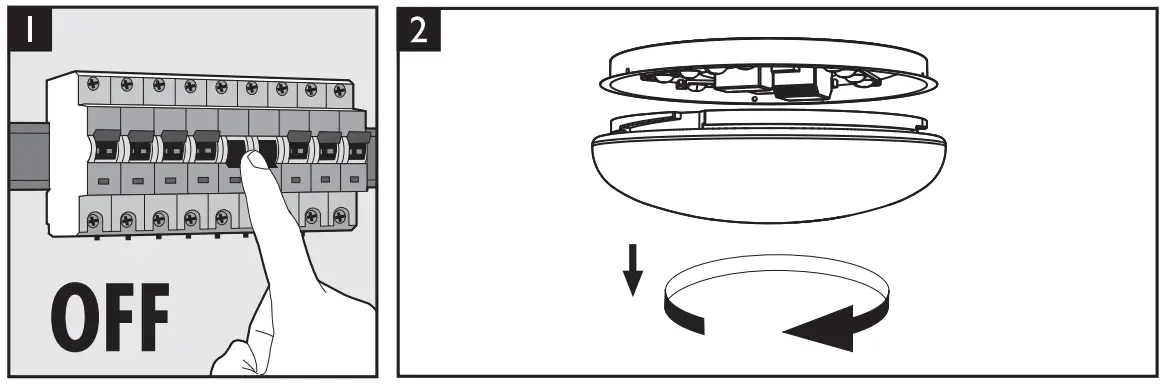

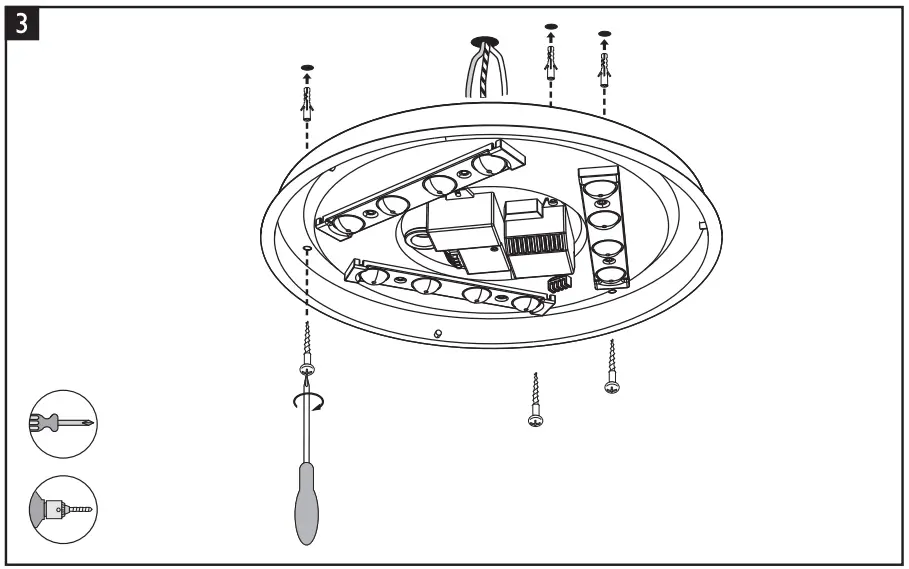

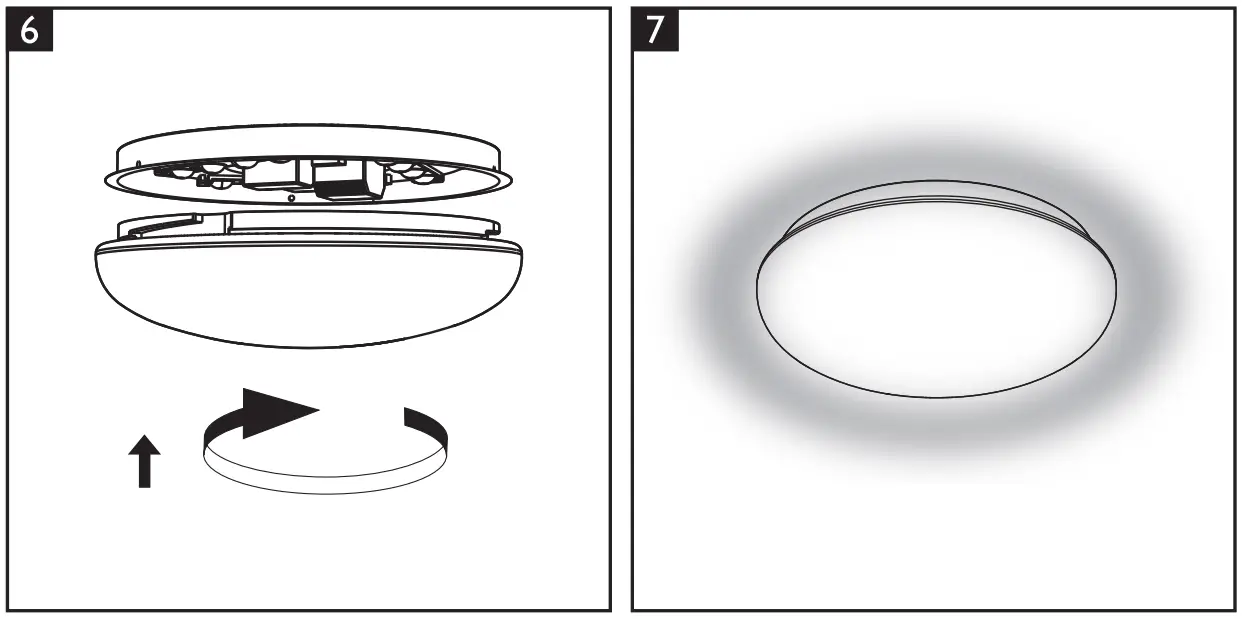

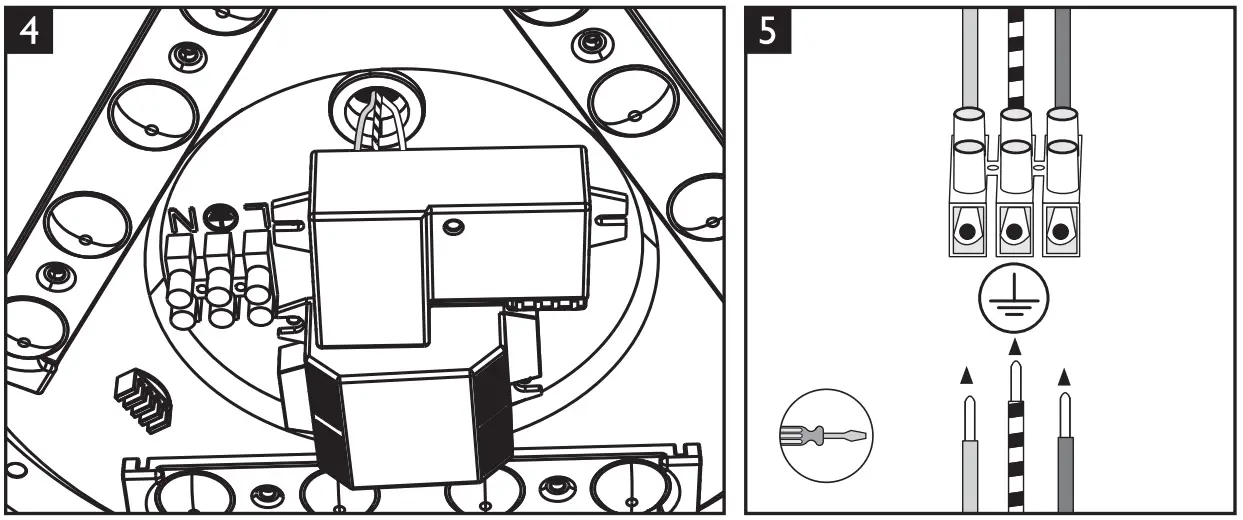

Instructions

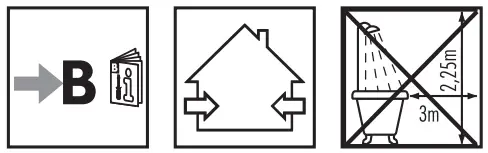

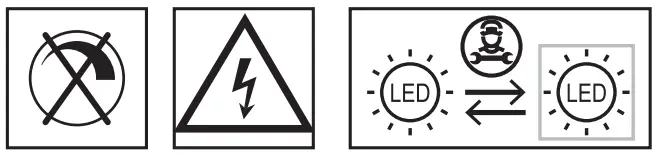

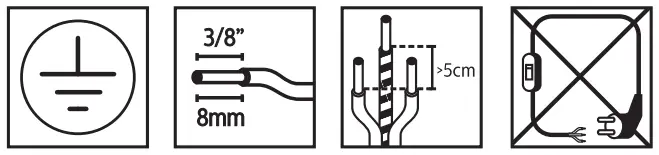

Symbols

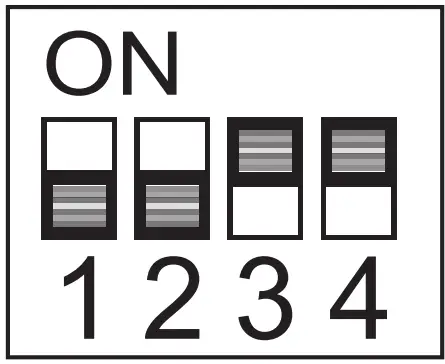

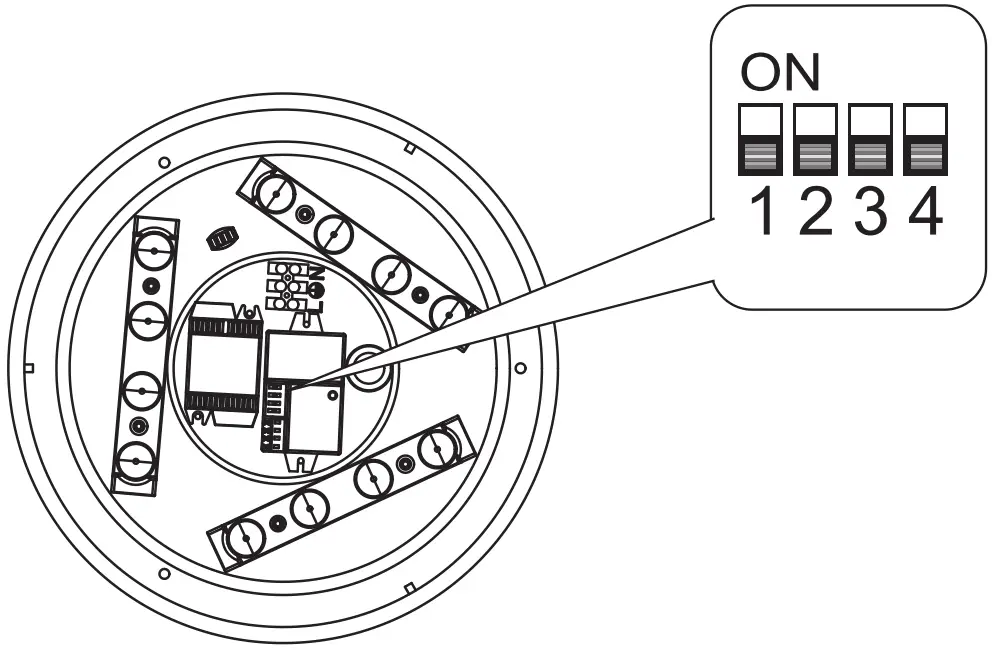

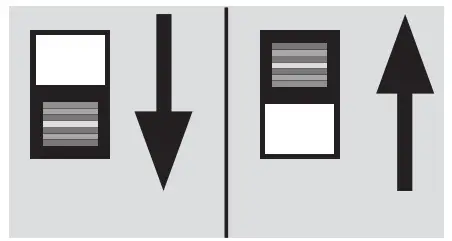

DIP switch settings
Default setting

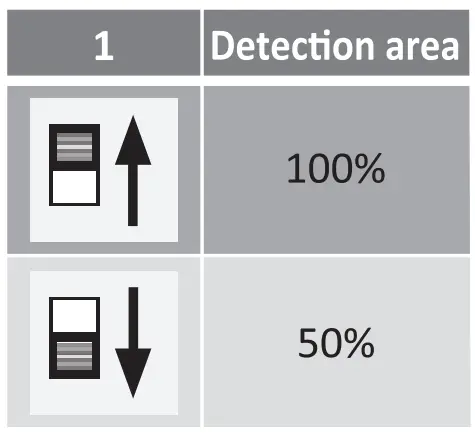

Detection area (default 50%) Detection area can be increased by selecting 100% on the DIP switches to fit precisely each application.

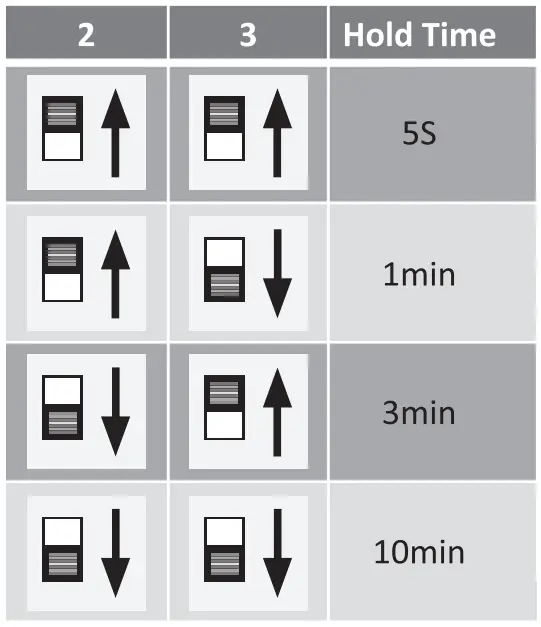

Hold time (default 3 min.) Refers to the time period the lamp remains at 100% illumination after no motion detected.

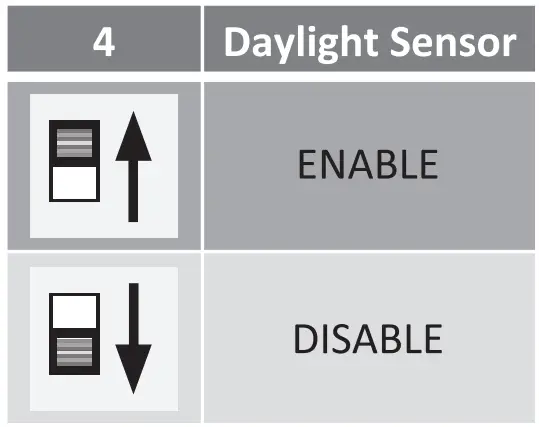

Daylight sensor (default enable mode) The sensor can be set to only allow the lamp to illuminate bellow a defined ambient brightness threshold (251ux). When set to disable mode, the daylight sensor will switch on the lamp when motion detected regardless of ambient light.

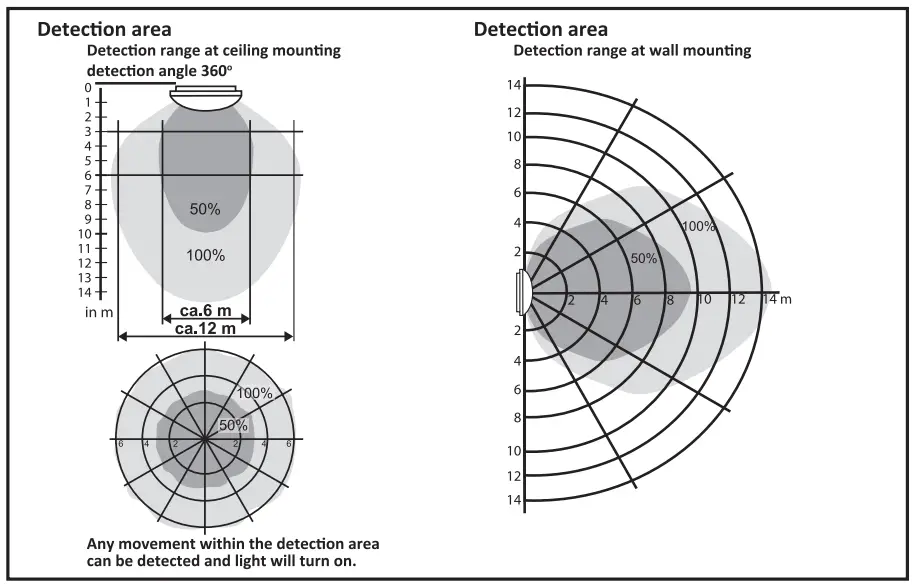

Detection area

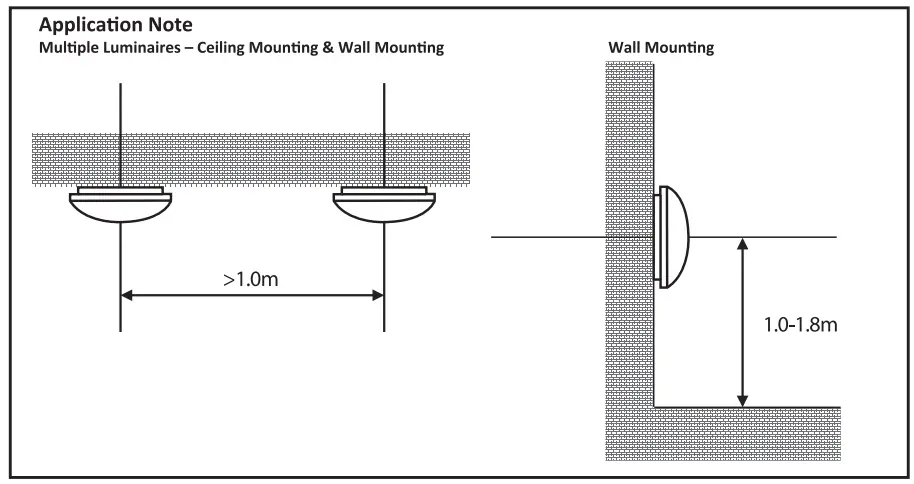

Application Note
Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V.
Signify
I.B.R.S. / C.C.R.I. Numero 10461
5600 VB Eindhoven, the Netherlands
www.philips.com/lighting
@ 2021 Signify Holding
Signify Commercial UK Limited
Unit 3, Guildford Business Park,
Guildford, Surrey, GU2 8XG, UK
