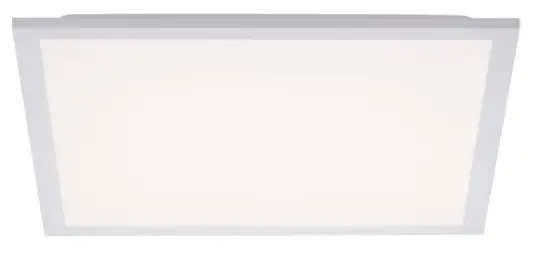

LeuchtenDirekt FLAT LED Ceiling Lamp

LeuchtenDirekt-FLAT-LED-Ceiling-Lamp-PRO

FEATURE

LeuchtenDirekt-FLAT-LED-Ceiling-Lamp-1

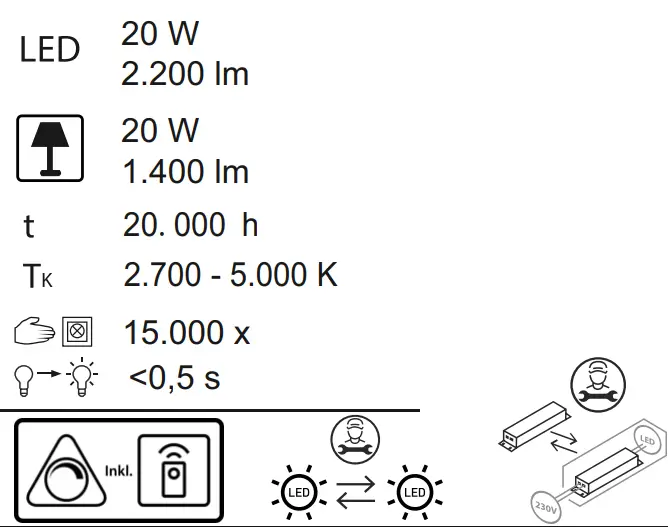

SPECIFICATION

  • 230V / 50Hz~
  • LED: 1x LED-Board 230V DC/20W

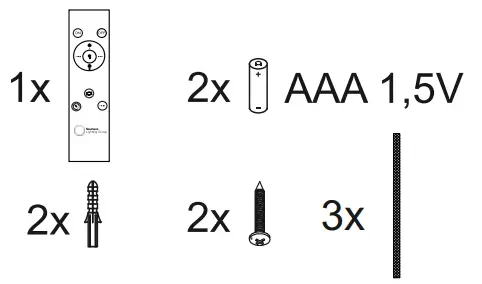

WHAT INCLUDE

LeuchtenDirekt-FLAT-LED-Ceiling-Lamp-2

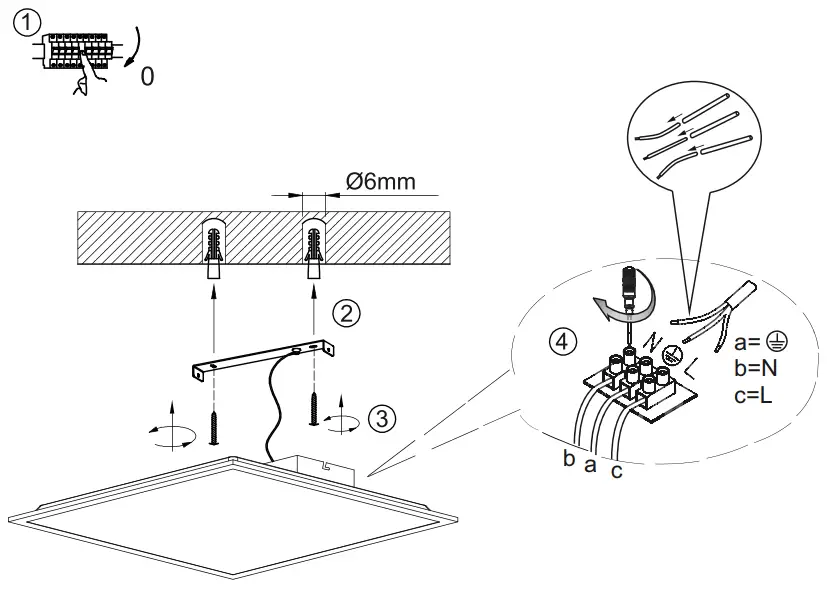

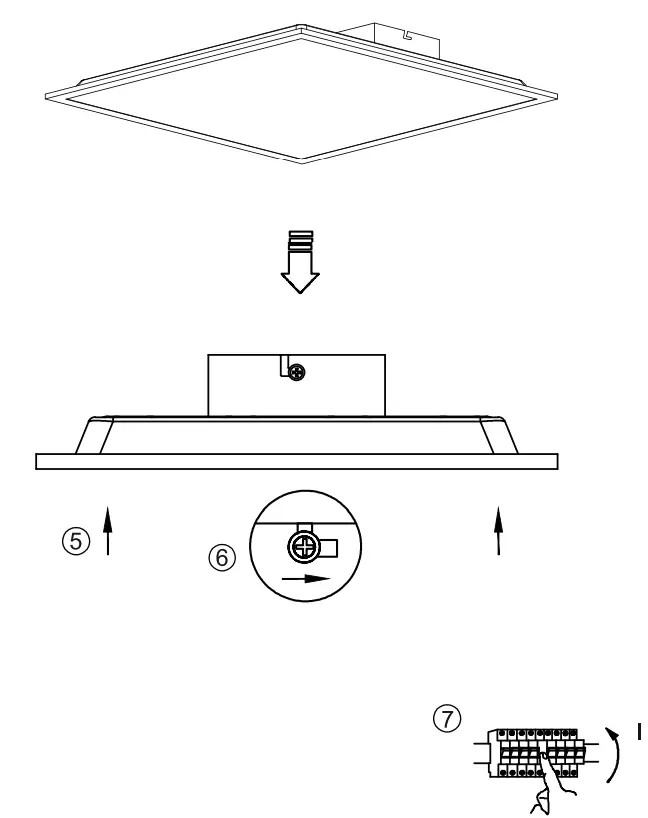

INSTALLATION

LeuchtenDirekt-FLAT-LED-Ceiling-Lamp-3LeuchtenDirekt-FLAT-LED-Ceiling-Lamp-4

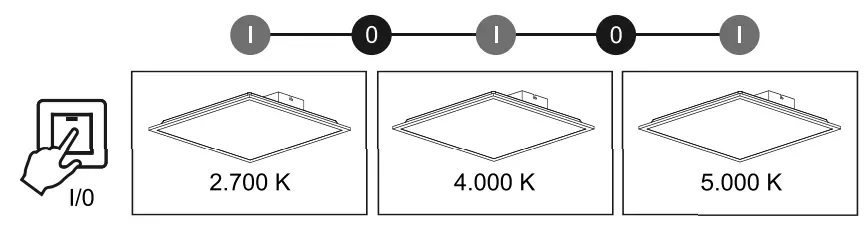

Operation via wall switch

LeuchtenDirekt-FLAT-LED-Ceiling-Lamp-5

Memory function: If you turn off the lamp via wall switch and turn on after >3 seconds the light lights up in the last mode (color temperatur & brightness).
CCT: The color temperature can be changed in 3 steps by switching on/off several times quickly.(2.700 K/4.000 K/5.000 K)

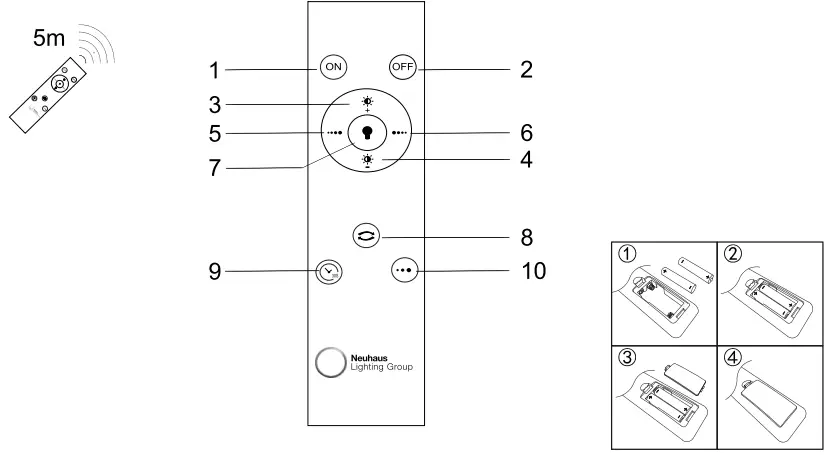

Operation via remote control

LeuchtenDirekt-FLAT-LED-Ceiling-Lamp-6

  1. On
  2. Off
  3. Increase the brightness from 10% to 100%. Long press for step less dimming.
  4. Reduce the brightness from 100% to 10%. Long press for step less dimming.
  5. Increase the color temperature
  6. Reduce the colortemperatur
  7. Night light (10% /2.700 K)
  8. All lights in the infrared range of the remote control will be set to the same color temperature which was selected lastly with the remote control.
  9. Timer (light turns off after 30 sec.)
  10. 3-step color temperature (2.700 K/ 4.000 K/5.000 K)

Note: An unlimited number of lights can be controlled with the remote control, as long as they are in the infrared range.
