Leuchtendirekt 996805 Flat Led Ceiling Light Instructions

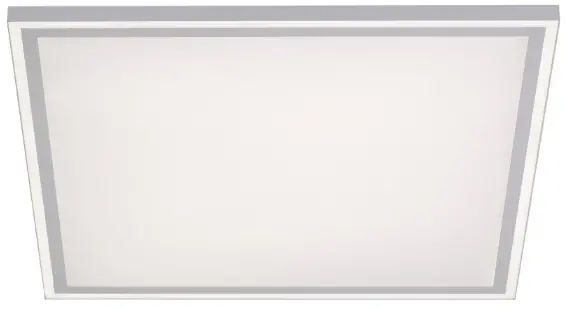

LeuchtenDirekt 996805 FLAT LED Ceiling Light

This product contains a light source of energy efficiency class

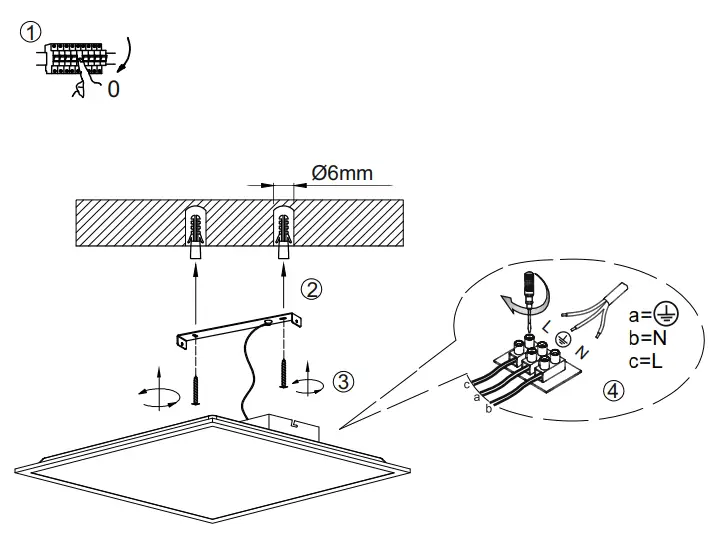

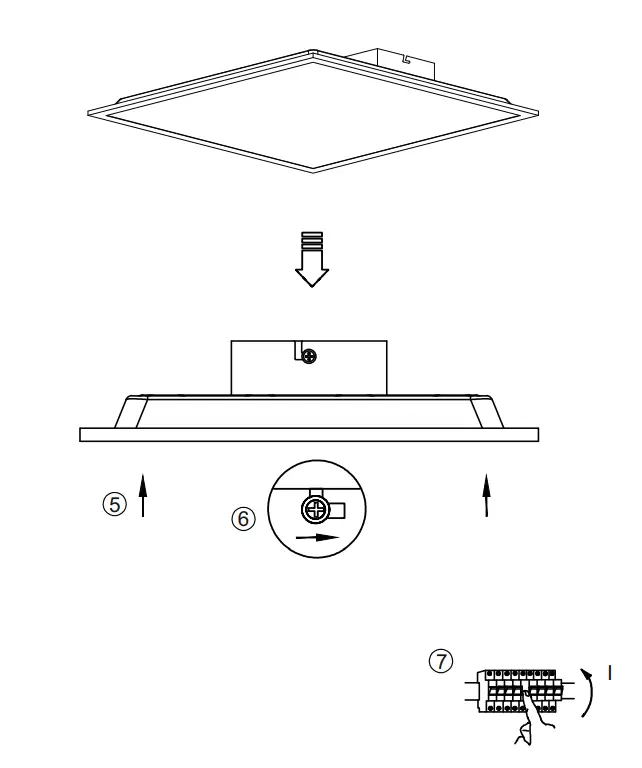

INSTALLATION

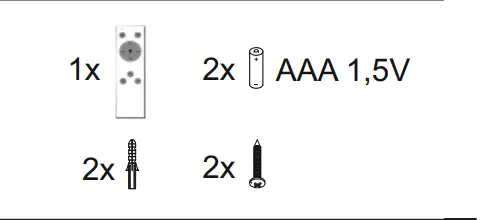

TOOLS

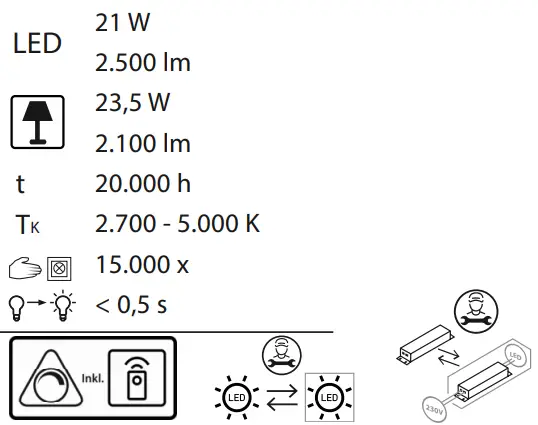

FEATURES

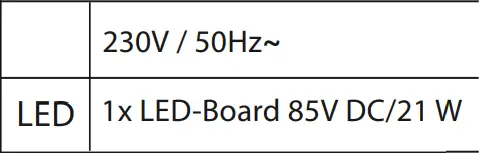

SPECIFICATION

REMOTE

Operation via wall switch

Memory function: If you turn off the lamp via wall switch and turn on after >3 seconds the light lights up in the last mode (color temperatur & brightness).

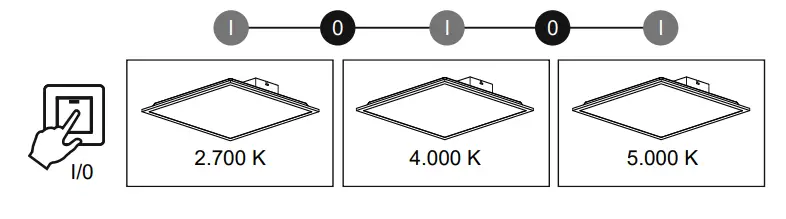

CCT: The color temperature can be changed in 3 steps by switching on/off several times quickly. ( 2.700 K/ 4 .000 K/ 5 .000K

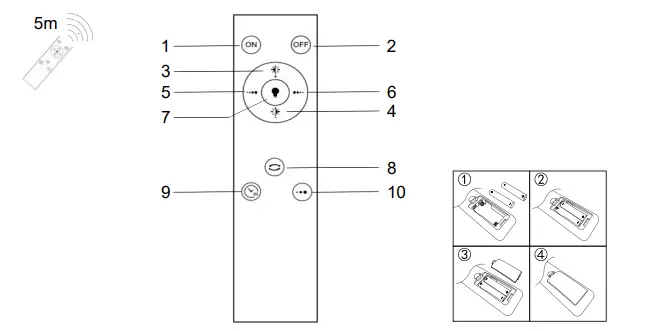

Operation via remote control

1. On
2. Off
3. Increase the brightness from 10% to 100%.
   Long press for stepless dimming.
4. Reduce the brightness from 100% to 10%.
   Long press for stepless dimming.
5. Increase the color temperature
6. Reduce the colortemperatur
7. Night light (10%/2.700 K)
8. All lights in the infrared range of the remote control will be set to the same color temperatur which was selected lastly with the remote control
9. Timer (ight turns off after 30 sec.) 10. 3-step color temperatur (2.700 KI 4 .000KI 5 .000 K)
   Note: An unlimited number of lights can be controlled with the remote control, as long as they are in the infrared range.

LeuchtenDirekt GmbH Olakenweg 36 · D-59457 Werl
+49(0)2922 9721 9290
[email protected]
www.leuchtendirekt.de
