HELIOS HS-PWRLOC0 Power Outlet Relocator Kit

Installation Instructions

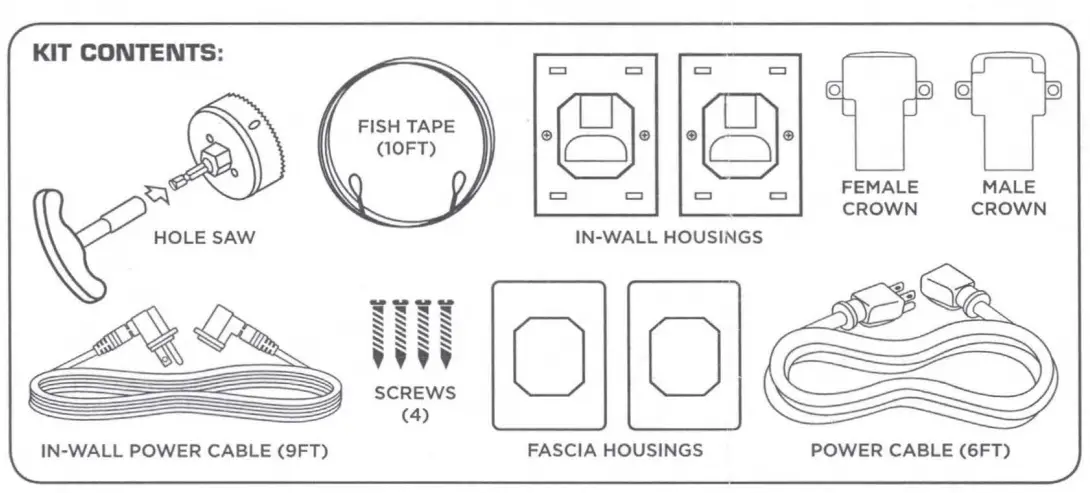

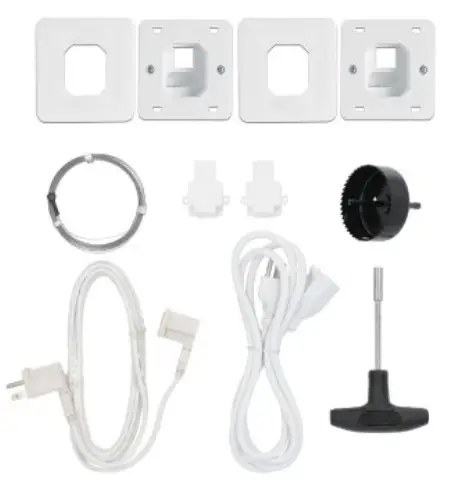

KIT CONTENTS

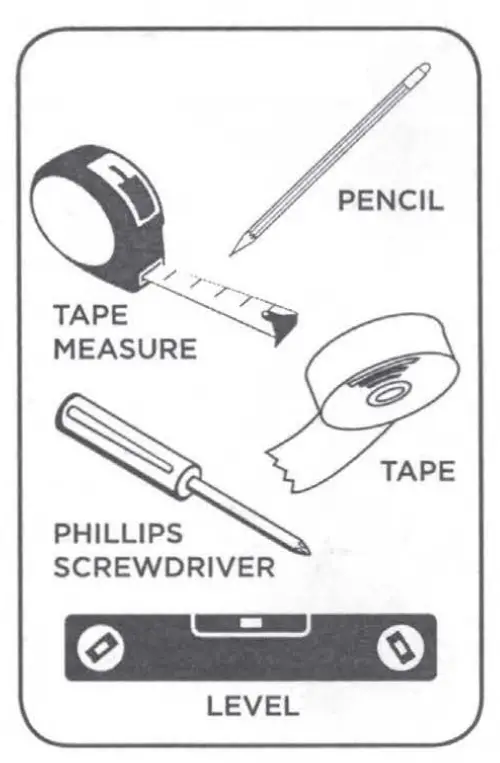

TOOLS NEEDED

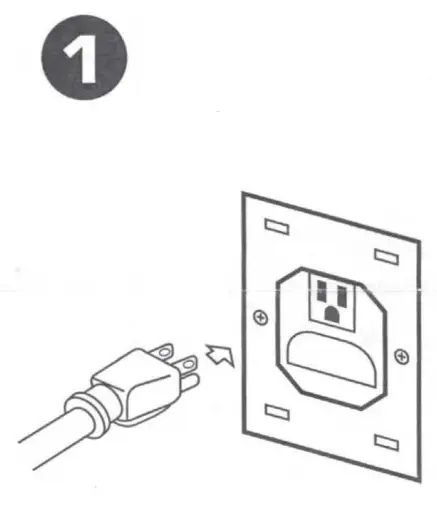

1. Check plug size from your 1V

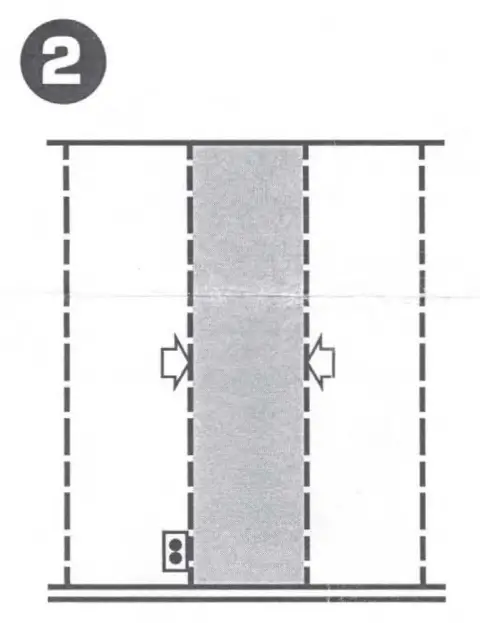

2. Center between studs

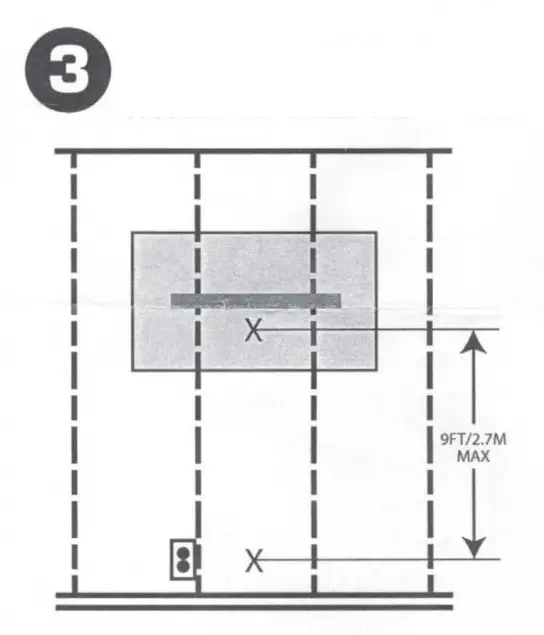

3. Measure and mark the location for holes with pencil

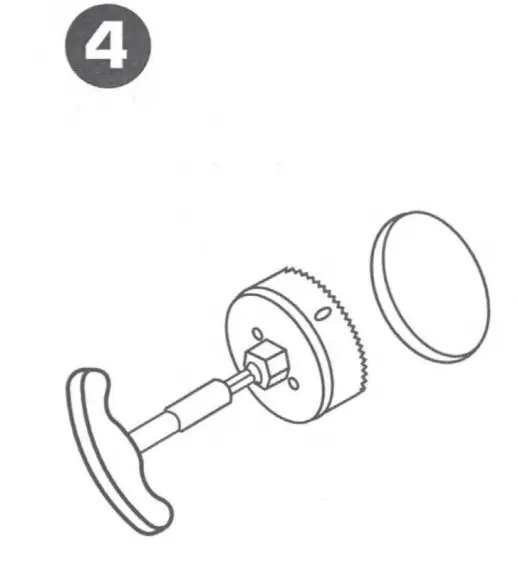

4. Drill holes with “” provided Hole Saw

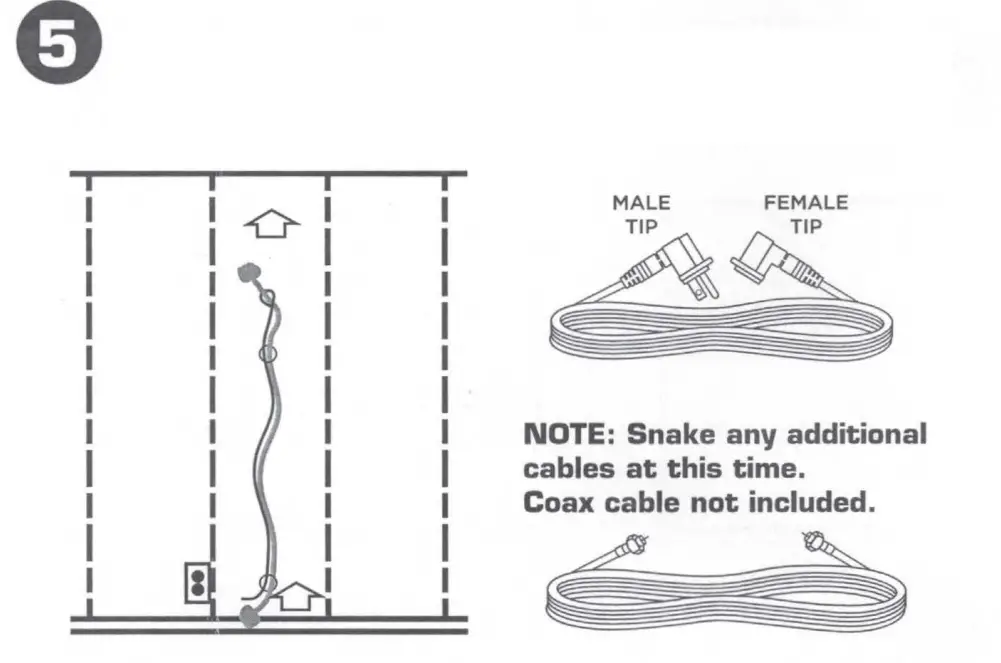

5. ~ Use Fish Tape to snake the In-Wall Power Cable into the wall ~ with the Female Tip at the top and the Male Tip at the bottom. Use tape to secure the Fish Tape if needed.

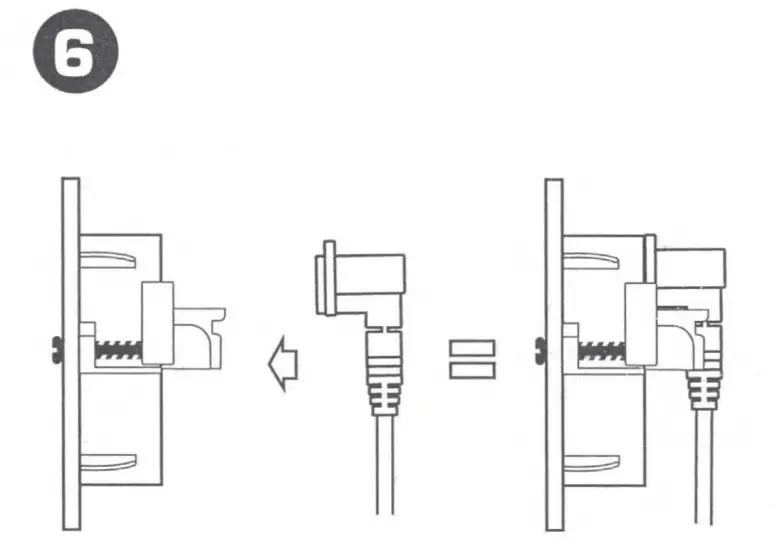

6. ~ At the top, insert Female Tip into the back ~ side of an In-Wall Housing unit. Repeat at the bottom with the Male Tip.

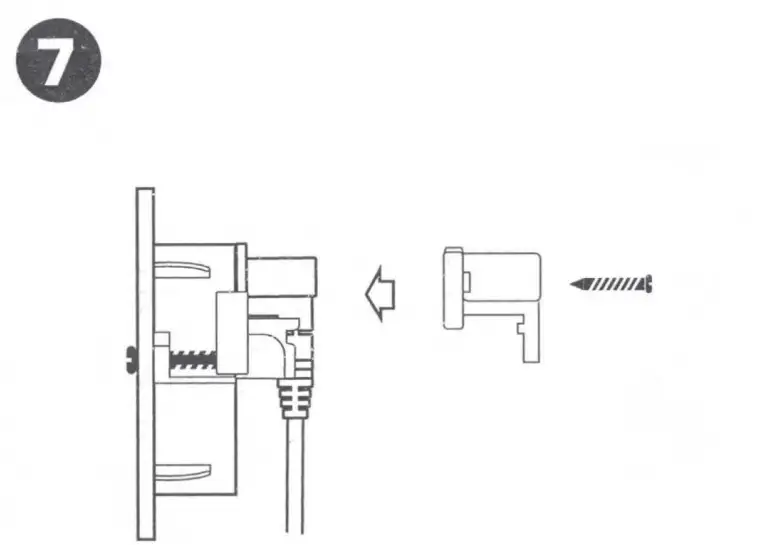

7. Snap on Female Crown over the Plug Tip and secure with screws. Repeat at the bottom with the Male Tip and Male Crown.

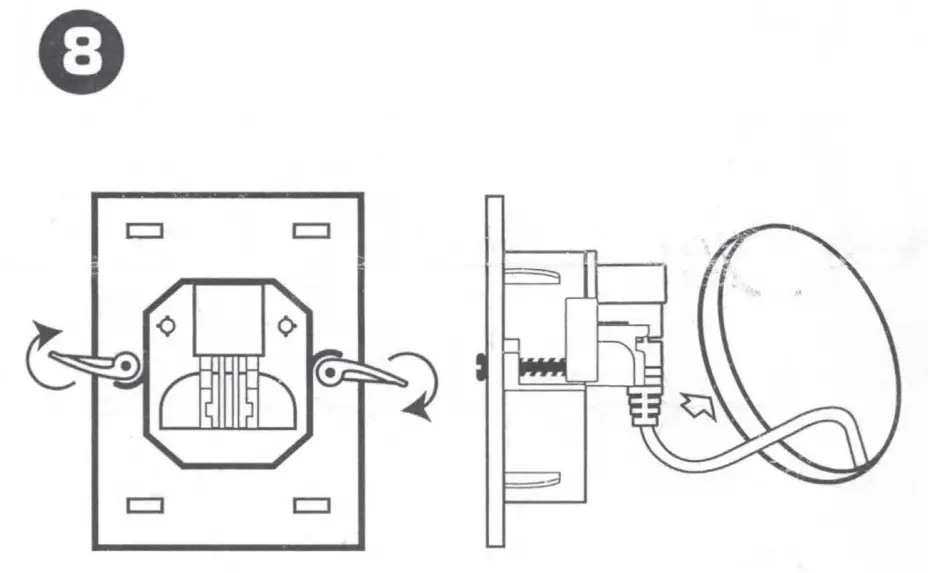

8. Fold in Dog Ears and slide Housing into wall. ‘1ii-‘ Repeat at the bottom with the Male Housing

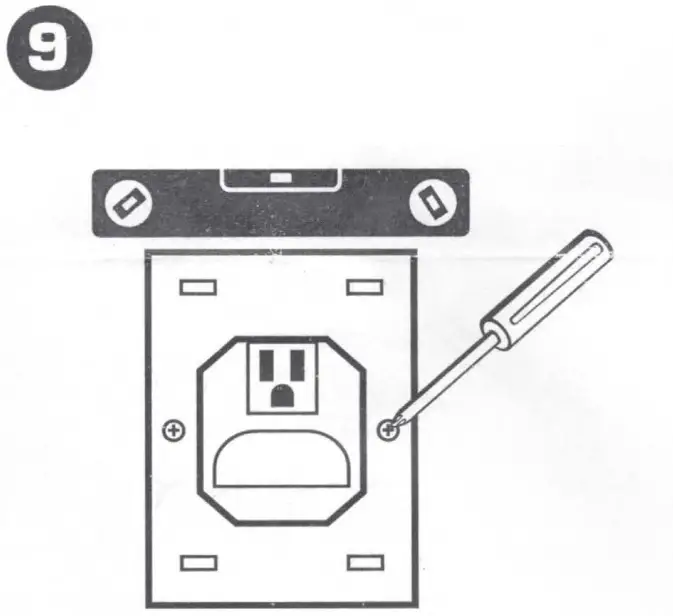

9. Level and screw Dog Ears until ~ Housing is secure. Repeat at the bottom with the Male Housing.

10. Snap Housing Fascia onto the front of the Housing. ~ Repeat at the bottom with the Male Housing

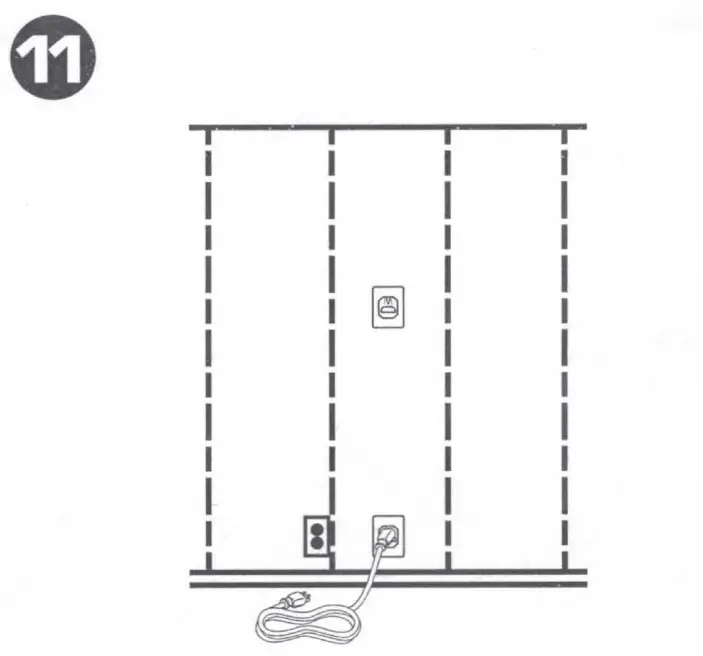

11. Plug Extension Cord into the bottom device. Q1 Installation is now complete.
