Westinghouse Wgen12000dfc Dual Fuel Portable Generator User Manual

USER MANUAL

WGen12000DFc
Dual Fuel Portable Generator
Gasoline: 12,000 Running Watts | 15,000 Peak Watts
Propane: 10,800 Running Watts | 13,500 Peak Watts
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call the customer
service at 855-944-3571.

WGen12000DFc Dual Fuel Portable Generator

WARNING: Operating, servicing, and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www.P65warnings.ca.gov.

DISCLAIMERS
All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.
ALL RIGHTS RESERVED
All rights reserved. No reproduction is allowed in any form without written permission from Westinghouse Outdoor Power Equipment.
to make any specification or design change without notice.
DANGER

Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

SAVE THESE INSTRUCTIONS

INTRODUCTION

SPECIFICATIONS

*Ethanol content of 10% or less. DO NOT use E15 or E85.
UPDATES
The latest User Manual for your Westinghouse generator can be found under our support tab. https://westinghouseoutdoorpower.com/pages/manuals
Or scan the following QR code with your smartphone camera to be directed to the link.

https://westinghouseoutdoorpower.com/pages/manuals

NOTICE
This product is designed and rated for continuous operation at ambient temperatures up to 104°F (40°C). If needed, this product can be operated at temperatures ranging from 5°F (-15°C)–122°F (50°C) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must always be operated outdoors in a well-ventilated area and far away from doors, windows, and other vents. Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10°F (6°C) above 60°F (16°C) ambient temperature.

PRODUCT REGISTRATION
For trouble-free warranty coverage, it is important to register your Westinghouse generator. You can register by:

• Completing and mailing the product registration card included in the carton.
• Registering your product online at: https://westinghouseoutdoorpower.com/pages/warranty-registration
• Scan the following QR code with your smartphone camera to be directed to the mobile registration link.

https://westinghouseoutdoorpower.com/pages/warranty-registration

• Sending the following product information to: Westinghouse Outdoor Power Warranty Registration
  777 Manor Park Drive Columbus, OH 43228

For Your Records
Date of Purchase:
Model Number:
Serial Number:
Place of Purchase:
IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.

SAFETY

SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION, and
NOTICE are used throughout this manual to highlight important information. Make sure that the meaning of this safety information is known to all who operate, perform maintenance on, or are near the generator.
This safety alert symbol appears with most safety statements. It means attention, be alert, and your safety is involved! Please read and abide by the message that follows the safety alerts symbol.

DANGER Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
WARNING Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation that can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly.

Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended.

SAFETY SYMBOLS
Follow all safety information contained in this manual and on the generator.

Symbol	Description
	Safety Alert Symbol
	Electrocution Hazard
	Asphyxiation Hazard
	Burn Hazard. Do not touch hot surfaces.
	Electrical Shock Hazard
	Fire Hazard
	Maintain Safe Distance
	Lifting Hazard
	Read the Manufacturer’s Instructions
	Do Not Operate in Wet Conditions

SAFETY INSTRUCTIONS
CORRECT USE

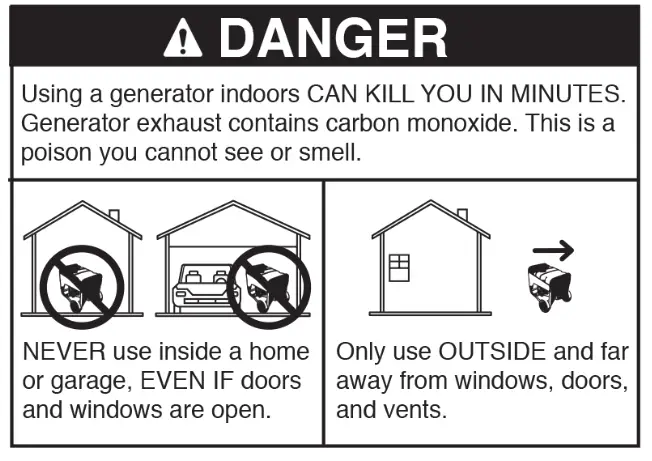

Example location to reduce risk of carbon monoxide poisoning ONLY use outside and downwind, far away from windows, doors and vents. Direct exhaust away from occupied spaces

INCORRECT USE
Do not operate in any of the following locations: Near any door, window, or vent

• Garage
• Basement
• Crawl Space
• Living Area
• Attic
• Entry Way
• Porch
• Mudroom

NOTICE
Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery backup in living areas.
DANGER
Fire and electrocution hazard. Do not connect to a building’s electrical system unless the generator and transfer switch have been properly installed and the electrical output has been verified by a qualified electrician. The connection must isolate the generator power from the utility power and must comply with all applicable laws and electrical codes.

DANGER
Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.

GENERAL SAFETY PRECAUTIONS

• Never use the generator to power medical support equipment.
• DO NOT operate the generator when you are tired or under the influence of drugs, alcohol, or medication.
• When this generator is used to supply a building wiring system the generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code.
• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specific home and/or wind conditions may require additional distance.
• If you begin to feel sick, dizzy, or weak while using the generator, move to fresh air IMMEDIATELY. See a doctor, as you can have carbon monoxide poisoning.
• While operating and storing, keep at least five feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. The heat created by the muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.
• DO NOT use a generator with electrical cords which are worn, frayed, bare, or otherwise damaged.
• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.
• DO NOT touch the muffler or engine. They are very HOT and will cause severe burns. Do not put body parts or any flammable or combustible materials in the direct path of the exhaust.
• ALWAYS remove any tools or other service equipment used during maintenance from the generator before operating.
• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

FUEL SAFETY

• Store fuel in a container approved for gasoline.
• Do not smoke when filling the generator with gasoline.
• Wear eye protection while refueling.
• Never remove the fuel cap when the generator is running. Shut off the engine and allow the unit to cool at least five minutes. Remove the fuel cap slowly to release pressure, keep fuel from escaping around the cap, and to avoid the heat from the muffler igniting fuel vapors. Tighten the fuel cap securely after refueling.
• Never overfill the fuel tank. Leave room for fuel to expand. Overfilling the fuel tank can result in a sudden overflow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
• Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose of rag properly. Allow the area of spilled fuel to dry before operating the generator.
• Store any containers containing gasoline in a well-ventilated area, away from any combustibles or source of ignition.

GASOLINE AND GASOLINE VAPOR
DANGER
Fire and explosion hazards. Gasoline is highly explosive and flammable and can cause severe burns or death.

• Gasoline is highly flammable and explosive.
• Gasoline can cause a fire or explosion if ignited.
• Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin.
• Gasoline has a distinctive odor, this will help detect potential leaks quickly.
• In any petroleum gas fire, flames should not be extinguished unless by doing so the fuel supply valve can be turned OFF. This is because if a fire is extinguished and a supply of fuel is not turned OFF, then an explosion hazard could be created.
• Gasoline expands or contracts with ambient temperatures. Never fill the gasoline tank to full capacity, as gasoline needs room to expand if temperatures rise.

LIQUID PETROLEUM GAS (LPG/PROPANE)
WARNING
Fire and explosion hazards. Never use a gas container, LPG/propane connector hose, LPG/propane tank or any other fuel item that appears to be damaged.
CAUTION
Fire and explosion hazards. Only use approved LPG/ propane tanks with an Overfilling Prevention Device (OPD) valve. Always keep the tank in a vertical position with the valve on top and placed at ground level on a flat surface. Do not allow tanks to be near any heat source. When transporting and storing, turn the propane tank valve to the fully closed position and disconnect the tank. Make sure to always cover the generator inlet and tank outlet with protective plastic caps.

• LPG/Propane is highly flammable and explosive.
• Flammable gas under pressure can cause a fire or explosion if ignited.
• LPG/Propane can settle in low places because it is heavier than air.
• LPG/Propane has a distinctive odor added to help detect potential leaks.
• Always keep an LPG/Propane tank in an upright position.
• When exchanging LPG/propane tanks, be sure the tank valve is the same type.
• In case of an LPG/propane fire, do not attempt to extinguish it unless the fuel supply can be shut off safely.
• LPG/propane will burn the skin. Prevent skin contact at all times.
• Keep the propane tank away from the generator exhaust.
• A step-down regulator is required when using LPG/ propane tanks over 100 gallons. The pressure as measured at the regulator mounted to the generator must be 7” to 14” of the water column.
• Large (500–1000 gallon) LPG/propane tanks will require a certified plumber to install the fuel line to the generator and the loose regulator is not used (the regulator that is attached to the fuel tank). The pressure as measured at the regulator mounted to the generator must be 7” to 14” of the water column. A certified plumber must ensure that the pressure is correct or install a step-down regulator if needed.

WARNING
Fire and explosion hazard. If there is a strong smell of propane while operating the generator, fully close the LPG/propane tank valve immediately. Once the propane is off, use soapy water to check for leaks on the hose and connections on the tank valve and the generator. Do not smoke or light a cigarette or check for leaks using any open flame source such as a match or lighter. If a leak is found, contact a qualified technician to inspect and repair the LPG/propane system before using the generator.

When starting the generator:

•  Make sure that the fuel cap, air filter, spark plug, fuel lines, and exhaust system are properly in place.
• If you spill any gasoline on the tank, allow it to fully evaporate before operating.
• Make sure the generator and LPG/propane tank are on a flat surface before operating.
• If there is a propane odor do not start the unit because there may be a potential leak. Never place an LPG/ propane tank near the engine exhaust.

When transporting or servicing the generator:

• Make sure the LPG/propane tank and LPG/propane hose are not attached to the generator.
• Disconnect the spark boot to prevent accidental starting.

When storing the generator:

• Store away from sparks, open flames, pilot lights, heat, and other sources of ignition.
• Do not store gas or an LPG/propane tank near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

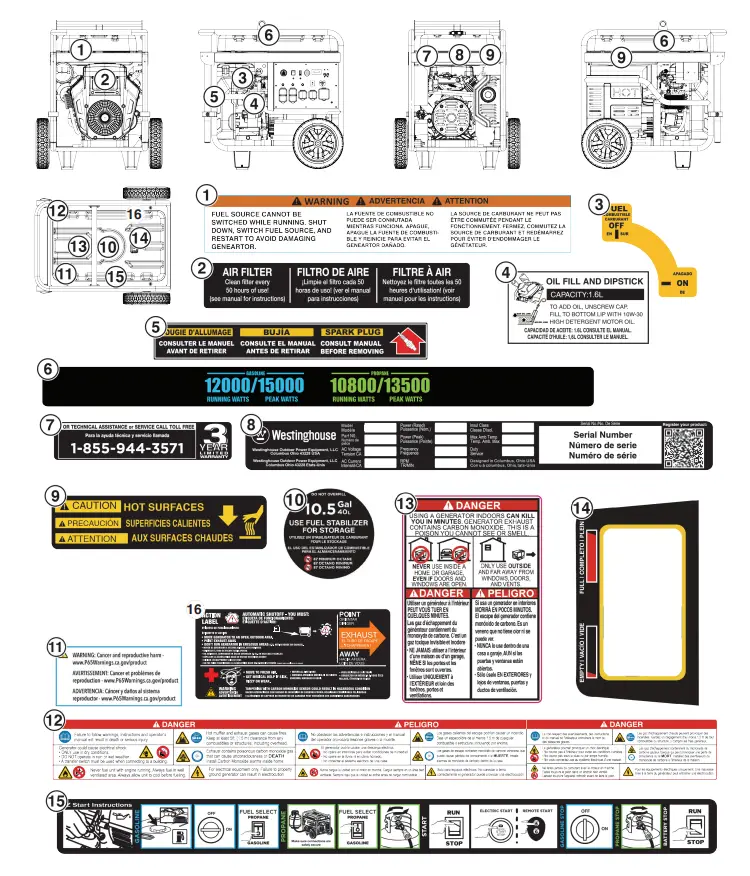

SAFETY LABELS AND DECALS

CO SENSOR
The carbon monoxide (CO) sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If unsafe levels of CO gas are detected, the CO Sensor automatically shuts down the engine. The CO Sensor will also detect the accumulation of carbon monoxide from other fuel-burning sources used in the area of operation. For example, if the exhaust of fuel-burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to unsafe CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel-burning sources to dissipate carbon monoxide away from personnel and occupied buildings.

Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shutdown occurs.

Generators are intended to be used outdoors, far from occupied buildings and the exhaust is pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine. A RED indicator light will indicate the unit was shut down due to an unsafe level of CO being detected around the generator. Before approaching the generator allow the CO to dissipate from around the generator. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home.

WARNING
Automatic shutoff accompanied by a flashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning.

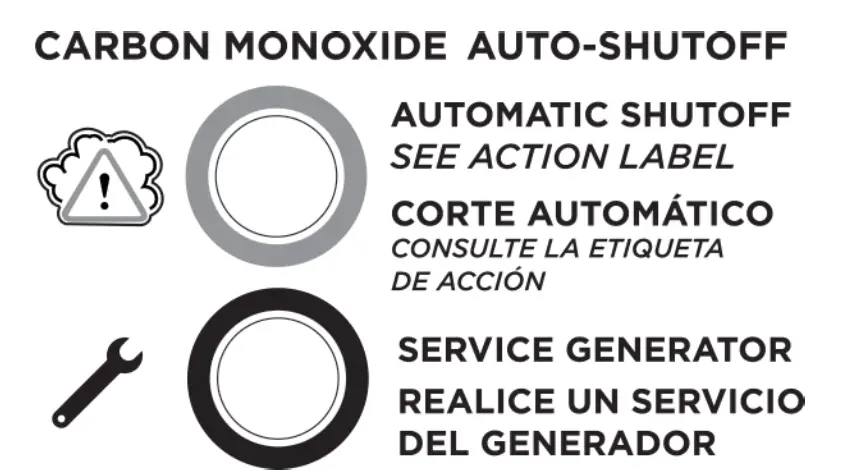

CONTROL PANEL CO AUTO-SHUTOFF

CO SENSOR INDICATOR LIGHTS

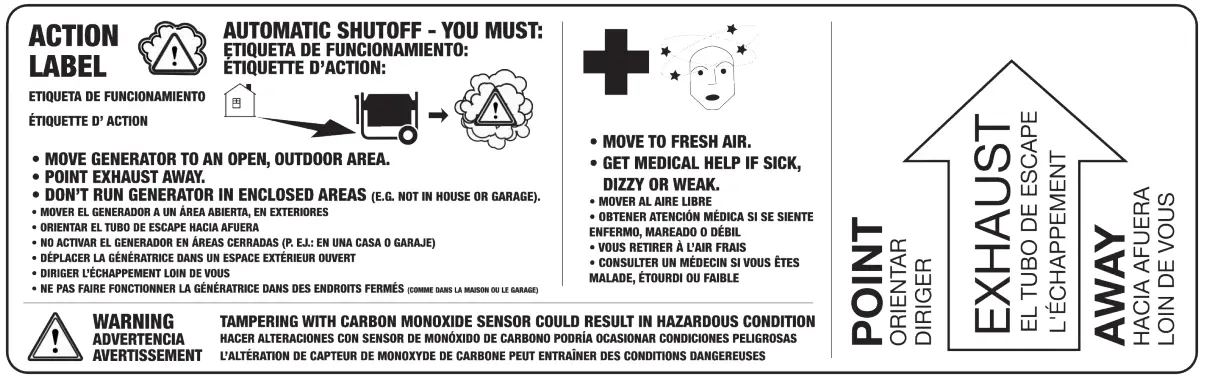

ACTION LABEL

COMPONENTS

COMPONENTS

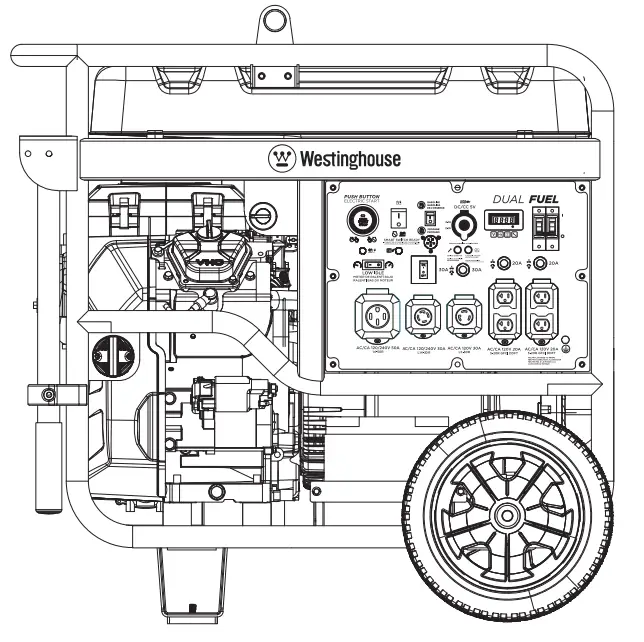

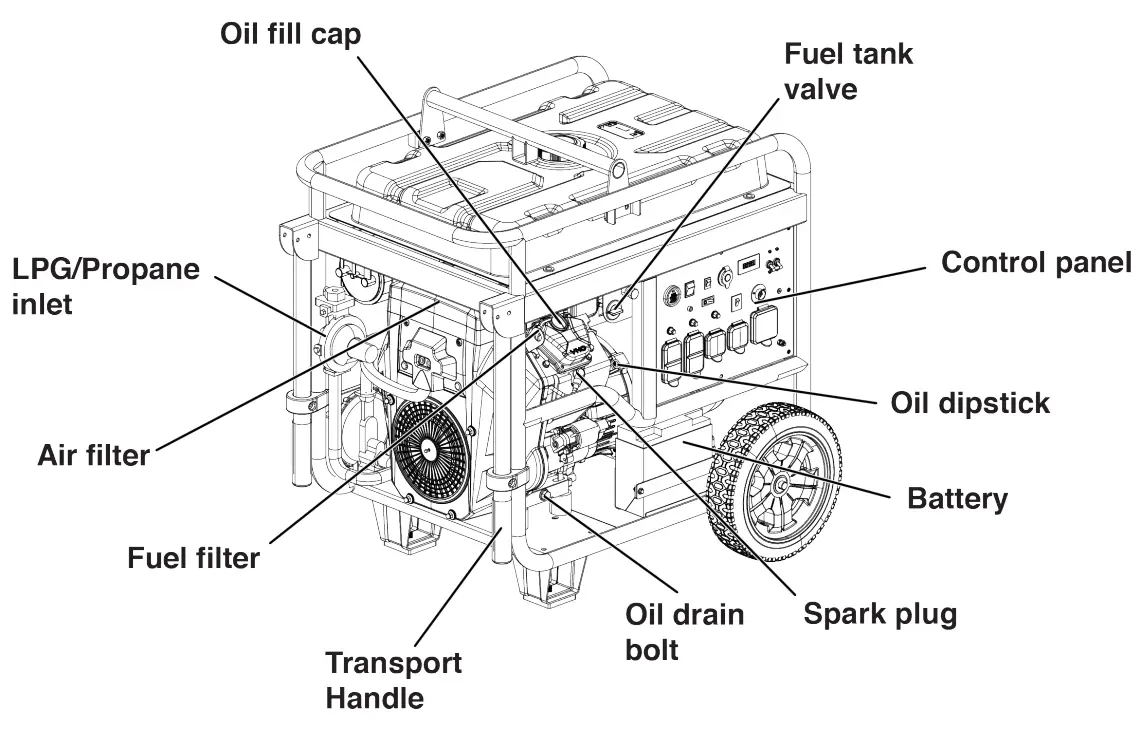

GENERATOR COMPONENTS

CONTROL PANEL COMPONENTS

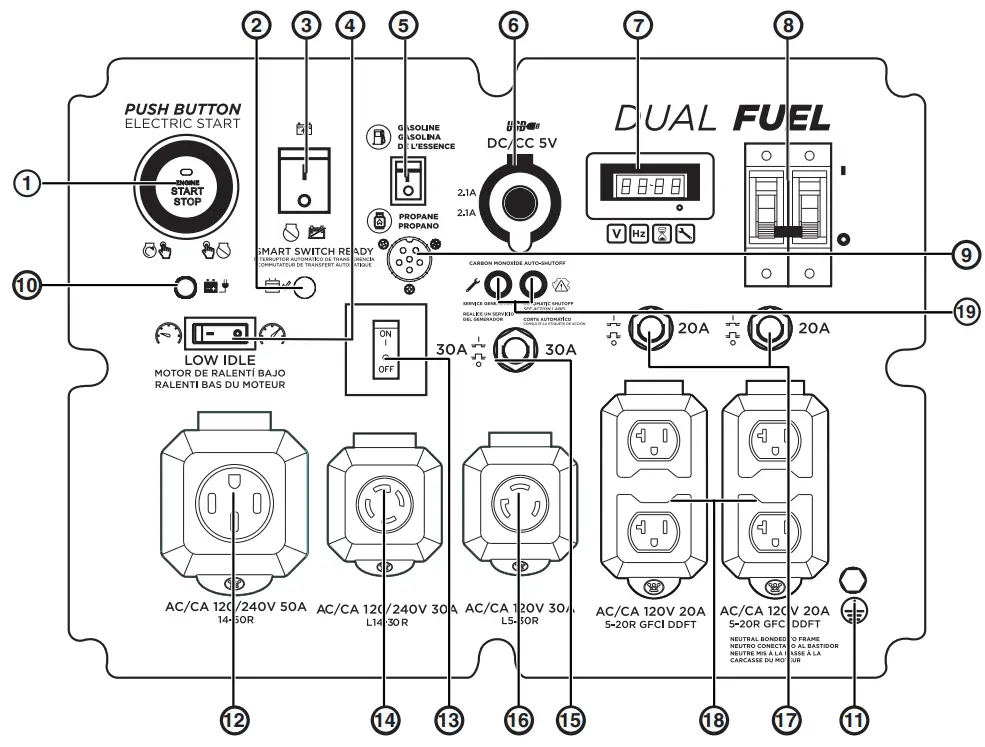

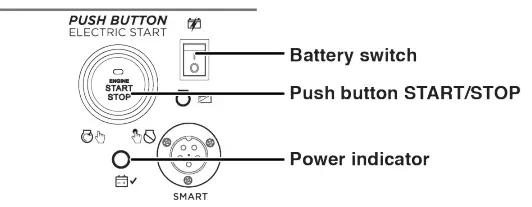

1. Push-Button START/STOP: Push once to automatically start the engine. Push again to stop the engine.
2. Battery Indicator: Indicates that power is ON. Light will remain illuminated while the unit is ON.
3. Battery Switch: Turns battery ON and OFF. Must be ON before electricity or remote starts.
4. Low Idle: Low Idle minimizes fuel consumption, noise, and engine wear by lowering the engine RPM during intermittent use. See the LOW IDLE section for important use considerations.
5. Fuel Selector Switch: Used to select gas or propane operation.
6. USB Ports: Two-port 5V/2.1A USB outlet. Accepts Type A USB plugs.
7. Data Center: Displays voltage, frequency, total hour meter, and run/maintenance timer.

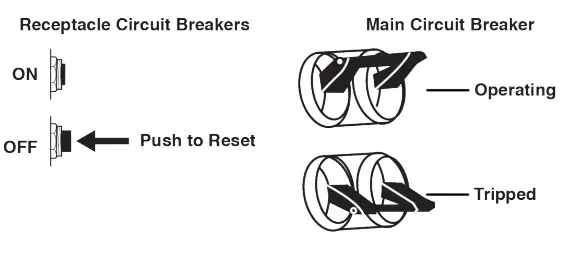

8. Main Circuit Breaker: The main circuit breaker controls the total output of all outlets to protect the generator from overload or short circuits.

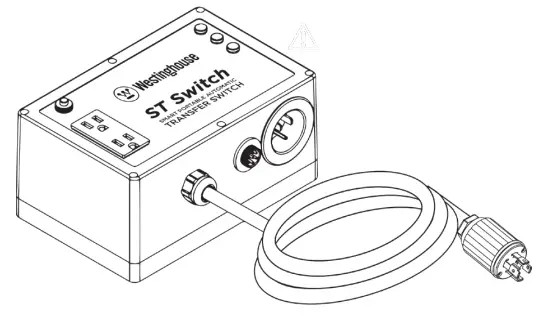

9. Smart Switch Outlet: Connects the Westinghouse ST Switch (sold separately) to the control panel.
10. Battery Charging Port: Used to charge the battery with the included battery charger.
11. Ground Terminal: The ground terminal is used to externally ground the generator.
12. 120/240-Volt AC, 50-Amp NEMA 14-50R Receptacle: The receptacle can supply either 120V or 240V up to 50 amps.
13. 30 Amp AC Circuit Breaker: The circuit breaker limits the current that can be delivered through the NEMA L14-30R receptacle to 30 amps.
14. 120/240-Volt AC, 30-Amp NEMA L14-30R Receptacle: The receptacle can supply either 120V or 240V up to 30 amps.
15. 30 Amp AC Circuit Breaker: The circuit breaker limits the current that can be delivered through the NEMA L5-30R receptacle to 30 amps.
16. 120-Volt AC, 30-Amp NEMA L5-30R Receptacle: The receptacle can supply a maximum of 30 Amps.
17. 20 Amp AC Circuit Breakers: Circuit breakers limit the current that can be delivered through each NEMA 5-20R receptacle to 20 Amps.
18. 120-Volt AC, 20-Amp NEMA 5-20R GFCI Receptacles: Each receptacle is capable of carrying a maximum of 20 amps on a single receptacle or a combination of both receptacles.
19. CO Sensor indicator lights: The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

DATA CENTER

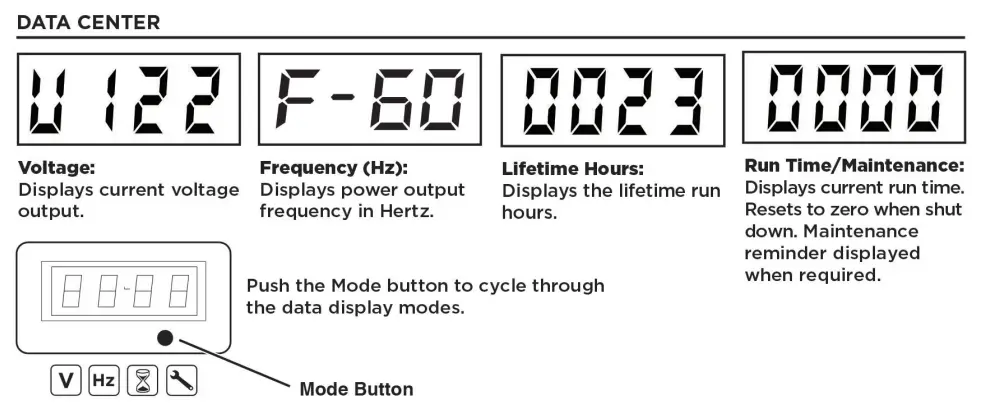

Use the Mode button on the Data Center to switch between displays.

MAINTENANCE REMINDERS
Maintenance reminder codes will be shown on the Data Display based on unit lifetime hours. The maintenance codes will be displayed until the unit is turned off. Refer to the Maintenance section for specific procedures.

ASSEMBLY

ASSEMBLY
This unit ships fully assembled from our factory without oil in the engine. It must be properly serviced with fuel and oil before operation.
If you have any questions regarding preparing your generator for the initial start, contact our service team at [email protected] or call 1-855-944-3571.

UNPACKING
CAUTION
Weight hazard. Always have assistance when lifting the generator.

1. Place the shipping carton on a solid, flat surface and carefully open the carton.
2. Remove and save the carton contents.
3. Remove and discard the packing tray.
4. Unfold the top of the plastic bag enclosing the generator.
5. Carefully cut the vertical corners of the carton to access the generator.
6. Recycle or dispose of the packaging materials properly.

CARTON CONTENTS

• Generator
• User manual
• Quick Start Guide/Maintenance Schedule
• LPG/propane hose with regulator

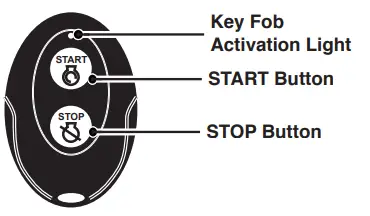

• Remote start key fob
• 1.7 US Quart (1.6 Liter) bottle of SAE 10W-30 Oil
• Battery charger
• Spark plug socket wrench
• Oil Funnel
• Assembly wrench
• Wheel and lifting hook components

If any parts are missing, contact our service team at [email protected] or call 1-855-944-3571.

INSTALL WHEELS AND LIFTING BRACKET
NOTICE
Assembling the generator will require lifting the unit on one side. Install the wheels before adding fuel or oil.

CAUTION
Lifting hazard. Use two people when installing the wheels. Refer to LIFTING HOOK in the OPERATION section.

1. Place the generator on a flat surface.

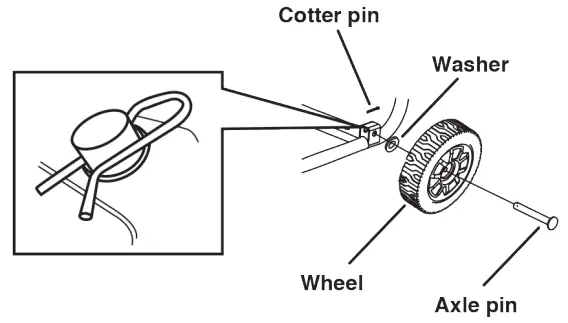

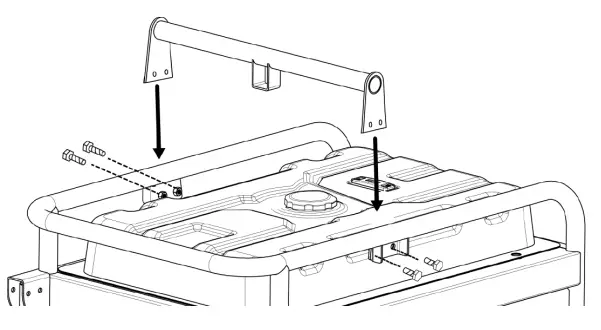

2. Align the lifting hook bracket with the mounting brackets on the top of the fuel tank. Secure with four M8 flange bolts.

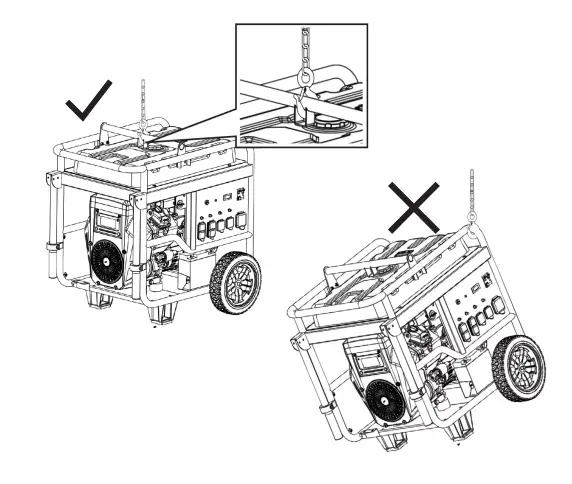

3. Use the Lifting Hook to raise the unit enough to install the wheels as shown.

Note: The wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.

INITIAL OIL FILL
NOTICE
THIS GENERATOR HAS BEEN SHIPPED WITHOUT  OIL. Do not attempt to crank or start the engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage.

NOTICE
Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty.

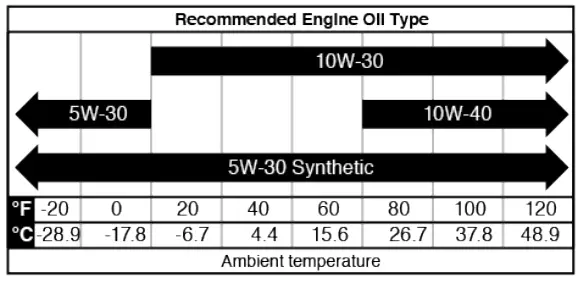

The included, recommended oil type for typical use is  10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart.

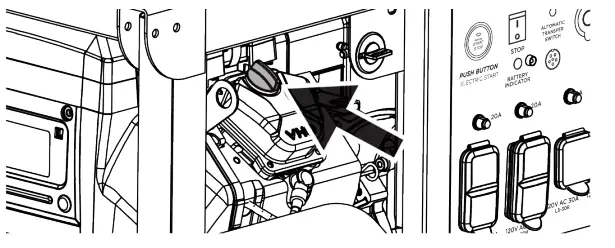

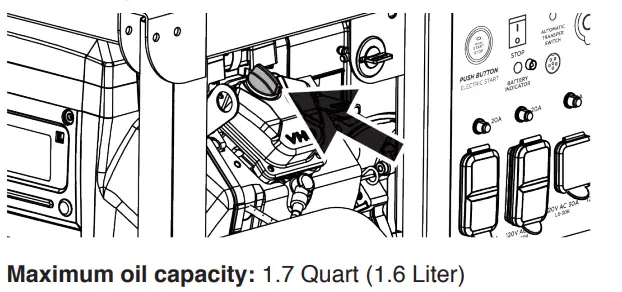

1. On a level surface, remove the oil fill cap.

2. Using the supplied funnel and oil, add the oil to the engine.
3. Replace the oil fill cap and tighten it securely.

BATTERY INSTALLATION
CAUTION
Battery posts, and terminals contain lead and lead compounds. Wash hands after handling.

WARNING
The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance.

WARNING
Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery.
WARNING
NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, flush immediately with water and neutralize with baking soda. The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use. See the BATTERY MAINTENANCE section for the battery charging procedure.
Note: Once started, the generator will charge the battery after 30–60 minutes of use.

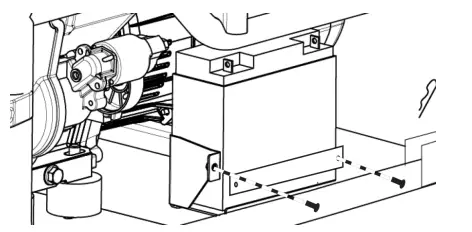

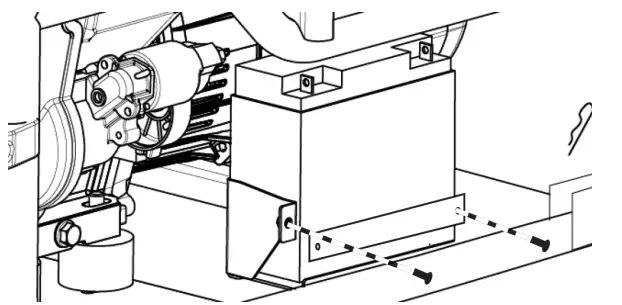

1. Remove the two battery plate bolts and battery plate. Tilt the battery forward and remove it.

2. Connect the positive (+) battery cable (red boot) to the positive (+) battery post. Secure the boot over the battery post.

3. Connect the negative (-) cable (black boot) to the negative (-) battery post. Secure the boot over the battery post.
4. Install the battery in the battery tray. Install the battery plate and bolts. Tighten the bolts securely.

FUEL

WARNING
Fire and explosion hazards. Never use a gasoline container, gasoline tank, propane connector hose, propane tank, or any other fuel item that is broken, cut, torn or damaged.
DANGER
Fire and explosion hazards. Do not overfill the fuel tank. Fill only to the red fill ring located in the in-tank fuel screen filter. Overfilling may cause fuel to spill onto the engine causing a fire or explosion hazard.
DANGER
Fire and explosion hazards. Never refuel the generator while the engine is running. Always turn the engine off and allow the generator to cool for two minutes before refueling.

NOTICE

Do not use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol.

FUEL REQUIREMENTS

• CLEAN, FRESH, unleaded gasoline, 87–93 octane.
• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).
• DO NOT use E85 or E15.
• DO NOT use a gas oil mix.
• DO NOT modify the engine to run on alternate fuels.
• DO NOT fuel indoors.
• DO NOT create a spark or flame while fueling.

USING FUEL STABILIZER
Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer’s instructions for use.
Always mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system.

FILLING THE FUEL TANK

1. Turn the generator OFF and allow it to cool for a minimum of two minutes before fueling.
2. Place the generator on level ground in a well-ventilated area.
3. Clean the area around the fuel cap and remove the cap slowly.
   NOTICE
   Only fill the tank from an approved gasoline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.
4. Slowly add the recommended fuel. Do not overfill. Fill only to the red maximum fill ring on the fuel screen filter visible in the filler neck.

5. Install the fuel cap.

NOTICE
Fuel can damage paint and plastic. Use caution when filling the fuel tank. Damage caused by spilled fuel is not covered under warranty.
NOTICE
Clean the fuel screen filter of the debris before and after each fueling. Remove the fuel screen filter by slightly compressing it while removing it from the fuel tank.

CONNECT AN LPG/PROPANE TANK
NOTICE

• The LPG/propane tank can be of any capacity but the tank must conform to the standard as listed in Fuel Safety section.
• Propane tanks that use a liquid withdrawal system can not be used on these models.
• Verify the re-qualification date on the tank has not expired.
• Do not use included LPG/propane hose for any other appliances.

NOTICE

• All new tanks must be purged of air and moisture prior to filling. Used tanks that have not been plugged or kept closed must also be purged. The purging process should be done by a propane supplier (Tanks from an exchange supplier should have been purged and filled properly).
• Always position the tank so the connection between the valve and the gas inlet will not cause sharp bends or kinks in the hose.

WARNING
Explosion hazard. Do not start the generator if you smell LPG. Always fully close the propane tank valve and disconnect the LPG/propane hose from the generator when not in use.

1. Turn the generator OFF and place it on a flat surface in a well-ventilated area.
2. Verify that the propane tank valve is in the fully closed position.
3. Remove the cover on the generator propane inlet valve.
4. Use your fingers to hand thread the LPG/propane hose (included) to the propane inlet on the generator.
   IMPORTANT: DO NOT use thread seal tape or any other type of sealant to seal the LPG/propane hose connection.
5. Tighten the LPG/propane hose connector to the generator with a 19 mm or adjustable wrench. DO NOT over-tighten.
   Torque: 5-10 lb-ft.

6. Remove the safety plug or cap from the propane tank valve and attach the other end of the hose to the LPG/ propane connector on the tank. Hand tightens.
7. Turn the propane tank valve to the fully open position. Check all connections for leaks by wetting the fittings with a solution of soap and water. Bubbles that appear or bubbles that grow indicate that a leak exists. If a leak exists at a fitting, turn the propane tank valve to the fully closed position and tighten the fitting. Open the propane tank valve and recheck the fitting with the soap and water solution. If the leak continues or if the leak is not at a fitting then do not use the generator and contact customer service.

IMPORTANT: Keep the propane tank valve in the fully closed position unless in use.

GROUNDING
WARNING
Shock hazard. Failure to properly ground the generator can result in electric shock.
NOTICE
Only use grounded extension cords, tools, and appliances, or double-insulated tools and appliances.

The generator neutral is bonded to the frame. There is a permanent conductor between the generator (stator wire) and the frame. If this generator will be used only with cord
and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution. Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

DISCONNECTING THE BONDED NEUTRAL
Removing the bonded neutral disables the GFCI protection from the 5-20R receptacles. The bonded neutral should only be removed under specific circumstances. Consult a qualified electrician to determine if your situation requires disconnecting the bonded neutral.

1. Remove the alternator cover.

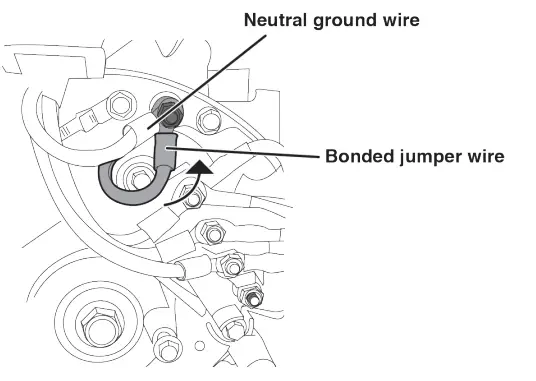

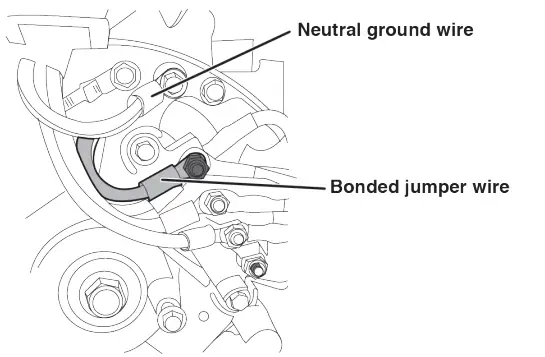

2. Remove the bonded jumper wire and reinstall the nut.

3. Remove the nut securing the neutral ground wire and attach the bonded jumper wire. Reinstall the nut.

4. Reinstall the alternator cover.
   IMPORTANT: Apply a new “NEUTRAL UNBONDED”
   Label over the “NEUTRAL BONDED TO FRAME” label on the front of the control panel.

OPERATION

OPERATION
GENERATOR LOCATION
Read and understand all safety information before starting the generator.

NEVER operate the generator inside any building, including garages, basements, crawlspaces, sheds, enclosures, or compartments, including the generator compartment of a
recreational vehicle.
DANGER
Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical  appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution

WARNING
Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage.

The generator should be on a flat, level surface at all times (Even while not in operation). The generator must have at least 5 ft. (1.5 m) of clearance from all combustible material.
Do not operate the generator in the back of an SUV, camper, trailer, truck bed (regular, flat, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation.

DANGER
Asphyxiation hazard. Place the generator in a well-ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. Carefully consider wind and air currents when positioning the generator.

HIGH ALTITUDE OPERATION
Engine power is reduced the higher you operate above sea level. The output will be reduced by approximately 3.5% for every 1000 feet of increased altitude from sea level.
High altitude adjustment is required for operation at altitudes over 2,000 ft. (762 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions.

NOTICE
Do not operate the generator at altitudes below 2,000 ft. (762 m) with the high-altitude kit installed. Engine damage may occur.
High Altitude Carburetor Kit Part# 518904

REMOTE START
WARNING
Verify that the area around the generator is clear before remote starting the generator.
The remote start key fob included with the generator should be attached to the recoil handle or control panel. If your unit was shipped without a key fob, contact Westinghouse
customer service. The generator can be started remotely from up to 99 feet  (30 meters) using the remote start key fob.
Note: As the batteries in the remote start key fob drain, operational distance will decrease.

PAIRING THE REMOTE START
Remote replacement batteries: (2) CR2016
If the remote start key fob is replaced or needs re-paired to the generator, follow this procedure.

1. Turn the generator battery switch to the ON position. The power indicator light will illuminate.

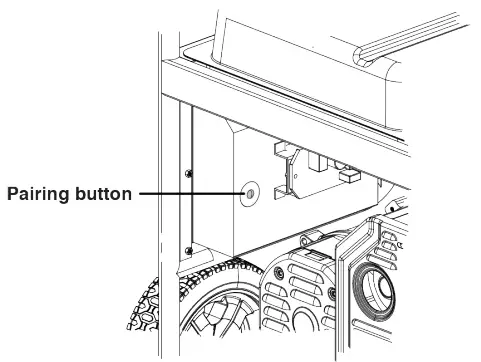

2. Push and hold the red Pairing button on the back of the control panel until the START/STOP button illuminates.

3. Push and hold the STOP button on the key fob until the START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.

4. Push and hold the START button on the key fob until the START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.
5. Push the Pairing button on the side of the control panel until the START/STOP button illumination turns OFF. Release the button.
6. Turn the generator battery switch to the OFF position. The remote is now paired.

FUEL SELECTOR SWITCH
Position the fuel selector switch on the front control panel to the desired fuel choice.

Push the fuel selector switch fully upward for gasoline operation.
Push the fuel selector switch fully downward for propane operation.
BREAK-IN PERIOD
For proper break-in, do not exceed 50% of the rated running watts (6000 watts) during the first five hours of operation.
Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.
LOW IDLE

NOTICE
Always start the generator with Low Idle OFF. Allow the engine speed to stabilize before switching Low Idle ON.
NOTICE
The frequency output of the generator is dependent on engine speed. DO NOT use Low Idle when powering sensitive electronics or large surge loads, such as an air conditioner, electric pump, or refrigerator, or when connected to a home transfer switch.

Low Idle minimizes fuel consumption, noise, and engine wear by lowering the engine RPM to idle (2400 RPM) when electrical loads have been turned off and automatically returns to rated speed when loads are turned back on. Turn Low Idle ON when powering intermittent, nonelectronic loads, such as power tools at a construction site.

BEFORE STARTING THE GENERATOR
Verify that:

• The generator is placed in a safe, appropriate location.
• The generator is on a dry, flat, and level surface.
• The engine is filled with oil.
• All loads are disconnected.

DANGER
Fire and explosion hazards. DO NOT move or tip the generator during operation.

STARTING THE ENGINE: GASOLINE
During Push-Button or Remote Start the engine will automatically set the choke and begin the start sequence. If the engine fails to start, the generator will attempt to start the engine two more times. The battery switch can be turned off at any time during the automatic start sequence to abort the engine start attempt.
If the cranking speed drops after each unsuccessful attempt, then the battery may not be adequately charged. See the BATTERY MAINTENANCE section.

1. Verify that fuel is in the gas tank.
2. Turn the fuel selector switch to gasoline operation.
3. Turn the fuel tank valve to the ON position.

4. Push the battery switch to the ON position.
5. Choose the starting method:
   a. Remote Start: Push and hold the START button on the remote start key fob for one second.
   Note: Remote start-equipped generators must be restarted with the START/STOP switch on the control panel after an automatic shutdown occurs.
   b. Push-Button Start: Push and hold the engine
   START/STOP button for two seconds.

STARTING THE ENGINE: PROPANE
DANGER
Fire and explosion hazards. Always turn the propane tank valve to the fully closed position if not operating the generator on propane.

1. Make sure the LPG/propane hose is correctly connected to the generator and propane tank.
2. Turn the fuel selector switch to propane operation.
3. Fully open the valve on the propane tank.
4. Push the battery switch to the ON position.
5. Choose the starting method:
   a. Remote Start: Push and hold the START button on the remote start key fob for one second.
   b. Push-Button Start: Push and hold the engine START/STOP button for two seconds.

SWITCHING FUEL SOURCES
DANGER
Fire and explosion hazards. DO NOT add gasoline to the fuel tank or connect the LPG/propane hose to the generator while the generator is in operation.
The fuel source can be switched while the engine is running if a propane tank is connected to the generator BEFORE operation.

Note: Switching fuel sources while over 50% load capacity may cause the engine to stop. If the engine stops when switching fuel sources, disconnect all loads then restart the unit on the fuel source of choice.
GASOLINE TO PROPANE
IMPORTANT: Load capacity is reduced when running on propane. Make sure the generator can supply enough (running) and surge (starting) watts for the items you are powering before switching to propane.

1. Fully open the valve on the propane tank.
2. Turn the fuel selector switch to propane operation.
3. Turn the fuel tank valve to the OFF position.

PROPANE TO GASOLINE

1. Turn the fuel tank valve to the ON position.
2. Turn the fuel selector switch to gasoline operation.
3. Turn the propane tank valve to the fully closed position.

Note: When switching to propane operation the engine may run rough for a few seconds while it purges gasoline in the carburetor.

STOPPING THE ENGINE

1. Turn off and unplug all connected electrical loads.
   IMPORTANT: Never start or stop the generator with electrical devices connected.
2. Let the generator run with no load for several minutes to stabilize the internal temperatures of the engine.
3. Push and hold the START/STOP button for one second or push STOP on the remote start key fob for one second.
   Note: Alternately, if the generator is used infrequently, turn the fuel tank valve to the OFF position to limit the residual fuel remaining in the system. The engine will stop when fuel in the carburetor and fuel line is exhausted.
4. Push the battery switch to the OFF position.
5. If operating on propane, turn the propane tank valve to the fully closed position.

FREQUENCY OF USE
If the generator will be used on an infrequent or intermittent basis (more than one month before the next use), refer to the Battery Maintenance and Storage sections of this manual for information regarding battery charging and fuel deterioration.

AC CIRCUIT BREAKERS
The circuit breakers will automatically switch OFF if there is a short circuit or a significant overload of the generator at each receptacle.
If an AC circuit breaker switches OFF automatically, check that the appliance is working correctly and it does not exceed the rated load capacity of the circuit before resetting the AC circuit breaker ON.
The main circuit breaker controls the total output of all outlets to protect the generator from overload or short circuits.

GENERATOR CAPACITY
NOTICE
Do not overload the generator’s capacity. Exceeding the generator’s wattage/amperage capacity can damage the generator and/or electrical devices connected to it.

Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time.
The total power requirements (Volts x Amps = Watts) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model or serial number.
To determine power requirements:

1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This is the amount of power the generator must produce to keep the items running. See the wattage reference chart on the next page.
3. Estimate how many surge (starting) watts you will need. Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2.

Example:

*Wattages listed are approximate. Verify actual wattage.

POWER MANAGEMENT
To prolong the life of the generator and attached devices, use care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting the engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the engine as described in this manual.
2. Plug in and turn on the first load, preferably the largest load you have.
3. Permit the generator output to stabilize (the engine runs smoothly and the attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.

Wattage Reference

*Wattages listed are approximate. Verify actual wattage.

EXTENSION CORDS
WARNING
Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. Always use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery.

WARNING
Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area, far away from occupied spaces with exhaust pointed away.

WARNING
Fire and electrocution hazard. Never use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn to result in death or serious injury.
Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.
• Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.
• Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used.

EXTENSION CORD SIZING
Only use grounded 3-prong extension cords marked for outdoor use that is rated for the electrical load.

ST SWITCH
The generator is compatible with the Westinghouse ST Switch, purchased separately. When utility power is on it will provide power (up to 120V @ 20A) to the appliances plugged into the 5-20R receptacle on the ST Switch. When utility power is lost the ST Switch automatically transfers input power from utility to generator power. When utility
power is restored, the ST Switch transfers input power back to the utility. Visit www.westinghouseoutdoorpower.com for more information.

TRANSPORTING
CAUTION
Weight hazard. Always have assistance when lifting the generator.

• Allow the generator to cool for a minimum of 30 minutes before transporting.
• If operating on propane, turn the propane tank valve to the fully closed position.
• Disconnect the LPG/propane hose from the generator and propane tank.
• Replace all protective covers on the generator control panel.
• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport.
• The generator wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.
• Use the extendable handle for hand transport. Only use the handle while the generator is OFF, stationary, and resting on a horizontal surface. Do not use the handle to lift the generator entirely off the ground, tow it, or up-end it.

CAUTION
Fire hazard. Do not up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur.

LIFTING HOOK

Only use the lifting hook to lift the unit or attach any load restraints such as ropes or tie-down straps. Do not attempt to lift or secure the generator by holding onto any of its
other components.
Before lifting the generator, inspect the bracket and make sure it is securely fastened to the generator. Do not lift the generator unless the lifting bracket is securely fastened.

1. Hook a chain or strap through the eye on the lifting hook and make sure it is securely fastened.
2. Connect a suitable lifting device to the chain or strap. Inspect the chain and hook for any damaged links or any defects that could cause failure. It is recommended to use hooks with safety latches installed.
3. Lift the generator slightly to ensure it is lifting straight and level.

MAINTENANCE

MAINTENANCE
WARNING
Accidental start-up. Disconnect the spark plug boot from the spark plugs when performing maintenance on the generator.

MAINTENANCE SCHEDULE
Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions as noted below.

Before Each Use
Check engine oil
Check air filter
After First 20 Hours or First Month
Change engine oil1
After 50 Hours or Every 3 Months
Clean air filter2
After 100 Hours or Every 6 Months
Change engine oil1
Inspect/clean spark arrestor
Inspect/clean spark plug
Replace fuel filter
Clean float bowl3
After 300 Hours or Every Year
Replace spark plug
Replace air filter
Replace fine oil filter
Inspect/adjust valve clearance3
Every 2 years
Replace fuel pipe

1. Change oil every month when operating under heavy loads or in high temperatures.
2. Clean more often under dirty or dusty conditions. Replace the air filter if it cannot be adequately cleaned.
3. Recommend service to be performed by an authorized Westinghouse service dealer.

MAINTENANCE REPLACEMENT PARTS

AIR FILTER MAINTENANCE
The air filter must be cleaned after every 50 hours of use or six months (frequency should be increased if the generator is operated in a dusty environment).

1. Place the generator on a level surface and allow the engine to cool for several minutes.

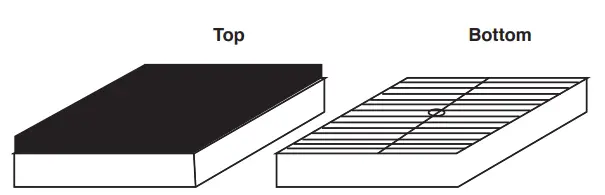

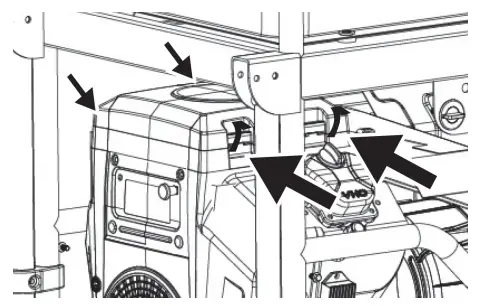

2. Release the four clips then remove the air filter cover.

3. Remove the air filter and clean using compressed air. DO NOT submerge the filter in liquids or add oil.
4. Install the air filter in the housing, making sure it is correctly oriented and seated in the housing.

5. Install the air cleaner cover and secure it with the cover clips.

ENGINE OIL LEVEL CHECK
CAUTION
Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

NOTICE
Always use the specified engine oil. Failure to use the specified engine oil can cause accelerated wear and/or shorten the life of the engine.
When using the generator in dusty conditions or in extremely hot weather, change the oil more frequently.
Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions.

Check the engine oil level before each use or every 8 hours of operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. Remove the oil dipstick and wipe the dipstick clean.
3. Insert, then remove the oil dipstick.

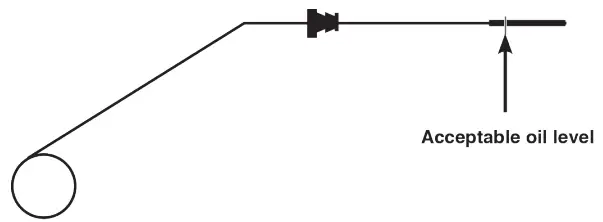

   Acceptable Oil Level – On the flat side of the dipstick, oil is visible up to the first notch.
   Low Oil – Oil is below the first notch on the dipstick

4. If low, remove the oil fill cap and add the recommended engine oil incrementally and recheck until the level is at the top-notch on the dipstick. DO NOT overfill. If over the top-notch on the dipstick, drain the oil to reduce the oil level to the full mark.
5. Replace the oil dipstick and oil fill cap.

ENGINE OIL CHANGE
When using the generator in dusty conditions or extremely hot weather, change the oil more frequently. Change the oil while the engine is still warm from operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. With a damp rag, clean around the oil fill cap. Remove the oil fill cap.

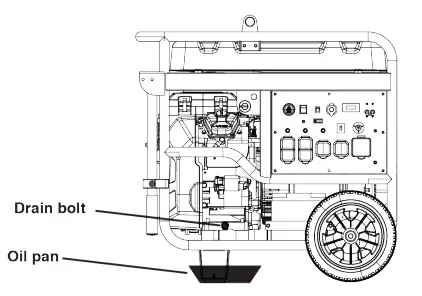

3. Place an oil pan (or suitable container) under the oil drain hose.
4. Unclip the oil drain hose and twist the cap counterclockwise to allow the oil to drain.

5. Twist the cap clockwise to close. Secure the hose in the hose clip.

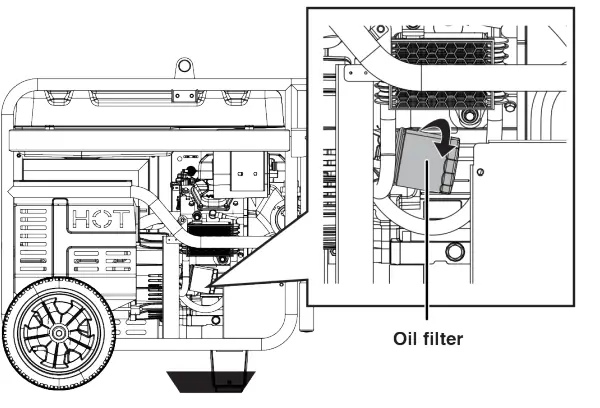

6. Place the oil pan under the oil filter. Remove the oil filter by rotating it counterclockwise. Allow the oil to drain completely. Clean the area where the oil filter contacts the engine.

7. Apply clean oil to the rubber seal on the new oil filter. Install by hand, turning clockwise until the seal contacts the engine then turn another 3/4 turn. DO NOT over
   tighten.
8. Fill with the recommended oil. Stop frequently to check the oil level. Do not overfill. If the engine is overfilled, the excess oil may get transferred to the air cleaner housing and air filter. An indication of overfilling is white or blue smoke coming from the muffler when the engine is running.

9. Install the oil dipstick. Screw in the oil fill cap securely.

NOTICE
Do not pollute. Follow the guidelines of the EPA or other governmental agencies for the proper disposal of hazardous materials. Consult local authorities or reclamation facilities.

SPARK PLUG MAINTENANCE
NOTICE
Always use the Westinghouse OEM or compatible nonresistor-type spark plug. The use of a resistor-type spark plug can result in rough idling, misfire, or may prevent the engine from starting.

Inspect and clean the spark plugs after every 100 hours of use or six months. Replace the spark plugs after 300 hours of use or every year.

1. Place the generator on a level surface and allow the engine to cool.

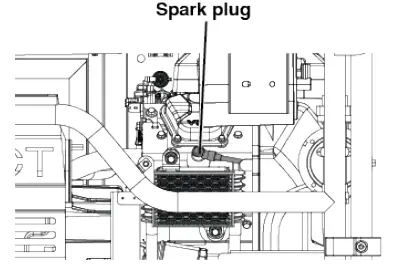

2. Remove the spark plug boots by firmly pulling the boot directly away from the engine.

3. Clean the area around the spark plugs.
4. Remove the spark plugs with the included spark plug socket wrench.
   NOTICE
   Never apply any side load or move the spark plug laterally when removing the spark plug.
5. Inspect the spark plugs. Replace if electrodes are pitted, or burned, or the insulator is cracked. Only use a recommended replacement plug.
6. Measure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode.

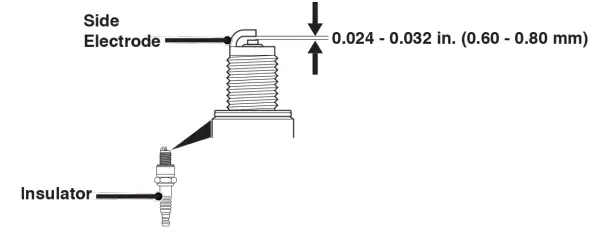

   Spark plug gap: 0.024 – 0.032 in. (0.60 – 0.80 mm)

7. Carefully install each spark plug finger tight, then tighten it as an additional 3/8 to 1/2 turn with the spark plug wrench.
8. Attach the spark plug boots.

SPARK ARRESTOR SERVICE
Allow the muffler to cool completely before servicing the spark arrestor. Check and clean the spark arrestor after every 100 hours of use or six months. Failure to clean the spark arrestor will result in degraded engine performance.

1. Place the generator on a level surface.

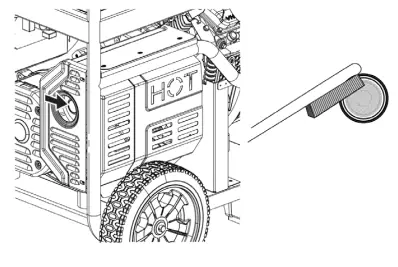

2. Carefully remove the carbon deposits from the spark arrestor screen with a wire brush. The spark arrestor must be free of breaks and tears. Use compressed air to clear removed deposits.

FUEL FILTER
Replace the fuel filter after 100 hours of use.
Note: Have an appropriate gasoline container and rags ready to catch residual fuel in the filter and fuel line.

1. Allow the generator to cool completely.
2. Turn the fuel valve to the OFF position.

3. Note the orientation of the fuel filter. Using pliers, remove the fuel line clamps and remove the fuel filter.
4. Install the new fuel filter in the reverse order of removal.

BATTERY MAINTENANCE

WARNING
The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance.

WARNING
Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery.
WARNING
NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, flush immediately with water and neutralize with baking soda.

The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use for prolonged periods of time.
Note: Once started, the generator will charge the battery after 30–60 minutes of use.
When the generator is not running, the included trickle charger can remain connected and will maintain the battery for an indefinite period of time. A red light on the charger indicates charging is in progress. A green light indicates charging is complete. Charge in a dry location.

1. Plug the charger into the battery charging port on the control panel.
2. Plug the wall receptacle end of the battery charger into a 120 Volt AC wall outlet.

BATTERY REPLACEMENT
CAUTION
Battery posts and terminals contain lead and lead compounds. Wash hands after handling.

1. Remove the two battery plate bolts and battery plate. Tilt the battery forward and remove it.

2. Disconnect the negative (-) cable (black boot) from the negative (-) battery post.
3. Disconnect the positive (+) battery cable (red boot) from the positive (+) battery post.
   NOTICE
   Always connect the cables in the following sequence to avoid possible shock.
4. On the replacement battery, connect the positive (+) battery cable (red boot) to the battery positive (+) terminal. Secure the boot over the battery post.
5. Connect the negative (-) battery cable (black boot) to the negative (-) positive terminal. Secure the boot over the battery post.
6. Install the battery in the battery tray. Install the battery plate and bolts. Tighten the bolts securely.

NOTICE
Dispose of the used battery properly according to the guidelines established by your local or state government.

STORAGE
Proper storage preparation is required for trouble-free operation and generator longevity.

NOTICE
Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the flow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizers significantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer’s instructions for use.

SHORT TERM STORAGE

• Allow the generator to cool a minimum of 30 minutes before storage.
• If operating on propane, turn the propane tank valve to the fully closed position and disconnect the LPG/ propane hose from the generator and propane tank.
• Replace all protective covers on the generator control panel.
• Wipe the generator with a moist cloth. Clean any debris from the muffler cooling vents.
• Store the generator in a well-ventilated, dry location away from sparks, open flames, pilot lights, heat, and other sources of ignition such as areas with a spark-producing electric motor or where power tools are operated.
• Do not store the generator, gasoline, or propane tanks near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.
• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. Do not use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion.

LONG TERM STORAGE
Even properly stabilized fuel can leave residue and cause corrosion if left long-term. If storing the generator for over six months, drain the fuel tank.
DRAINING THE FUEL TANK
If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

1. Unscrew the fuel tank cap. Remove the fuel screen filter by slightly compressing it while removing it from the tank.
2. Using a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump.
   OR
   Disconnect the fuel line from the bottom of the fuel tank and allow the fuel to drain into an approved gasoline container. Reinstall the fuel line.
3. Reinstall the fuel screen filter and the fuel tank cap.
4. Start the generator and allow it to run until the generator engine stops.
5. Push the battery switch to the OFF position.
6. Disconnect the battery.

VALVE CLEARANCE
NOTICE
Checking and adjusting valve clearance must be done when the engine is cold.
Perform this procedure on both cylinders.

1. Remove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be replaced.
2. Remove the spark plug so the engine can be rotated more easily.
3. Rotate the engine to Top Dead Center (TDC) by momentarily pushing the Start button. Looking through the spark plug hole, the piston should be at the top (both valves are closed).
4. Both the rocker’s arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360°.

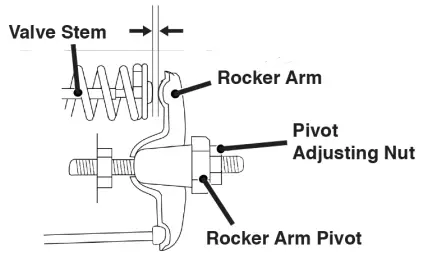

5. Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance.


   	Intake Valve	Exhaust Valve
   Valve Clearance	0.0031 – 0.0047 in (0.08 – 0.12 mm)	0.0051 – 0.0067 in (0.13 – 0.17 mm)
   Torque	8-12 N•m	8-12 N•m

6. If an adjustment is necessary, hold the rocker arm pivot and loosen the pivot adjusting nut.
7. Turn the rocker arm pivot to obtain the specified clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting the nut to the specified torque. Torque: 106 inch-pound (12 N•m)
8. Perform this procedure for the other valve.
9. Install the gasket, rocker arm cover, and spark plug.

TROUBLESHOOTING

TROUBLESHOOTING
TROUBLESHOOTING

EXPLODED VIEW

EXPLODED VIEWS AND PARTS LISTS
ENGINE EXPLODED VIEW

ENGINE PARTS LIST

ENGINE PARTS LIST CONTINUED

GENERATOR EXPLODED VIEW

GENERATOR PARTS LIST

THE GENERATOR PARTS LIST CONTINUED

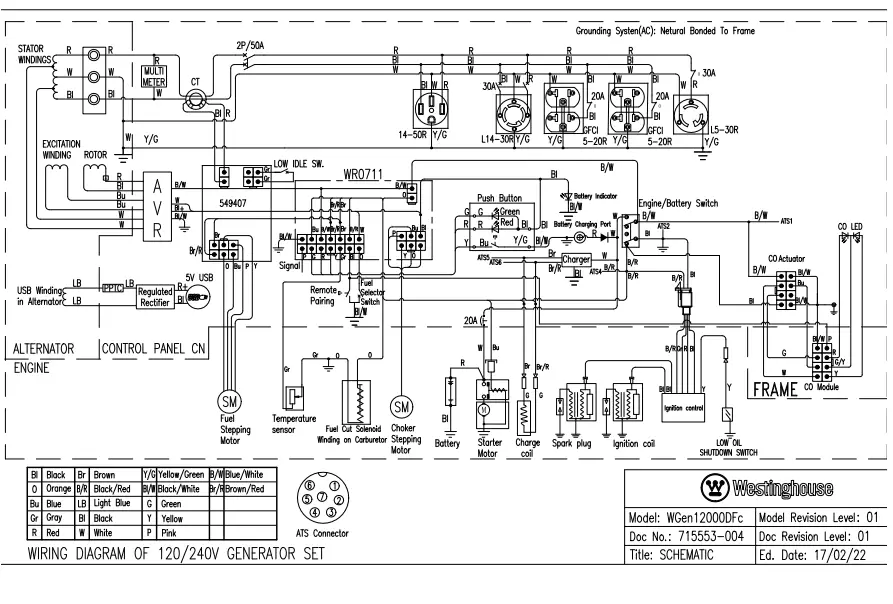

SCHEMATICS
SCHEMATICS

WestinghouseOutdoorPower.com

Service Hotline: (855) 944-3571
777 Manor Park Drive
Columbus, OH 43228
and Westinghouse are trademarks of Westinghouse Electric Corporation.
Used under license by Westinghouse Outdoor Power Equipment. All Rights Reserved
WGen12000DFc Rev01
122337 Rev01 4/22

References

• P65warnings.ca.gov
• Westinghouse Outdoor Power Equipment | Westinghouse Outdoor Equipment
• Manuals | Westinghouse Outdoor Equipment
• P65warnings.ca.gov
• Westinghouse Outdoor Power Equipment | Westinghouse Outdoor Equipment
• Warranty Registration | Westinghouse Outdoor Equipment
