P329.703 Gilroy Earbuds
User Manual

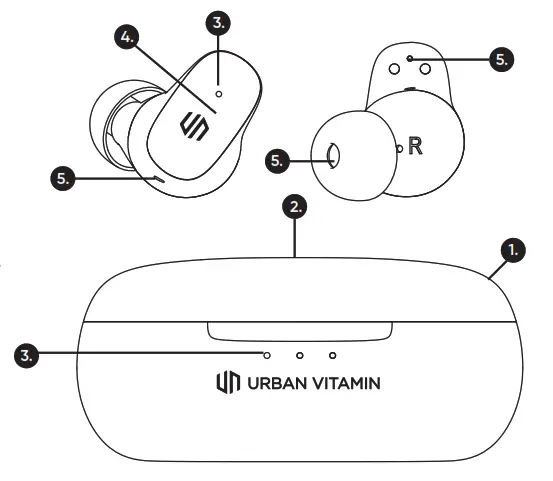

DEVICE LAYOUT
- Charging case
- Type-C input
- Battery/Charging indicator
- Earbuds touch function
- MIC
PARING FOR A DOUBLE EARBUD CONNECTION
The earbuds will turn on automatically when users open the charging case and will turn off when users put them back into the charging case and close it.
The earbuds will pair with each other automatically when they are on and enter into pairing mode automatically. No need to press any button. Turn on Bluetooth on your device and select “Urban Vitamin Gilroy’’ to connect the earbuds to your device.
HOW TO CHARGE THE EARBUDS
- Put the earbuds in the charging case and close it
- The light on the charging case will turn on and starts charging the earbuds.
It takes around 1,5 hours to fully charge the earbuds
To charge the charging chase, connect the case with the Type-C cable to a power source. It takes around 2 hours to fully charge the charging case.
FUNCTIONS
You can operate the earbuds with the touch function on the earbuds.
Please check the below instructions.
| Play/pause music | Short press left/right earbud |
| Pick up phone call | Short press left/right earbud |
| Reject phone call | Double press left/right earbud |
| End phone call | Short press left/right earbud |
| Next song | Double press the right earbud |
| Previous song | Double press left earbud |
| Volume + | Triple press right earbud |
| Volume – | Triple press left earbud |
| ANC on/off | Long (2 s) press left/right earbud |
| Siri/Google Assistant | Double press left/right earbud |
SPECIFICATIONS:
| Speaker driver (mm) | 10mm*2 |
| S/N Ratio (dB) | 100dB |
| Frequency range (Hz-kHz) | 20Hz-20KHz |
| Continuous playing time | 5 hours |
| Charging time earbuds | 1.5 hour |
| Battery capacity Earbuds | 45 mAh |
| Battery capacity Charging station | 500 mAh |
| Mic function | yes |
| Pick up function | yes |
| BT version | 5 |
NOTICE
- Keep the product dry; do not place the product in damp places.
- Keep out of direct sunlight and high temperatures High temperatures may result in damage.
- Keep out of cold temperatures, this will help avoid internal damage.
- Do not disassemble the product.
- Avoid dropping the product.
- Do not continue to charge the product over 10 hours.
- When charging using the Type-C charging cable that came with the product.
Declaration of Conformity
Xindao B.V. hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU.
The complete Declaration of Conformity can be found at www.xindao.com > search on item number.
Copyright© XD P329.72X
