P329.743 FREEMOND ANC HEADPHONE
USER MANUAL

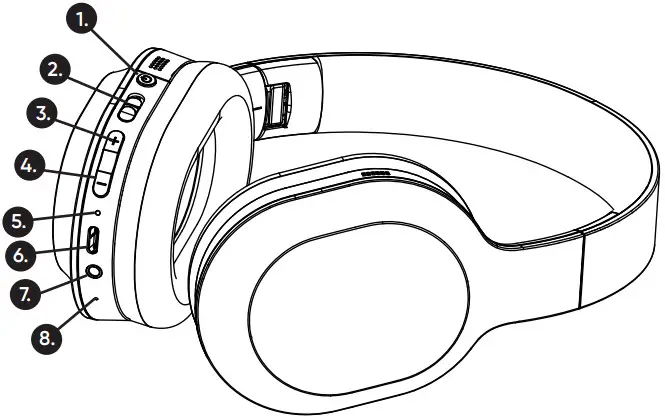

DEVICE LAYOUT
- – On/off, Play/pause button
- – ANC on/off
- – Volume+/Next song
- – Volume-/Previous song
- – Battery/Charging indicator
- – Type-C charging port
- – AUX port
- – MIC
CHARGING
- Connect the charger to the charging port.
- While charging the LED indicator will be solid red. When fully charged the LED indicator will turn blue automatically.
PAIRING
- Turn on the headphones by pressing and holding down the phone button on the headphones for three seconds
- The device’s LED indicator will illuminate. The LED indicator light will blink between red and blue when it is in pairing mode.
- On the mobile device (smartphone/tablet) turn on the BT connection.
- Select “Urban Vitamin Freemond” in the available Wireless devices on your mobile device.
FUNCTIONS
You can operate the headphone with the buttons on the headphone.
Please check the below instructions.
| Play/pause music | Press 1 |
| Pick up phone call | Short press 1 |
| Reject phone call | Long (2 s) press 1 |
| End phone call | Short press 1 |
| Next song | Long press 3 |
| Previous song | Long press 4 |
| Volume + | Short press 3 |
| Volume – | Short press 4 |
| Siri/Google Assistant | 2x press 1 |
You can turn on/off the ANC function with the ANC button. The indicator light will be green when ANC is on.
SPECIFICATIONS:
| Speaker driver (mm) | 40mm |
| S/N Ratio (dB) | 100dB |
| Frequency range (Hz-kHz) | 20Hz-20KHz |
| Continuous playing time | 20 hours |
| Charging time earbuds | 3 hour |
| Battery capacity | 500 mAh |
| Mic function | yes |
| Pick up function | yes |
| BT version | 5.0+EDR |
| BT pairing name | Urban Vitamin Freemond |
NOTICE
- Keep the product dry; do not place the product in damp places.
- Keep out of direct sunlight and high temperatures High temperatures may result in damage.
- Keep out of cold temperatures, this will help avoid internal damage.
- Do not disassemble the product.
- Avoid dropping the product.
- Do not continue to charge the product over 10 hours.
- When charging using the Type-C charging cable that came with the product.
EU Declaration of Conformity
Xindao B.V. hereby declares that this product is in compliance with the essential requirements
and other relevant provisions of Directive 2014/53/EU.
The complete Declaration of Conformity can be found at www.xindao.com > search on item number.
Copyright© XD P329.74X
