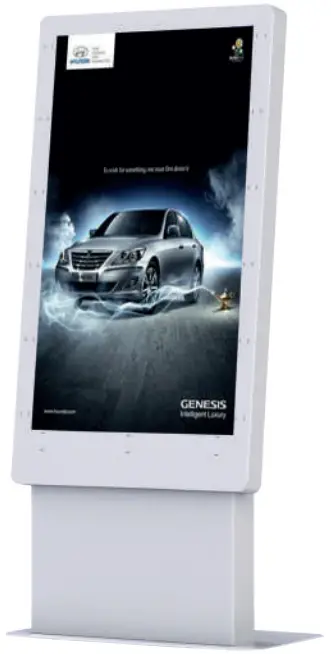

VENUS T32VE Digital Signage Advertising Kiosk Owner’s Manual
Main features
Inform and guide your audience while delivering confidence and corporate messaging at the same time.
- Touch and non-touch option
- Free-standing design with option to bolt down base plate
- Power & data feed from rear panel or through the base plate
- Anti-Glare protection glass over the screen
- Key lockable access service doore.
- Ergonomic and compact structure,
| Screen Size | 32” | 43” | 50” | 55” |
| Model Number | T32VE | T43VE | T50VE | T55VE |
 | Smart Design The sleek look is achieved with a striking aluminum surround and edge-to-edge vandal proof tempered glass front panel |
 | Integrated Signage Media Player powered by Samsung Magic Info S4 Tizen |
 | Built in Wi-Fi Connect the screen to the CMS wirelessly via the integrated Wi-Fi, ethernet or by LAN |
 | Plug and Play If there is no internet access available the screen can still be updated thanks to their backup USB update option. |
 | 24/7 Commercial Use A commercial grade panel, with a lifespan of 50.000 hours and high quality components ensure that this display can be in constant use 24/7. |
Technical Specifications
Screen
| Screen Size | 32” 43” 50” 55” |
| Resolution | 32” 1920×1080 – 43” 50” 55” 4K |
| Brightness | 450 cd/m2 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 178:178 |
| Response Time | 8ms |
Signage Media Player
| Player | Built-in MagicInfo S6, SSSP 6.0 |
| Processor | Coretex A72 1.7GHz Quad-Core CPU |
| Memory | 2.5GB LPDDR4 1.5GHz 64bit |
| Operating System | Tizen 4.0 (VD Linux) |
Other
| Application | Indoor |
| Colour | White (optional) |
| Installation | Floor bolting / Free Standing |
| Enclosure | Metal |
| Working temperature | 0°C-50°C |
| Power supply | AC 100-240V 50/60HZ |

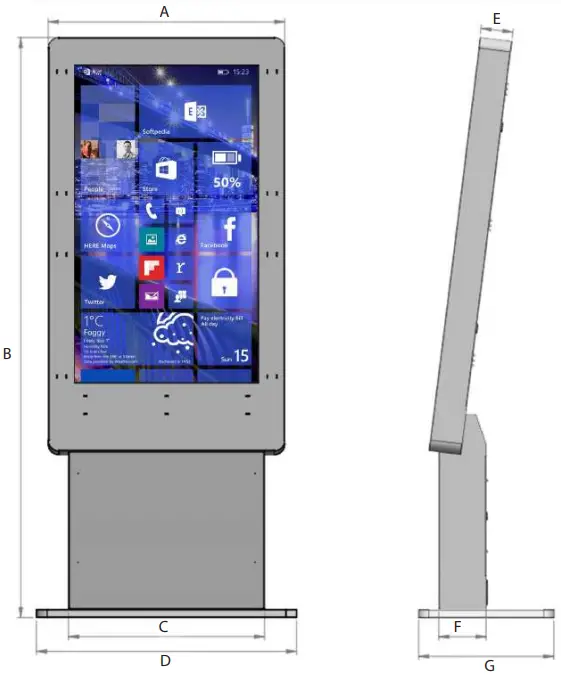

Dimensions
Dimension (mm)
| Size | Model Name | A | B | C | D | E | F | G |
| 32” | T32VE | 566 | 1686 | 446 | 636 | 95 | 140 | 350 |
| 43” | T43VE | 700 | 1720 | 580 | 770 | 95 | 140 | 400 |
| 50” | T49VE | 794 | 1944 | 731 | 920 | 95 | 140 | 500 |
| 55” | T55VE | 840 | 1965 | 720 | 910 | 95 | 140 | 500 |
