LG 32TNF5J Digital Signage Display Owner’s Manual

WARNING – This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

BASIC

NOTE

• The accessories provided with your product may vary depending on the model or region.
• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
• SuperSign Software & Manual
  • Visit http://partner.lge.com to download the latest SuperSign software and manual.

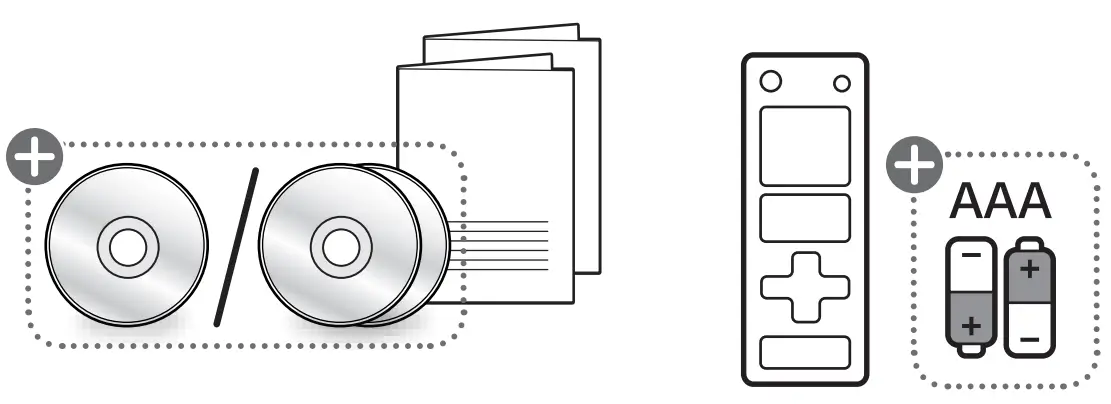

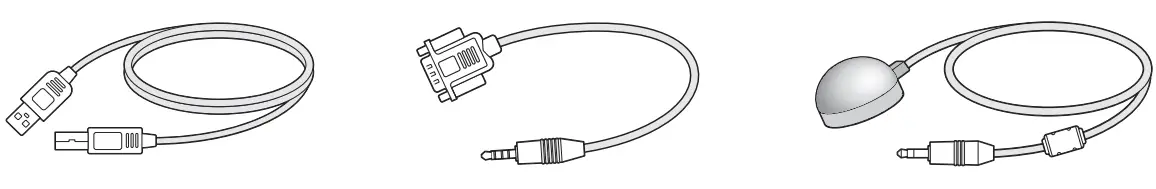

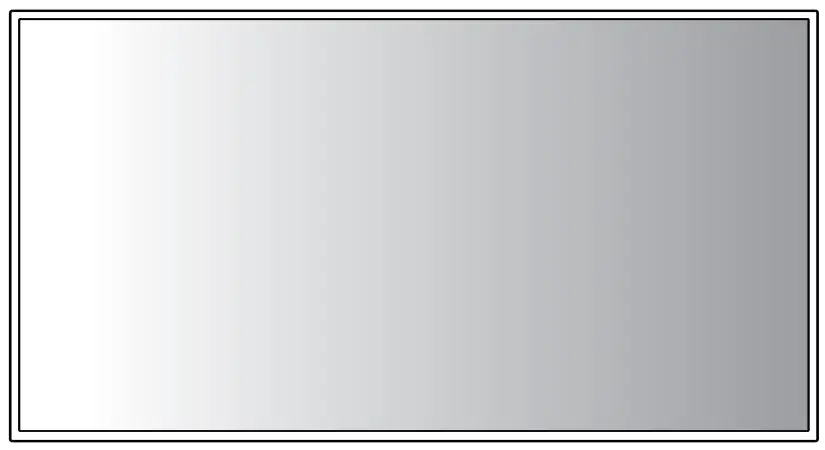

Checking the Accessories

: Depending on country

CHECKING BEFORE INSTALLATION

We are not responsible for product damage caused by failure to follow the guide.

Installation Orientation

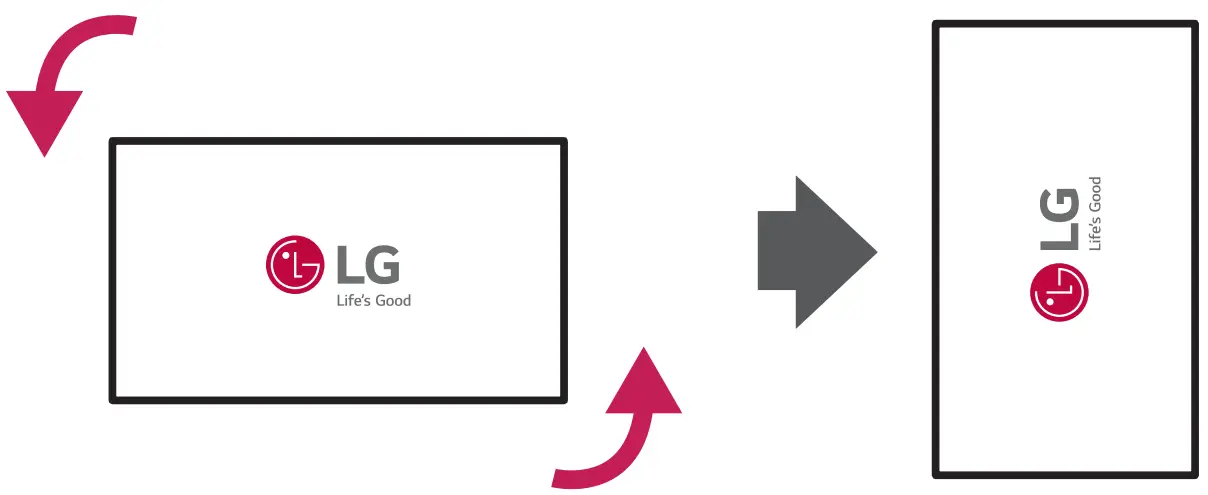

Using Vertically
When installing vertically, rotate the monitor 90 degrees anti-clockwise while facing the front of the screen.

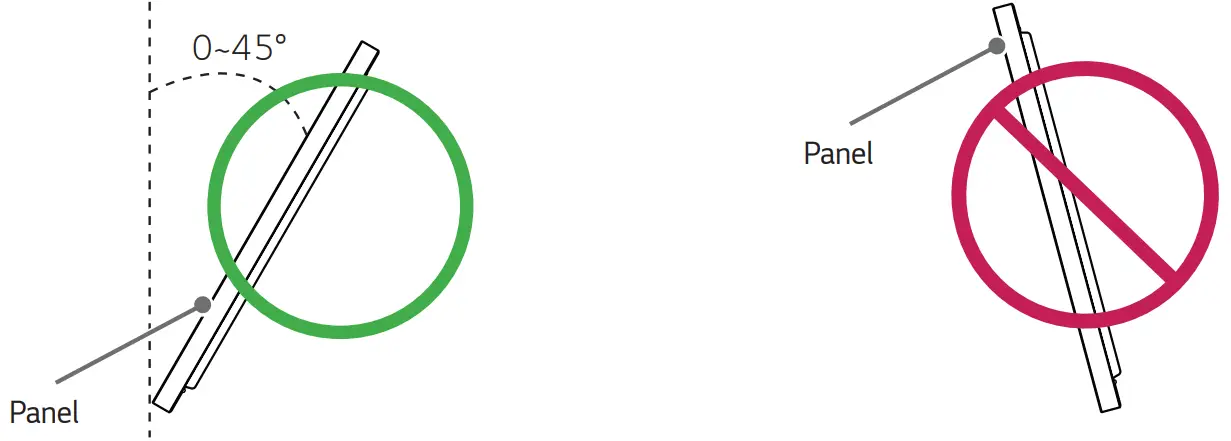

Tilt Angle

When installing the monitor, it may be tilted upward at an angle of up to 45 degrees.

Installation Location

We are not responsible for product damage caused by failure to follow the guide.

This product is used as a built-in product installed inside the enclosure.

• The product warranty will be void if it is used with the front panel exposed to direct sunlight.
• Wear work gloves when installing the product.
• Installing the product with bare hands may cause injury.

Indoor

Installing the monitor in the enclosure

If installing the product inside the enclosure, install the stand (optional) on the rear side of the product.
When installing the product using the stand (optional), attach the stand securely to the monitor to ensure it does not fall.

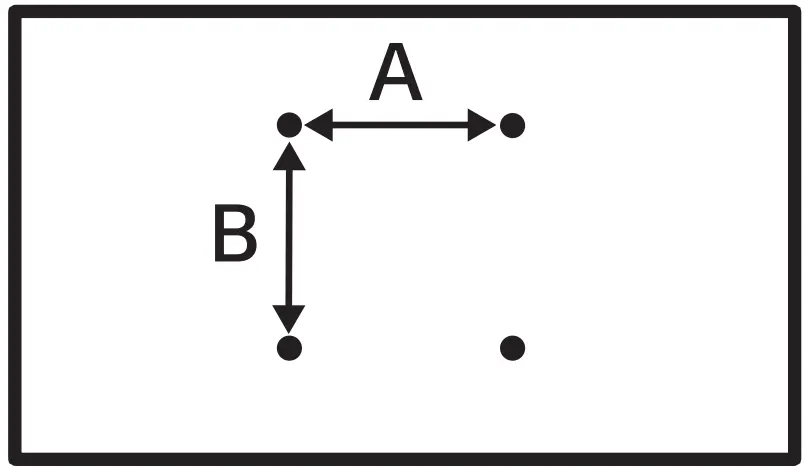

VESA Mount Hole

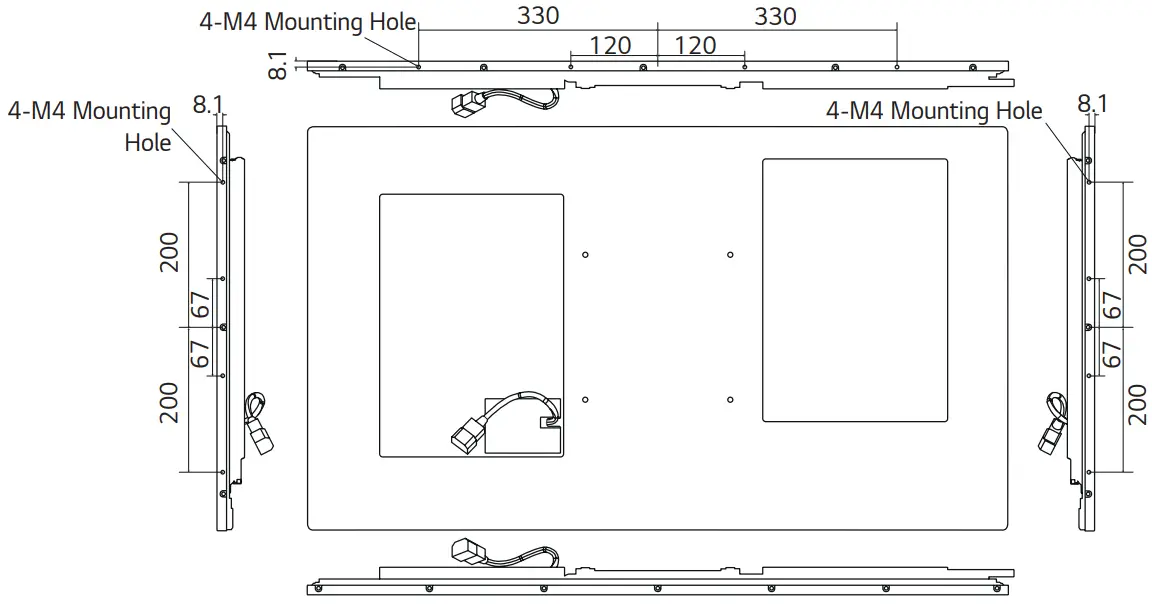

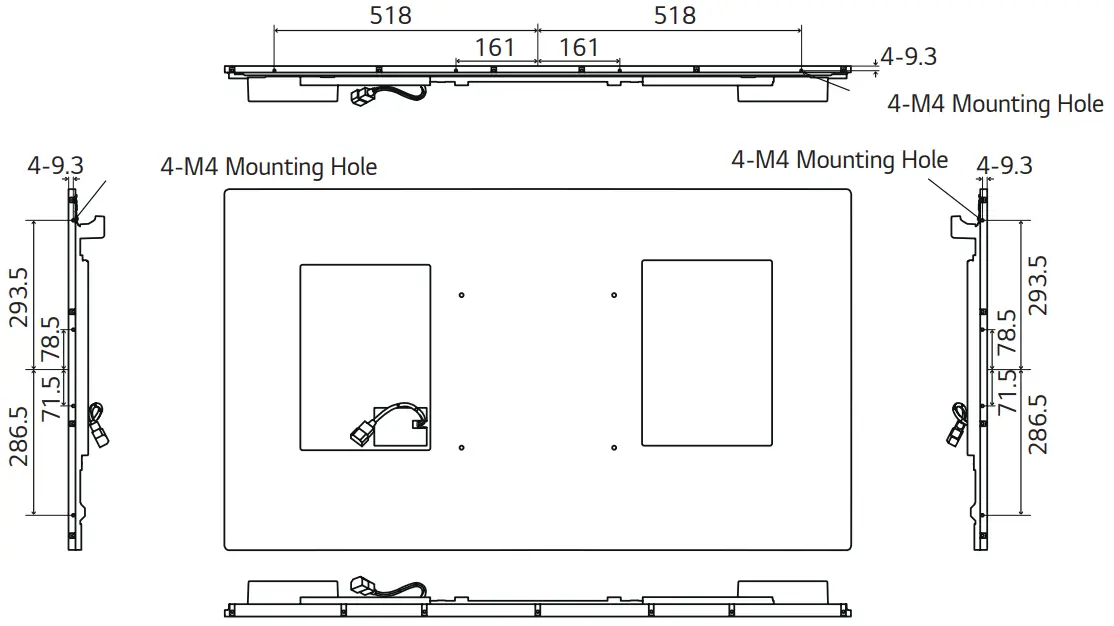

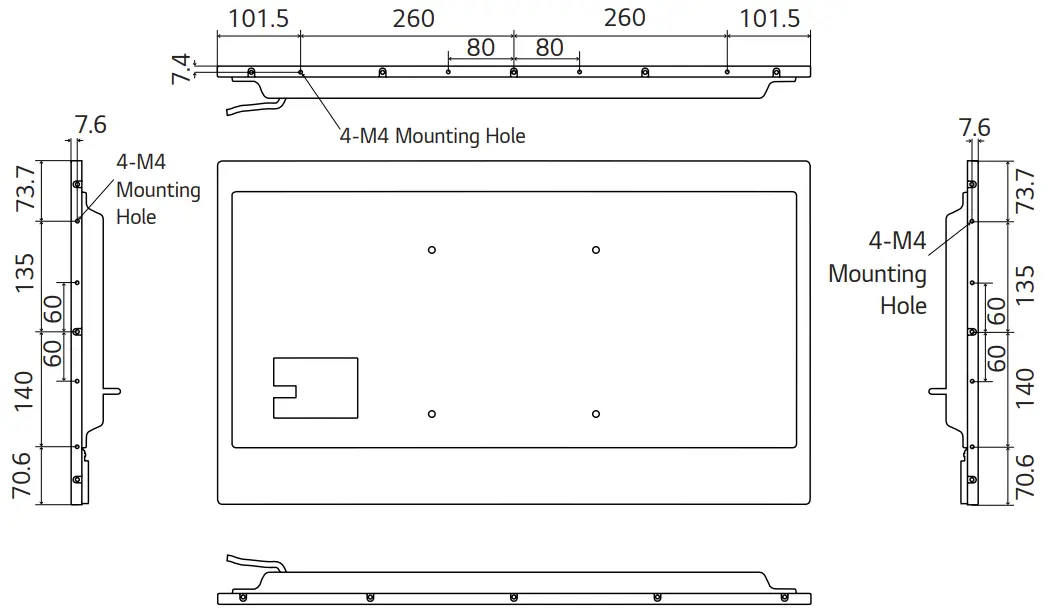

Side Mount Hole

Unit: mm
32TNF5J
43TNF5J
55TNF5J

1. Use the side screw holes when mounting the panel.
2. Screw tightening torque: 5~7 kgf
3. The screw length can be longer, depending on the enclosure shape and thickness of the material

CAUTION

• Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock.
• If the monitor is installed on a ceiling or inclined wall, it may fall and result in injury.
• Damage to the monitor by tightening the screws too tightly may void your warranty.
• Use screws and wall mount plates conforming to VESA standards.
  Breakage or personal injury due to use or misuse of inappropriate components is not covered by the warranty of this product.
• When installing the product, be careful not to apply strong force to the lower part


NOTE

• Using screws longer than the indicated depth may damage the inside of the product. Be sure to use the proper length.
• For more information on installation, please refer to the user manual for the wall mount.

PRECAUTIONS FOR USE

The Wake-up feature for sleep mode is not supported in this model.

Dust
The warranty will not cover any damage caused by using the product in an excessively dusty environment.

Afterimage

• After-image appears when the product is turned off.
  • Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screensaver function.
  • Switching from a screen with high differences in luminance (black and white or grey) to a darker screen may cause an afterimage. This is normal due to the display characteristics of this product.

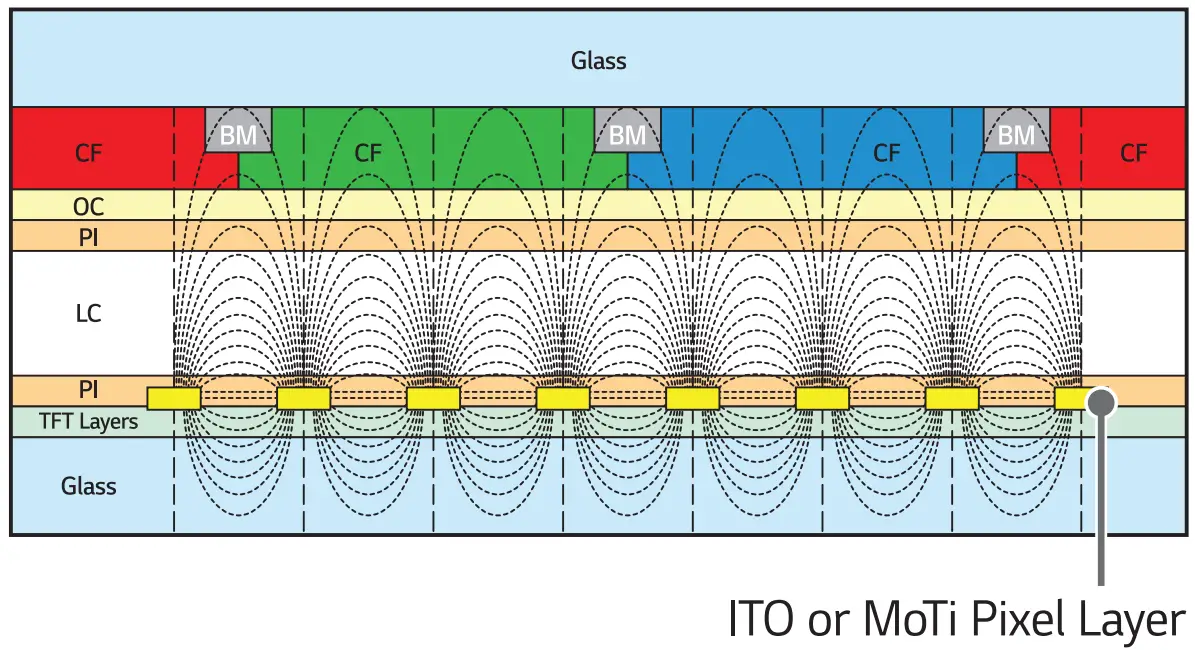

• When the LCD screen is in a still pattern for extended periods of use, a slight voltage difference may occur between the electrodes that operate the liquid crystal (LC). The voltage difference between the electrodes increases over time and tends to keep the liquid crystal aligned in one direction. At this time, the previous image remains, which is called an afterimage.
• Afterimages do not occur when continuously changing images are used but take place when a certain screen is fixed for a long time. The following are operational recommendations for reducing the occurrence of afterimages when using a fixed screen. The maximum recommended time for switching the screen is 12 hours. Shorter cycles are better for preventing afterimages.
• Recommended Usage Condition

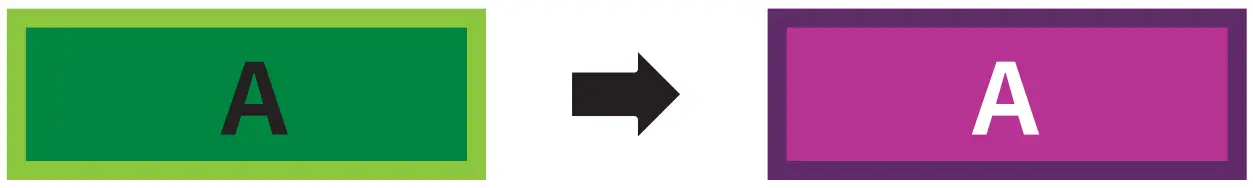

1. Change the background colour and text colour at equal intervals.
   • Afterimages occur less when the colours to be changed are complementary to one another.


2. Switch the screen at equal time intervals.
   • Take caution, and ensure that text or images from before the screen change are not left in the same location after the screen change.


PRODUCT SPECIFICATIONS

Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.

32TNF5J

43TNF5J

55TNF5J

32/43/55TNF5J

HDMI (PC) Support Mode

* We recommend using 60Hz. (Motion blur/judder may be visible on inputs other than 60Hz.)

LICENCE

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Vision IQ, Dolby Audio, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

The model and serial number of the product are located on the back and on one side of the product.
Record them below in case you ever need service.

MODEL ____________________________
SERIAL NO. __________________________

Temporary noise is normal when powering ON or OFF this device.
