Operation Manual
Copyright O MTI Corporation All rights reserved. Dec. 2020

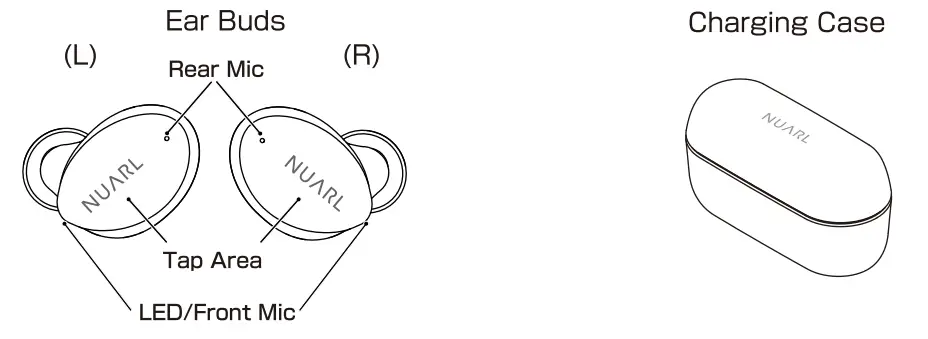

Product Diagram

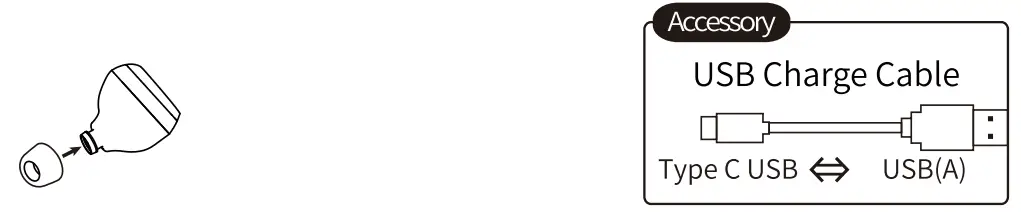

* Please choose and replace Ear Tip to suit your preference.
Before Use

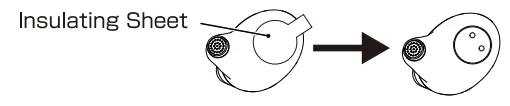

Remove Insulating Sheet
Remove Insulating sheet from the backside of earbuds.

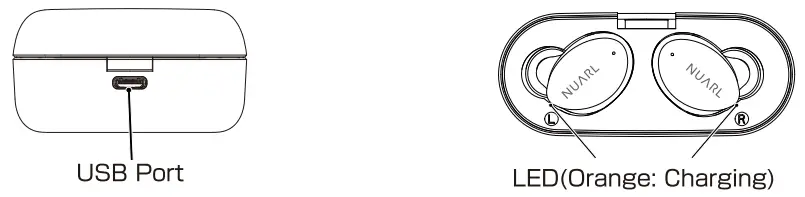

Battery Charge
Insert USB type A connector of USB Charge Cable to USB AC charger or USB port of PC, and insert Type C USB connector to the USB port of Charging Case.
Put the Ear Buds into the Charging case.
While charging, the LED light constantly.
When charging is completed, the LED will turn off.
Power On/Power Off
Put the Ear Buds into Charging Case, Ear Buds power OFF automatically.
When picking up the Ear buds, power ON automatically.
When the Case battery is low, this function does not work.
Pairing
Pairing
To use Ear Buds the first time, you must pair Ear Bud with a mobile phone or player.
Once your EarBuds is paired with other devices, they will remain paired and automatically recognize each other.
[First time to use]
- Turn on the Bluetooth function of your mobile phone.
- Turn on the power of both earbuds.
- Select “NUARL N6 mini 2 ” in the discovered device list of the phone.
- Click “Pair” on the phone display.
[Re-pairing or Pairing with second mobile phone]
- Turn on the Bluetooth function of your mobile phone.
- When Earbuds is not connected to any other device, the LED indicator will blink alternately in white and orange after 6 seconds.
- Select “NUARL N6 mini 2 ” in the discovered device list of the phone.
- Click “Pair” on the phone display.
Charging Case
Charge Case Battery
Insert USB type A connector of USB Charge Cable to USB AC charger or USB port of PC, and insert Micro USB connector to the USB port of Charging Case.

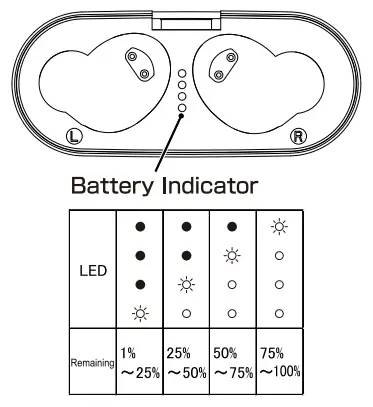

Depending on the battery level, the number of lit LEDs will change.
When put on or take out the earphones with no charger cable connected, the LED lights up for about 3 seconds to show the battery level.
Auto Power ON/OFF
Put the Ear Buds into Charging Case, Ear Buds power OFF automatically.
When picking up the Ear buds power ON automatically.
When the Case battery is low, this function does not work.
Ambient Mode
This device is equipped with an Ambient mode that allows you to listen to ambient sounds from the microphone.
When the wind hits the earphones with the Ambient mode enabled, wind noise can be heard. This is not a product defect.
Meaning of LED
| Power ON | White 1 Second |
| Charging | Orange |
| Disconnected | White 2time each 3Seconds |
| Connected | White 1 time each 7Seconds |
| Music Play/Talking | No Flash |
| Low Battery | Orange 1 time each 3Seconds |
| Pairing | Flashing White and Orange |
| L | R | ||
| Power | ON | Long press 2seconds | Long press 2seconds |
| Music | Play/Pause | 1 Tap | |
| Next Track | – | Long press 1 Second | |
| Previous Track | Long press 1 Second | – | |
| Volume | Volume Up | 2Tap | – |
| Volume Down | – | 2Tap | |
| Phone | Answer Call | 1 Tap | |
| Hang Up | 1 Tap | ||
| Reject Call | Long press 2seconds | ||
| Ambient Mode | ON/OFF | – | Long Press 1 sec without Music play |
| Siri/GA | Start | Long Press 1 sec without Music play | – |
Frequently Asked Questions
Q)Suddenly I heard no sound from one earbud.
A)Please turn off the earbud and turn on it again.
Q) The white LED lamp of the earphone is continuously blinking.
A) With the earphones on the side that is not blinking continuously white, put the earphones in the charging case, press and hold for about 10 seconds, then double-tap and remove it from the case.
When the continuous white flashing of both earbuds stops, try pairing them with the phone again.
Q) Bluetooth connection has dropped.
A) Please delete [NUARLN6 mini 2 j from the Bluetooth device list and pair with your device again.
Q) The pairing between Land R earbud has dropped.
A) Turn off both earbuds and turn on them again.
Q) When I place the earbud in the case, it won’t turn off itself.
When I get the earbud out from the case it won’t turn on.
A) While the case’s power is low, the automatic on-off function will not be active. Please turn on/off it manually.
Q) I want to know about warranty and repair outside of Japan.
A) The warranty for this product is valid for 1 year from the day of purchase. During the warranty period, we will repair the product. The warranty is only valid in the country in which the product was purchased. Please contact the purchased store directly for the specific repair of the goods.
Specification
| Product Specification | |
| Driver | 06mm PTT Diaphragm NUARL DRIVER[N6]V3 |
| Frequency Response | 20-20,000Hz |
| Power | Earbuds: 3.7V/50mAh Li-Po Battery Charger Case: 3.7v/400mAh Li-Po Battery |
| Continuous Playtime (Max) | 8hours(SBC/AAC) / 5.5hours(aptX) |
| Total Playtime (Max) | 32hours(with Charger Case) |
| Charging Time (Min) | 1.5hours |
| Bluetooth Specification | Version5.0/Class2/Multi-Pairing(4) |
| Bluetooth Codec | a pt, AAC, SBC |
| Bluetooth Profile | A2DP, HFP, HSP, AVRCP |
| Bluetooth Passkey | 0 |
| Microphone | CVC NC/Ambient sound combined use x 2 |
| Waterproof Level | IPX7 |
| Operation Temperature | 5-50°C |
| Accessories | Charger Case, Charging Cable, Earpieces (4size), User’s Guide |
| Certification | R210-142301(JP) / FCC ID: 2ARGT-NUARLN6MINI(USA) |
Federal Communications Commission Part 1 5
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirements. in portable exposure conditions without restriction.
