Operation Manual/ RIMER.
https://nuarl.com/contact/
[email protected]

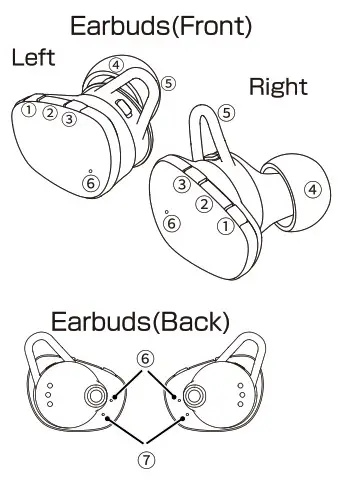

Product Diagram
- Front Button
- Main Button
- Rear Button
- Ear Tip
- Ear Loop
- Mic
- GLAD
Please choose and replace Ear tips to suit your preference.
Charging Case
Charging Indicator(Left • Center • Right)
UB Charge Cable
Type C USB <=> USB(A)

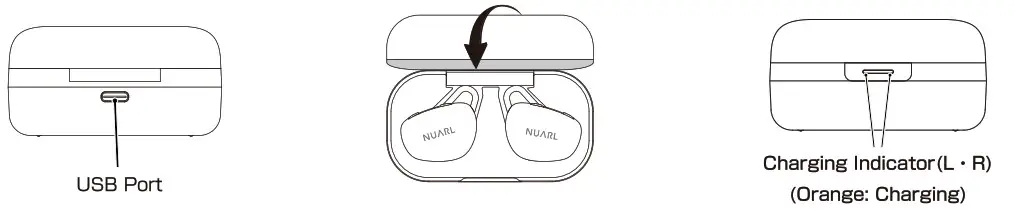

Battery Charge
Insert USB type A connector of USB Charge Cable to USB AC charger or USB port of PC, and insert Type C USB connector to the USB port of Charging Case. While charging, the LED light constantly. When charging is completed, the LED will turn off.
Power On/Power Off
Put the Ear Buds into Charging Case, Ear Buds power OFF automatically. When picking up Earbuds from Charging Case, power ON automatically. .*When the Case battery is low, this function does not work.
Pairing
To use Earbuds first time, you must pair Ear Bud with a mobile phone or player. Once your Earbuds is paired with other devices, they will remain paired and automatically recognize each other.
[First time to use]
- Turn on the Bluetooth function of your mobile phone.
- Turn on the power of both earbuds.
- Select “NUARL N6 Pro2” in the discovered device list of the phone
- Click “Pair” in the phone display.
[Re-pairing or Pairing with second mobile phone]
- Turn on the Bluetooth function of your mobile phone.
- When Earbuds is not connected to any other device, the LED indicator will blink alternately in white and orange after 6 seconds
- Select “NUARL N6 Pro2” in the discovered device list of the phone.
- Click “Pair” in the phone display.

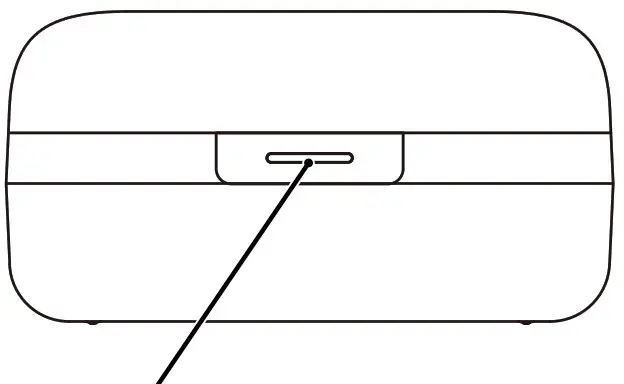

Charging Case
■Charge Internal Battery Insert USB type A connector of USB Charge Cable to USB AC charger or USB port of PC, and insert Type C USB connector to the USB port of Charging Case. While charging, the Orange LED(Center) light constantly. When charging is completed, the LED will turn off.
■Auto Power ON/OFF
Put the Ear Buds into Charging Case, Ear Buds power OFF automatically. When picking up the Earbuds power ON automatically. .4When the Case battery is low, this function does not work.
| Charging Indicator | Remaining |
 | Over 75% |
 | 50–75% |
| 25-50% |
 | Under25% |
OFF
FLASH
BLANK
Ambient Mode
This device is equipped with an Ambient mode that allows you to listen to ambient sounds from the microphone. When the wind hits the earphones with the Ambient mode enabled, a wind noise can be heard. This is not a product defect.
Gaming Mode

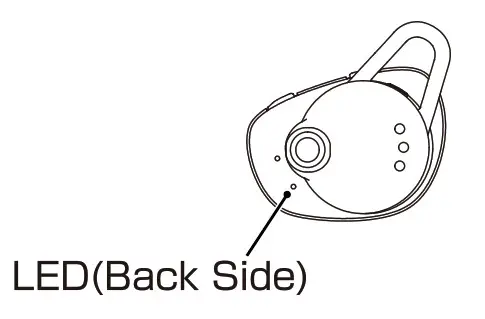

| Power ON | White 1 Second |
| Charging | Orange |
| Stand By | White 1 time each 7Seconds |
| Music Play/Talking | No Flash |
| Low Battery | Orange 1 time each 7Seconds(Stand By) |
| Pairing | Flashing White and Orange |
| Function | Operation | |
| Power | ON | 1 Click Main button |
| OFF | Long press Main button 5seconds | |
| Music | Play/Pause | 1 Click Main button |
| Next Track | Long press Front button until a beep | |
| Previous Track | Long press Rear button until a beep | |
| Volume | Volume Up | 1 Click Rear button |
| Volume Down | 1Click Front button | |
| Phone | Answer Call | 1 Click Main button |
| Hang Up | 1 Click Main button | |
| Reject Call | Long press Main button until a beep | |
| Pairing | Pairing Mode | Long press Main button 2seconds with no connection |
| Delete Pairing | Long press both L/R main buttons until the white LED lights up, then release them and 2Click | |
| Ambient Mode | ON/OFF | 2Click Main button |
| Gaming Mode | ON/OFF | 3Click Main button |
| Siri/Google | Start | Long press Main button until a beep |
Frequently Asked Questions
Q)Suddenly I heard no sound from one earbud. A)Please turn off the earbud and turn on it again.
Q) Bluetooth connection has dropped. A) Please delete rNUARL N6 Pro2J from the Bluetooth device list and pair with your device again. Q) The pairing between L and R earbud has dropped. A) Turn off both earbuds and turn on them again. A) Please try to “Delete Pairing” operation. Q) When I place the earbud in the case, it won’t turn off itself. When I get the earbud out from the case it won’t turn on. A) While the case’s power is low, the automatic on-off function will not be active. Please turn on/off it manually.
Q) The case has run out of charges. A) The case will discharge itself, please recharge the case regularly. Q) I want to know about warranty and repair in outside of Japan. A) The warranty is only valid in the country in which the product was purchased. Please contact the purchased store directly for the specific repair of the goods.
Specification
| Product Specification | |
| Driver | 46mm NUARL DRIVER[N6]v5X |
| Frequency Response | 20–20,000Hz |
| Power | Earbuds: 3.7V/60mAh Li-Ion Battery Charger Case: 3.7v/550mAh Li-Po Battery |
| Continuous Playtime (Max) | Hours(SBC/AAC) / 8hours(aptX Adaptive/aptX) |
| Total Playtime (Max) | 30hours(with Charger Case) |
| Charging Time (Min) | 1.Showers |
| Bluetooth Specification | Version5.2/Class2/Multi-Pairing(4) |
| Bluetooth Codec | aptX Adaptive, aptX, AAC, SBC |
| Bluetooth Profile | A2DP, HFP, HSP, AVRCP |
| Bluetooth Passkey | 0000 |
| Microphone | CVC 8.0/Ambient sound combined use |
| Waterproof Level | I PX4 |
| Operation Temperature | 5′-50°C |
| Accessories | Block Ear + (4size), Charging Case, Charging Cable, User’s Guide |
| Certification | CE, FCC |
FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Copyright © MTI Corporation All rights reserved. May. 2021
