Bluetooth Headset User Manual

Bluetooth Headset User Manual

BH-M97

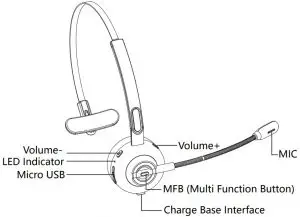

Product Overview

Package Contents:

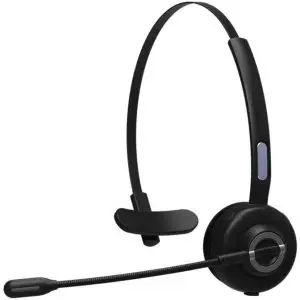

• A. Bluetooth Headset BH-M97 x 1

• B. Charge Base x 1

• C. Micro USB charging

• D. User manual x 1


Basic Operation

Bluetooth Pairing and Connection

1. In off status，Long press 5-8 seconds to enter into pairing mode with LED Blue & Red flash alternately.
2. Search and click to connect “ BH-M97” on your phone Bluetooth lists, LED change to LED Blue flash after connected, now you can play music from phone to headphone.
3. You can press MFB/ volume+ / volume- on the Bluetooth headset to control the answer/hang up a call and play/pause of the music, next and previous songs, volume up and down.

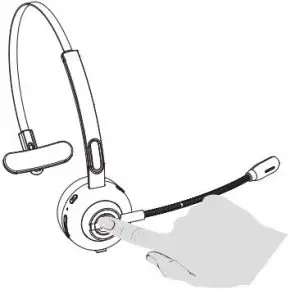

Pairing

Pairing: In off status，Long press MFB 5-8 seconds to enter into pairing mode with LED Blue & Red alternately flash.

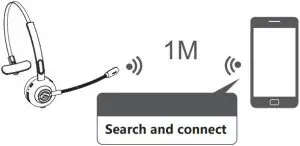

Connection

Connection: Search and click to connect “ BH-M97” on your phone Bluetooth lists

Connection with Two devices

1. Follow part 3 to connect with first phone, then turn off the Bluetooth function of first phone.
2. Double press MFB to pairing mode again with Red & Blue LED flash alternately.
3. Search and click to connect “BH-M97” on your second phone Bluetooth lists, LED change to Blue LED low flash after connected.
4. Turn on Bluetooth function of first phone, click to reconnect “BH-M97”on Bluetooth lists. Headset connected with two phones now.

Notes:
Music only can be played from one phone under two connections, when you want to play music from another phone, you need to pause or close the music of the previous phone. The same operation during talking status

LED Indicator

Please charge the BH-M97 at once when the Red LED flash. Charging time about 2 hours. Solid LED Red change to Solid LED Blue when full charged.

Charging

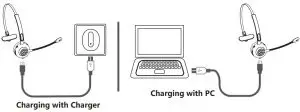

Charge Connections
Please connect to the BH-M97 charging port through the Micro USB charging cable, the charger can be used as car charger, travel charger, computer USB, etc.

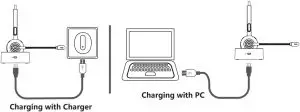

Use of charge Base
Please place the BH-M97 on the charging base, then connect the charging base to USB charger through the Micro USB port for charging.

Notes:

1. Please charge the BH-M97 at least one time every 2 months when don’t use it.

Product Specification

Note: *Actual use time will differ from environment and music

Attentions and Q & A

1. How to reconnect and operation when failed to reconnect ?
   When BH-M97 connected with your mobile phone successfully at the first time, it will search and reconnect the paired device automatically when power on, If failed, please pair and connect again.
2. How to Delete paired records?
   In Power on state, long press the volume+ and the volumebutton for 5 seconds to clear the pairing record. The indicator Blue and Red LED flashes once at the same time that means the pairing record has been cleared, and the BH-M97 will not connect back to the connected device. When there are various connection problem, try clearing the pairing record firstly.
3. What’s the password for pairing?
   Some connection devices require password for pairing, pls try 0000 or 8888 or 1111 or 1234.
4. What devices could charge for the headphone?
   Any car charger, power bank, PC etc which meet DC 5V , charging current more than 500mA could be charge for this item.
5. Three-way calling function operation
   Call coming during call, short press the MFB to answer the new call and hang up the current call;
   Call coming during the call, double press the MFB to answer the new call and keep the current call;
   Call with a new call coming, long press the MFB for 1 second rejecting a new call.
   When you are on a three-party call, double press the MFB to switch audio between the current call and the keep call.
