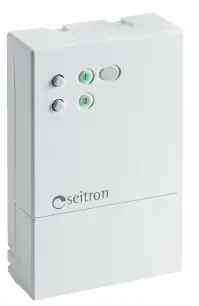

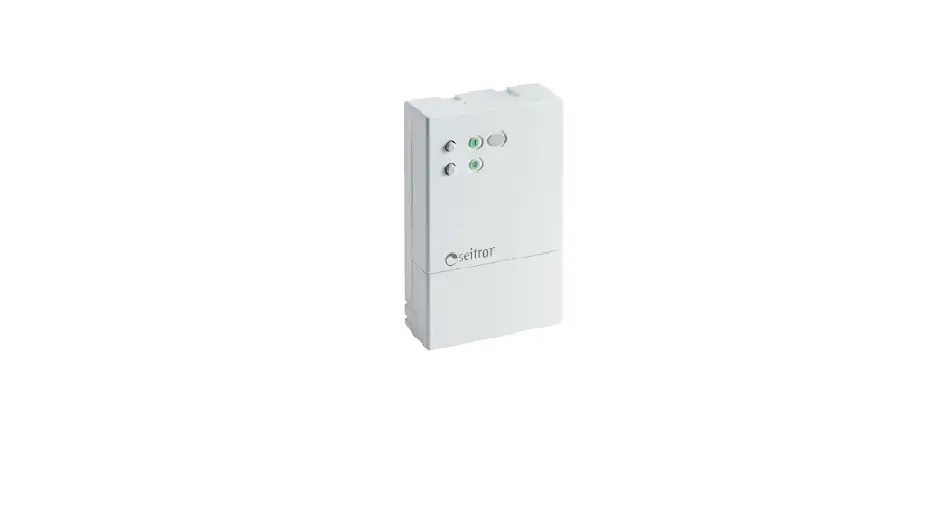

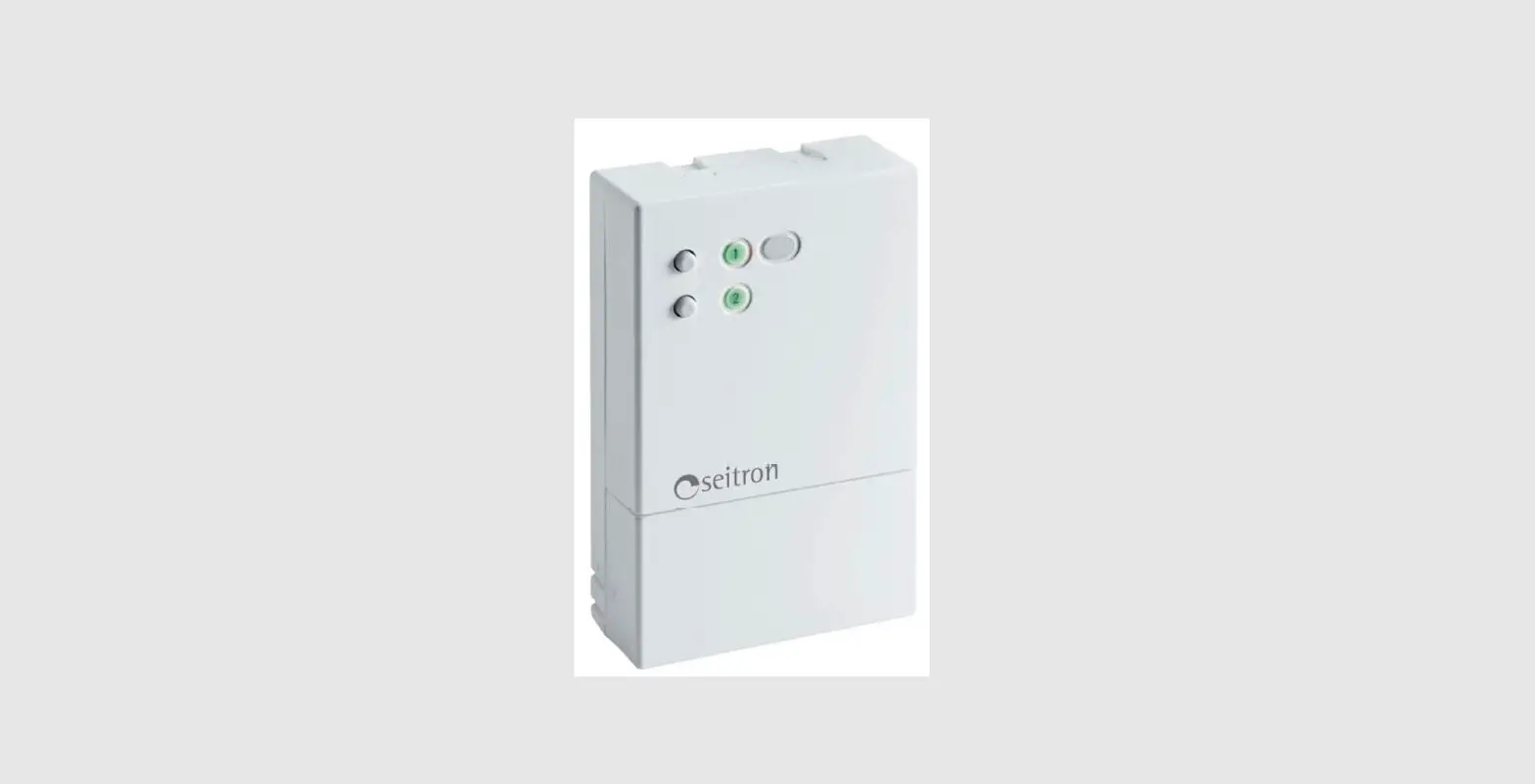

Seitron GS001M0000SE IoT Remote Switch Wi-Time Slave Receiver
Cut off mains power
There are three options for the cable entry
Back cable entry: Open the hole E Fig. 4, with a screwdriver. Side cable entry: With suitable pliers, remove the plastic teeth, as indicated by arrows in D Fig. 3. Bottom cable entry: Open one or both holes F Fig. 4, with a screwdriver.
Fix the plate onto the wall using the two screws housings with a 60 mm center-to-center distance (use the screws and/or dowels supplied)
Make the electrical connections following the diagram of Fig. 6 and paragraph “Electrical connections “ of the complete manual.

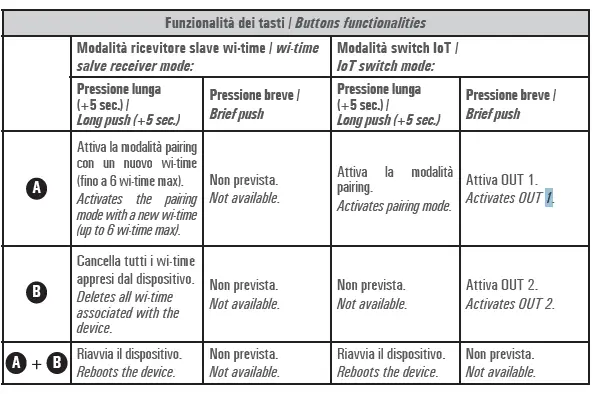

Position A: wi-time slave mode.
Position B: IoT switch mode.
Once completed the product installation, download and start the Seitron Smart App. Follow the instructions on the complete manual in order to start using the device.
Technical features
- Type: Switch IoT / Wi-time salve receiver
- Available Colors: White
- Power supply: 95..290Vac – 47..440Hz
- Power absorption: less than 2W
- Relay contacts ratings: 2 x 3A 250Vac / 3A 30Vdc max SPDT
Protection rating: IP 3X Software class: A Size: 125x78x30.5 mm
Go to www.seitron.com, download the full user manual and follow the instructions to complete the product installation.
WARRANTY
In the view of a constant development of their products, the manufacturer reserves the right for changing technical data and features without prior notice. The consumer is guaranteed against any lack of con-formity according to the European Directive 1999/44/EC as well as to the manufacturer’s document about the warranty policy. The full text of the warranty is available on request from the seller.
