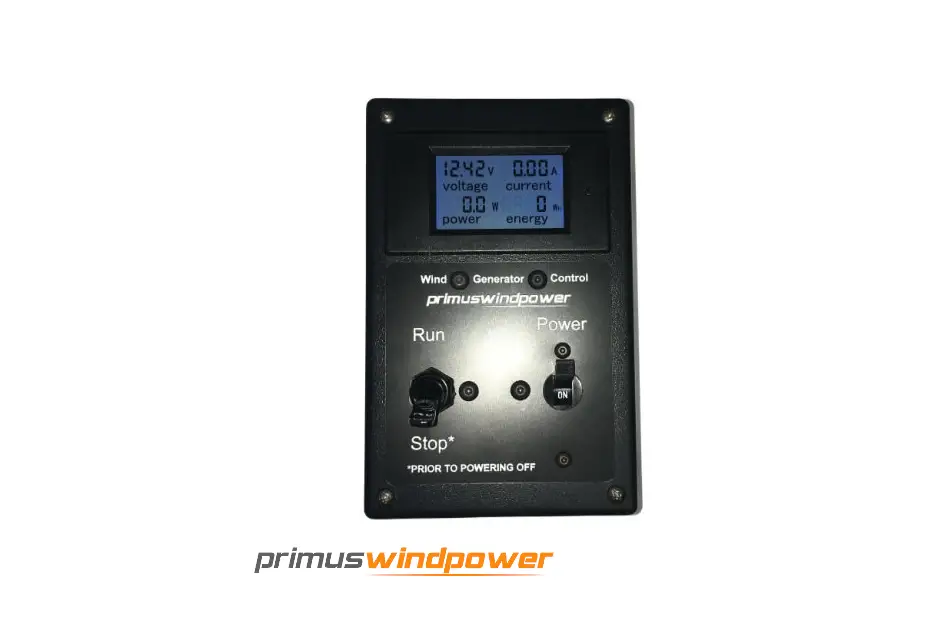

primus windpower 2-ARAC-D-5 Wind Control Panel
Wind Control Panel (WCP-D)

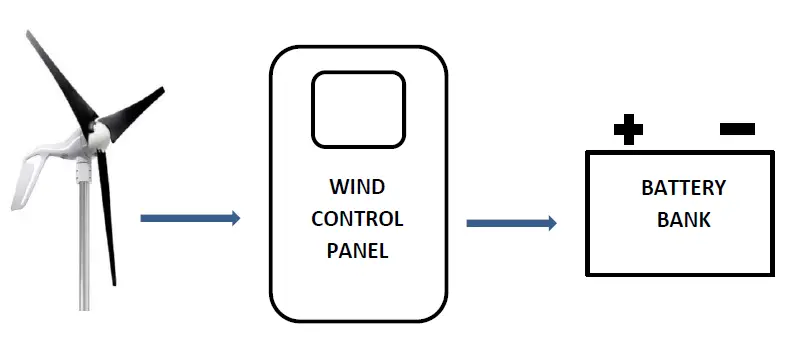

Primus Wind Power is pleased to offer a digital wind control panel for use with all AIR Wind Turbines (see chart below). The panel is easy to install and will result in a professional operator station enhancing the beauty and value of the Hybrid system installation. WCP-D includes a full indoor only, black plastic enclosure. Dimensions are: L – 6.5 inch / W – 4.25 inch / D – 2.5 inches. The WCP – D helps to reduce installation costs and makes wiring a snap with just 4 wires to connect. The panel is available in 5 models specific to the AIR Wind Turbine – voltage and type.
| P/N | BREAKER SIZE | TURBINE TYPE |
| 2-ARAC-D-5 | 5 A | AIR 40/BREEZE – 48 V |
| 2-ARAC-D-10 | 10 A | AIR 40/BREEZE – 24 V |
| 2-ARAC-D-20 | 20 A | AIR 30/AIR X MARINE/SILENT X – 48 V |
| AIR 40/AIR BREEZE – 12 V | ||
| 2-ARAC-D-25 | 25 A | AIR 30/AIR X MARINE/SILENT X – 24 V |
| 2-ARAC-D-40 | 40 A | AIR 30/AIR X MARINE/SILENT X – 12 V |
MSRP – $309

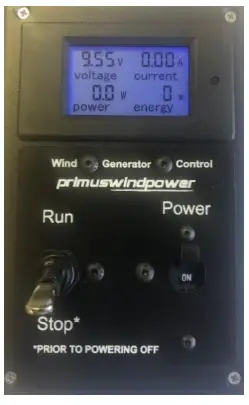

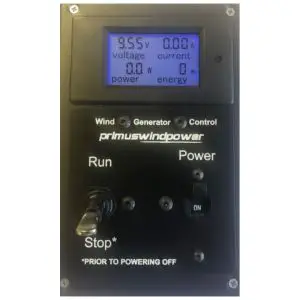

The WCP-D controls and monitors the wind turbine. It is equipped with power On/Off circuit breaker, digital meter and a Stop/Run switch (for direct control of the turbine). The digital meter (equipped with a 50 amp shunt) provides critical operational information; real-time battery voltage, current in amps, power in Watts, and accumulated energy in W/hours (re-settable). A clearly marked rear terminal block, The WCP terminal blocks, which will accept an 8 AWG or smaller wire size, provides for easy interconnection of the two turbine wires and two battery power wires. If a larger gauge wire is required, use a few inches of 8 AWG wire to transition to the terminal blocks. The panel is fully factory calibrated and ready for installation.
