Bora Pkas3fig Pro Cooktop Extractor System With Integrated Fan Installation Guide

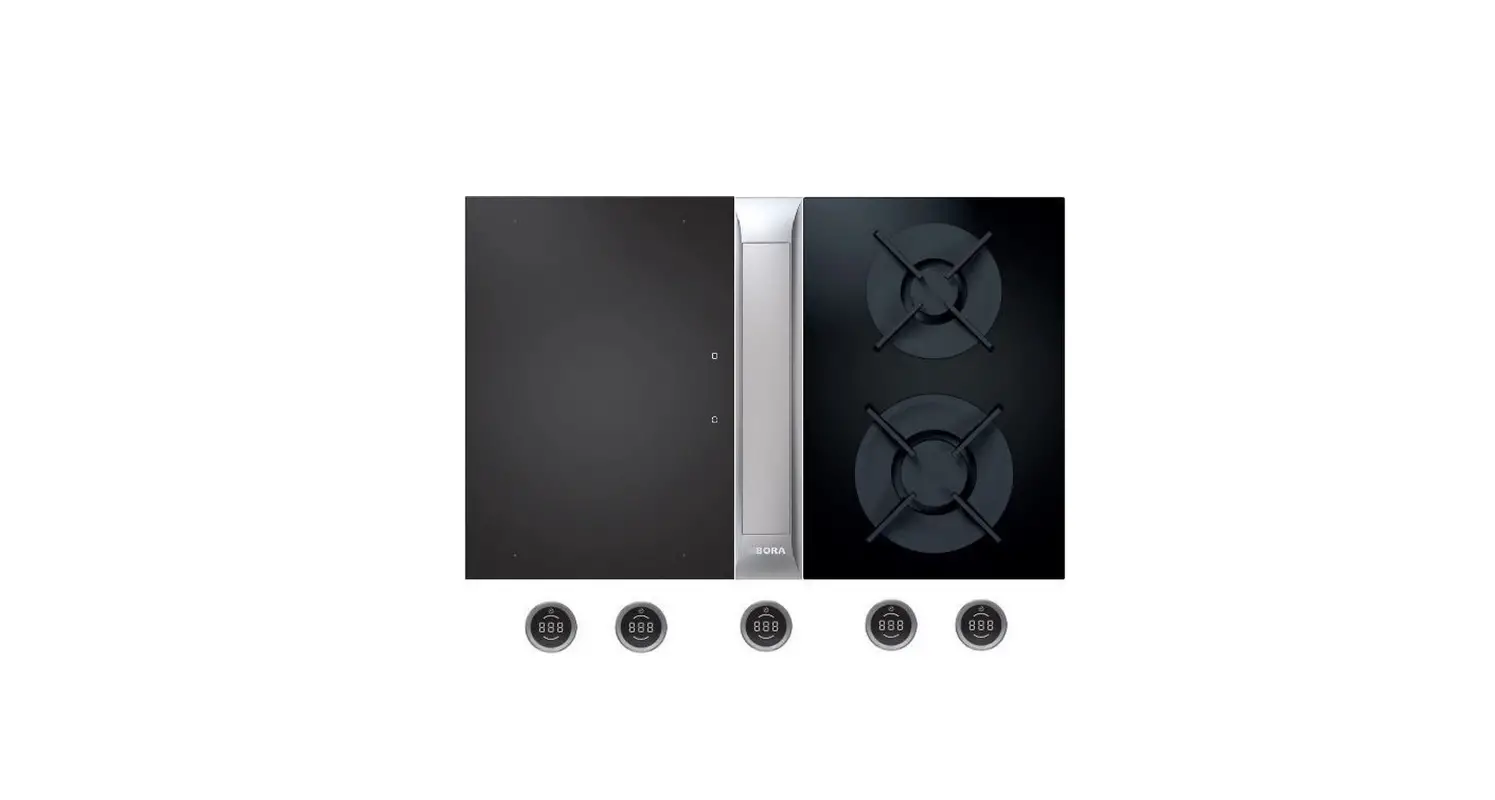

BORA PKAS3FIG Pro Cooktop Extractor System with Integrated Fan

PKAS3

BORA Pro cooktop extractor system with integrated fan:

Product description

• Intuitive control knob
• Automatic cover flap
• Premium design
• Simple cleaning
• Integrated grease drip pan
• Genuine stainless steel grease filter
• Modular system
• Automatic extractor control
• Maximum storage space
• Integrated fan

Scope of delivery

• Cooktop extractor system with integrated fan PKAS3
• Control knob
• stainless steel grease filter
• Filter tray
• Maintenance tray
• cover flap
• connection cable for the control knob
• operating and installation instructions
• height adjustment plate set
• Mounting clamps
• Power supply cable with type E + F plugs

Accessories

• PKA1FF stainless steel grease filter
• PKA1VK cover flap
• PKA1FW filter tray
• UNLI type I power supply cable (AUS)
• UNLJ type J power supply cable (CH)
• UNLG type G power supply cable (GB-IE)
• UNLB type B power supply cable (PH)
• UNLH type H power supply cable (IL)

product- and planning instructions

• Suitable for use as a recirculation or exhaust system
• Compatible with all BORA Professional 3.0 cooktops and BORA Universal fan modules
• Use of an additional fan module is possible for very long or complex exhaust air channels
• The worktop height can be adjusted as necessary
• Worktop depth: ≥ 700 mm
• Installation type: flush or surface-mounted
• The drawers and/or shelves in the floor unit must be removable for maintenance and cleaning purposes
• The BORA Ecotube duct system is optimally tailored to the BORA cooktop extractors and guarantees 100% functionality and optimum performance
• The Professional cooktop extractor system can be combined with all BORA sockets
• Duct connection on the back of the appliance
• The device must not be installed above cooling devices, dishwashers, stoves, ovens, washing machines or dryers.

PKFI3

BORA Pro surface induction cooktop:

Product description

• Intuitive control knob
• Oversized surface induction cooking zones
• Performance level display on the cooktop
• Variable heat retention function
• bridging function
• Childproofing feature
• Cooking zone timers
• Timer
• Demo mode
• Pause function

Scope of delivery

• Surface induction cooktop PKFI3
• 2 x control knobs
• 2 x connection cables for the control knobs
• Connection cable to the extractor
• operating and installation instructions
• mounting straps
• height adjustment plate set product- and planning instructions
• Rotation by 180° possible during installation
• Please note that induction-compatible cookware must be used on induction cooktops
• Ensure sufficient ventilation of the area below the cooktop.
• The device must not be installed above cooling devices, dishwashers, stoves, ovens, washing machines or dryers.

PKG3

BORA Pro gas cooktop

Product description

• Intuitive control knob
• Variable heat retention function
• Sunken gas burners
• Automatic reignition
• Dishwasher-safe pan supports
• Childproofing feature
• automatic heat up function
• precise electronic control
• residual heat display
• Demo mode

Scope of delivery

• Gas cooktop PKG3
• 2 x control knobs
• 2 x connection cables for the control knobs
• 2 x cast iron pan supports
• Gas nozzle set G20/20 mbar natural gas
• Connection cable to the extractor
• operating and installation instructions
• height adjustment plate set
• mounting straps
• Adapter cylindrical-conical
• Seal

Accessories

• BORA gas nozzle set natural gas G20/10 mbar PKGDS2010
• BORA gas nozzle set natural gas G20/13 mbar PKGDS2013
• BORA gas nozzle set natural gas G20/20 mbar PKGDS2020
• BORA gas nozzle set natural gas G25/20 mbar PKGDS2520
• BORA gas nozzle set natural gas G20/25 mbar PKGDS2025
• BORA gas nozzle set natural gas G25/25 mbar PKGDS2525
• BORA gas nozzle set liquid gas G30/G31 28-30/37 mbar PKGDS3028
• BORA gas nozzle set liquid gas G30/G31 50 mbar PKGDS3050
• BORA Pro gas nozzle set liquid gas G31/G30 mbar PKGDS3130
• BORA Pro gas nozzle set liquid gas G31/50 mbar PKGDS3150
• BORA burner set PKGBS
• BORA pan support small PKGTK
• BORA pan support large PKGTG

• The gas connection tube must be provided at the installation site (thread diameter 1/2“ cylindrical)
• Ensure sufficient air supply below the gas cooktop. Either over the front of the body (opening cross-section > 50 cm²) or over the plinth area (opening cross-section > 150 cm²)
• Provide a return flow aperture (opening cross-section > 1000 cm² per air cleaning unit) for recirculation in the plinth area
• Please note the local regulations and connection requirements applicable to gas cooktops
• Please note the special installation and workmanship guidelines for the gas cooktop (see the operating and installation instructions)
• When operating a gas cooktop with a cooktop extractor, the gas flame can be affected (depending on the height of the power level on the cooktop extractor)
• The performance characteristics of the gas cooktop (e.g. heating times, efficiency, etc.) are affected by the cooktop extractor. The cooktop extractor also affects the heat input and distribution
• If the gas cooktop is used in a model with two cooktop extractors, it is to be installed at the side
• Rotation by 180° possible during installation

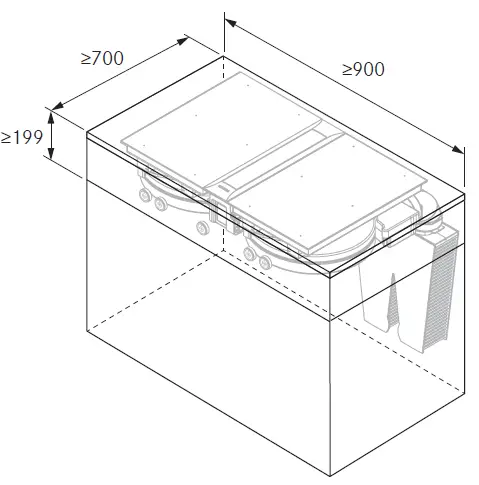

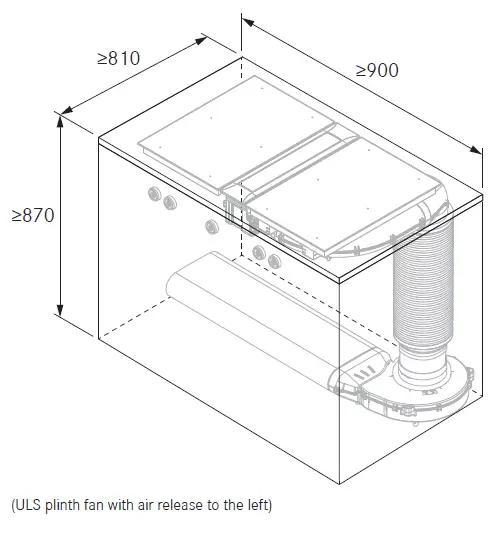

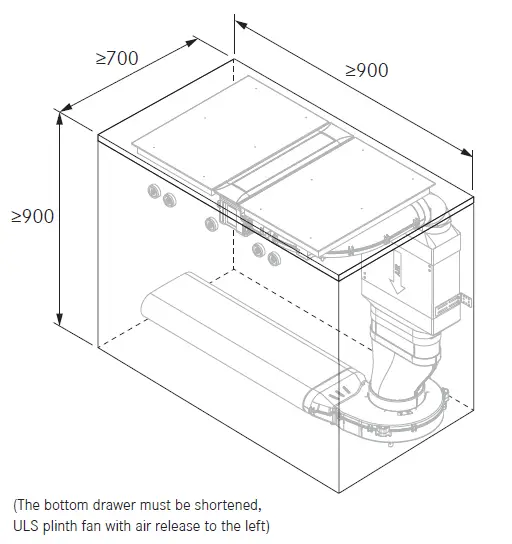

Minimum dimensions for installation

• Minimum dimensions for installation PKA3 + UESDFSL:
• Minimum dimensions for installation PKA3 + UESDRSL:
• Minimum dimensions for installation PKAS3 + EFBV90 + ULBF:

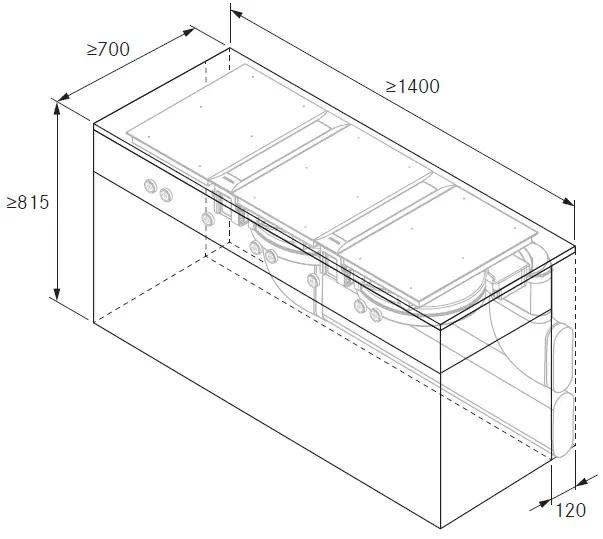

• Minimum dimensions for installation 2 PKAS3 (exhaust system):

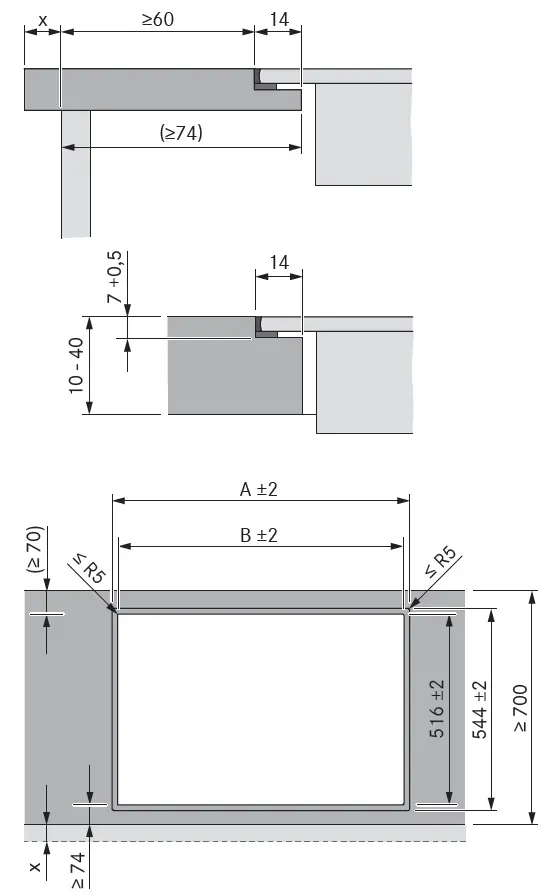

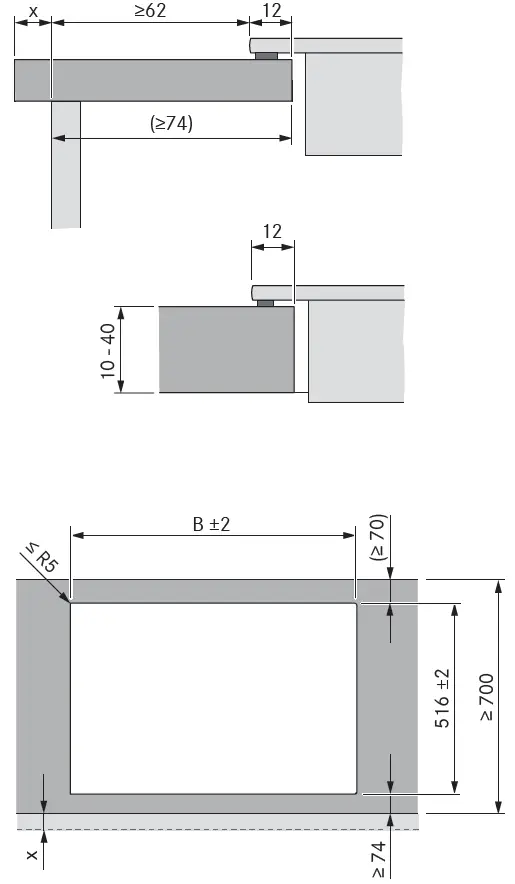

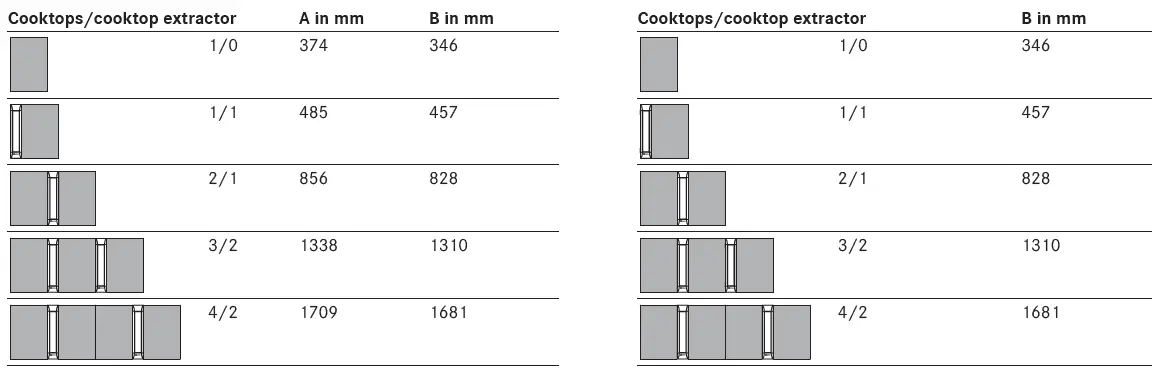

Cut-out dimensions

Flush installation

Surface mounting

Important planning instructions:

• All dimensions from the front edge of the front cover.
• Cut-out dimensions tolerance +/- 2 mm.
• Clearance of 1 mm should be planned between the built-in appliances.
• Clearance of 2 mm should be planned around the built-in appliances.
• Please note the worktop manufacturer’s instructions with regard to the suitability of the worktop. Worktop cut-outs must be moisture-sealed using suitable means or, where necessary, fitted with a thermal insulator (e.g. in the case of Corian or HiMacs worktops).

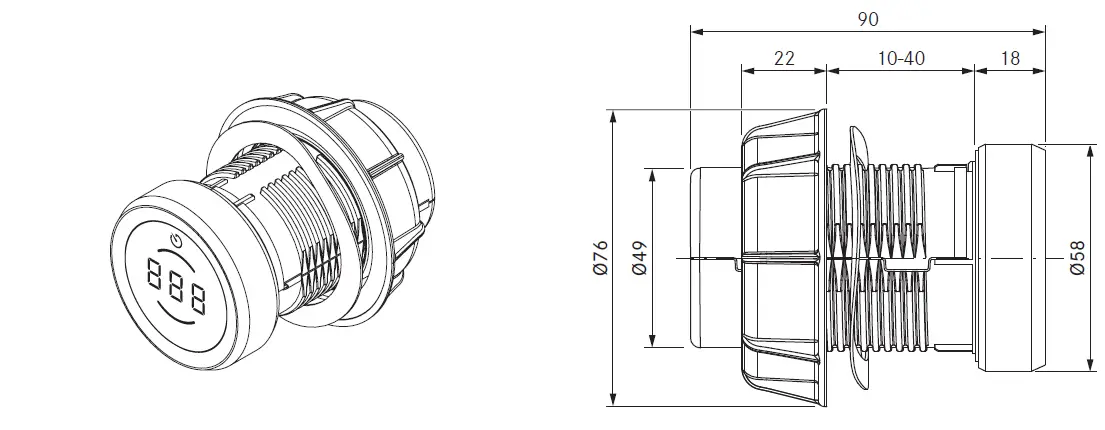

Control knob

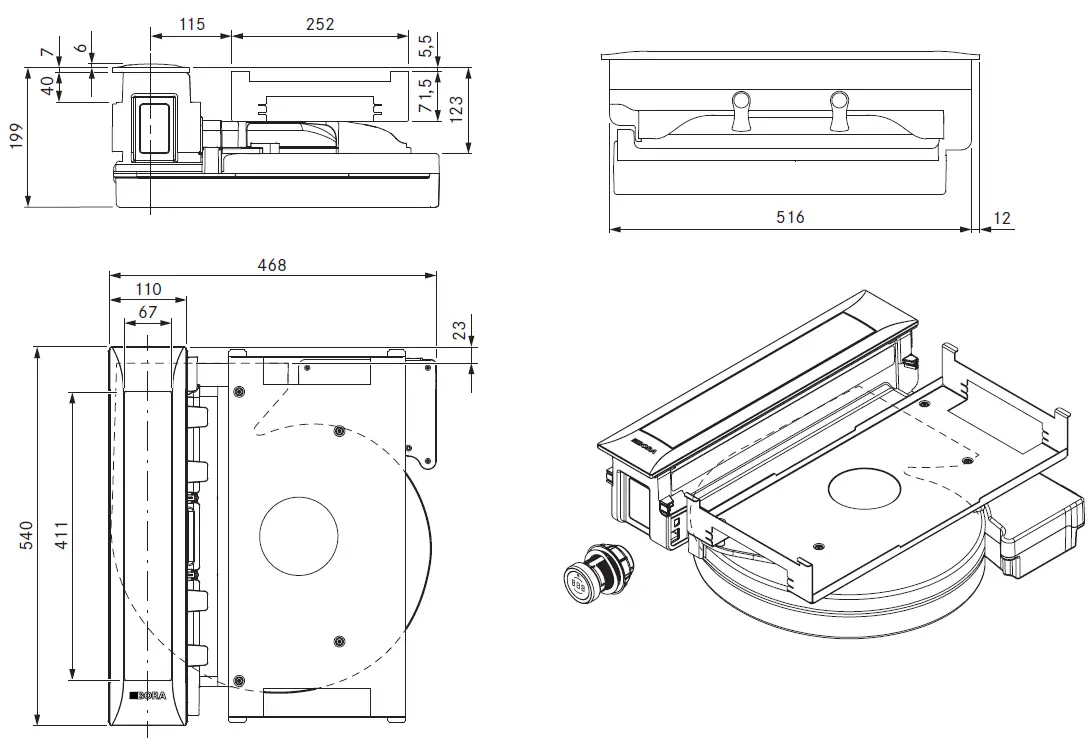

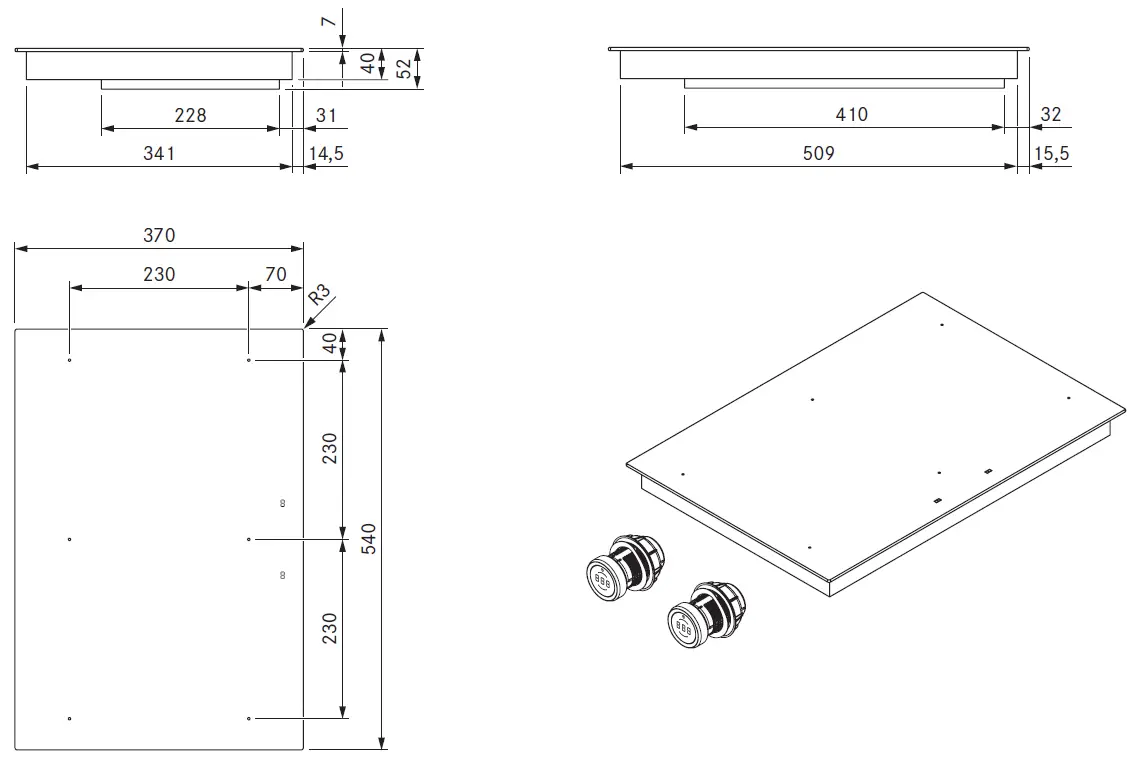

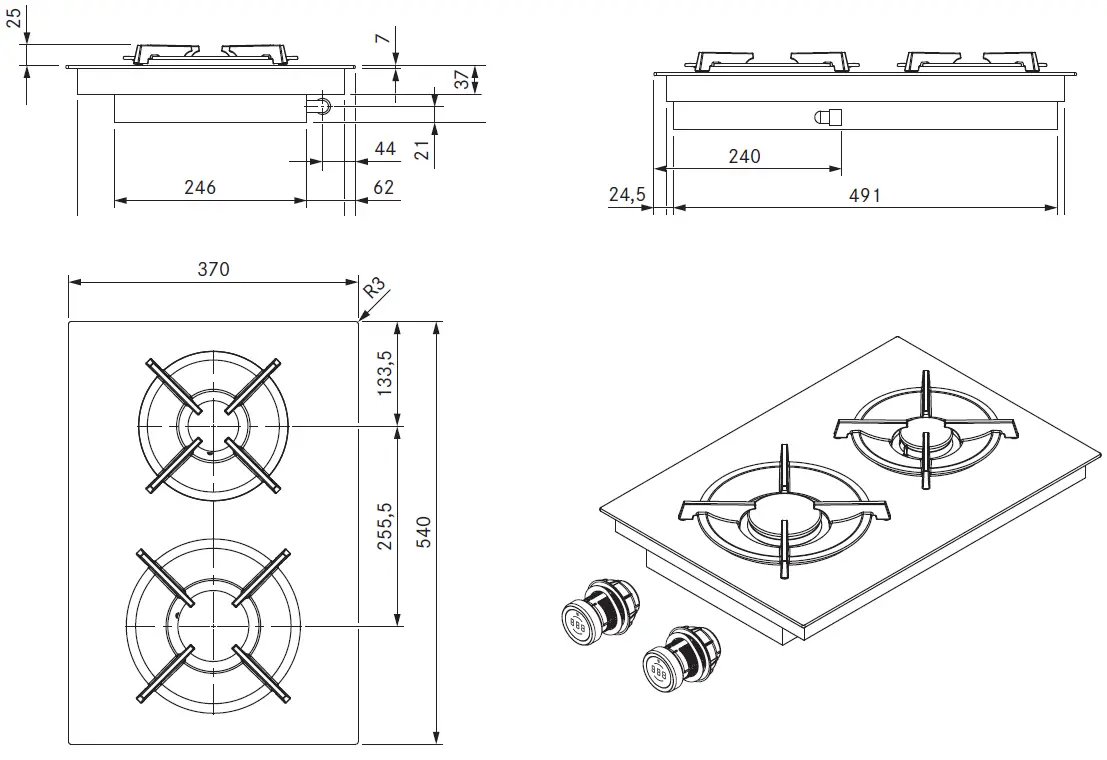

Appliance and installation dimensions

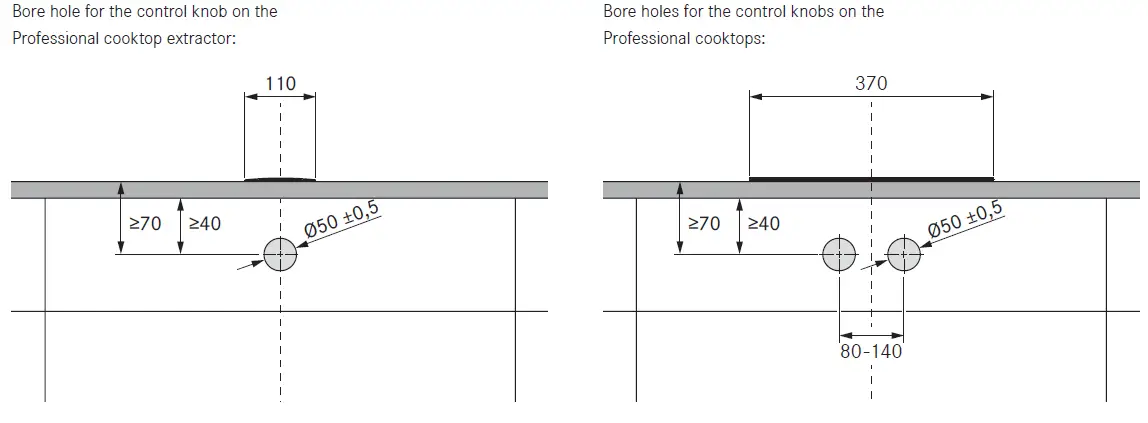

Bore holes

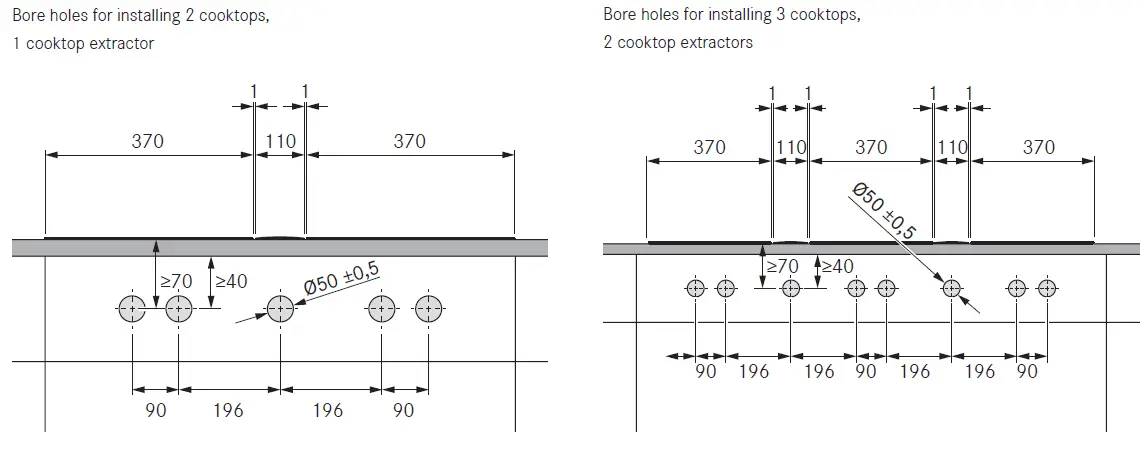

Bore hole examples

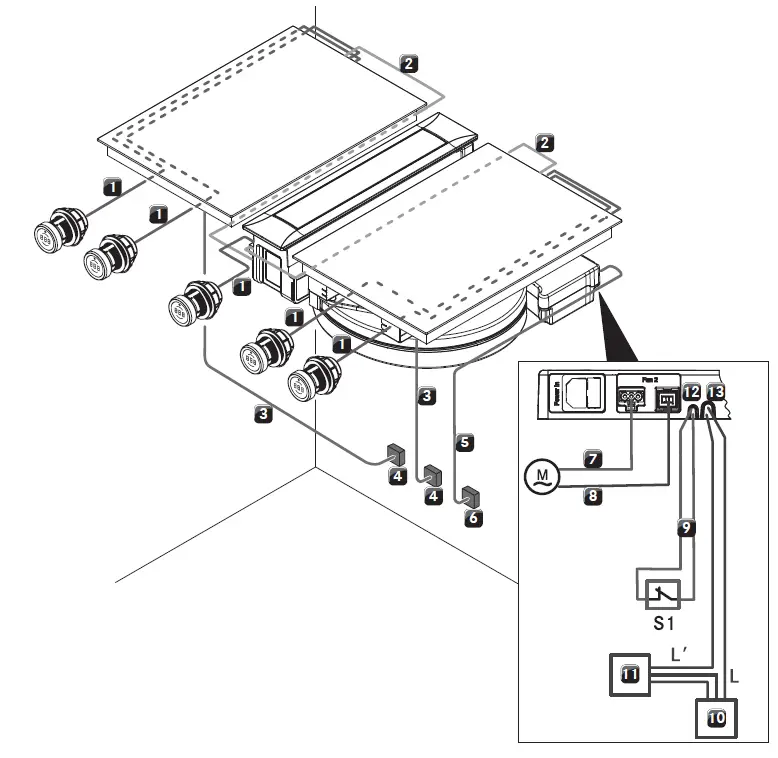

Connection diagram

BORA Pro cooktop extractor system PKAS3

The connection diagram shows the maximum connection options required and is for planning purposes only. The connection itself must be carried out by a qualified specialist based on the operating instructions.
