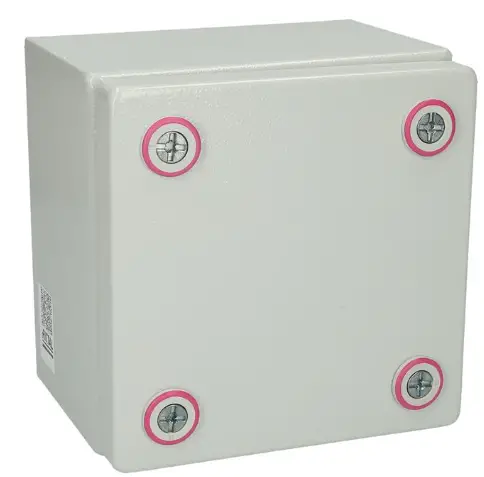

Rittal Kx 1500.000 Kx Small Enclosures Sheet Steel Instruction Manual (+ PDF)

The assembly instructions are aimed at all per-sons who have appropriate specialist training to allow them to equip enclosures to conform to standards with electrical, electronic, mecha-nical or pneumatic operating equipment, to place or install at the destination site and to connect ready to operate. The operating instructions are for the operating personnel and appropriately trained specialists for electro-technical and mechanical maintenance.

CE labelling

The declaration of conformity according to DIN EN 62 208 can be downloaded from the Ritual homepage.

Storing the documents

The safety notes and the accompanying note are part of the product. They must be given to the plant operator, who is then responsible for the storage of the documents so that they are readily available when needed.

Symbols used

Please observe the following safety instructions and other notes in this guide:

Normative references

Because the Ritual KX small enclosure, sheet steel conforms to many technical regulations, the enclosure is suitable for the widest-range of markets and application areas.
A current overview for the product is available at www.rittal.com.

Safety instructions

Intended use

These Rittal products are empty enclosures for low-voltage switchgear combinations with maximum rated voltage 1000 V AC or 1500 V DC and instrumentation and control systems intended for use indoors. For special requirements and for outdoor installations, confirmation of suitability must be obtained from Rittal. The load limits specified in the assembly instructions must be observed.
During the development of the KX small enclosure, sheet steel as part of the design study, a risk evaluation according to DIN EN
ISO 12100 was conducted to evaluate and prevent safety-critical items. Because a few residual risks cannot be precluded, the following notes must be observed.
Danger to life and health in case of non-observance of the safety instructions.

Safety instructions

The enclosure must be secured against tipping, falling or slipping during transportation, assembly, configuration and dismantling.
Beware of cuts and bruising when installing and removing the mounting plate.
When working on the KX small enclosure, sheet steel, always use the appropriate personal safety equipment.
Take care when unpacking the enclosure, as loose components may cause injury.
The health and safety regulations (such as the use of safety blades) must be observed.

Warning against closing movements for mechanical parts of a machine/device
Risk of tipping due to displacement of center of gravity
The instructions must be read
Installation by specialist electricians
Installation by specialist mechanics

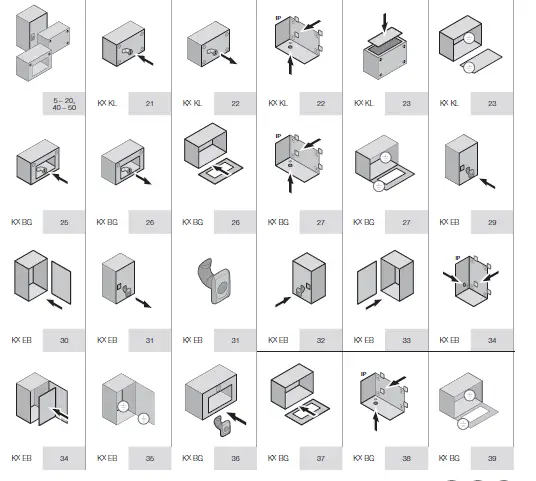

Device description

Function description and components

As a wall mounting enclosure, the KX small enclosure, sheet steel is suitable for accepting electrical, electronic, mechanical or pneumatic operating equipment and devices in the indoor industrial area.

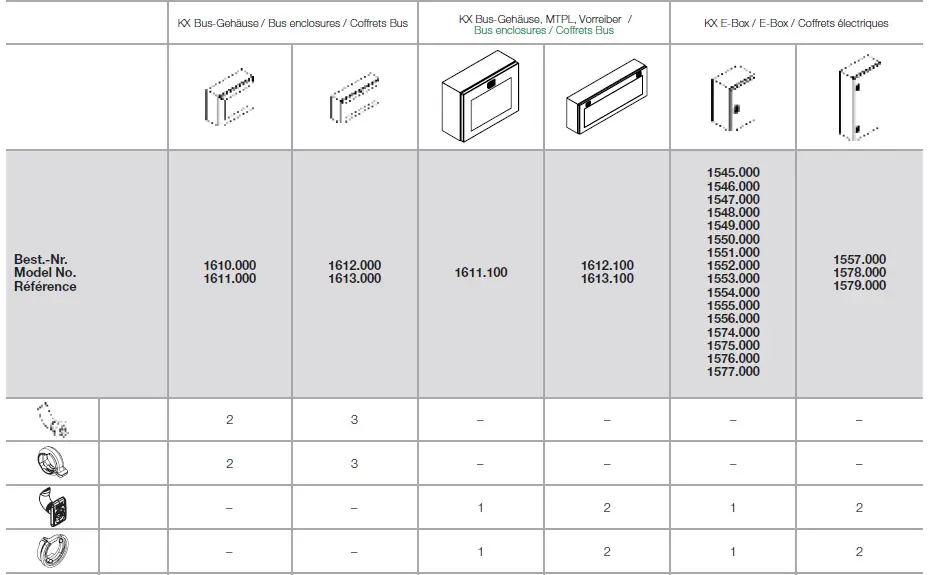

Scope of supply:

1 KX small enclosure, sheet steel, with cover/door
1 mounting plate (only with EB)

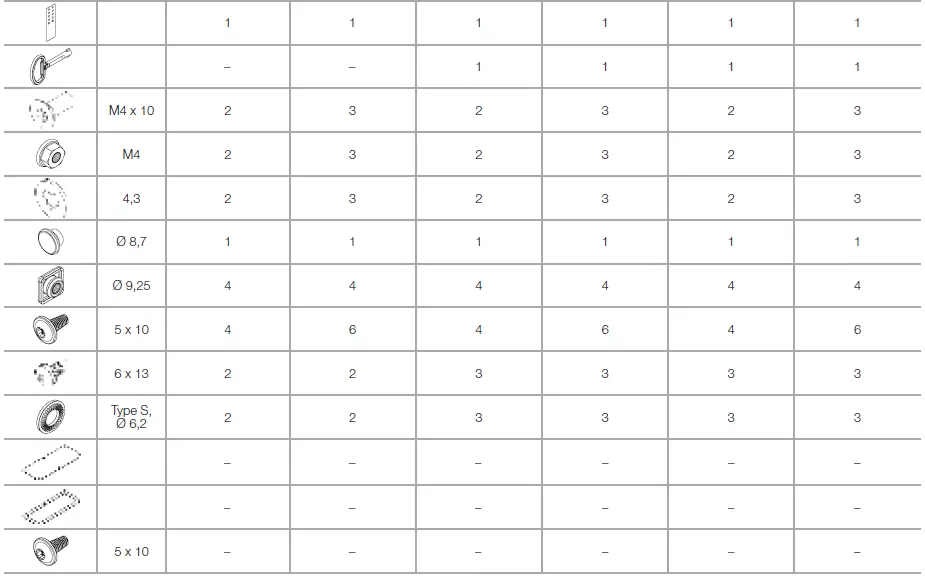

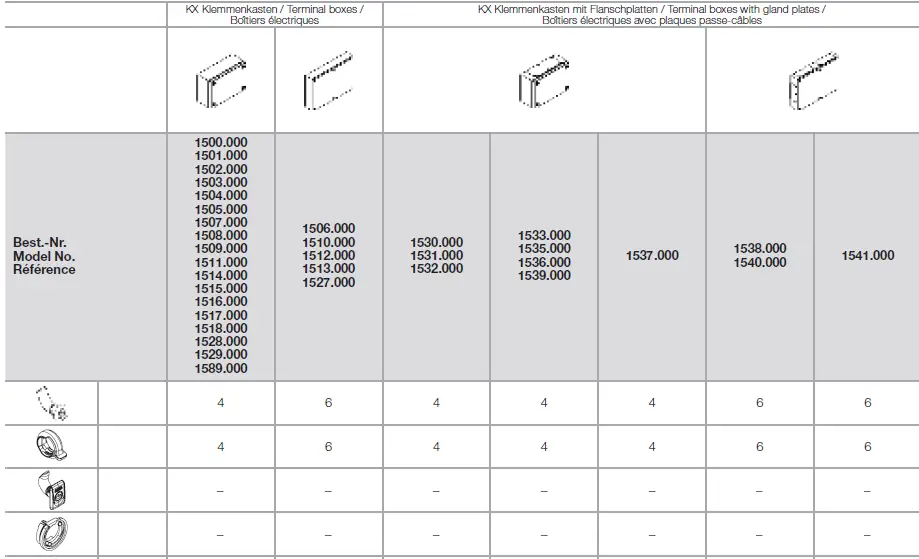

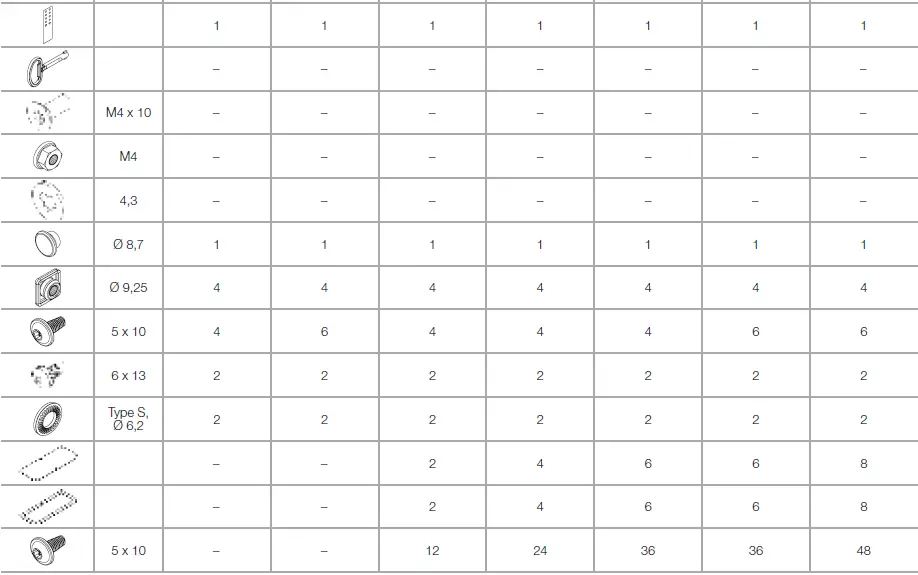

1 dispatch bag (content, see page 18/19)
For enclosures with gland plates:
- 2/4/6/8 gland plates (number of gland plates, see page 18/19)
- 1/2/3/4 dispatch bags for gland plates (number of gland plates and content)

Please check the scope of supply for completeness.

Labelling

The mounting plate, cover/door, enclosure body and the rating plate have a QR code containing component-specific data.

Identifier	Data content
#01\|	Manufacturing order number
#04\|	SAP material number
#09\|	Width
#10\|	Height
#11\|	Depth
#19\|	Pre-assembled condition
#51\|	Serial number

Example of the enclosure body KX 1500.000: #01|0123456789#04|399339#09|150 #10|150#11|120#51|E-19HG-1234567

Scope of delivery

Assembly and siting

Site requirements

Prior to assembly, ensure that

for KX KL and KX EB, the ambient temperature at the installation site is not higher than + 80 °C and not lower than –20 °C.
for KX BG, the ambient temperature at the installation site is not higher than +60 °C and not lower than –10 °C.
the relative humidity does not exceed 50%at +40 °C.
Higher humidity levels are permitted at lower temperatures, e.g. 90% relative humidity at + 20 °C.
Suitable measures should be taken to prevent the formation of condensation.

If particular operating conditions apply, special agreements must be made between Rittal and the user.

Assembly instructions

Observe the load capacities specified
on pages 44 – 49.
When installing the enclosures the mounting surfaces must be sufficiently smooth.
Observe all specified torque values. Over- or undershooting the tensioning torques specified in these instructions can cause system damage, severe injuries or even death.
Avoid any unnecessary openings in the enclosure. Any opening that is not made and sealed carefully can reduce the degree of protection.
The equipped mounting plate must be secured in addition to its standard securing for transport.
Ensure adequate carrying capacity for wall mounting. The notes in the instructions for the deployed system accessories must also be observed.

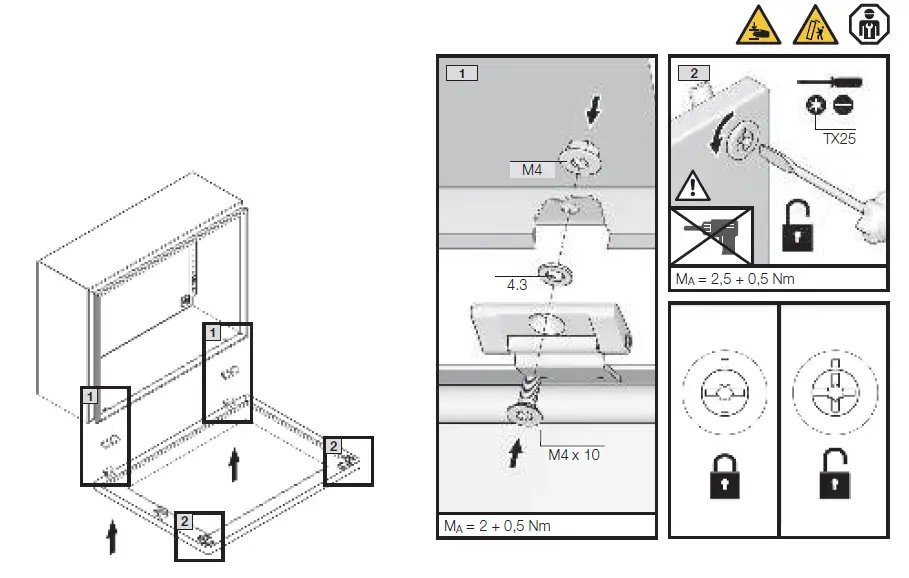

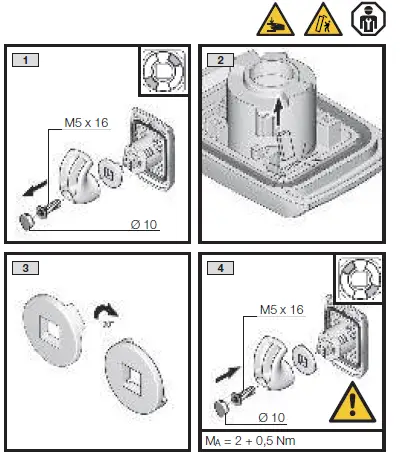

KX terminal boxes – Mounting the lock

KX terminal boxes – Dismantling the lock

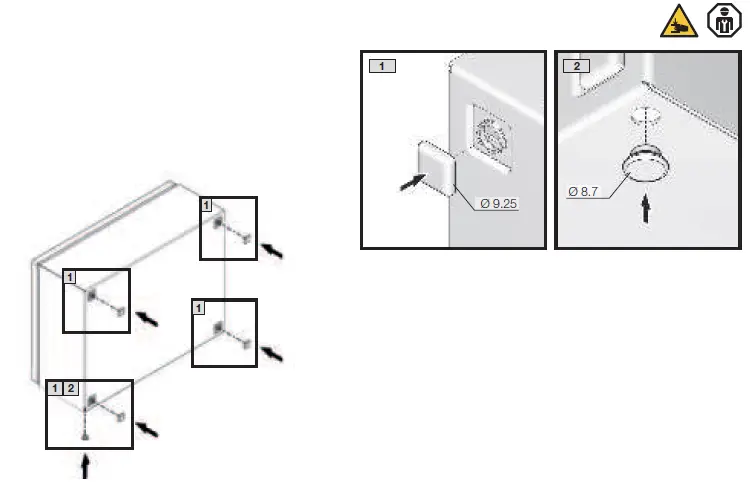

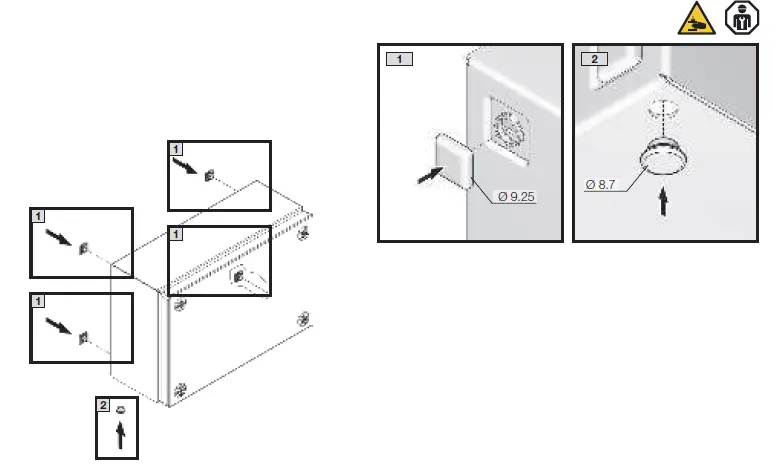

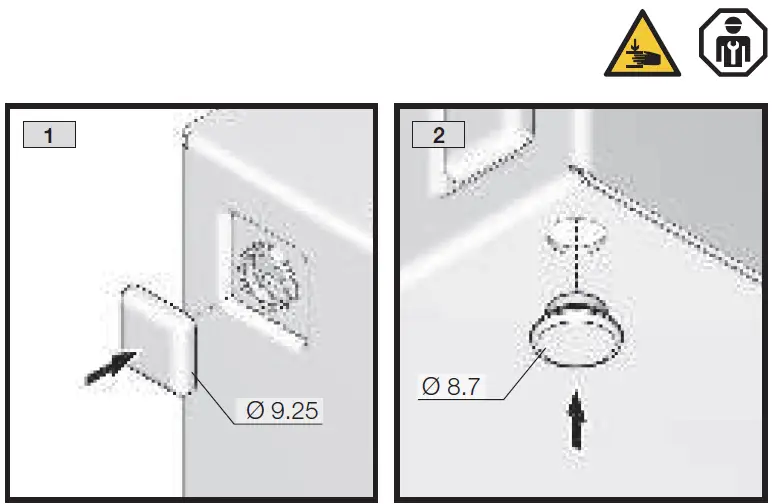

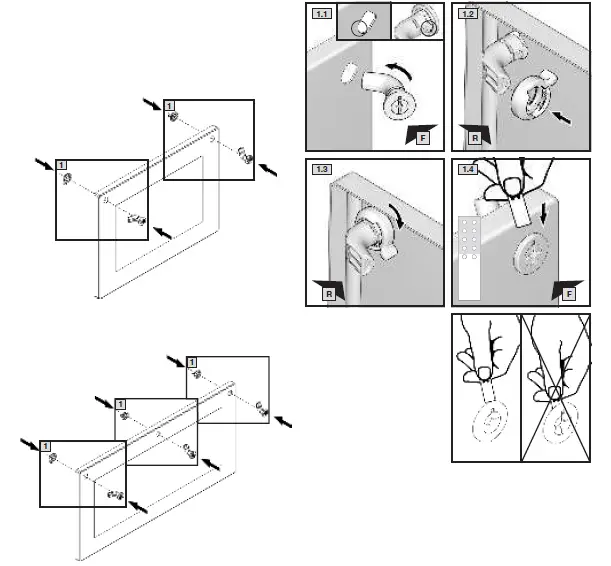

KX terminal boxes – Inserting the sealing bungs

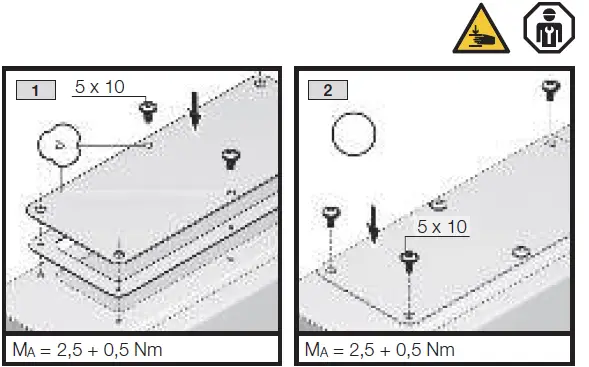

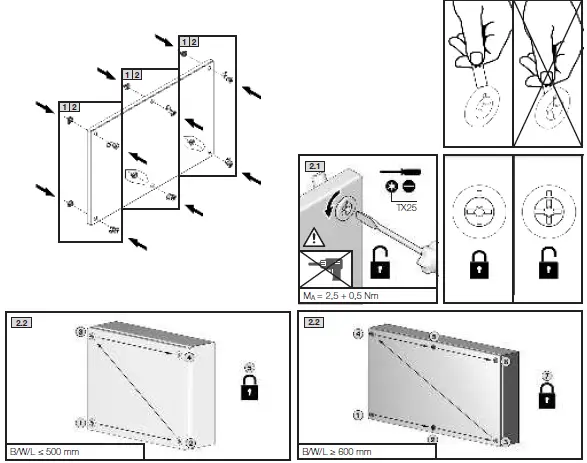

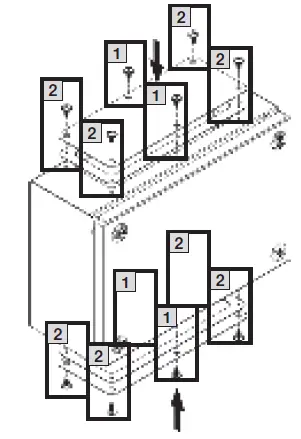

KX terminal boxes – Mounting the gland plates

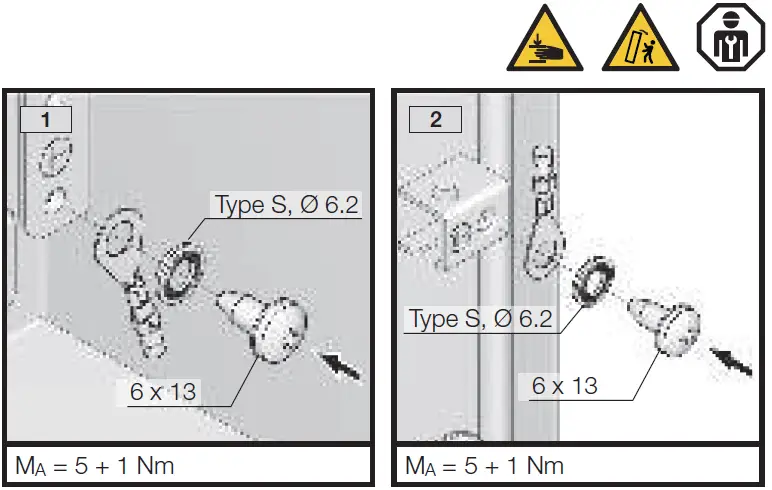

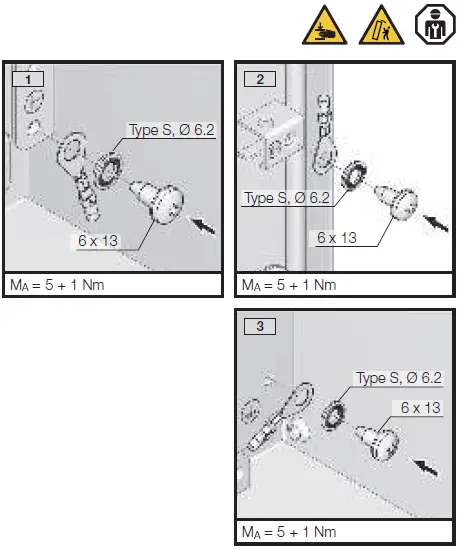

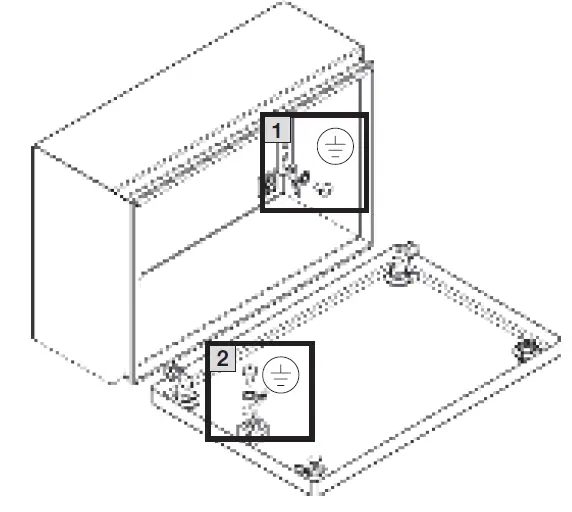

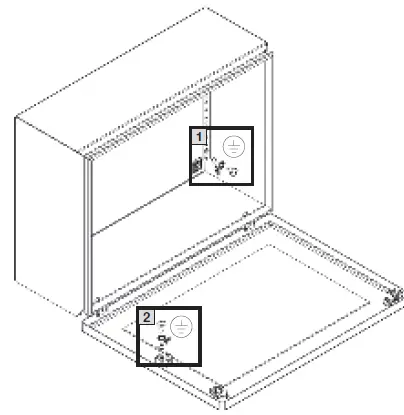

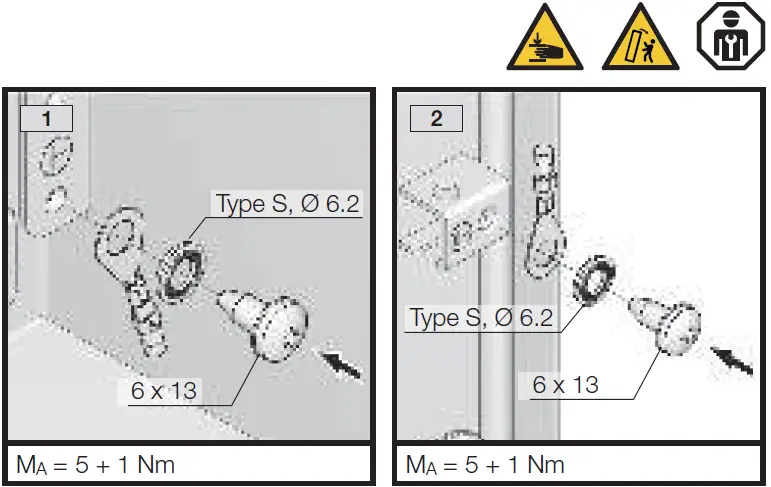

KX terminal boxes – Earthing

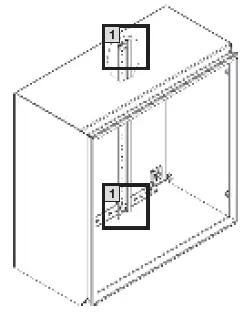

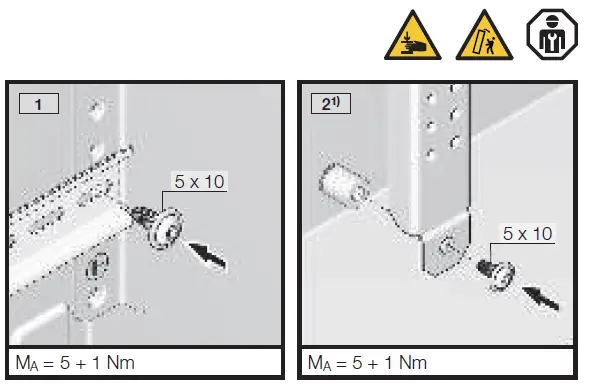

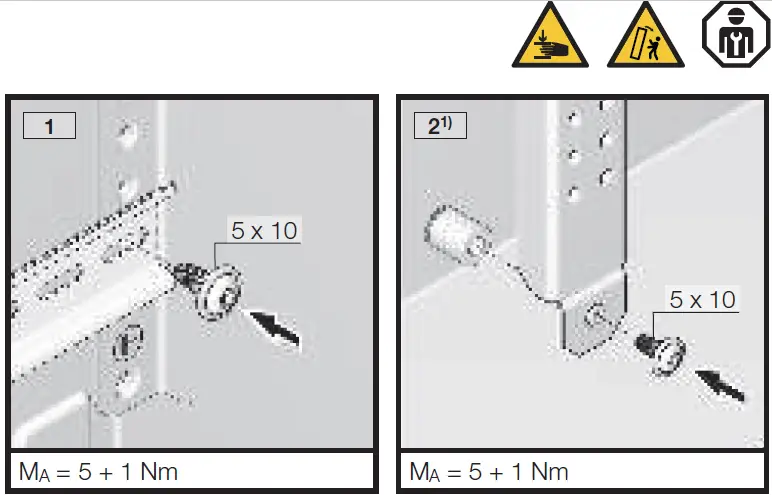

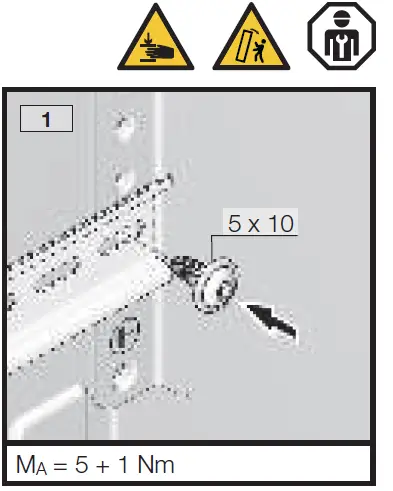

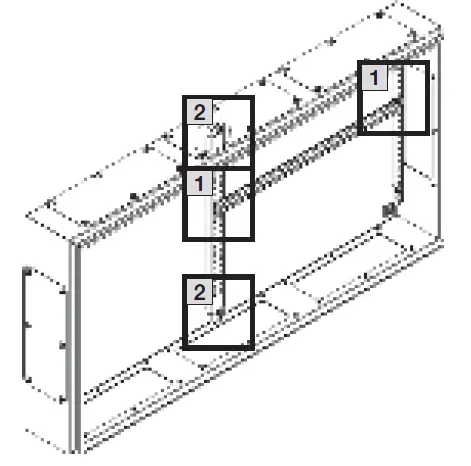

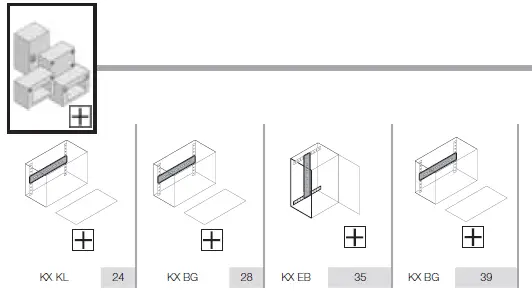

KX terminal boxes – Interior installation

Rail not included in the supply

nur bei / only for / uniquement pour 1513.000/ 1527.000/1541.000

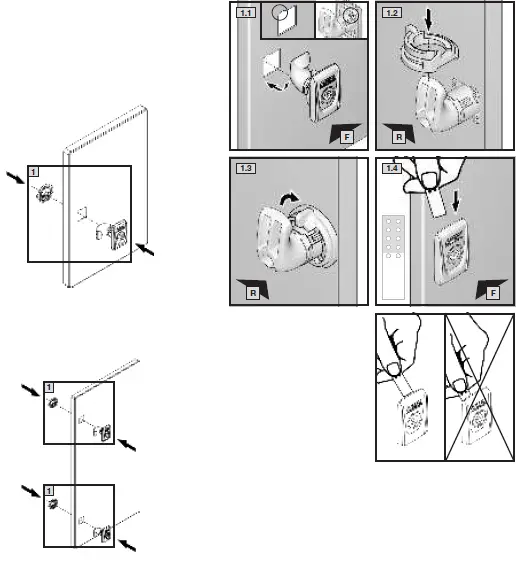

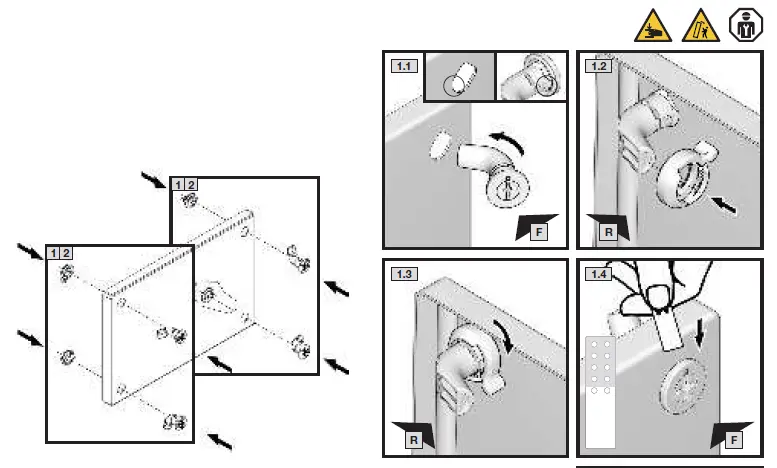

KX bus enclosures – Mounting the lock

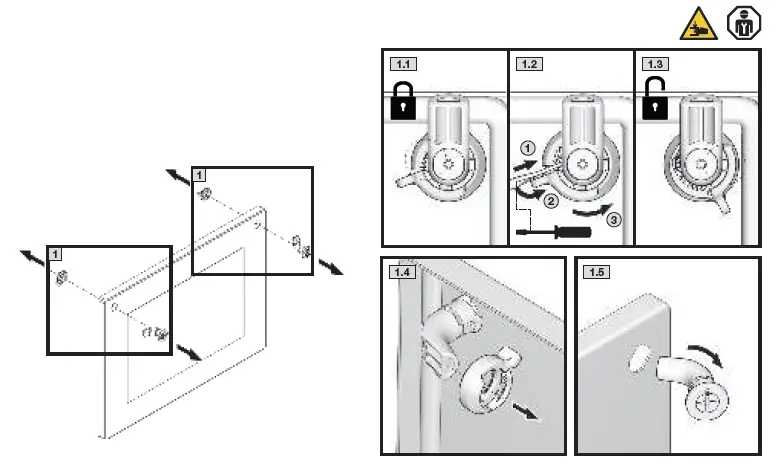

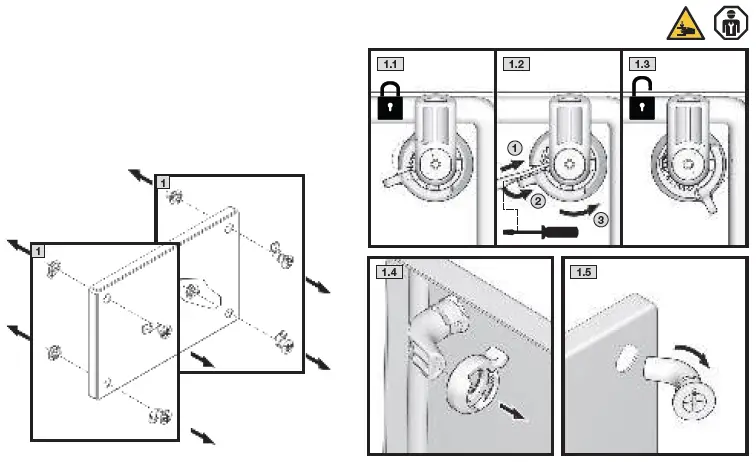

KX bus enclosures – Dismantling the lock

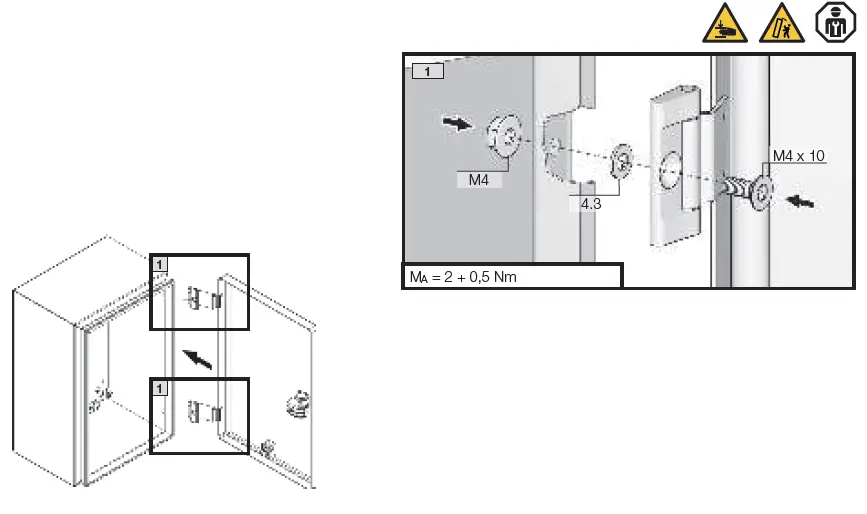

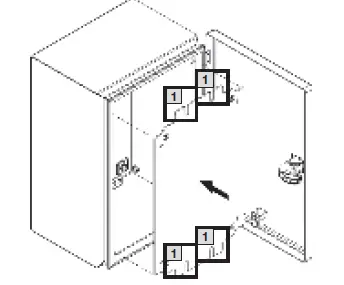

KX bus enclosures – Mounting the door

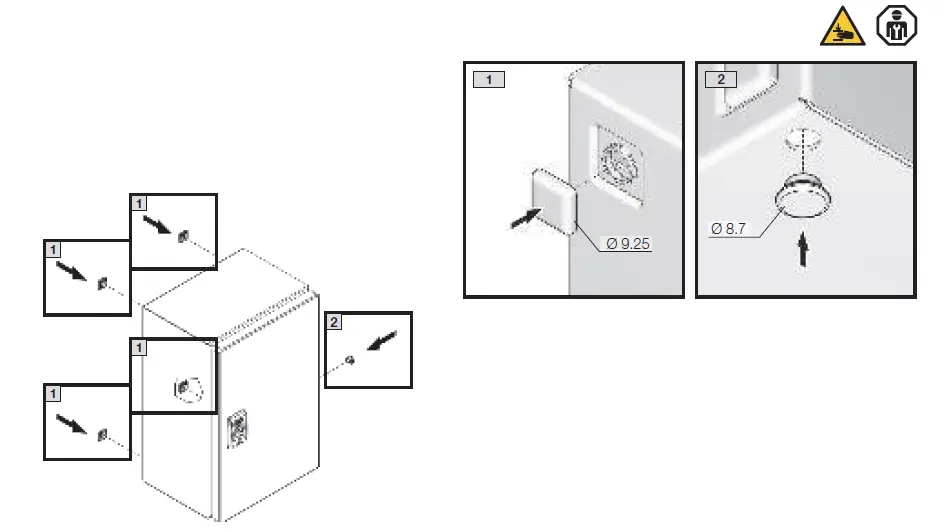

KX bus enclosures – Inserting the sealing bungs

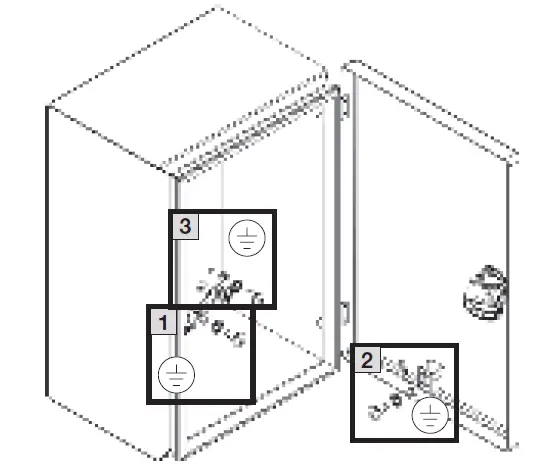

KX bus enclosures – Earthing

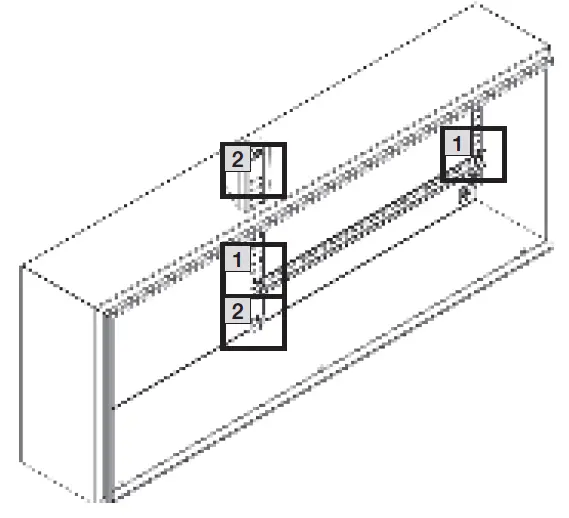

KX bus enclosures – Interior installation

Rail not included in the supply

nur bei / only for / uniquement pour 1613.000

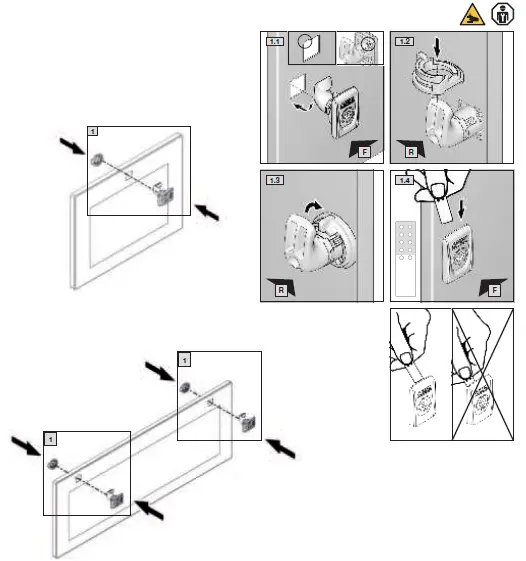

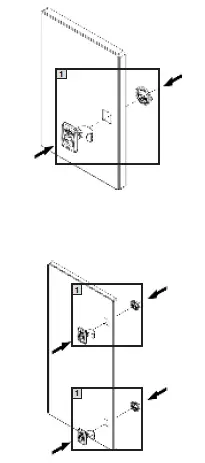

KX E-Box – Mounting the cam lock

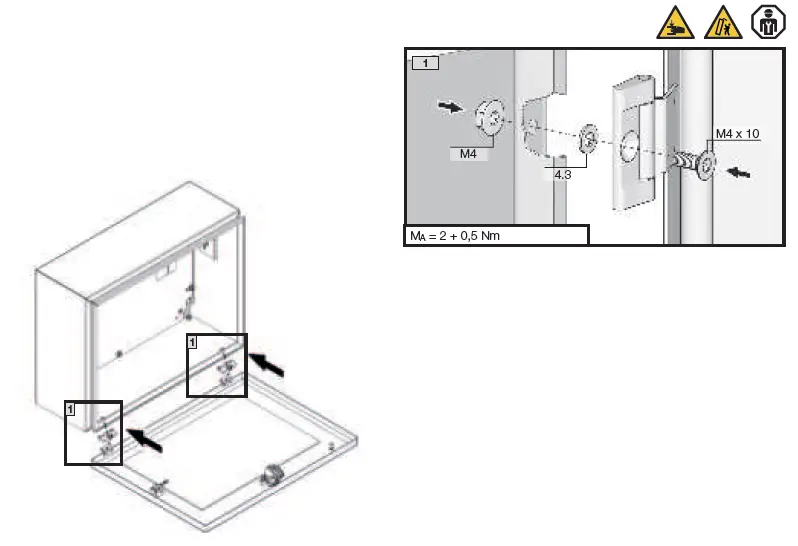

KX E-Box – Mounting the door

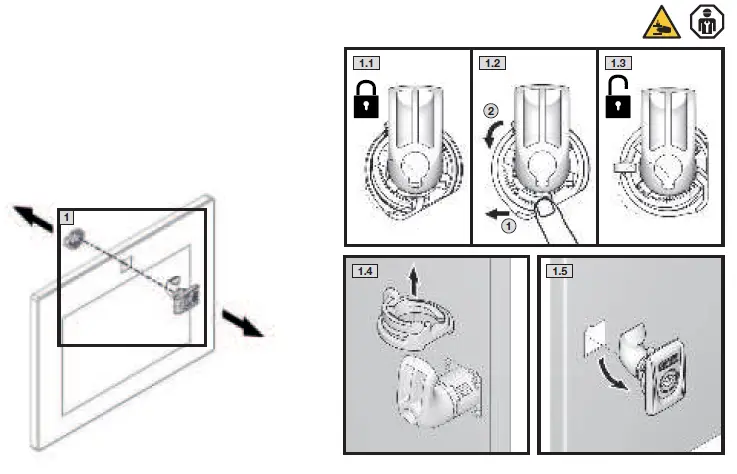

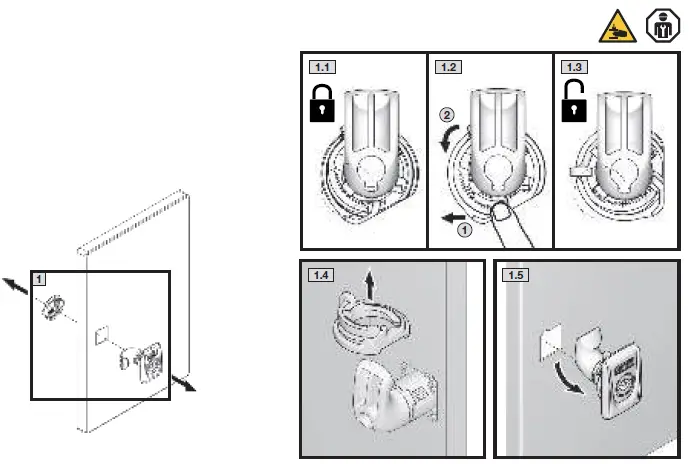

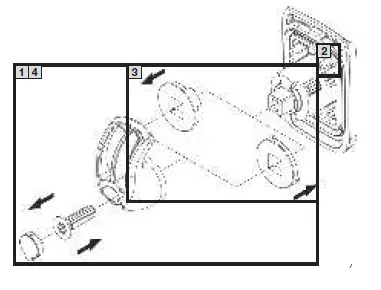

KX E-Box – Dismantling the cam lock

KX E-Box – Changing the cam lock to a l/h door hinge

Risk of potential transfer in the event of a fault

KX E-Box – Fitting the cam lock – l/h door hinge

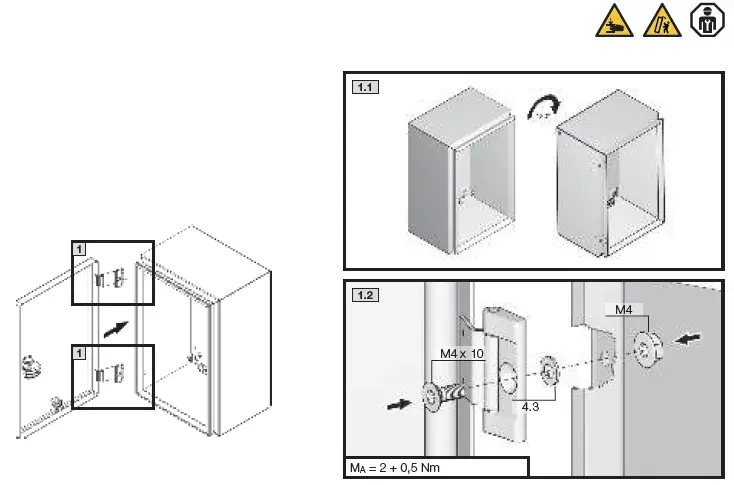

KX E-Box – Mounting the door – l/h door hinge

KX E-Box – Inserting the sealing bungs

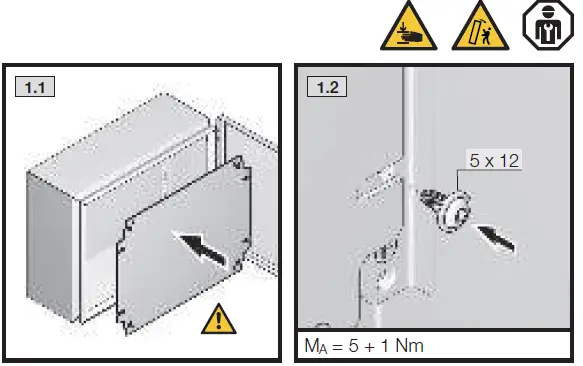

E-Box – Installing the mounting plate

Risk of cuts and bruising

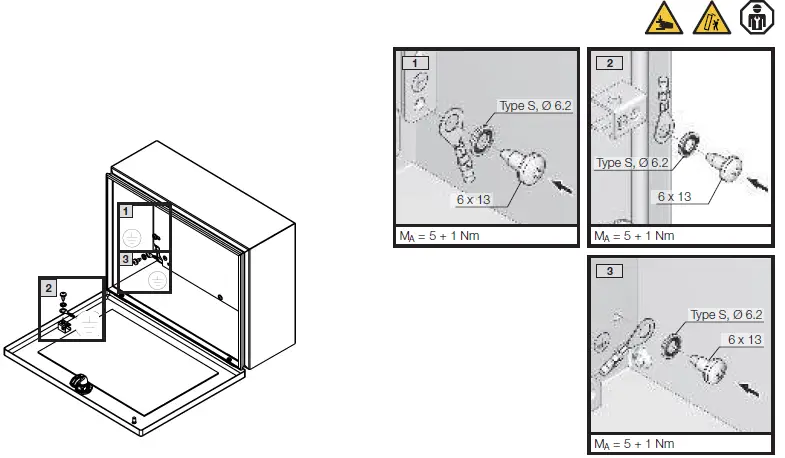

KX E-Box – Earthing

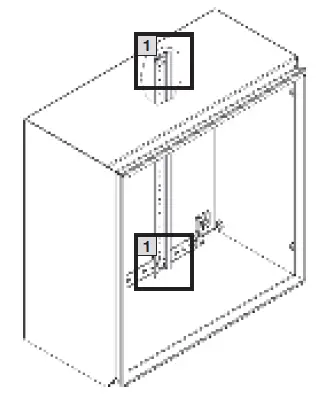

KX E-Box – Interior installation

Rail not included in the supply

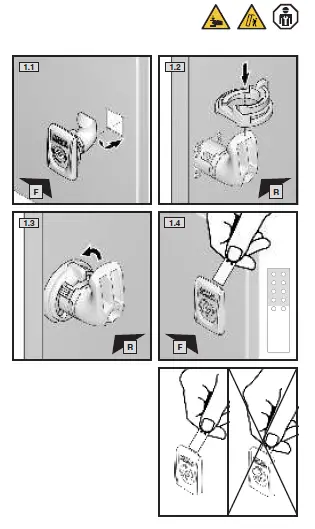

KX bus enclosures, mounting plate, cam lock – Mounting the cam lock

KX bus enclosures, mounting plate, cam lock – Mounting the door

KX bus enclosures, mounting plate, cam lock – Dismantling the cam lock

KX bus enclosures, mounting plate, cam lock – Inserting the sealing bungs

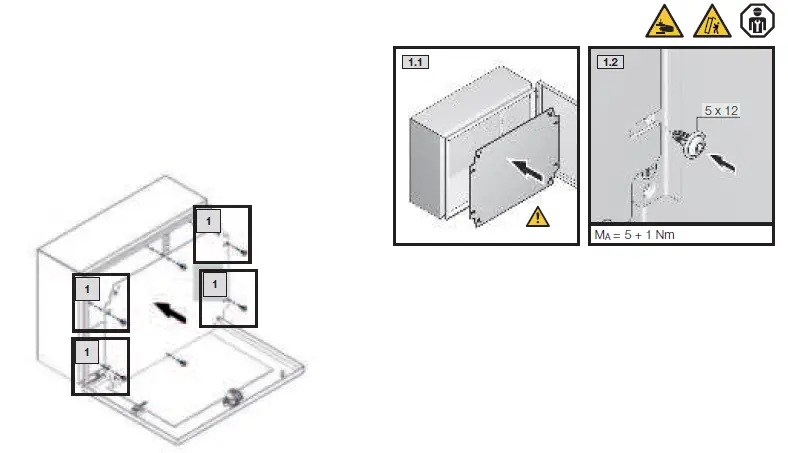

KX bus enclosures, mounting plate, cam lock – Installing the mounting plate

KX bus enclosures, mounting plate cam lock – Earthing

KX bus enclosures, mounting plate cam lock – Interior installation

Rail not included in the supply

Transport

The enclosures must be securely fastened to prevent tipping, falling or slipping during transportation.

Ensure that the load is properly secured.
Observe the accident prevention regulations.
Wear personal safety equipment.

Installation

If there is the possibility of high pressures developing within the enclosure, the enclosure parts could burst.
To counteract all associated dangers, the user must adopt appropriate safety measures.

Earthing and potential equalization

The cover/door and enclosure are prepared for the installation of earthing cables to enable system-compatible earthing where required for configuration purposes. Potential equalization between the enclosure and the mounting plate / gland plate has been incorporated into the design.
The designer must determine the extent to which the automatic contacts are adequate for the earthing system.
To incorporate the cover/door into the safety measure “protection from indirect contact via automatic deactivation”, you will need to connect a separate PE conductor.
All connections must be fitted in accordance with the assembly instructions.

Operation

To prevent dust, humidity and air contaminated with pollutants from entering the enclosure, avoid leaving the doors open unnecessarily for a long time.
The equipped mounting plate must be secured for transport.
After working on the enclosure, check that the door is closed properly.

Inspection and maintenance

The maintenance schedule is recommended for all KX small enclosures, sheet steel.

Maintenance interval
Maintenance must be performed at regular intervals depending on use and ambient conditions, at least once annually and documen-ted accordingly.

Nature and extent of the work to be performed:

The hinges of the doors are checked for ease of movement and sprayed with a suitable, water-free lubricant.
The lock is checked for ease of movement. All moving closure parts are sprayed with a suitable, water-free lubricant.
Gaskets in the contact edge area must be replaced completely if damaged. If the gasket is damaged outside the contact edges, the sealing effect is still sufficient as a rule.
Common agents such as talcum, Vaseline or wax can be used to prevent damage due to gaskets freezing because of low temperatures. All components and surfaces are examined for external damage.
Steel enclosures are also inspected for traces of corrosion. Any damage is repaired as follows:
- Damage to small areas that affect only a part of the surface (e.g. scratches):
  Lightly sand off the surface at the damaged place and remove all traces of corrosion as well as all contamination.
  Depending on the degree of damage, apply the Rittal touch-up paint either with a paint stick, a brush or a spray can (alter-native: 2K-PUR acrylic paint)
- Large area damage: Smooth the surface uniformly and clean with white spirit; then paint over the entire surface with Rittal touch-up paint (2K-PUR acrylic paint).

All maintenance work should be carried out by trained experts. The applicable guidelines on maintenance units must be observed.

Storage

When storing the enclosure, ensure that

for KX KL and KX EB, the ambient temperature is not higher than +80 °C and not lower than –20 °C.
for KX BG, the ambient temperature is not higher than +60 °C and not lower than
– 10 °C.
the relative humidity does not exceed 50%at +40 °C.
Higher humidity levels are permitted at lower temperatures, e.g. 90% relative humidity at
+ 20 °C. Suitable measures should be taken to prevent the formation of condensation

Technical specifications

Model No.	Dimensions			Volume (ℓ)	Mounting plate design	Load Charge (N)
Model No.	Width (mm)	Height (mm)	Depth (mm)	Volume (ℓ)	Thickness (mm)	Total	Mounting plate
1500.000	150	150	120	2,7	–	200	100	50
1501.000	300	150	120	5,4	–	250	100	100
1502.000	200	200	120	4,8	–	350	200	100
1503.000	300	200	120	7,2	–	350	200	100
1504.000	400	200	120	9,6	–	650	400	200
1505.000	500	200	120	12,0	–	650	400	200
1506.000	600	200	120	14,4	–	900	600	250
1507.000	300	300	120	10,8	–	650	400	200
1508.000	400	300	120	14,4	–	650	400	200
1509.000	500	300	120	18,0	–	650	400	200
1510.000	600	300	120	21,6	–	900	600	250
1511.000	400	400	120	19,2	–	650	400	200
1512.000	600	400	120	28,8	–	900	600	250
1513.000	800	400	120	38,4	–	900	600	250
1514.000	150	150	80	1,8	–	200	100	50
1515.000	300	150	80	3,6	–	250	100	100
1516.000	200	200	80	3,2	–	350	200	100
1517.000	300	200	80	4,8	–	350	200	100
1518.000	400	200	80	6,4	–	650	400	200
1527.000	800	200	120	19,2	–	900	600	250
1528.000	200	150	80	2,4	–	200	100	50
1529.000	200	150	120	3,6	–	200	100	50
1530.000	300	150	120	5,4	–	250	100	100
1531.000	300	200	120	7,2	–	350	200	100
1532.000	400	200	120	9,6	–	650	400	200
1533.000	500	200	120	12,0	–	650	400	200
1535.000	300	300	120	10,8	–	650	400	200
1536.000	400	300	120	14,4	–	650	400	200
1537.000	500	300	120	18,0	–	650	400	200
1538.000	600	300	120	21,6	–	900	600	250
1539.000	400	400	120	19,2	–	650	400	200
1540.000	600	400	120	28,8	–	900	600	250
1541.000	800	400	120	38,4	–	900	600	250
1545.000	150	300	80	3,6	2,0	200	100	50
1546.000	200	200	80	3,2	2,0	200	100	50
1547.000	200	400	80	6,4	2,0	200	100	50
1548.000	150	300	120	5,4	2,0	250	150	50
1549.000	200	200	120	4,8	2,0	250	150	50
1550.000	200	400	120	9,6	2,0	250	150	50
1551.000	150	150	80	1,8	2,0	200	100	50
1552.000	200	300	80	4,8	2,0	200	100	50

Model No.	Dimensions			Volume (ℓ)	Mounting plate design	Load Charge (N)
Model No.	Width (mm)	Height (mm)	Depth (mm)	Volume (ℓ)	Thickness (mm)	Total	Mounting plate	Door
1553.000	150	150	120	2,7	2,0	200	100	50
1554.000	200	300	120	7,2	2,0	250	150	50
1555.000	300	300	120	10,8	2,0	250	150	50
1556.000	300	400	120	14,4	2,0	250	150	50
1557.000	200	500	120	12,0	2,0	250	150	50
1574.000	200	300	155	9,3	2,0	200	100	50
1575.000	300	300	155	14,0	2,0	250	150	50
1576.000	380	300	155	17,7	2,0	250	150	50
1577.000	300	400	155	18,6	2,0	250	150	50
1578.000	300	600	155	27,9	2,0	300	200	50
1579.000	300	800	155	37,2	2,0	325	200	75
1589.000	400	150	120	7,2	–	350	100	200
1610.000	400	200	155	12,4	–	200	150	25
1611.000	400	300	155	18,6	–	200	150	25
1612.000	600	300	155	27,9	–	250	200	50
1613.000	800	300	155	37,2	–	250	200	75
1611.100	400	300	155	18,6	2,0	200	150	25
1612.100	600	300	155	27,9	2,0	250	200	50
1613.100	800	300	155	37,2	2,0	250	200	75

. Degrees of protection

Model No.	Dimensions			Degree of protection
Model No.	Width (mm)	Height (mm)	Depth (mm)	IP 1)	IK 2)	Type (NEMA) 3)
1500.000	150	150	120	66	08	4
1501.000	300	150	120	66	08	4
1502.000	200	200	120	66	08	4
1503.000	300	200	120	66	08	4
1504.000	400	200	120	66	08	4
1505.000	500	200	120	66	08	4
1506.000	600	200	120	66	08	4
1507.000	300	300	120	66	08	4
1508.000	400	300	120	66	08	4
1509.000	500	300	120	66	08	4
1510.000	600	300	120	66	08	4
1511.000	400	400	120	66	08	4
1512.000	600	400	120	66	08	4
1513.000	800	400	120	66	08	4
1514.000	150	150	80	66	08	4
1515.000	300	150	80	66	08	4
1516.000	200	200	80	66	08	4
1517.000	300	200	80	66	08	4
1518.000	400	200	80	66	08	4
1527.000	800	200	120	66	08	4
1528.000	200	150	80	66	08	4
1529.000	200	150	120	66	08	4
1530.000	300	150	120	55	08	12
1531.000	300	200	120	55	08	12
1532.000	400	200	120	55	08	12
1533.000	500	200	120	55	08	12
1535.000	300	300	120	55	08	12
1536.000	400	300	120	55	08	12
1537.000	500	300	120	55	08	12
1538.000	600	300	120	55	08	12
1539.000	400	400	120	55	08	12
1540.000	600	400	120	55	08	12
1541.000	800	400	120	55	08	12
1545.000	150	300	80	66	08	4
1546.000	200	200	80	66	08	4
1547.000	200	400	80	66	08	4
1548.000	150	300	120	66	08	4
1549.000	200	200	120	66	08	4

Model No.	Dimensions			Degree of protection
Model No.	Width (mm)	Height (mm)	Depth (mm)	IP 1)	IK 2)	Type (NEMA) 3)
1550.000	200	400	120	66	08	4
1551.000	150	150	80	66	08	4
1552.000	200	300	80	66	08	4
1553.000	150	150	120	66	08	4
1554.000	200	300	120	66	08	4
1555.000	300	300	120	66	08	4
1556.000	300	400	120	66	08	4
1557.000	200	500	120	66	08	4
1574.000	200	300	155	66	08	4
1575.000	300	300	155	66	08	4
1576.000	380	300	155	66	08	4
1577.000	300	400	155	66	08	4
1578.000	300	600	155	66	08	4
1579.000	300	800	155	66	08	4
1589.000	400	150	120	66	08	4
1610.000	400	200	155	66	08	4
1611.000	400	300	155	66	08	4
1612.000	600	300	155	66	08	4
1613.000	800	300	155	66	08	4
1611.100	400	300	155	66	08	4
1612.100	600	300	155	66	08	4
1613.100	800	300	155	66	08	4

Heat loss

Model No.	Dimensions
Model No.	Width (mm)	Height (mm)	Depth (mm)	Watt (W) Watt (W) Watt (W) (ΔT = 20 K)
1500.000	150	150	120	11	10	7
1501.000	300	150	120	18	17	12
1502.000	200	200	120	17	14	11
1503.000	300	200	120	22	20	14
1504.000	400	200	120	28	24	19
1505.000	500	200	120	34	30	23
1506.000	600	200	120	40	34	26
1507.000	300	300	120	31	26	21
1508.000	400	300	120	39	33	26
1509.000	500	300	120	46	40	32
1510.000	600	300	120	54	46	37
1511.000	400	400	120	48	42	34
1512.000	600	400	120	68	57	47
1513.000	800	400	120	88	74	62
1514.000	150	150	80	9	8	6
1515.000	300	150	80	15	13	10
1516.000	200	200	80	13	12	9
1517.000	300	200	80	19	17	13
1518.000	400	200	80	24	21	17
1527.000	800	200	120	52	44	35
1528.000	200	150	80	11	10	8
1529.000	200	150	120	13	12	9
1530.000	300	150	120	18	17	12
1531.000	300	200	120	22	20	14
1532.000	400	200	120	28	24	19
1533.000	500	200	120	34	30	23
1535.000	300	300	120	31	26	21
1536.000	400	300	120	39	33	26
1537.000	500	300	120	46	40	32
1538.000	600	300	120	54	46	37
1539.000	400	400	120	48	42	34
1540.000	600	400	120	68	57	47
1541.000	800	400	120	88	74	62
1545.000	150	300	80	15	13	11
1546.000	200	200	80	13	12	9
1547.000	200	400	80	24	21	18
1548.000	150	300	120	19	17	12
1549.000	200	200	120	17	14	11

Model No.	Dimensions
Model No.	Width (mm)	Height (mm)	Depth (mm)	Watt (W) Watt (W) Watt (W) (ΔT = 20 K)
1550.000	200	400	120	29	25	20
1551.000	150	150	80	9	8	6
1552.000	200	300	80	19	17	13
1553.000	150	150	120	11	10	7
1554.000	200	300	120	23	20	15
1555.000	300	300	120	31	26	21
1556.000	300	400	120	39	33	26
1557.000	200	500	120	35	31	24
1574.000	200	300	155	23	20	15
1575.000	300	300	155	34	30	23
1576.000	380	300	155	41	36	28
1577.000	300	400	155	43	37	29
1578.000	300	600	155	62	53	42
1579.000	300	800	155	79	68	54
1589.000	400	150	120	23	20	15
1610.000	400	200	155	32	29	22
1611.000	400	300	155	43	38	29
1612.000	600	300	155	61	53	42
1613.000	800	300	155	79	69	54
1611.100	400	300	155	43	38	29
1612.100	600	300	155	61	53	42
1613.100	800	300	155	79	69	54

Spare parts

A current overview is available at www.rittal.com.

Warranty

The conditions named in the sales and delivery conditions of the associated Rittal agents and subsidiaries apply.

Customer services addresses
Service-HUB Brasilien
Service HUB Brazil
Plateforme de service au Brésil
RITTAL Sistemas Eletromecânicos Ltda.
Av. Cândido Portinari, 1174
Vila Jaguara
05114-001 São Paulo – SP
Phone +55 (11) 3622 2361
Fax +55 (11) 3622 2399
E-mail: [email protected]
Service-HUB China
Service HUB China
Plateforme de service en Chine
RITTAL Electro-Mechanical Technology Co. Ltd. No.
1658, Minyi Road
Songjiang District
Shanghai, 201612
Phone +86 21 5115 7799-213
Fax +86 21 5115 7788
E-mail: [email protected]

Enclosures
Power Distribution
Climate Control
IT Infrastructure
Software & Services

You can find the contact details of all Rittal companies throughout the world here.

www.rittal.com/contact
RITTAL GmbH & Co. KG
Auf dem Stuetzelberg · 35745 Herborn · Germany
Phone +49 2772 505-0
E-mail: [email protected] · www.rittal.com
