EB10
24.02.2011
Please read before asembling the product
Carefully open packaging.
Check you have all the components shown on instructions sheets. Some products, instructions, and fittings are packed in more than one box. Handle Panels with care. Complete each stage before going to the next one.
Please keep packaging until assembly is complete. We hope that you are happy with the product.
 | Please recycle packaging |  | Keep fittings away from chliden |
 | No power tools when inserting cam pins |  | No power tools when tightening cams |

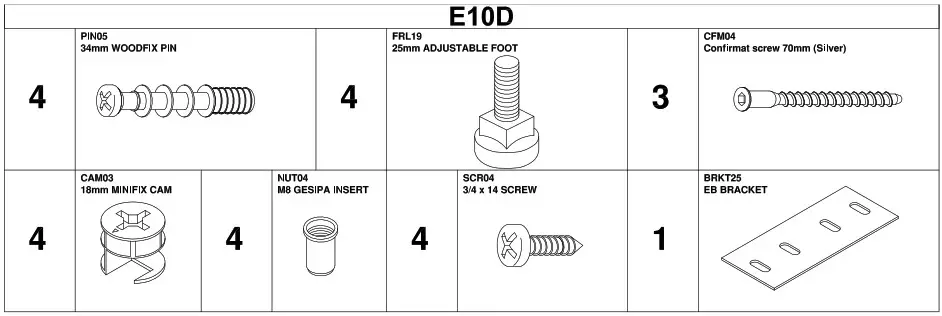

Please check that you have all the fittings
Please check that you have all the panels

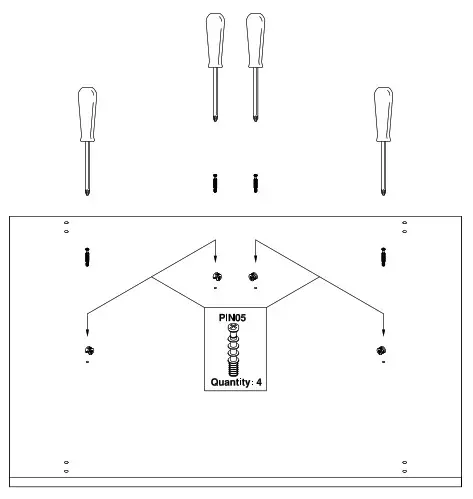

Screw in the woodfix pins by hand No need to use power tools

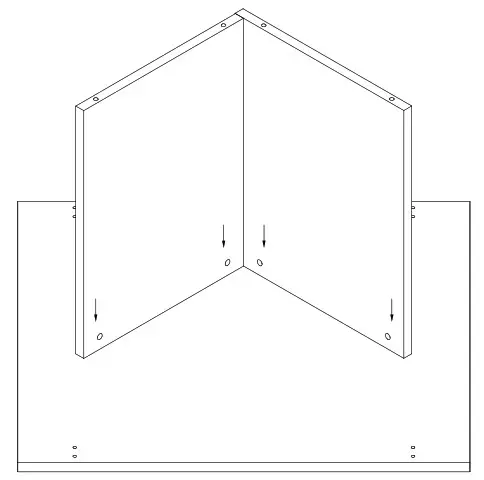

Position the legs over the pins and place down gently ensuring all pins are inserted into holes

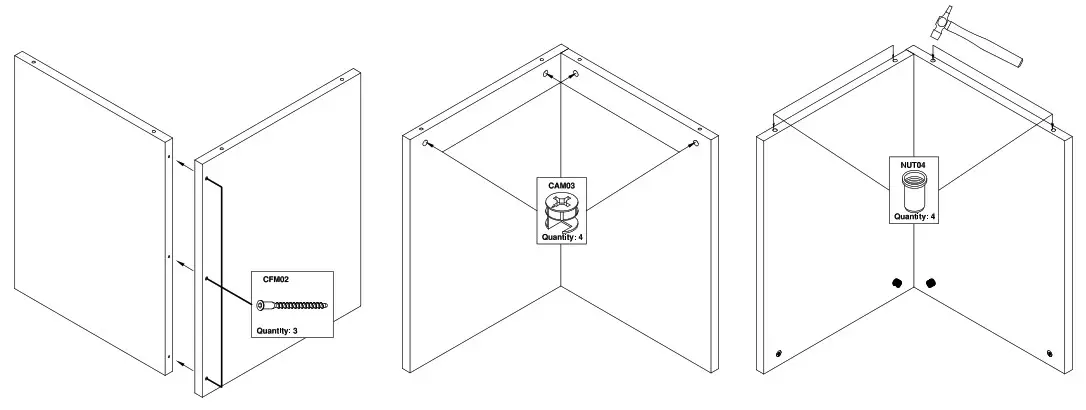

Tighten the cams.
Make sure you turn the cams as far as they will easily go – more than half a turn.

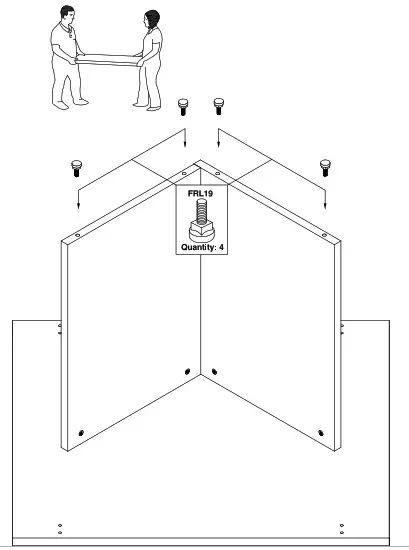

Screw in the feet and carefully turn the table over 2 people recommended
When linking more than one table it is recommended that 2 people are required to move the tables into position! Do not drag or push tables, this will result in damage to the legs, always lift tables completely off the ground!
Move tables to the place in the room where they will stay. Position tables side by side, try to eliminate any wobble or movement in the tables by adjusting the foot levellers, this will prevent and movement once the tables are linked.
Table A | Table B |
Underside view of the table

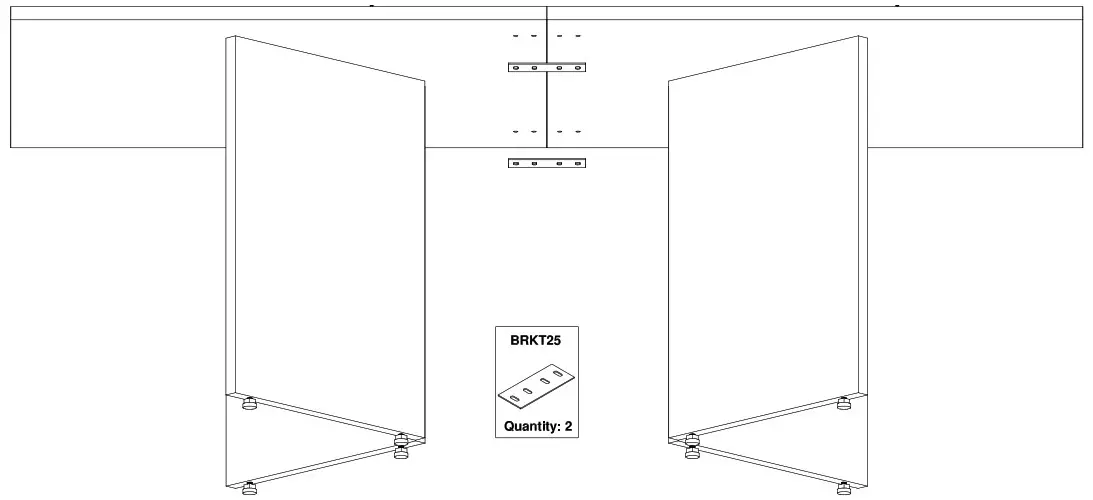

Position brackets over pre-drilled holes on the underside of the tops
Underside view of table
Fix brackets to table using the screws provided
