9749 Venetian 6-Piece Champagne Eastern King Bedroom Set
Instruction Manual
9749 Venetian 6-Piece Champagne Eastern King Bedroom Set

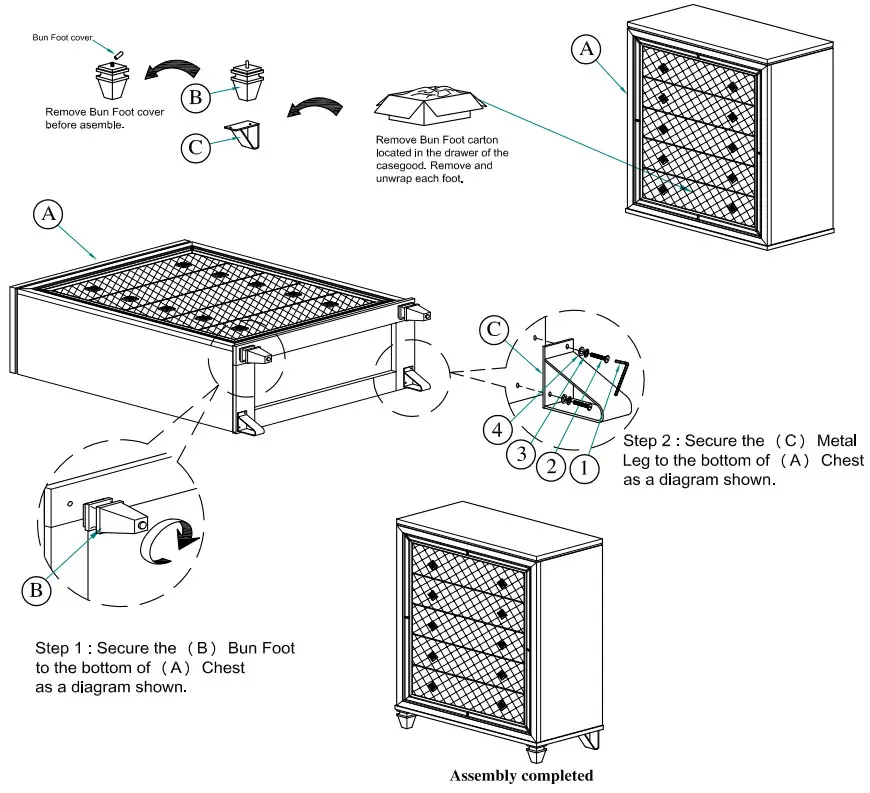

ASSEMBLY INSTRUCTION
MODEL: 9749 VENETIAN
DESCRIPTION: CHEST
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment.Identify and count all parts and compare with the parts list below.
PART LIST#
| NO | DRAWING | DESCRIPTION | QTY |
| A |  | Chest | lpc |
| B |  | Bun Foot | 2pcs |
| C |  | Metal Leg | 2pcs |
HARDWARE LIST#
| NO | NAME | PART | QTY |
| I | Allen Key |  | lpc |
| 2 | JCBC / Boulon – M6 x 20mm |  | 4pcs |
| 3 | M6 Spring Washer |  | 4pcs |
| 4 | M6 Flat Washer |  | 4pcs |

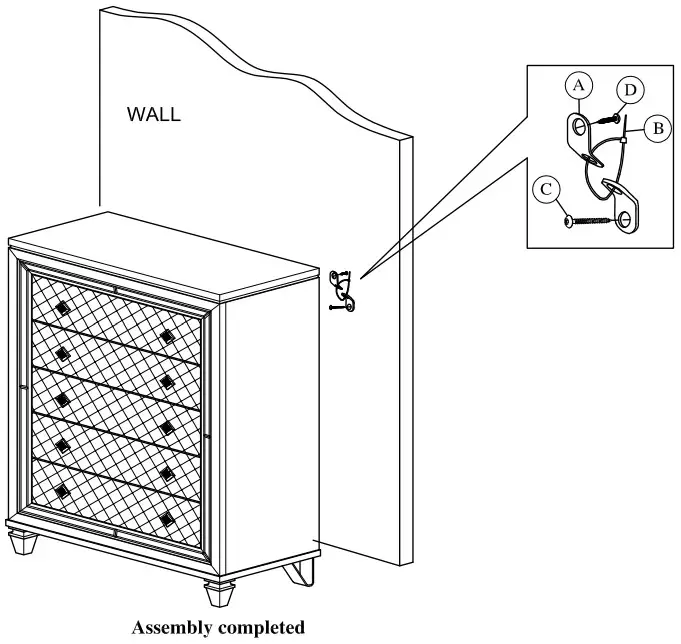

HARDWARE LIST (ANTI TIPPING)
| NO | NAME | PART | QTY |
| A | Bracket |  | 2pcs |
| B | Tie Wrap |  | lpc |
| C | Long Screw |  | lpc |
| D | Short Screw |  | lpc |

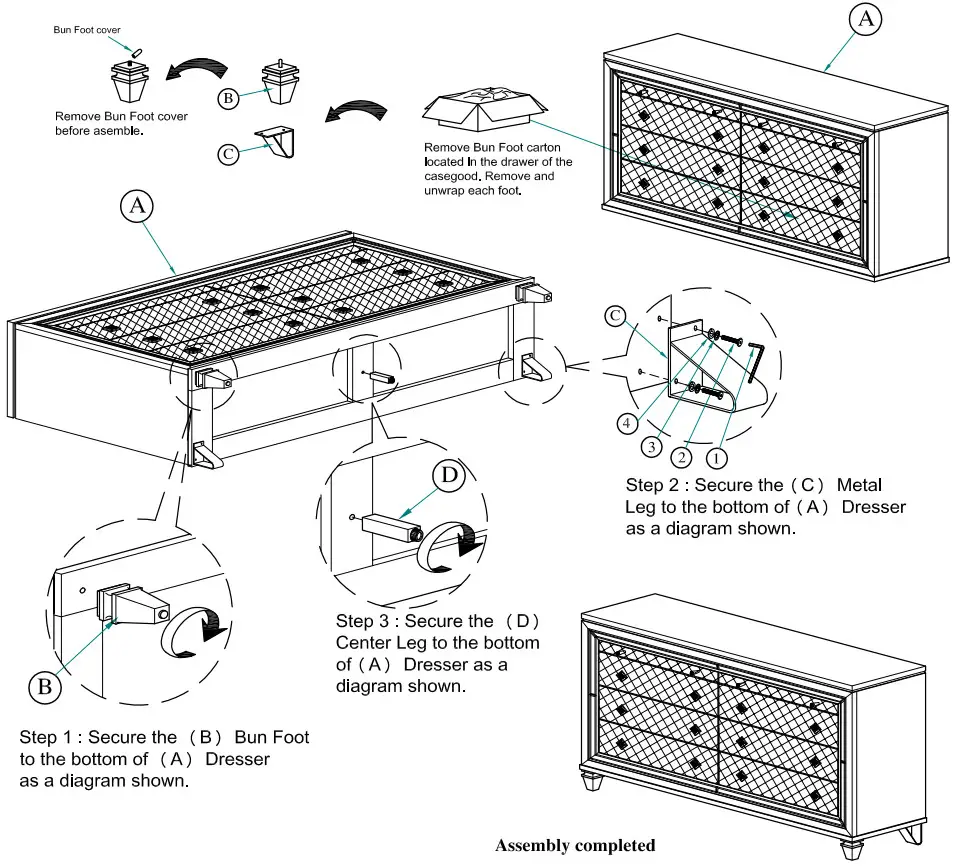

ASSEMBLY INSTRUCTION
MODEL: 9749 VENETIAN
DESCRIPTION: DRESSER
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment.Identify and count all parts and compare with the parts list below.
PART LIST#
| NO | DRAWING | DESCRIPTION | QTY |
| A |  | Dresser | lpc |
| B | | Bun Foot | 2pcs |
| C | | Metal Leg | 2pcs |
| D |  | Center Leg | lpc |
HARDWARE LIST#
| NO | NAME | PART | QTY |
| I | Allen Key | lpc | |
| 2 | JCBC / Boulon – M6 x 20mm | 4pcs | |
| 3 | M6 Spring Washer | 4pcs | |
| 4 | M6 Flat Washer | 4pcs |

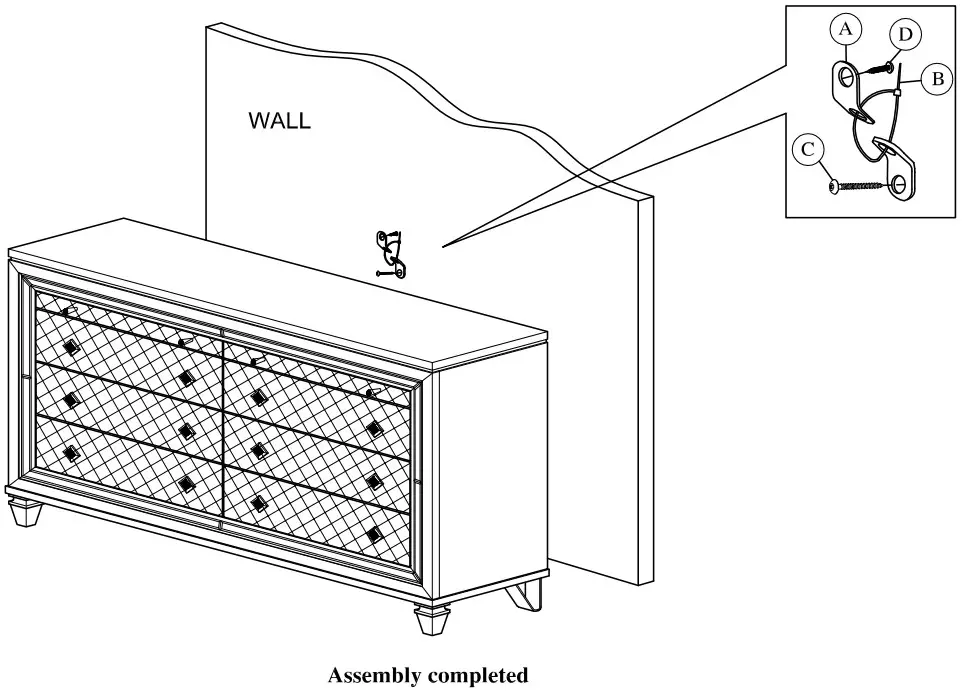

HARDWARE LIST (ANTI TIPPING)
| NO | NAME | PART | QTY |
| A | Bracket | | 2pcs |
| B | Tie Wrap | | lpc |
| C | Long Screw | | lpc |
| D | Short Screw | | lpc |

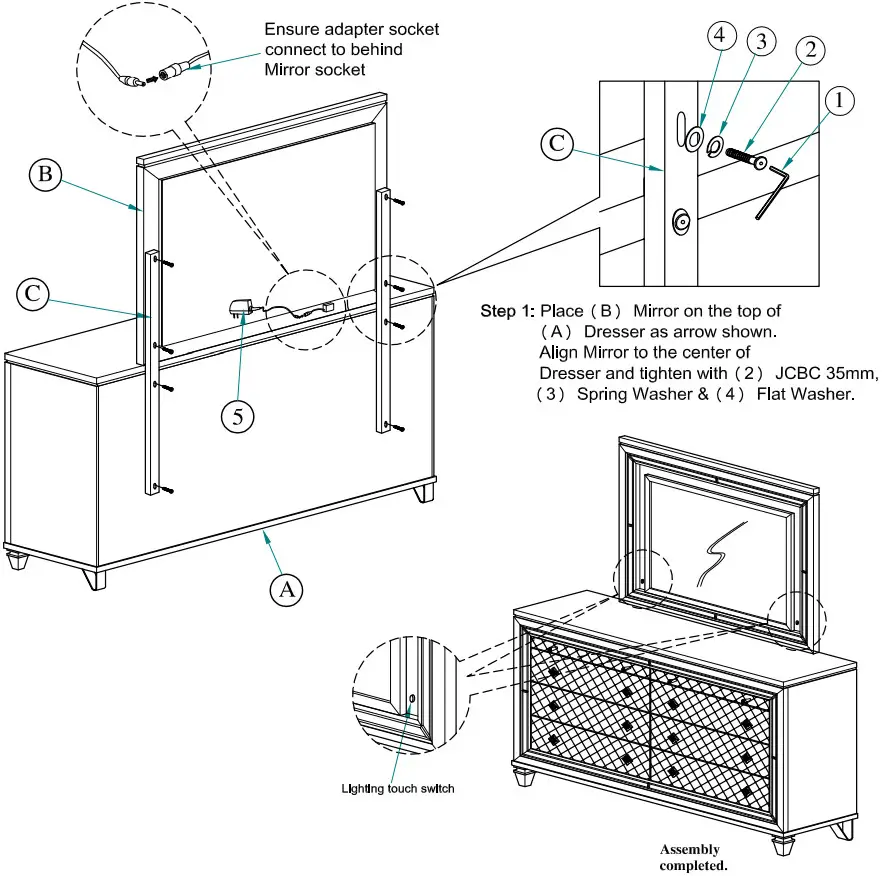

ASSEMBLY INSTRUCTION
MODEL: 9749 VENETIAN
DESCRIPTION: DRESSER & MIRROR WILED LIGHT
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment.Identify and count all parts and compare with the parts list below.
PART LIST#
| NO | NAME | PART | QTY |
| A | Dresser | | Ipc |
| B | Mirror |  | lpc |
| C | Mirror Support |  | 2pcs |
HARDWARE LIST#
| NO | NAME | PART | QTY |
| 1 | Allen key | | Ipe |
| 2 | JCBC35mm | | 8pcs |
| 3 | M6 Spring washer | | 8pcs |
| 4 | ¼” Flat washer | | 8pcs |
| 5 | AC/DC Adapter |  | lpc |
HARDWARE LOCATED IN MIRROR BOX

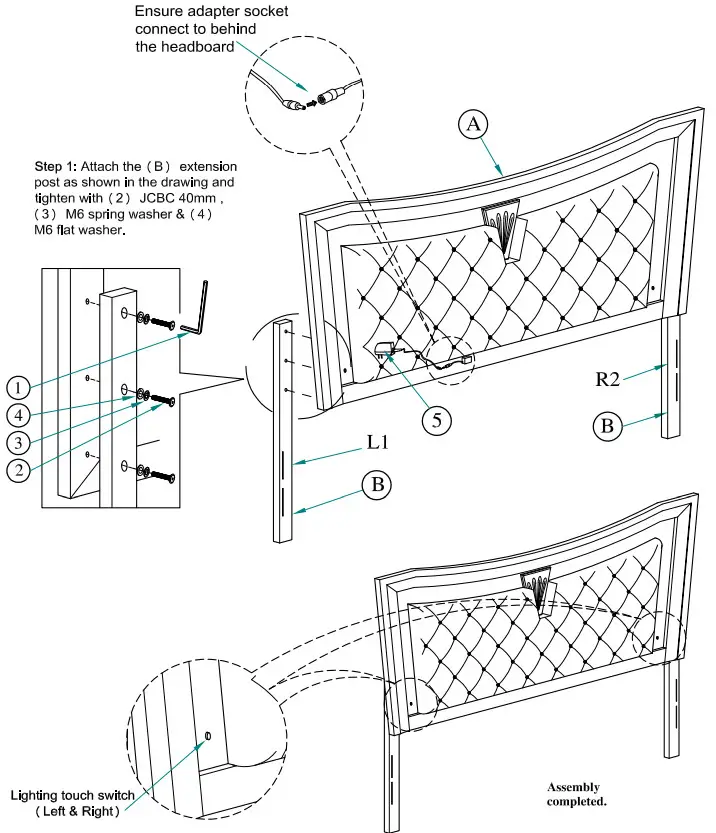

ASSEMBLY INSTRUCTION
MODEL: 9749 VENETIAN
DESCRIPTION: KING HEADBOARD WILED LIGHT
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment.Identify and count all parts and compare with the parts list below.
PART LIST#
| NO | NAME | PART | QTY |
| A | Headboard |  | lpc |
| B | Headboard Post - (L/R) |  | 2pcs |
HARDWARE LIST#
| NO | NAME | PART | QTY |
| 1 | Allen key | | Ipe |
| 2 | JCBC40mm | | 6pcs |
| 3 | M6 Spring washer | | 6pcs |
| 4 | M6 Flat washer | | 6pcs |
| 5 | AC/DC Adapter | | !pc |
| HARDWARE LOCATED IN HEADBOARD BOX | |||
ASSEMBLY INSTRUCTION
MODEL: 9749 VENETIAN
DESCRIPTION: KING BED WITH 13 SLATS
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment.Identify and count all parts and compare with the parts list below.
PART LIST#
| NO | NAME | PART | QTY |
| A | Headboard |  | lpc |
| B | Footboard |  | lpe |
| C | Side Rail |  | 2pcs |
| D | Drawer |  | 2pcs |
| E | Drawer Base Panel |  | 2pcs |
| F | Roll Slat |  | 13pcs |
| G | Slat Support Leg |  | 3pcs |
| H | Drawer Support Leg |  | fpc |
| I | Slat Cover Panel |  | fpc |
| J | Center Vertical Slat |  | !pc |
| K | Drawer Support Rail | | fpc |
| L | Bun Foot | | 2pcs |
HARDWARE LIST#
| NO | NAME | PART | QTY |
| I | Allen key | | Ipc |
| 2 | JCBC 16mm |  | 2pcs |
| 3 | JCBC 35mm |  | 9pcs |
| 4 | JCBC60mm | | 3pcs |
| 5 | M6 Spring washer | | 4pcs |
| 6 | M6 Flat washer | | 7pcs |
| 7 | Screw 32mm |  | 26pcs |
| 8 | Screw 16mm | | 2pcs |
| 9 | Adjustable Leveller |  | 4pcs |
| 10 | 1/4″ Flat washer | | 4pcs |
| HARDWARE LOCATED IN FOOTBOARD BOX | |||

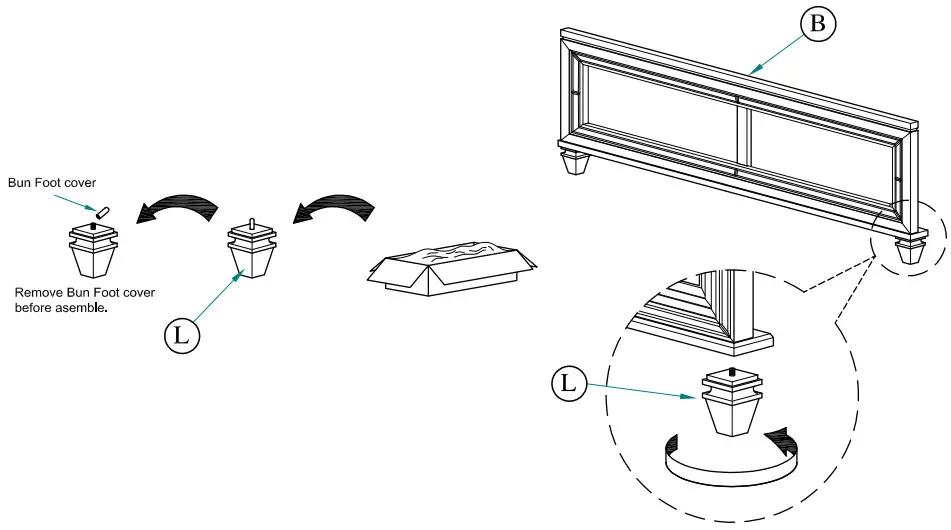

Step 1: Secure the ( L) Bun Foot to the bottom of ( B) Footboard as a diagram shown.

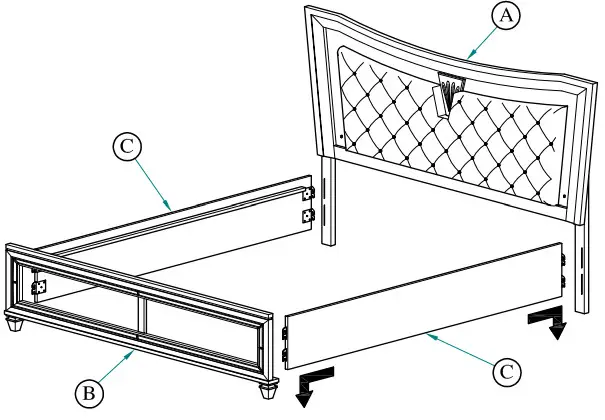

Step 2: Attach the ( C) Side Rail to the (A) Headboard & ( B) Footboard.

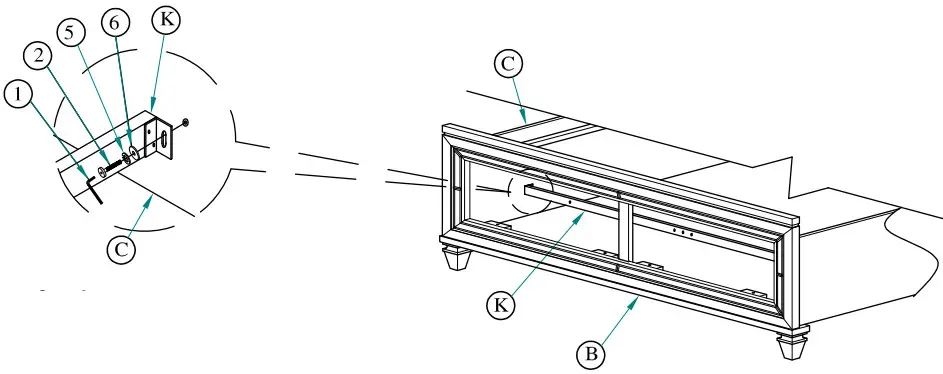

Step 3: Attach the ( K) Drawer Support Rail to the ( C) Side Rail as a diagram shown tighten with ( 2) JCBC 16mm, ( 5) M6 Spring Washer & ( 6) M6 Flat Washer.

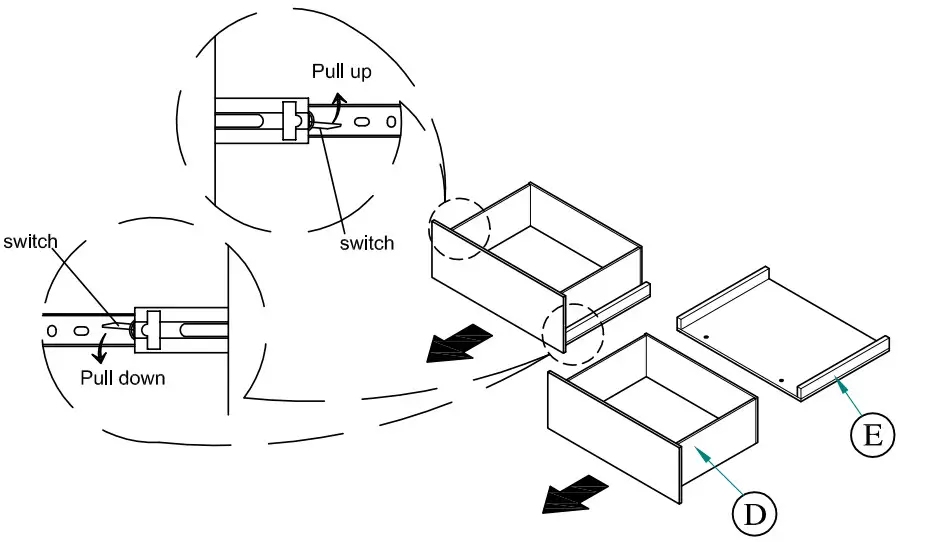

Step to remove the drawer:
- Pull the drawer
- Using both hands,
– Left hands side – pull up switch
– Right hands side – pull down switch - Then remove the drawer from the drawer base panel
Remove the ( D ) Drawer from ( E) Drawer Base Panel for assembly panel to the footboard.

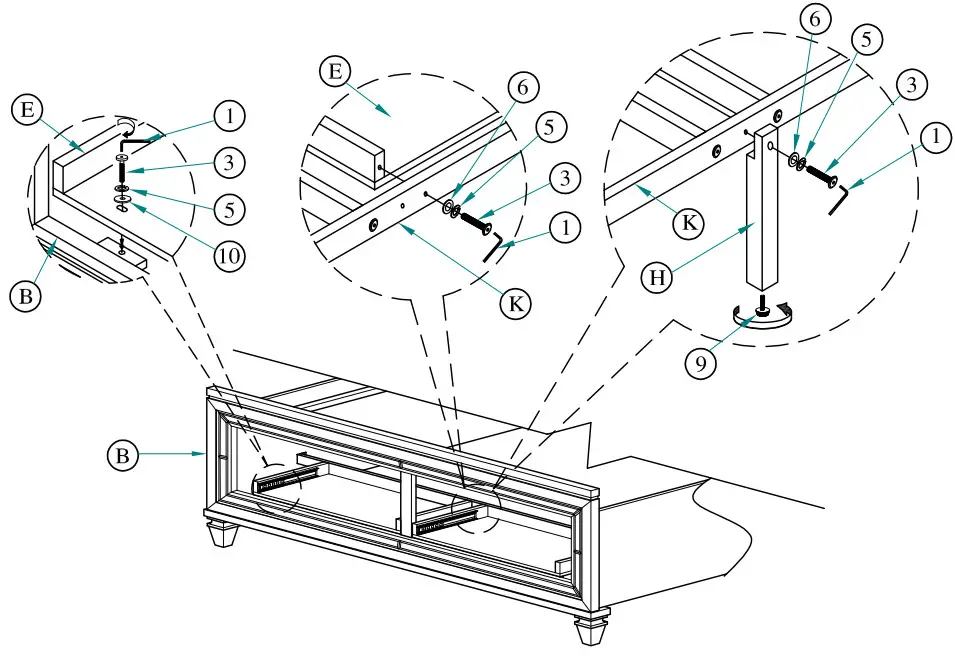

Step 4: Attach ( E ) Drawer Base Panel to the ( B) Footboard as diagram shown and tighten using ( 3) JCBC 35mm, (5) M6 Spring Washer & ( 10) 1/4″ Flat Washer.
Step 5: Tighten the ( E) Drawer Base Panel to the (K) Drawer Support Rail Panel as diagram shown using the
(3) JCBC 35mm,
(5) M6 Spring Washer &
( 6) M6 Flat Wash:
Step 6: Attach ( H ) Drawer Support Leg to the (K) Drawer Support Rail using (3) JCBC 35mm, (5) M6 Spring Washer & ( 6) M6 Flat Washer. Attach the (9) Adjustable Leveller and adjust it to level the bed with the floor.

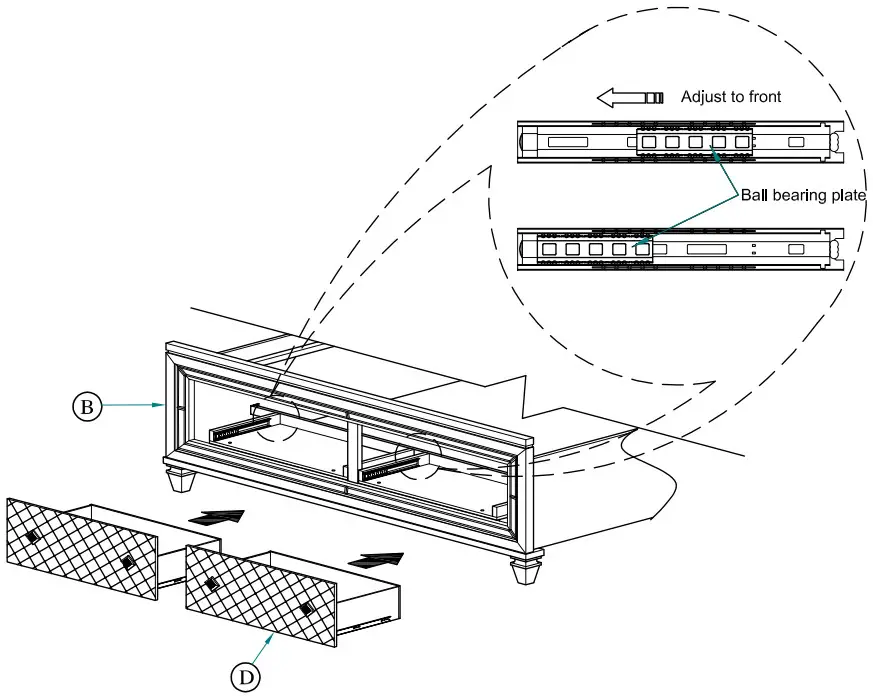

Step to install the drawer on the drawer base panel:
***prefer 2 person to install the drawer
- Adjust the ball bearing plate to the front as a diagram shows.
- Then attach the drawer to the drawer base panel and install with carefully.
Step 7: Insert the ( D) Drawer to the ( B) Footboard.

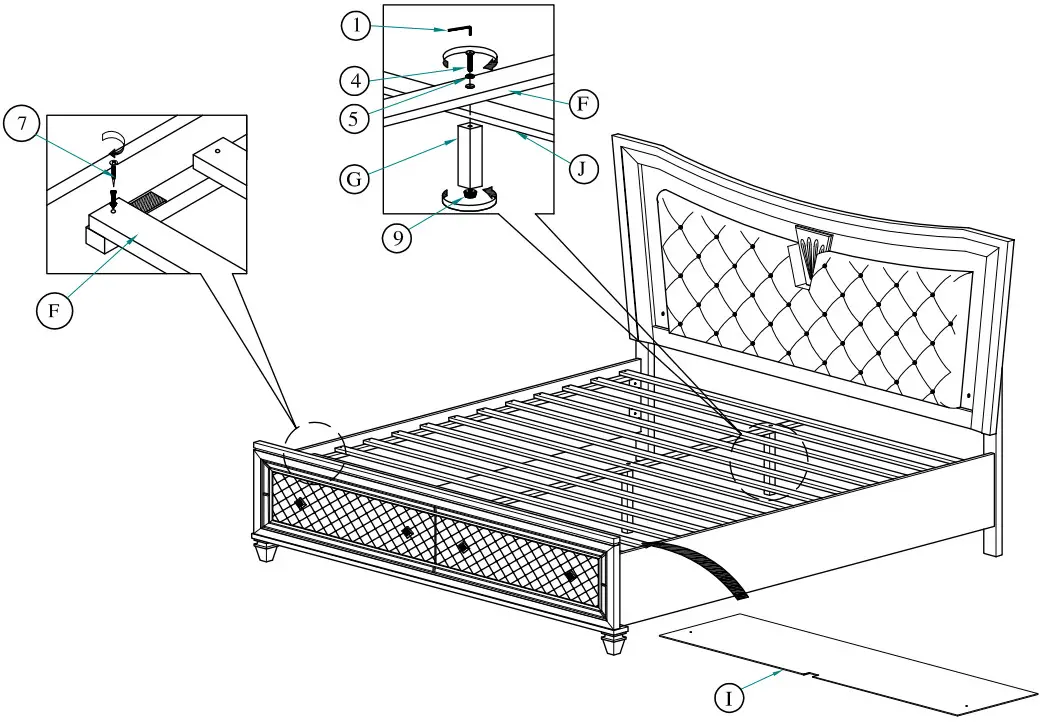

Step 8: Secure the ( F) Roll Slat using the ( 7) Screw 32mm provided.
Step 9; Attach ( G) Slat Support Leg & (J) Center Vertical Slat to the bottom of ( F) Roll Slat using ( 4) JCBC 60mm & (5) M6 Spring Washer. Attach the (9) Adjustable leveller and adjust it to level the bed with the floor.

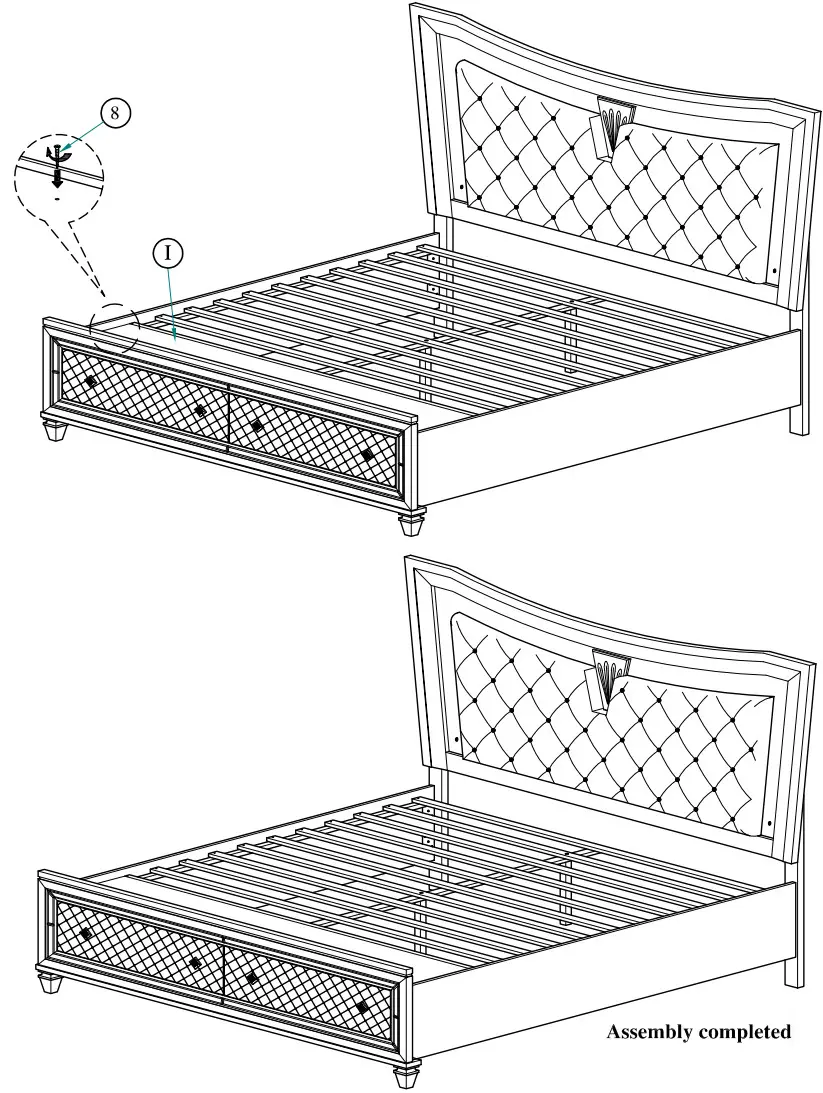

STEP10: Attach the (I) Slat Cover Panel to the top of slat close to the footboard and screw using the ( 8) Screw 16mm provided.

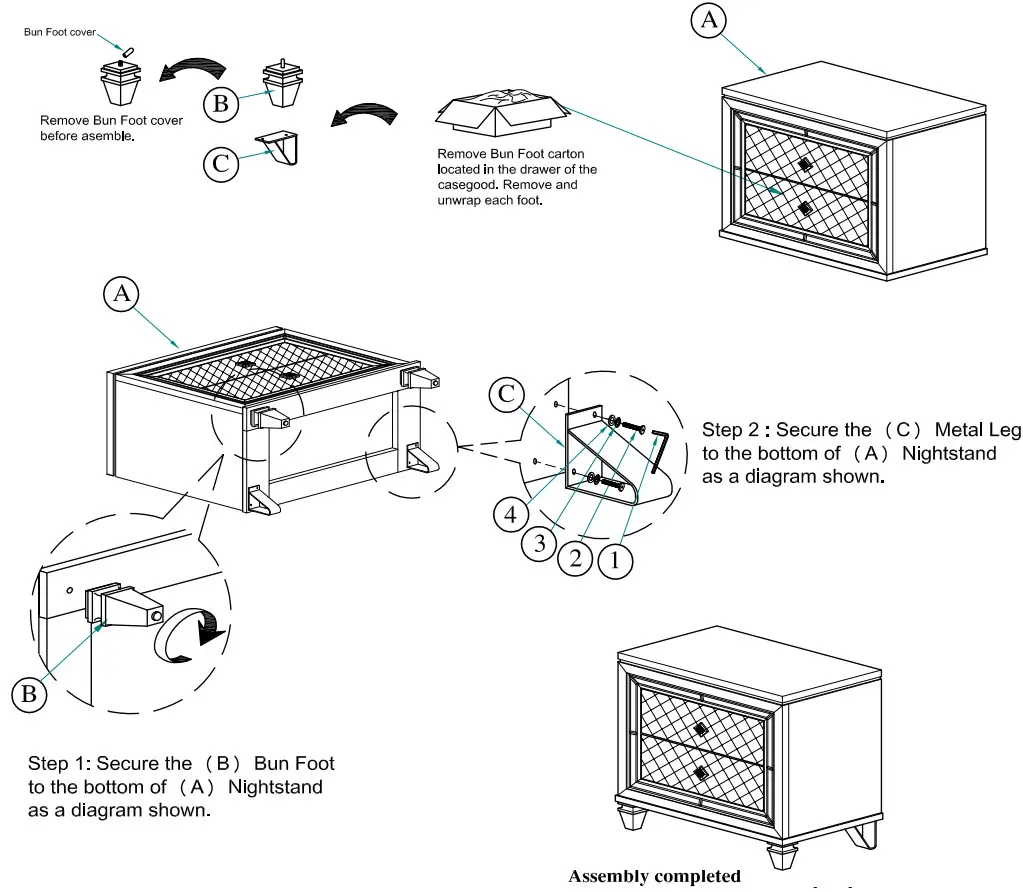

ASSEMBLY INSTRUCTION
MODEL: 9749 VENETIAN
DESCRIPTION: NIGHT STAND
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment.Identify and count all parts and compare with the parts list below.
PART LIST#
| NO | DRAWING | DESCRIPTION | QTY |
| A |  | Night Stand | lpc |
| B | | Bun Foot | 2pcs |
| C | | Metal Leg | 2pcs |
HARDWARE LIST#
| NO | NAME | PART | QTY |
| I | Allen Key | | lpc |
| 2 | JCBC/Boulon – M6 x 20mm | | 4pcs |
| 3 | M6 Spring Washer | | 4pcs |
| 4 | M6 Flat Washer | | 4pcs |

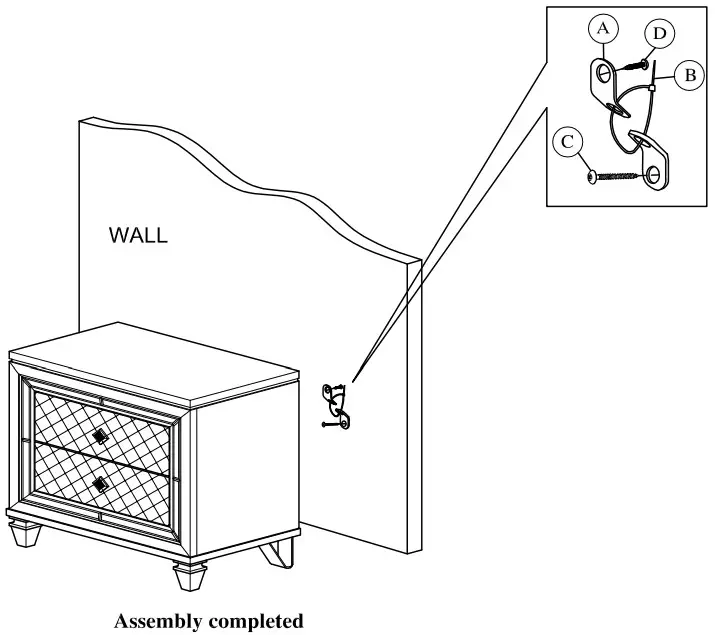

HARDWARE LIST (ANTI TIPPING)
| NO | NAME | PART | QTY |
| A | Bracket | | 2pcs |
| B | Tie Wrap | | lpc |
| C | Long Screw | | lpc |
| D | Short Screw | | lpc |
