Best Quality Furniture 9749 VENETIAN King Headboard LED Light Instruction Manual
ASSEMBLY INSTRUCTION
DESCRIPTION : KING HEADBOARD WILED LIGHT
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment .Identify and count all parts and compare with the parts list below.
PART LIST
| NO | NAME | PART | QTY |
| A | Headboard | lpc | |
| B | Headboard Post – (L/R) | 2pcs |

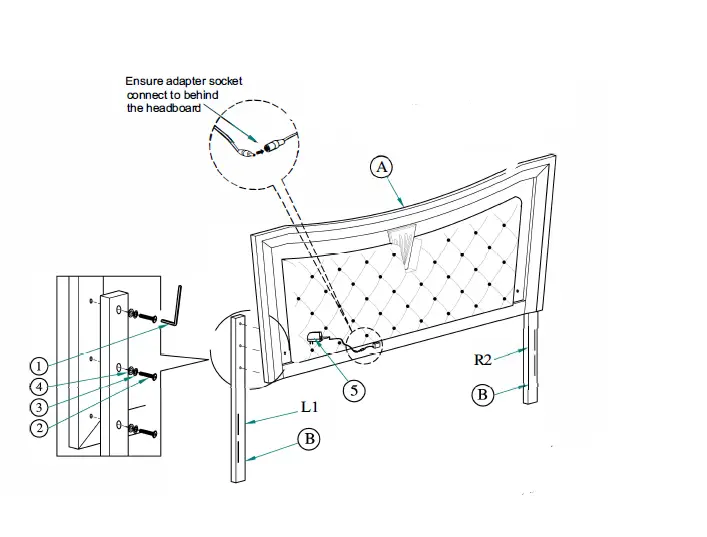

HARDWARE LIST
| NO | NAME | PART | QTY |
| Allen key | r– | lpc | |
| 2 | JCBC40mm | 6pcs | |
| 3 | M6 Spring washer | @ | 6pcs |
| 4 | M6 Flat washer | @ | 6pcs |
| 5 | AC/DC Adapter | lpc | |
| HARDWARE LOCATED IN HEADBOARD BOX | |||
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment .Identify and count all parts and compare with the parts list below.
Step 4:
Attach ( E ) Drawer Base Panel to the ( B) Footboard as diagram shown and tighten using ( 3) JCBC 35mm, ( 5) M6 Spring Washer & ( 10) 1/4″ Flat Washer.
Step 5:
Tighten the ( E) Drawer Base Panel to the ( K) Drawer Support Rail Panel as diagram shown using the ( 3) JCBC 35mm, ( 5) M6 Spring Washer &
( 6) M6 Flat Washer.
Step 6:
Attach ( H ) Drawer Support Leg to the ( K) Drawer Support Rail using ( 3) JCBC 35mm, ( 5) M6 Spring Washer & ( 6) M6 Flat Washer. Attach the ( 9) Adjustable Leveler and adjust it to level the bed with the floor.
Thank you for purchasing this quality product. Be secure to check all packing material carefully for small parts which may have loose inside the carton during shipment .Identify and count all parts and compare with the parts list below.

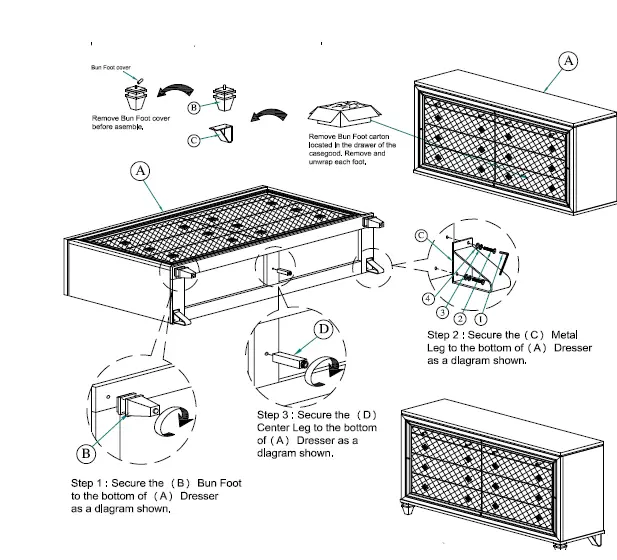

PART LIST
| NO | DRAWING | DESCRIPTION | QTY |
| A | ————— | Dresser | lpc |
| B | Bun Foot | 2pcs | |
| C | Metal Leg | 2pcs | |
| D | Center Leg | lpc |
HARDWARE LIST
| NO | NAME | PART | QTY |
| 1 | Allen Key | lpc | |
| 2 | ICBC I Boulon -M6 x 20mm | 0″” | 4pcs |
| 3 | M6 Spring Washer | @ | 4pcs |
| 4 | M6 Flat Washer | @ | 4pcs |

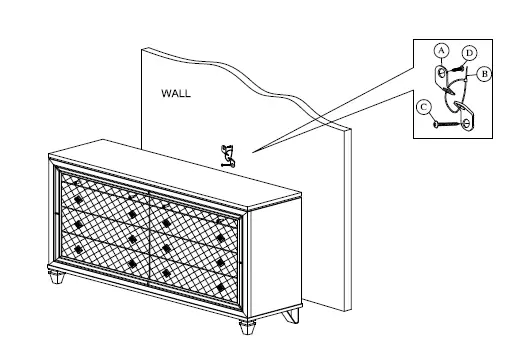

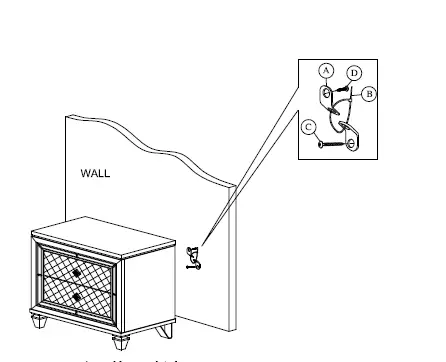

HARDWARE LIST (ANTI TIPPING)
| NO | NAME | PART | QTY |
| A | Bracket | 2pcs | |
| B | Tie Wrap | lpc | |
| C | Long Screw | 0-,,,,.. | lpc |
| D | Short Screw | 0– | lpc |
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have loose inside the carton during shipment. Identify and count all parts and compare with the parts list below.

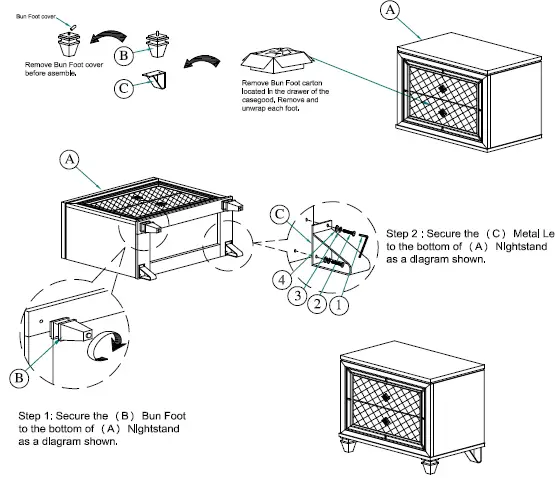

PART LIST
| NO | DRAWING | DESCRIPTION | QTY |
| A | Night Stand | lpc | |
| B | Bun Foot | 2pcs | |
| C | Metal Leg | 2pcs |
HARDWARE LIST
| NO | NAME | PART | QTY |
| 1 | Allen Key | lpc | |
| 2 | ICBC I Boulon -M6 x 20mm | 0″” | 4pcs |
| 3 | M6 Spring Washer | @ | 4pcs |
| 4 | M6 Flat Washer | @ | 4pcs |
HARDWARE LIST (ANTI TIPPING)
| NO | NAME | PART | QTY |
| A | Bracket | 2pcs | |
| B | Tie Wrap | !pc | |
| C | Long Screw | 0,,– | lpc |
| D | Short Screw | 0,,-,,. | lpc |
