ASSEMBLY INSTRUCTIONS
MODEL : 0245A
MADELYN DRESSER
(BOX 1)
BOX OF DRESSER
| NO | ITEM | QTY |
| A | DRESSER | 1 pc |
| B | BUN FOOT | 4 pcs |
| C | BOTTOM CENTER LEG (30 x 30 x 125MM)  | 1 pc |

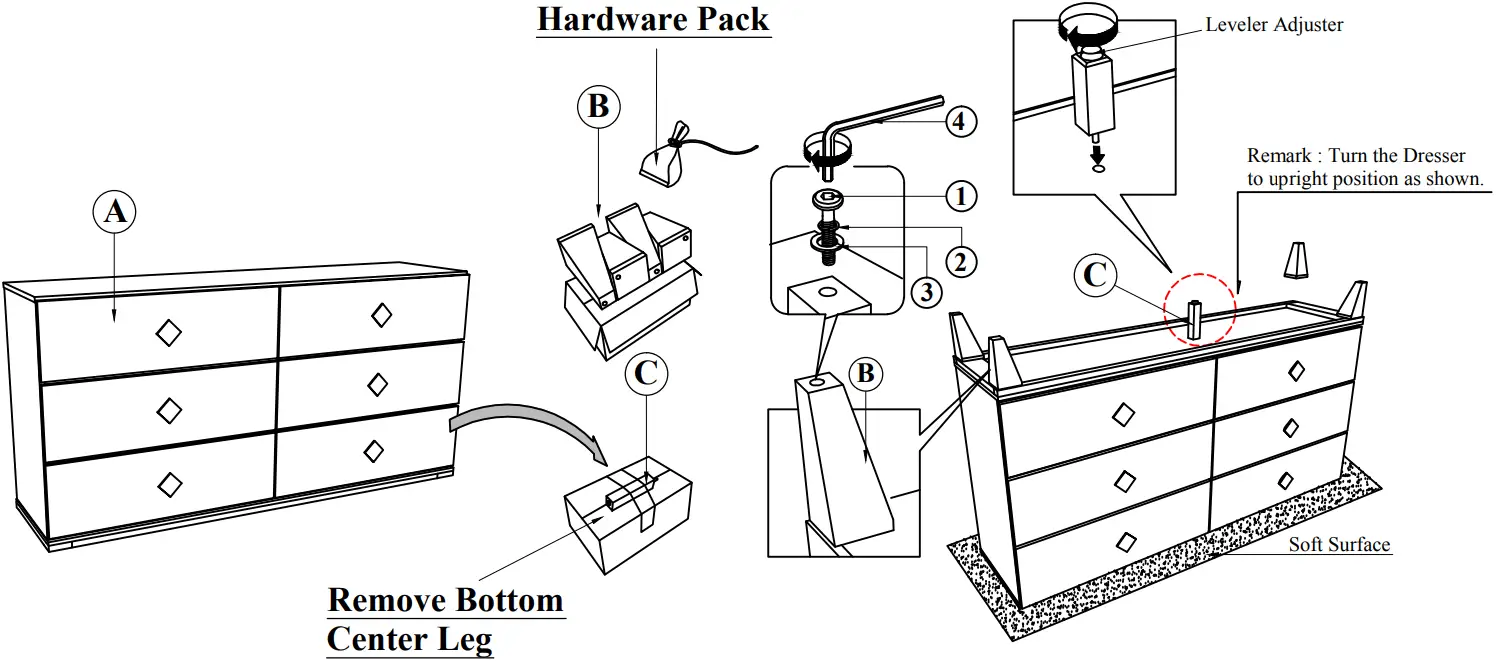

STEP 1 : Pull the bottom drawer and take out the Bunfoot carton ( B ). Assemble the Bun Foot (B) with JCBC Bolt (1),Spring washer (2),Flatwasher (3) and securing with Allen Key (4) as shown.
(BOX 1)
HARDWARE LIST
| NO | ITEM | QTY |
| 1 | JCBC Bolt m6x100mm Blk | 4pcs |
| 2 | Spring Washer 1/4″ Blk | 4pcs |
| 3 | Flat Washer 1/4″IDx13mmOD Blk | 4pcs |
| 4 | Allen Key m4x110mm With Ball Blk | 1 pc |

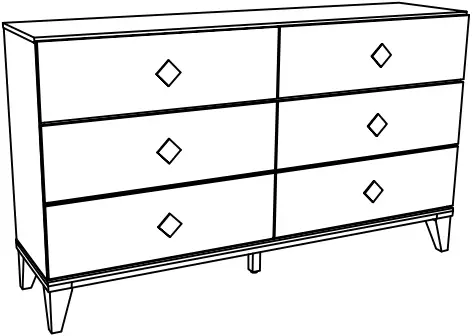

COMPLETED ASSEMBLY
MODEL:0245A
MADELYN DRESSER & MIRROR
(Box 1)
BOX OF MIRROR
| NO | ITEM | QTY |
| A | MIRROR | 1 PC |
(Box. 2)
BOX OF DRESSER
| NO | ITEM | QTY |
| B | DRESSER | 1 PC |
| C | MIRROR SUPPORT | 2 PCS |
STEP 1 : Cut of the Raffia String from the back of DRESSER ( B ).

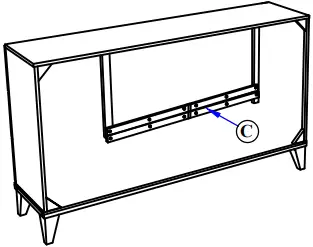

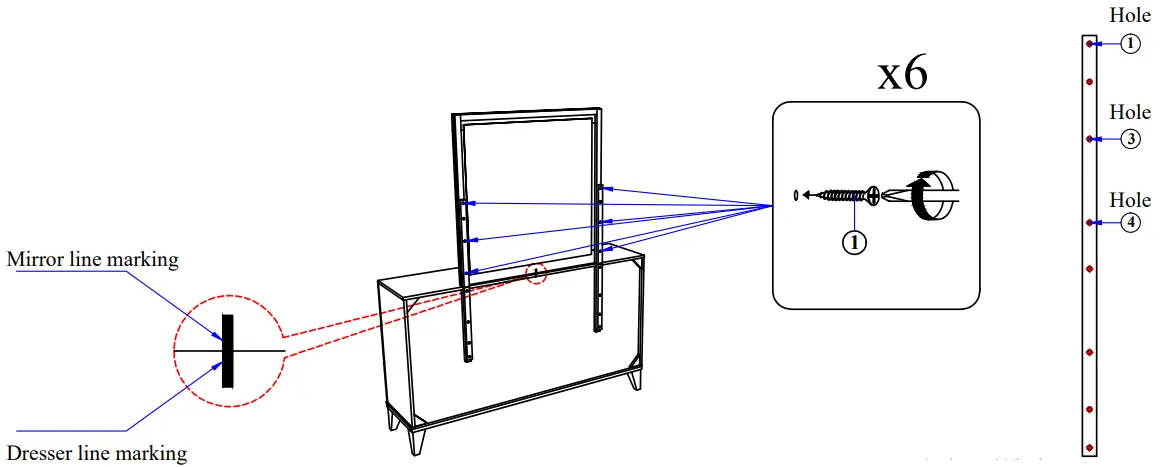

STEP 2 : Place the MIRROR FRAME (A) on the top of DRESSER (B), turn the MIRROR SUPPORT RAIL (C) upward at the back of DRESSER (B), then Tighten with CSK SCREW (1).
MAKE SURE ARROW FACE TO FACE
(Box. 1)
HARDWARE LIST
| NO | ITEM | QTY |
| 1 | Flat Head Chipboard Screw m4x32mm Rbw | 10 PCS |

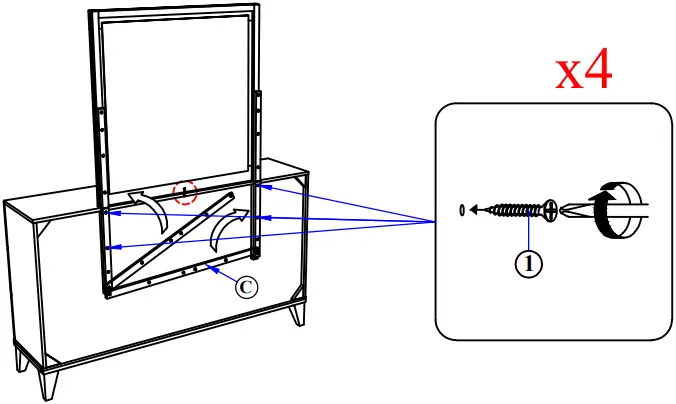

STEP 3 : Tighten the CSK Screw (1) as shown.

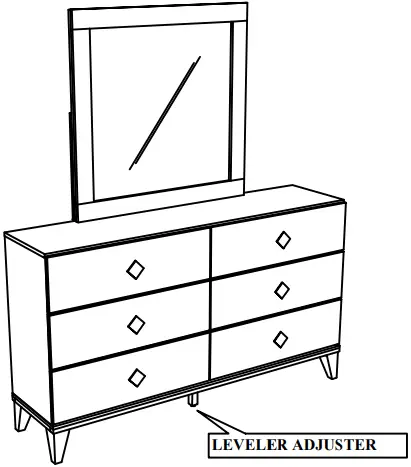

COMPLETED ASSEMBLY
MODEL : 0245A
MADELYN NIGHT STAND
(BOX 1)
BOX OF NIGHT STAND
| NO | ITEM | QTY |
| A | NIGHT STAND | 1 pc |
| B | BUN FOOT | 4 pcs |

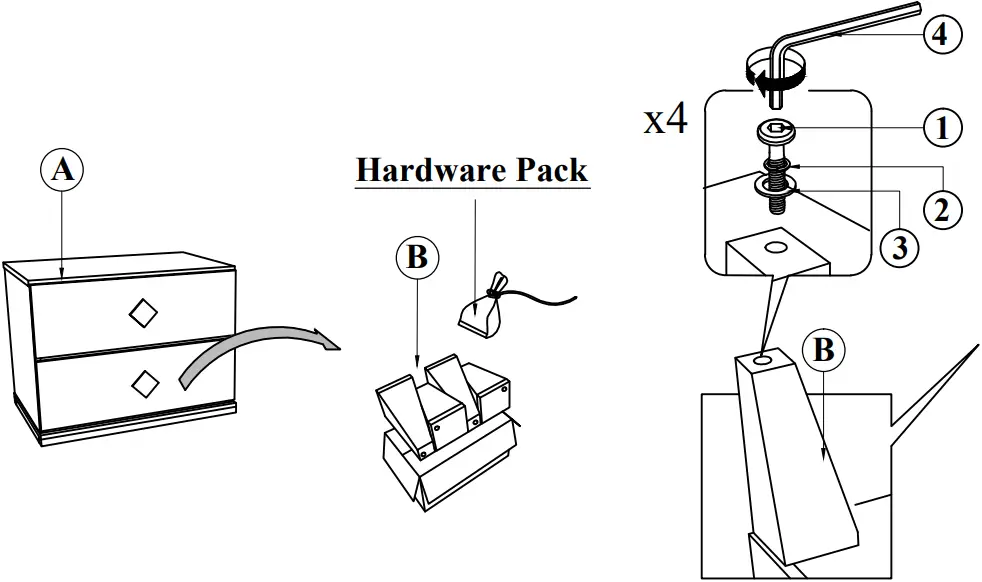

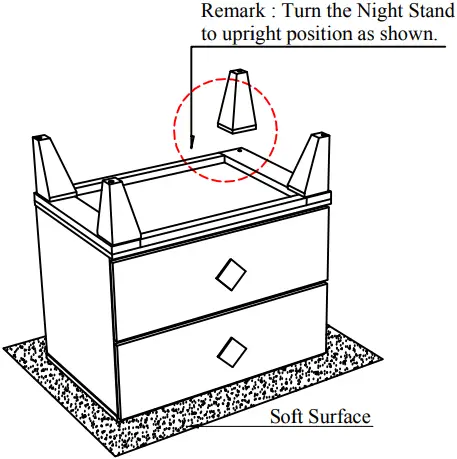

STEP 1 : Pull the bottom drawer and take out the Bunfoot carton ( B ). Assemble the Bun Foot (B) with JCBC Bolt (1),Spring washer (2),Flatwasher (3) and securing with Allen Key (4) as shown.
(BOX 1)
HARDWARE LIST
| NO | ITEM | QTY |
| 1 | JCBC Bolt m6x100mm Blk | 4pcs |
| 2 | Spring Washer 1/4″ Blk | 4pcs |
| 3 | Flat Washer 1/4″IDx13mmOD Blk | 4pcs |
| 4 | Allen Key m4x110mm With Ball Blk | 1 pc |

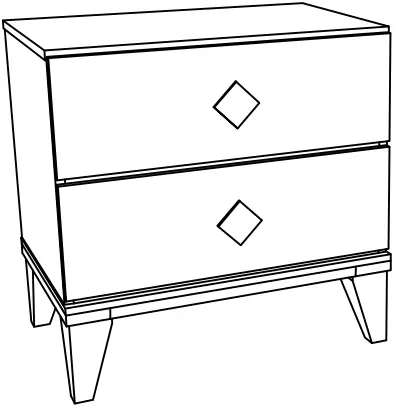

COMPLETED ASSEMBLY
MODEL : 0245A
MADELYN FULL BED (4+4)
(Box 1)
BOX OF HEADBOARD & FOOTBOARD
| NO | ITEM | QTY |
| A | Headboard | 1 pc |
| B | Footboard | 1 pc |
| C | Headboard Leg | 2 pcs |
| D | Bed Slats | 4 pcs |
| E | Bed Slats Support | 4 pcs |
| F | Side Rail(A)-Left | 2 pcs |
| G | Side Rail(B)-Right | 2 pcs |
| H | Bed Side Rail Leg | 2 pcs |
STEP 1.1 : Attach Head Board Leg ( C ) to Head Board ( A ) as shown using JCBC BOLT( 1 )with Spring Washer (2), Flat washer (3)and securing with ALLEN KEY ( 4 ) .
STEP 1.2 : Fix the other holes with Csk Screw (6) as shown.
(Box 1)
HARDWARE LIST
| NO | ITEM | QTY |
| 1 | JCBC M6 x 35mm | 12pcs |
| 2 | SPRING WASHER ¼”Rbw | 12pcs |
| 3 | Flat Washer 1/4″ID x 13mmOD Blk | 12pcs |
| 4 | ALLEN KEY m4x65mm Blk | 1 pc |
| 5 | ALLEN KEY m5x65mm Blk | 1 pc |
| 6 | Flat Head Chipboard Screw m4x32mm Rbw | 16pcs |

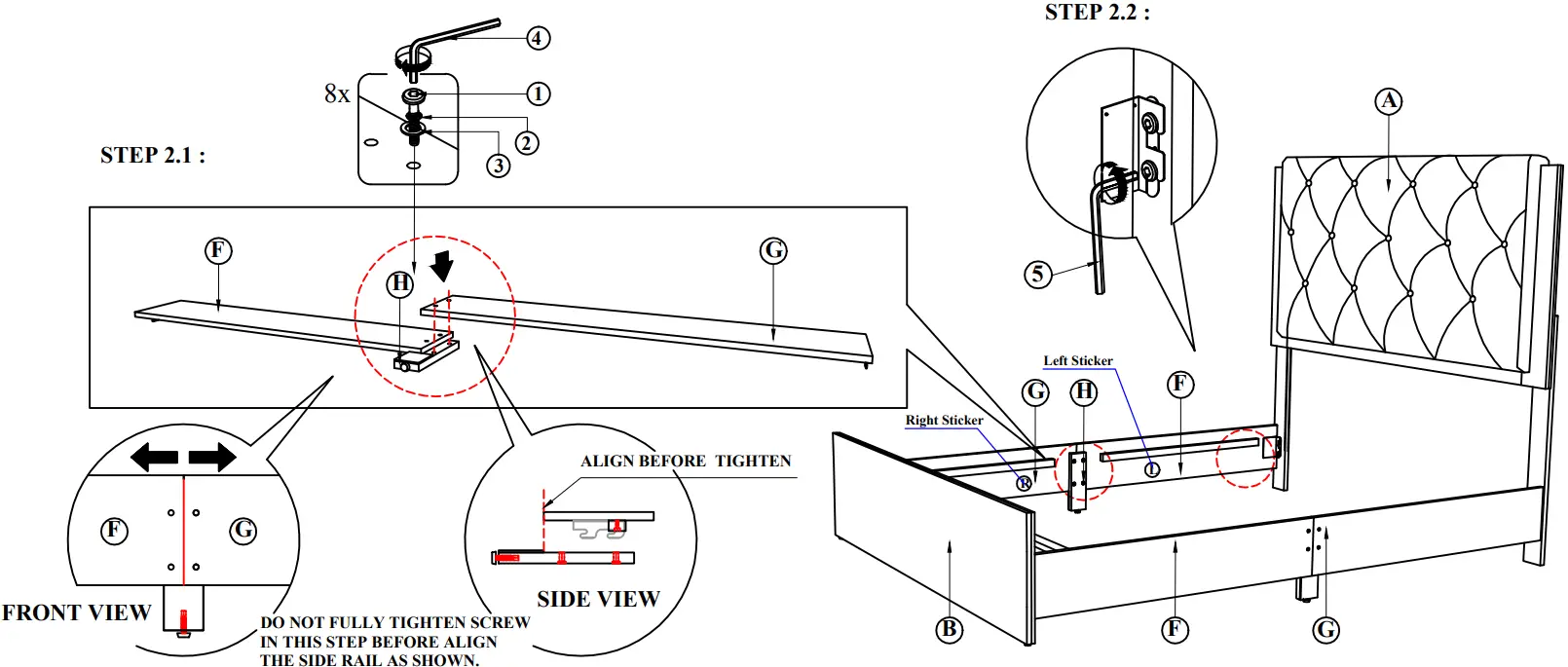

STEP 2.1 : Attach Side Rail ( F ) & ( G ) to the Bed Side Rail Leg ( H ) as shown using JCBC BOLT( 1 )with Spring Washer (2),Flat washer (3)and securing with ALLEN KEY ( 4 ) by outside side rail (F) & (G) .
STEP 2.2 : Hook SET-UP SIDE RAIL TO HEAD BOARD (A) closely and push down to fit. repeat step 2 with other end of rail to hook onto FOOTBOARD (B).

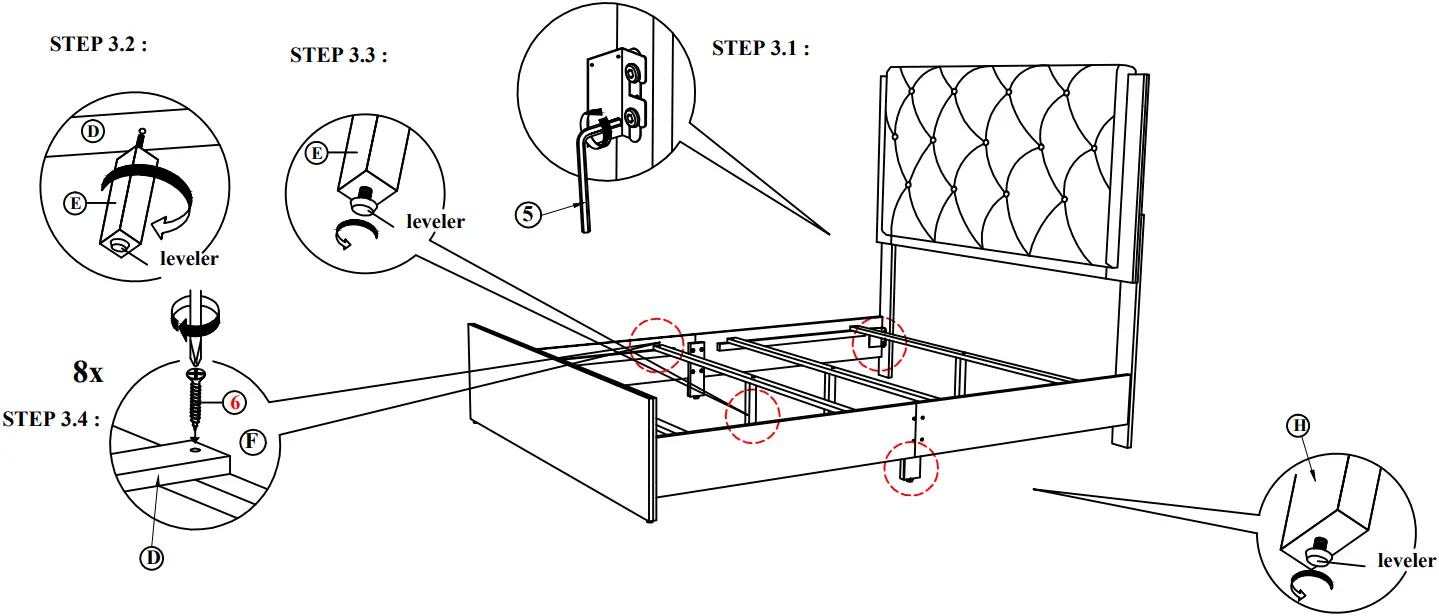

STEP 3 : Tighten the 4 Corner with Allen Key (5).Fix the Bed Slat Support Leg (E ), to Bed Slat (D) as shown . Install the bed slat ( D ) to side rail ( F ) & ( G ) and tighten with Csk Screw ( 6 ) as per diagram shown. (NOTE: THE SETUP MUST DONE AT THE DECIDED LOCATION FOR THE BED TO OBTAIN PERFECT STABILITY)
Push the side rail(F) & (G) meet with wooden slat(D) and fix the CSK screw (6) by using the Screw Driver.

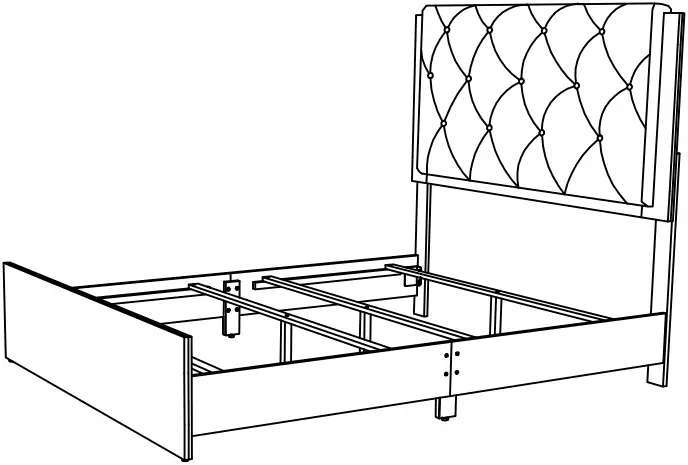

COMPLETE ASSEMBLY
NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS.
