TAGARNO LOGOZap Stand Flexible Digital Microscope
User ManualTAGARNO Zap Stand Flexible Digital Microscope

Zap Stand Flexible Digital Microscope

Go to tagarno.com/productmanuals to find manuals and tutorial videos.

INTENDED USE

The product is a digital magnifying system consisting of a camera unit, PCBs, mechanical parts and a power supply. The product is intended for marketing worldwide and is designed for manual visual inspection.

WARNINGS

warning 2 Read all safety information before you use the product.
Please pay attention when you see a warning label on the product.
TAGARNO Zap Stand Flexible Digital Microscope - ICON 1 This product is for indoor use only.
WEE-Disposal-icon.pngYou must not discard this electrical/electronic product in domestic household waste.
Please dispose at your local recycling centre.

  1. Read the manual before you use the product
  2. Use the product only as specified, or the protection supplied by the product can be compromised
  3. Do not position the equipment so that it is difficult to operate the disconnecting device (appliance inlet of external power supply, equipment input connector)
  4. If fluids are spilled on the product, turn the system off immediately by pulling the power supply out of the electrical outlet
  5. In case of fire close to the microscope, please turn off and disconnect the system
  6. Avoid subjecting the lens to sharp or hard objects
  7. Please do not connect the microscope, if visible damages appear
  8. Do not dismantle any parts of the microscope, except where noted in the manual
  9. Never disassemble or clean internal optical surfaces
  10. Use only the power supply provided from TAGARNO
  11. Always turn off the system before unplugging, when possible

LASER POINTER WARNING

This product is equipped with a red laser pointer to enable easy alignment of the camera and areas of interest during the inspection process. This product is a Class 2 laser product that complies with IEC60825-1 international standard for lasers.
warning 2 CAUTION
Follow these safety instructions when using the product.

  • Never look directly into the laser aperture
  • Do not point towards anyone deliberately
  • Leave the laser on only when necessary
  • Always turn off power during service and maintenance
  • Service may only be performed by trained personnel appointed by TAGARNO

These labels appear visible on the product:
This label is placed near the laser aperture
The label below is placed on the camera head

TAGARNO Zap Stand Flexible Digital Microscope - ICON 2

YOU HAVE RECEIVED

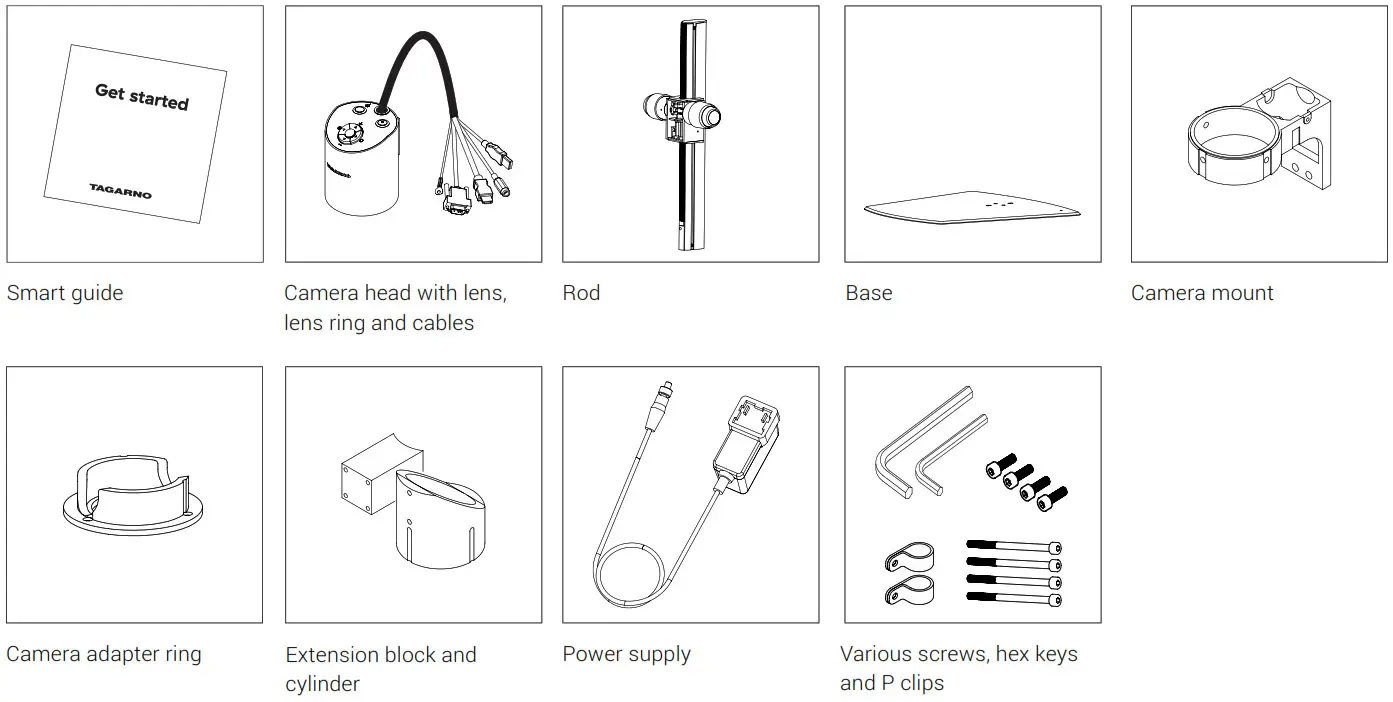

  • ZAP STAND / ZAP STAND UPGRADE KIT TAGARNO Zap Stand Flexible Digital Microscope - ICON 3

TAGARNO Zap Stand Flexible Digital Microscope - UPGRADE KIT

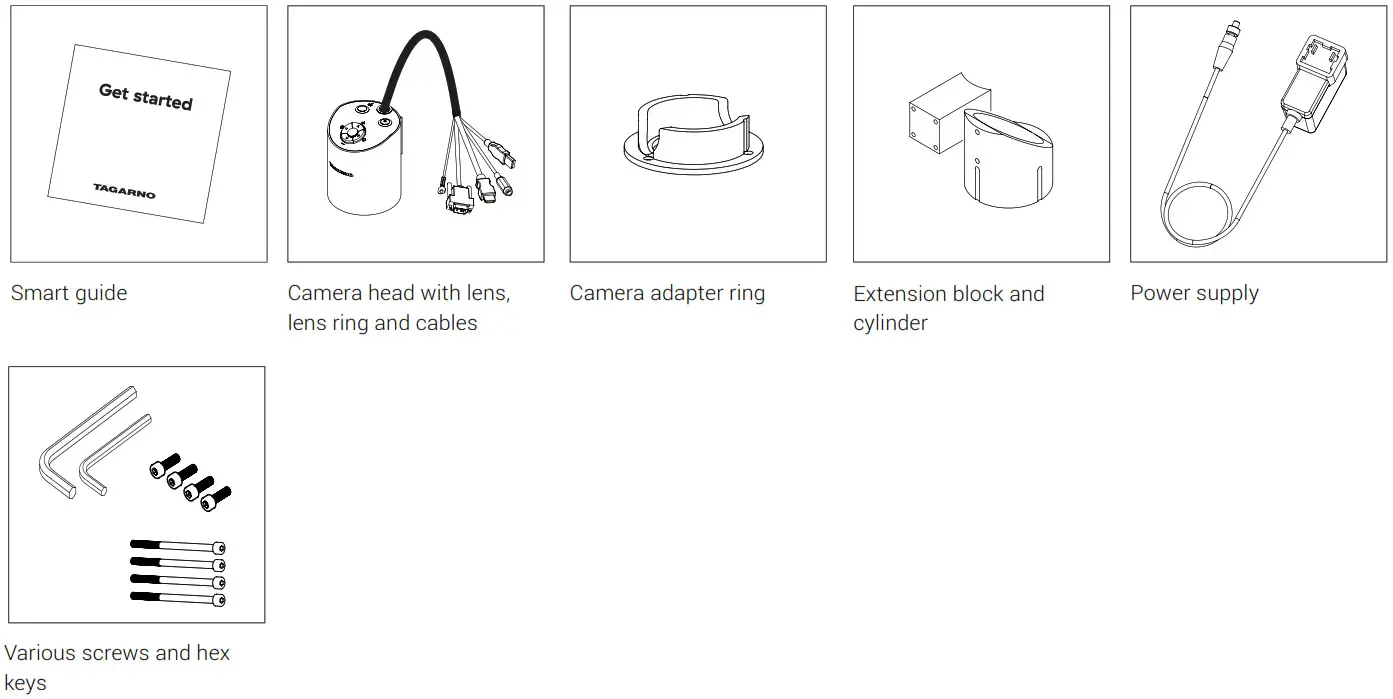

  • ZAP WITH Ø76 ADAPTER KITTAGARNO Zap Stand Flexible Digital Microscope - ICON 4

TAGARNO Zap Stand Flexible Digital Microscope - ADAPTER KIT

ASSEMBLING – ZAP STAND OR ZAP STAND UPGRADE KIT

ASSEMBLING | ZAP STAND OR ZAP STAND UPGRADE KIT (1/3)

TAGARNO Zap Stand Flexible Digital Microscope - UPGRADE KIT 1TAGARNO Zap Stand Flexible Digital Microscope - UPGRADE KIT 2
If you have a ZAP camera head already mounted on a flexarm, start by disassembling it by following the ZAP FLEX and ZAP INLINE manual.

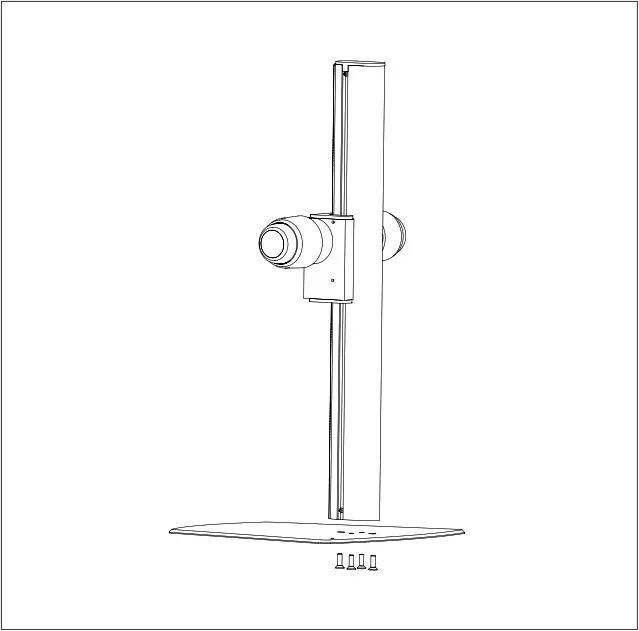

Then, assemble the base and rod with four M5x16 countersunk screws (bag 1) and place the assembled stand on a sturdy table.

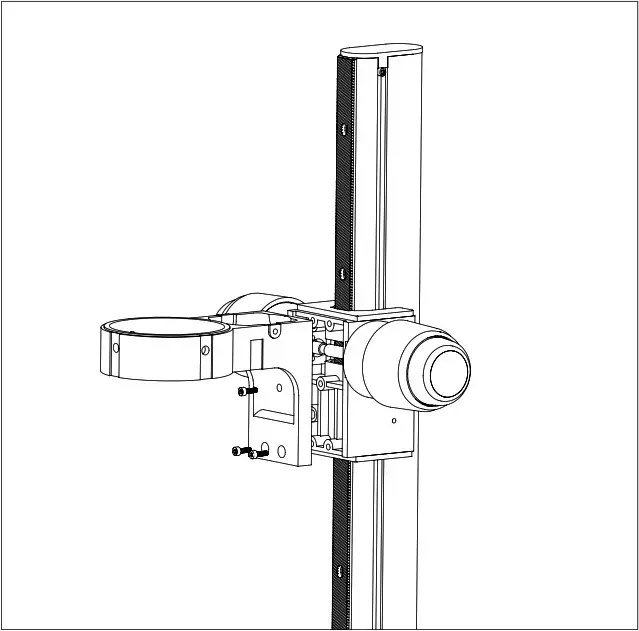

Attach the camera mount to the rod with the three M4x12 screws(bag 1).

OPTION 1: WITH EXTENDED CAMERA ARM

TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 1TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 2
Mount the extension block on the camera head by using the four M4x60 screws (bag 2).Mount the extension cylinder to the extension block with the twoM4x10 screws (bag 2).

ASSEMBLING | ZAP STAND OR ZAP STAND UPGRADE KIT (2/3)

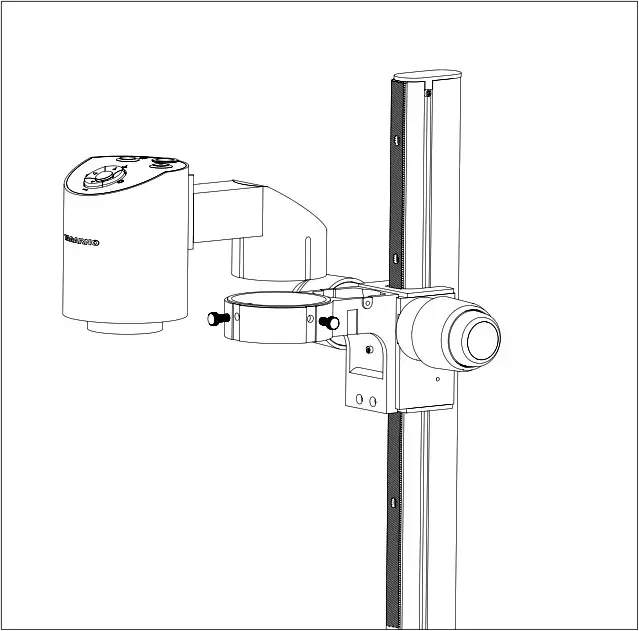

TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 3TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 4

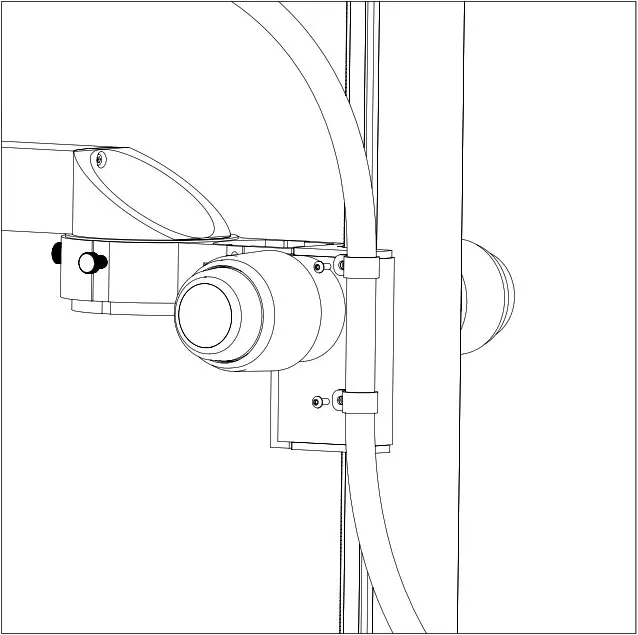

Place the extended camera arm with mounted camera in the camera mount and tighten the front and side finger screws (bag 3).Secure the cable bundle with the two P clips (bag 3). If you’re using a US model, make sure to unmount lens protection cap when using this microscope.

OPTION 2: WITH CAMERA DIRECTLY IN CAMERA HOLDER

TAGARNO Zap Stand Flexible Digital Microscope - CAMERA HOLDER 1TAGARNO Zap Stand Flexible Digital Microscope - CAMERA HOLDER 2

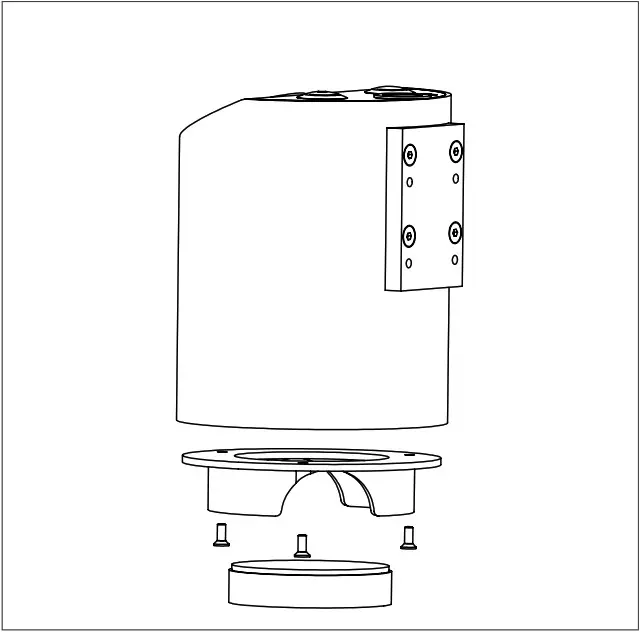

Unscrew the lens with your hands and remove the lens ring by unscrewing the three M3x6 screws.Screw the camera adapter ring on the camera with the three countersunk M3x10 screws (bag 4). For correct assembly, the laser label on the adapter ring must be placed next to the laser itself.
Then, rescrew the lens on the camera.

ASSEMBLING | ZAP STAND OR ZAP STAND UPGRADE KIT (3/3)

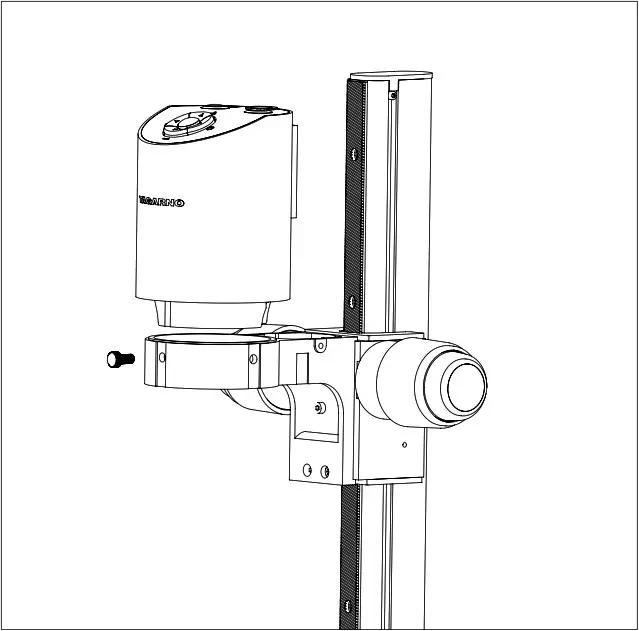

TAGARNO Zap Stand Flexible Digital Microscope - CAMERA HOLDER 3TAGARNO Zap Stand Flexible Digital Microscope - CAMERA HOLDER 4

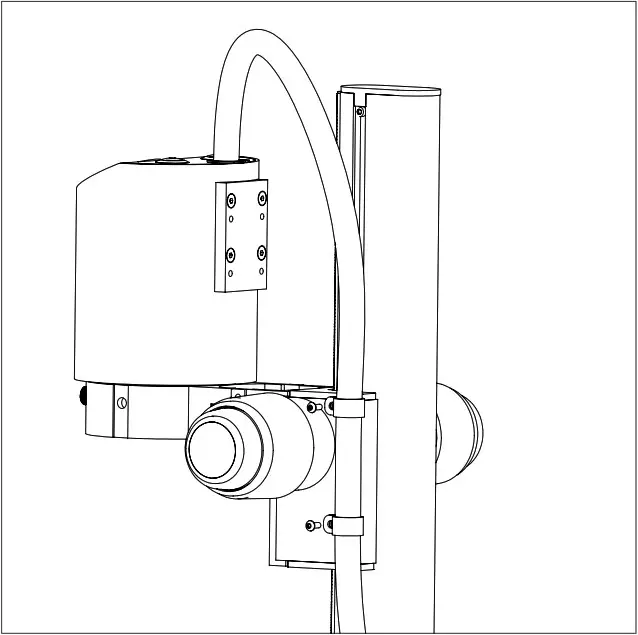

Place the camera in the camera mount before tightening the front finger screw (bag 3).Secure the cable bundle with the two P clips (bag 3). If you’re using a US model, make sure to unmount lens protection cap when using this microscope.

ASSEMBLING – ZAP WITH Ø76 ADAPTER KIT

ASSEMBLING | ZAP WITH Ø76 ADAPTER KIT (1/3)

TAGARNO Zap Stand Flexible Digital Microscope - ADAPTER KIT 1

Start by removing the microscope head form your current setup, using the manufacturer’s manual.
OPTION 1: WITH EXTENDED CAMERA ARM

TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 6TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 7

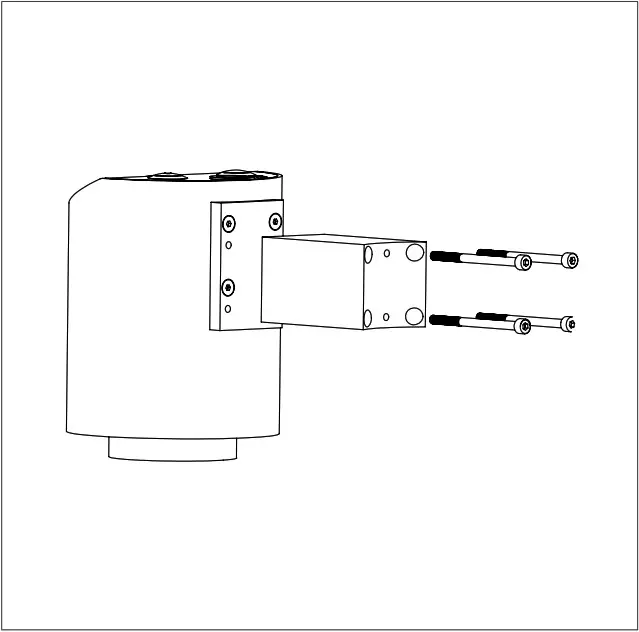

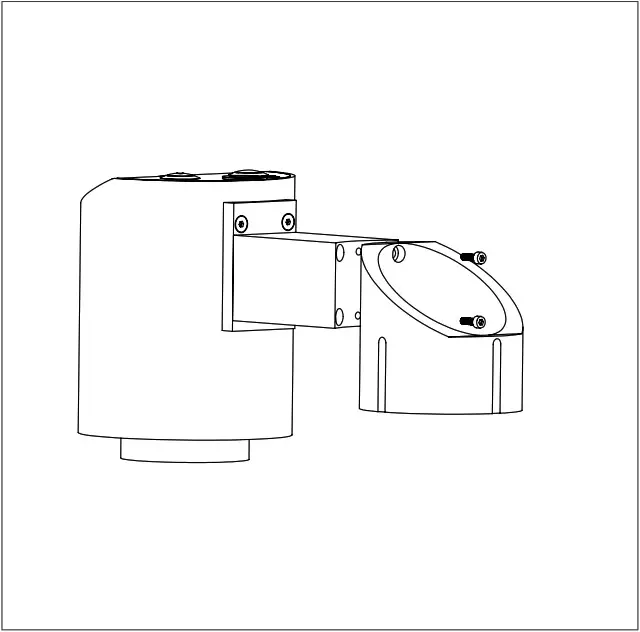

Then, mount the extension block on the camera head by using the four M4x60 screws (bag 1).Mount the extension cylinder to the extension block with the two M4x10 screws (bag 1).

ASSEMBLING | ZAP WITH Ø76 ADAPTER KIT (2/3)

TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 8TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 9
Place the extended camera arm with mounted camera in the camera mount and tighten the front and side finger screws (bag 2).IMPORTANT! Laser beam attenuator. Unmount lens protection cap when using this microscope.

OPTION 2: CAMERA DIRECTLY IN HOLDER

TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 10TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 11

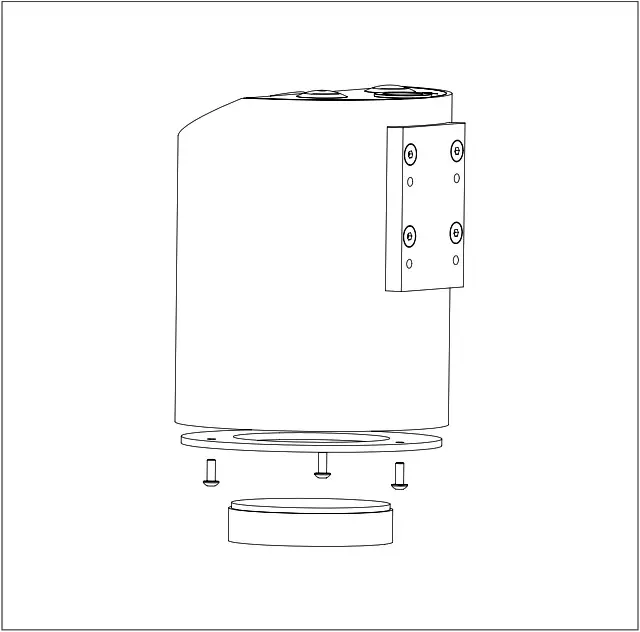

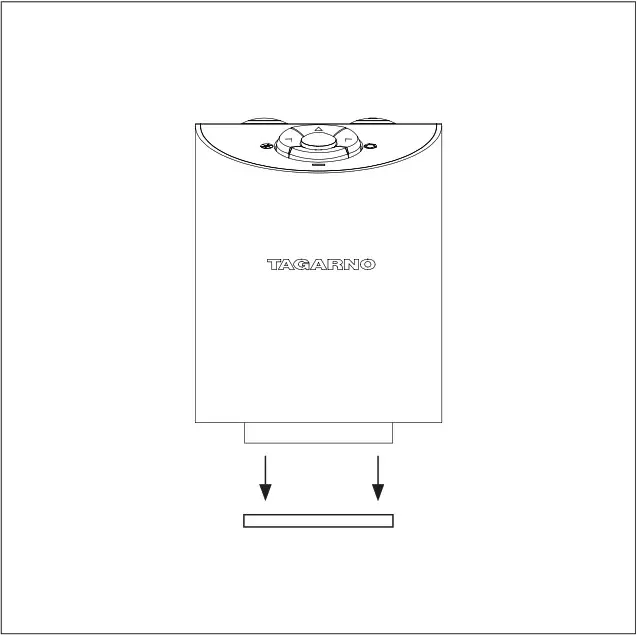

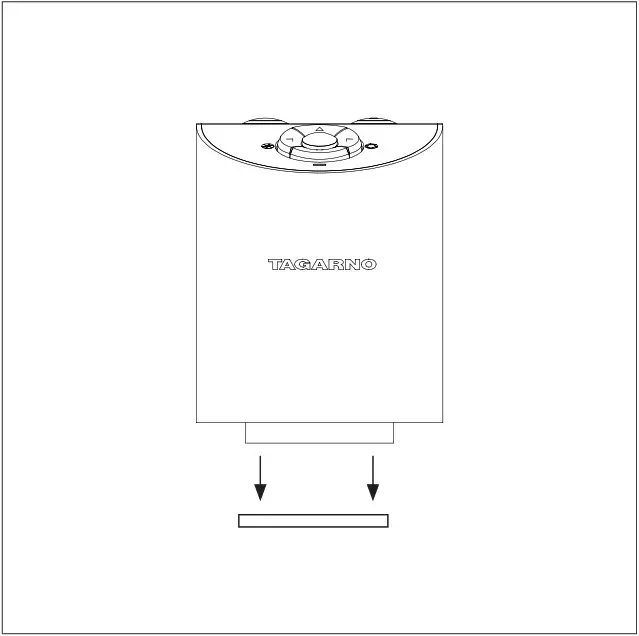

Unscrew the lens with your hands and remove the lens ring by unscrewing the three M3x6 screws.Screw the camera adapter ring on the camera with the three countersunk M3x10 screws (bag 3). For correct assembly, the laser label on the adapter ring must be placed next to the laser itself.
Then, rescrew the lens on the camera.

ASSEMBLING | ZAP WITH Ø76 ADAPTER KIT (3/3)

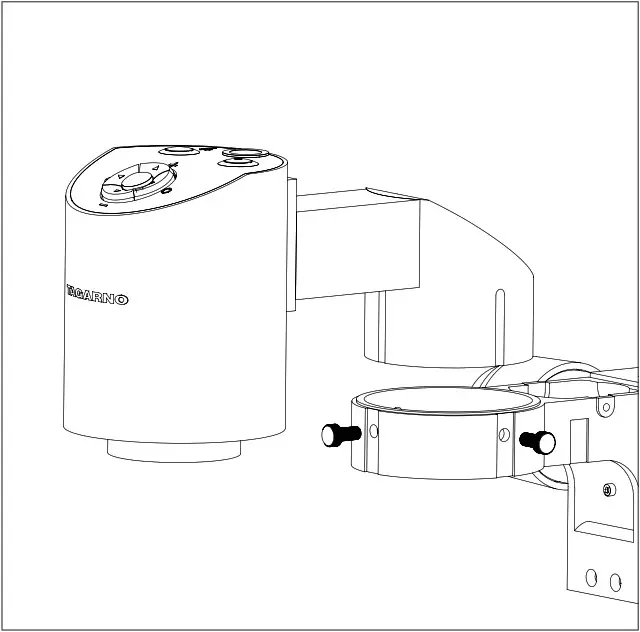

TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 12TAGARNO Zap Stand Flexible Digital Microscope - CAMERA ARM 13
Place the extended camera arm with mounted camera in the camera mount and tighten the front and side finger screws (bag 2).IMPORTANT! Laser beam attenuator. Unmount lens protection cap when using this microscope.

CONNECTING

CONNECTING (1/2)

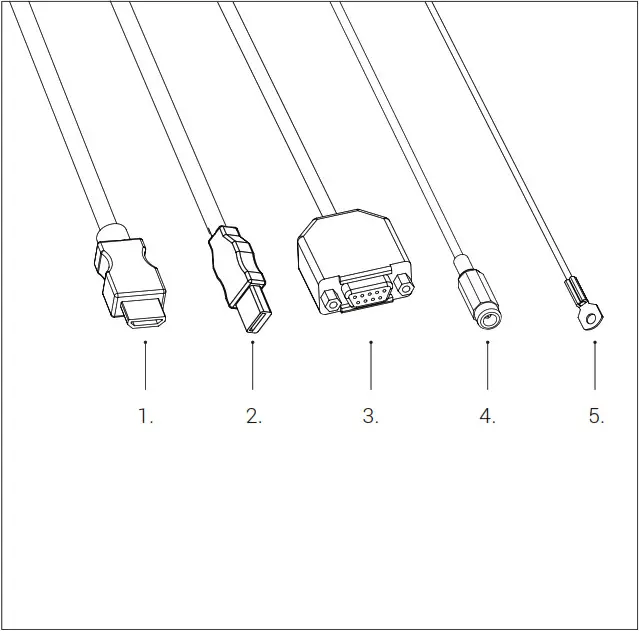

TAGARNO Zap Stand Flexible Digital Microscope - CONNECTING 1TAGARNO Zap Stand Flexible Digital Microscope - CONNECTING 2
Connect HDMI cable (1), USB 3.0 cable (2), control box or foot switch (3), power supply (4) and ESD – Electro Static Discharge (5).
WARNING! Do not use force when inserting the cable plugs.

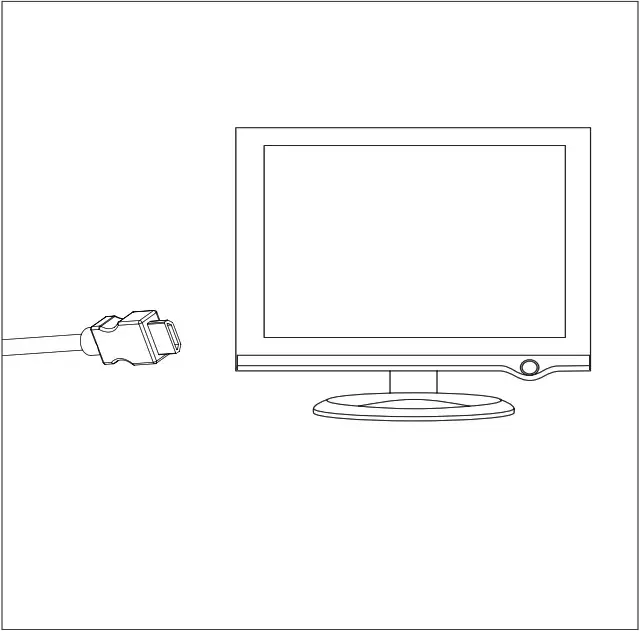

Connect HDMI cable from the microscope to a monitor.
WARNING! Do not connect the HDMI cable to a PC.
WireDescriptionTypeConnect toCable lengthSpecification
1OutputHDMI Type AMonitor2700mmHDMI out 720p50, 720p60, 1080p25, 1080p30, 1080p50, 1080p60
2USB 3.0 outputUSB 3.0 Type AComputer2700mmUSB 3.0 Device, Self-powered
3Control box or foot switchD-SUB 9-Pin FemaleControl box or foot switch3000mmOutput: 3.3V 330pA
warning 2 Use only control boxes supplied by TAGARNO

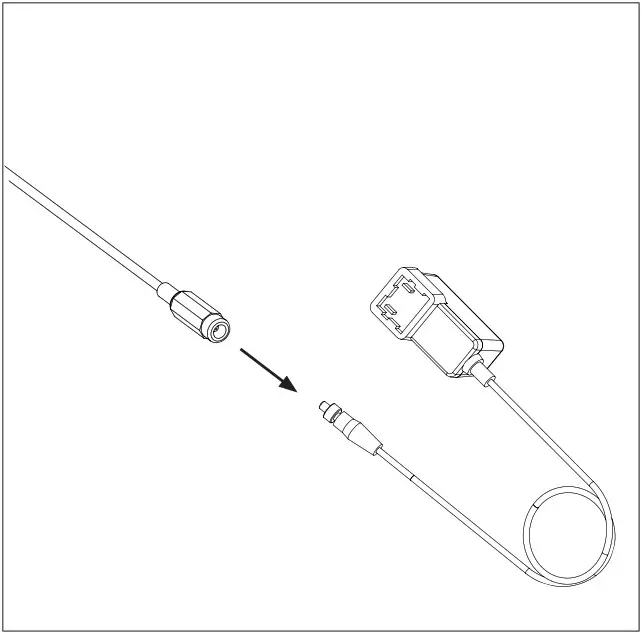

4Power supply (DC)DC JackPower socket3000mmInput: 12V 0.5A
warning 2 Use only the power supply provided by TAGARNO:
Brand/Model: Mean Well/GEM18112
Protection class II
Input: 100-240V ∼ 0.45-0.2A, 50/60Hz Overvoltage category II
Output: 12V 1.5A Max
5ESDRing Terminal ConnectorESD Grounding point3000mmESD Grounding point

* Note: If you’re using the foot switch, connect the cable to the foot switch and then connect the footswitch and control box.
CONNECTING (2/2)

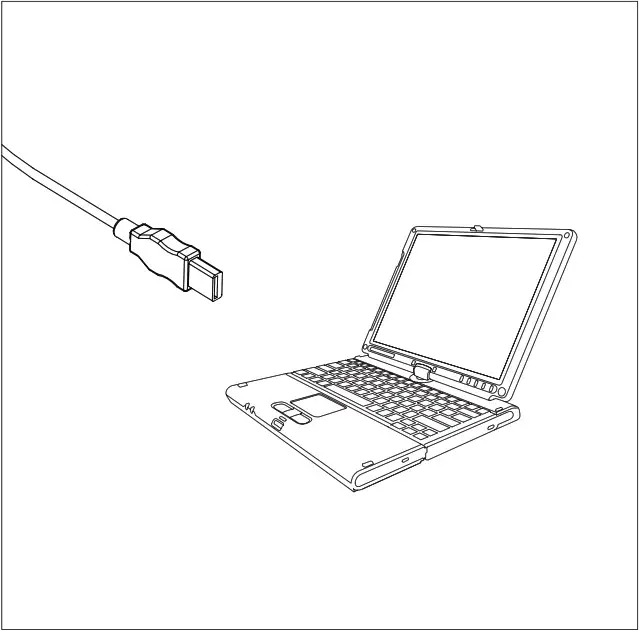

TAGARNO Zap Stand Flexible Digital Microscope - CONNECTING 3TAGARNO Zap Stand Flexible Digital Microscope - CONNECTING 4
Connect USB 3.0 cable from the microscope to a PC.Connect the microscope to the XKEY Control box.

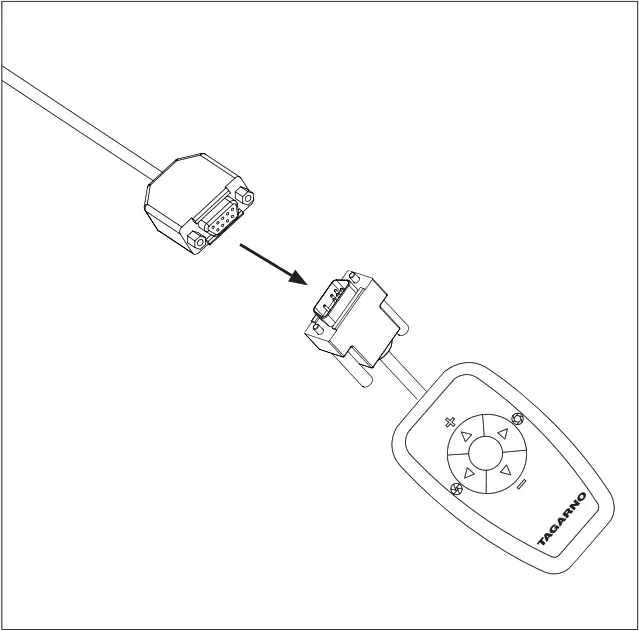

Note: If you’re using the foot switch, connect the cable to the foot switch and then connect the footswitch and control box.
TAGARNO Zap Stand Flexible Digital Microscope - SPECIFICATIONS 3TAGARNO Zap Stand Flexible Digital Microscope - SPECIFICATIONS 4

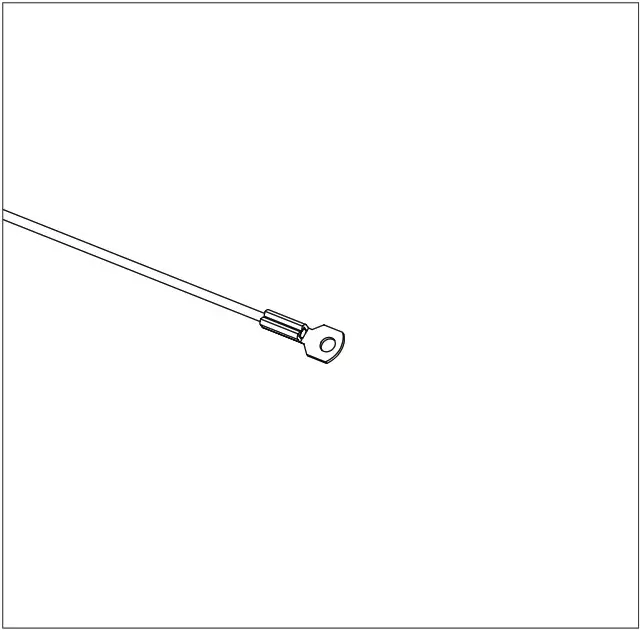

Connect grounding cable to grounding point, to ensure ESD of the microscope.Connect the power supply cable to the power supply battery and then to a electrical outlet.

OPERATION

OPERATION (1/3)

CAMERA HEADXKEY CONTROL BOX
TAGARNO Zap Stand Flexible Digital Microscope - OPERATION 1TAGARNO Zap Stand Flexible Digital Microscope - OPERATION 2

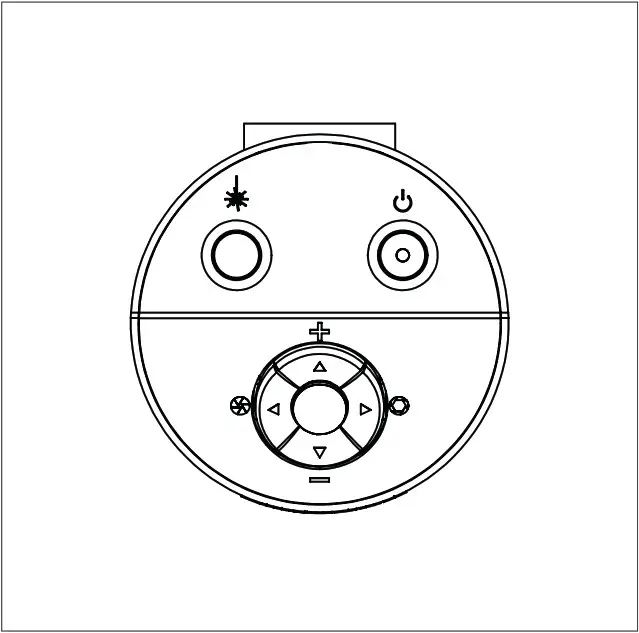

Control buttons for TAGARNO functions.
Do only connect equipment distributed by TAGARNO.

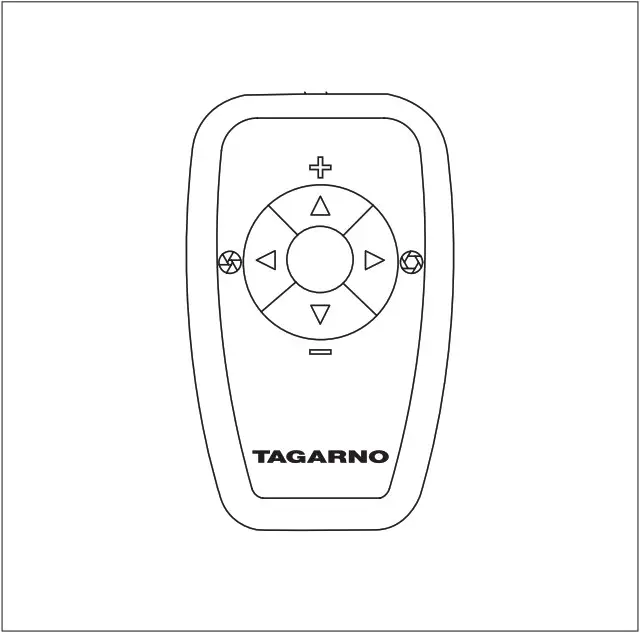

XKEY Control box for TAGARNO functions.
Do only connect equipment distributed by TAGARNO.
TAGARNO Zap Stand Flexible Digital Microscope - ICON 8Turn off/on
TAGARNO Zap Stand Flexible Digital Microscope - ICON 9Laser on/off (WARNING! Laser radiation when turned on)
TAGARNO Zap Stand Flexible Digital Microscope - ICON 10Zoom in
TAGARNO Zap Stand Flexible Digital Microscope - ICON 11 Zoom out
TAGARNO Zap Stand Flexible Digital Microscope - ICON 12Push both plus and minus to change from auto focus to manual focus.  You can now adjust the focus manually by using the plus/minus buttons
TAGARNO Zap Stand Flexible Digital Microscope - ICON 10If you wish to focus on something close
TAGARNO Zap Stand Flexible Digital Microscope - ICON 11If you wish to focus on something further away
TAGARNO Zap Stand Flexible Digital Microscope - ICON 13 Short push switches between Iris, Gain and Preset mode.
TAGARNO Zap Stand Flexible Digital Microscope - ICON 14 Increase Iris/Gain or switch between zoom preset 1, 2 or 3.
TAGARNO Zap Stand Flexible Digital Microscope - ICON 15Decrease Iris/Gain or switch between zoom preset 1, 2 or 3.
To change and save a zoom preset, use zoom buttons to select a zoom level and simultaneously press left/right buttons. OSD will show STORED: PRE(X)
TAGARNO Zap Stand Flexible Digital Microscope - ICON 13Hold for 3 sec. to use auto exposure mode

RESET TO FACTORY SETTINGS
Follow this procedure to change back to factory setting 1080P60.

  1. Turn the microscope off
  2. Press and hold the center button down while turning the power on
  3. Keep holding the center button down for 25 seconds
  4. Release the center button and turn the power off
  5. Turn the power back on and the microscope is set to factory setting 1080P60

OPERATION (2/3)

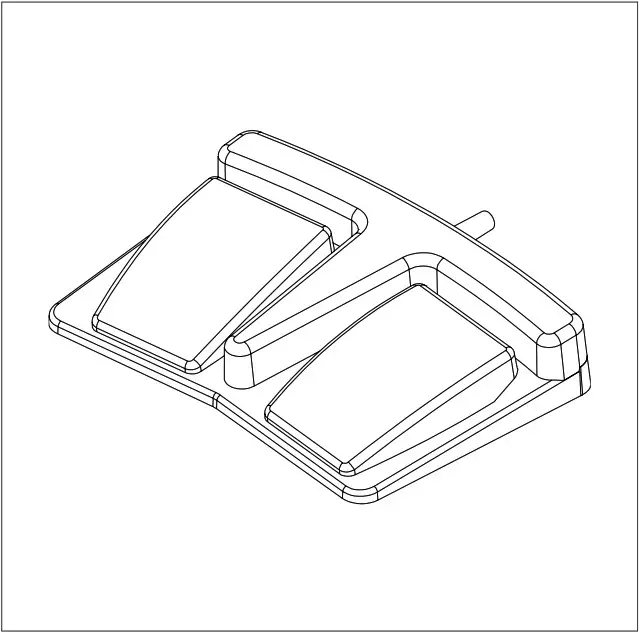

FOOT SWITCH

TAGARNO Zap Stand Flexible Digital Microscope - OPERATION 3

Foot switch for TAGARNO functions.
When in magnification mode:
TAGARNO Zap Stand Flexible Digital Microscope - ICON 10 Zoom in
TAGARNO Zap Stand Flexible Digital Microscope - ICON 11 Zoom out
Change mode:
TAGARNO Zap Stand Flexible Digital Microscope - ICON 12 Push both plus and minus to change from auto focus to manual focus. You can now adjust the focus manually by using the plus/minus buttons
When in focus mode:
TAGARNO Zap Stand Flexible Digital Microscope - ICON 10 If you wish to focus on something close
TAGARNO Zap Stand Flexible Digital Microscope - ICON 11 If you wish to focus on something further away

OPERATION (3/3)

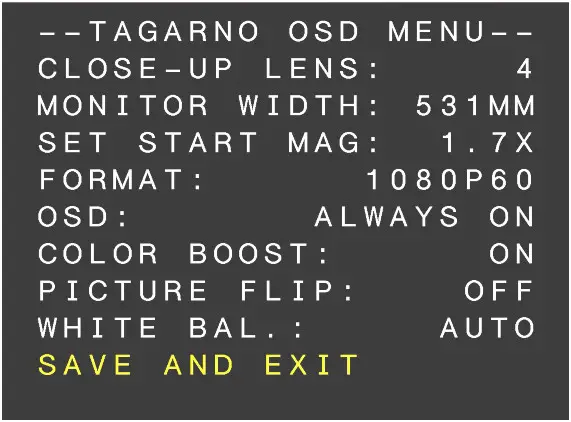

ON SCREEN DISPLAY (OSD)

TAGARNO Zap Stand Flexible Digital Microscope - OPERATION 4

When turning on your FULL HD system, you are informed of the given units, serial number (SN), version and resolution.

  1. Open the OSD menu
    To open the TAGARNO On Screen Display Menu, press and hold the center button for approximately 5 seconds.
  2. Choose lens
    Set the current close-up lens by using the left/right arrows on the CONTROL BOX XKEY. On a TAGARNO FULL HD system, the choice naturally is between LENS +2, +3, +4, +5 or +10. LENS +4 is factory default. Continue using the down arrow.
  3. Choose monitor width
    Press the center button to set up the width of the monitor. You need to measure the horizontal width of the monitor panel on your monitor, Select one digit at a time by using the left/right arrows and adjust the digits with the up/down arrows. Switch between millimeters and inches via the up/down buttons. Monitor 24” FHD is factory default. To store change in settings press the center button.
  4. Set start magnification
    Select which magnification level you need your system to use as start up level. Press the center button and select one digit at a time in the bottom of the page, by using the left/right arrows and adjust the digits with the up/down arrows. By pressing the center button one more time, you have selected the values chosen. Press the down arrow to choose format.
  5. Choose format
    You have the option to switch between different video formats, 1080p 60fps being the highest quality. Select the required format by pressing the center button, and use arrow keys left/right to select between 6 different formats.
  6. Select OSD presets
    You need to choose between respectively ALWAYS ON, OFF or TIMEOUT using the left/right arrows in order to have the OSD Menu displayed continuously, never or for 3 seconds at the time. Continue by pressing the down arrow.
  7. Color boost
    The OSD menu gives you the possibility to choose between two color settings; Color boost on or off, by using the left/right arrows. Which setting chosen, is a matter of individual preferences and the object projected on screen. Continue by pressing the down arrow.
  8. Flip picture
    In the menu you have the possibility to rotate the screen image 180 degrees, or choose the standard view by using the left/right arrows. Choose between the two views by pressing the left/right buttons. Continue by pressing the down arrow.
  9. White balance
    Choose between these settings: AUTO and POWER UP by using the left/right arrows. In AUTO mode the white balance is continuously adjusted to achieve the best color reproduction. In POWER UP mode the white balance calibration is performed only once when the system is turned on. In this mode it’s important that a white sheet of paper is visible in the field of view when the microscope is switched on.
    Continue by pressing the down arrow.
  10. Save presets
    To save your presets and exit the menu, press the center button and thereby return to the image displayed on the monitor, using your recently saved presets.
    If you have changed the various formats, your FULL HD system needs to be restarted. This will be indicated in the bottom if needed.

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS (1/2)

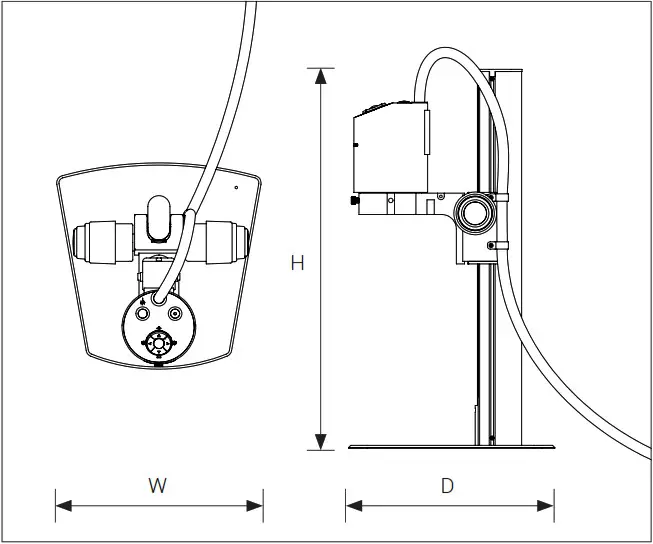

ZAP STAND and ZAP STAND Upgrade kit with Extended camera armZAP STAND and ZAP STAND Upgrade kit with camera directly in mount

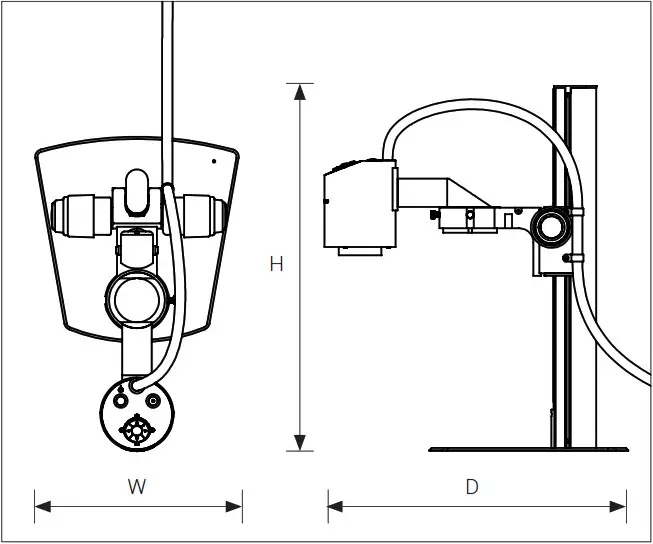

TAGARNO Zap Stand Flexible Digital Microscope - SPECIFICATIONS 1TAGARNO Zap Stand Flexible Digital Microscope - SPECIFICATIONS 2
WITH EXTENDED CAMERA ARMWITH CAMERA DIRECTLY IN MOUNT
Dimensions (HxWxD)515 mm x 280 mm x 430 mm
20.28″ x 11.02″ x 16.93″
515 mm x 280 mm x 280mm
20.28″ x 11.02″ x 11.02″
Working depth, max275 mm / 10.83″120 mm / 4.72″
REGARDLESS OF SETUP
Weight7.3 kg / 16.1 lbs
Work height460 mm / 18.11″
Camera resolutionFHD 1080p, 1920x1080p at 59,94/50/29,97/25Hz
HD 720p, 1280x720p at 59,94/50Hz
Camera zoom30x optical
AutofocusYes
Auto Monitor DetectNo
Power requirementsLine voltage100 – 240V ∼ ± 10%
Line frequency50/60Hz
AC current consumption (typ.)70mA/100V∼ 30mA/240V-
DC current consumption (typ.)0.5A/12V
Environmental conditionsTemperatureStorage -5 to 60°C / 23 to 140°F
Operation 5 to 40°C / 41 to 104°F
Humidity rangeStorage 20 to 90% RH non-condensing
Operation 20 to 80% RH non-condensing
Altitude0 to 2000m / 0 to 6500ft above sea level
Pollution degree2

TECHNICAL SPECIFICATIONS (2/2)

LENSLens to object distance Magnification on 24″ monitor Work depth
+3333 mm/13.22”1.3x – 40.1x590-740 mm/ 23.23-29.13’’
+4 (Included)250 mm/9.84”1.7x – 53x630-760 mm/ 24.80-29.92’’
+5200 mm/7.87”2.2x – 66x640-760 mm/ 25.20-29.92’’
+10 (Plan – 1x)78 mm/3.07”4.3x – 133x635 mm/ 25’’
FIELD OF VIEW                  MAXIMUM                  MINIMUM
LensX-DirectionY-DirectionX-DirectionY-Direction
3409 mm / 16.10’’230.10 mm / 9.06’’13.40 mm / 0.53’’7,54 mm / 0,02’’
4290 mm / 11.42’’163.10 mm / 6.42’’10.50 mm / 0.41‘‘5,91 mm / 0,02’’
5245 mm / 9.65’’137.80 mm / 5.43’’8 mm / 0.32’’4,50 mm / 0.18’’
+10 (Plan -1x)87 mm / 3.42’’48.94 mm / 1.93’’4 mm / 0.16’’2,25 mm / 0.089’’

RECOMMENDED MONITOR FORMAT

Panel format16:9 (Widescreen)
How to linkHDMI input
Response time2 ms
Signal formatFHD 1920×1080

ACCESSORIES

Lens +3, +4, +5 and +10 (Plan – 1x)TAGARNO Ring light White**XY table
Magnetic lens ring*TAGARNO Ring light IR**Glass table
XKEY Control BoxTAGARNO Ring light UV**Cleaning kit
Foot switchBacklight kitCircular tilting table
FHD monitors per requestCoaxial light

* Magnetic lens rings are only compatible with ZAP when the camera is mounted with the extension kit.
** TAGARNO Ringlights can’t be mounted on ZAP on lens +3, +4 and +5 when the camera is placed directly in the camera mount

PC REQUIREMENTS

FULL HD 1080P @ 59,94/50HZ
OSDesktopLaptop
Windows 7, 8 or 10 (with DirectX 11)
Memory8GB
CPUIntel® Core™ i5 or i7 @2.4GHz,
(4th generation named 4xxx or newer)
CPU: Intel® Core™ i5 or i7 @2.4GHz
(4th generation named 4xxx or newer)
Hard Disc Space1GB required (SSD type recommended)
ConnectionsUSB 3.0 xHCI host controller (Intel chipset recommended)
Integrated GraphicsIntel® HD Graphics 4000Intel® HD Graphics 4400
Dedicated graphics cardAMD Radeon™, HD 7xxx Series with 2GB RAMnVidia GeForce GT 740M with 2GB RAM
Monitor resolution1920×1080 (recommended)
FULL HD 1080P @ 29,97/25HZ AND HD 720P @ 59,94/50/30/25HZ
OSDesktopLaptop
Windows 7, 8 or 10 (with DirectX 11)
Memory4GB
CPUIntel® Core™ [email protected] or [email protected], (4th generation named 4xxx or newer)Intel® Core™ i3 @ 3.2GHz, (4th generation named 4xxx or newer)
Hard Disc Space1GB required (SSD type recommended)
ConnectionsUSB 3.0 xHCI host controller (Intel chipset recommended)
Integrated GraphicsIntel® HD Graphics
Dedicated graphics cardAMD Radeon™, 1GB ramnVidia GeForce GT 1GB RAM
Monitor resolution1920×1080 (recommended)

SOFTWARE RECOMMENDED

Windows 7Youcam 7
Windows 8Windows 8 Camera App
Windows 10Windows 10 Camera App

MAINTENANCE

  • Store and use the product in a dry, clean and ventilated room.
  • Do not place the product in direct sunlight, next to a radiator/heater or some place where the system may be subjected to liquids.
  • All plugs are designed to be used in one way only. Therefore, you should never use force when you connect the system.
  • Remember to disconnect all elements if you intend to move the product.
  • If you move the product from a cold to a hot room, you must wait at least an hour before you turn it on, to avoid short circuits due to condensation.
  • Remove the cables by pulling the plug itself – never by pulling the cable.
  • If the product needs repair, never do it yourself, contact your distributor.
  • When cleaning the product, please turn off the system and wait untill the system has cooled off.
  • Clean the product with a damp cloth. Never use strong cleaning agents or chemicals – these may damage the microscope.
  • Clean the lens regularly with isopropyl alcohol and a microfiber cloth or with the TAGARNO cleaning kit.

WARRANTY

Warranty terms for the product shall be as follows:
TAGARNO warrants that the product will correspond with the specification at the time of delivery and will be free from defects in material and workmanship for a period of 24 months (2 years) from date of invoice from Supplier.
This warranty covers:
a. The replacement of defective parts.
b. All labour costs to exchange defective parts in product.
c. Complete functions test of product before return to end user’s site.
d. Return transport costs of product from TAGARNO to end user’s site.
The warranty only applies if the product is packed, shipped, stored, handled and maintained correctly.
Failures due to improper packing and transport are not covered.
Failures due to drops and sudden blows are not covered.
Failures due to storage and handling in extreme high or low temperatures are not covered.
Failures due to storage or handling in extreme high humidity are not covered.

ERGONOMICAL RECOMMENDATIONS

Please be careful when carrying the product from one place to another.
Please do not lift the microscope by grabbing the camera arm.
All TAGARNO products are marked with a product label. Products sold in the US also have a FDA approval label (right):

TAGARNO ZAP
Model No.: XXXXXX
Serial No.: XXXXX
Supply: 12V0.5A
TAGARNO A/S – Finlandsvej 2, 8700 Horsens, Denmark. YYYY-MM-DD
TAGARNO Zap Stand Flexible Digital Microscope - ICON 16
Manufactured by: TAGARNO A/S
Finlandsvej 2
DK-8700 Horsens
Denmark
Made in Denmark
Manufactured: Month-Year

Values marked with X varies from product to product and are replaced by specific numbers and letters.

DECLARATION OF CONFORMITY

PRODUCT
MODEL
ART
TAGARNO FHD ZAP | Type no.: 690800 (U.S) / 690600 (Rest of world)
Inspection camera unit
MANUFACTURER
NAME
ADRESS
ZIPCODE/CITY
COUNTRY
PHONE
TAGARNO A/S
Finlandsvej 2
8700 Horsens
Denmark
+45 76251111Tenda E12 AC1200 Wireless PCI Express Adapter - CE
DESCRIPTION
TAGARNO A/S hereby declares that the product listed above, consisting of a camera unit and a 12V power supply, is in compliance with the following European directives:
2006/25/EU
2014/30/EU
2014/35/EU
Artificial Optical Radiation
Electromagnetic Compatibility
Low Voltage Directive
By conforming to the following harmonized standards:
IEC 60825-1:2014
EN 61326-1:2013
IEC 61010-1:2010
Class 2
Class B / Basic Electromagnetic Environment
IECEE CB Scheme Ref. Certif. No. NO104184
THE DECLARATION IS ISSUED BY
MANUFACTURERTAGARNO A/S

COMPLIANCE STATEMENTS

INDUSTRY CANADA COMPLIANCE STATEMENT
CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus meets the requirements of the Canadian InterferenceCausing Equipment Regulations.
FCC COMPLIANCE STATEMENT (UNITED STATES)
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

TAGARNO LOGOTAGARNO A/S
Finlandsvej 2
8700 Horsens
Denmark
+45 76251111
[email protected]
www.tagarno.com

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
